Allen-Bradley 1794-ASB/E Retrofit-Compatible Remote I/O Adapter

Allen-Bradley 1794-ASB/E Retrofit-Compatible Remote I/O Adapter for Legacy Systems

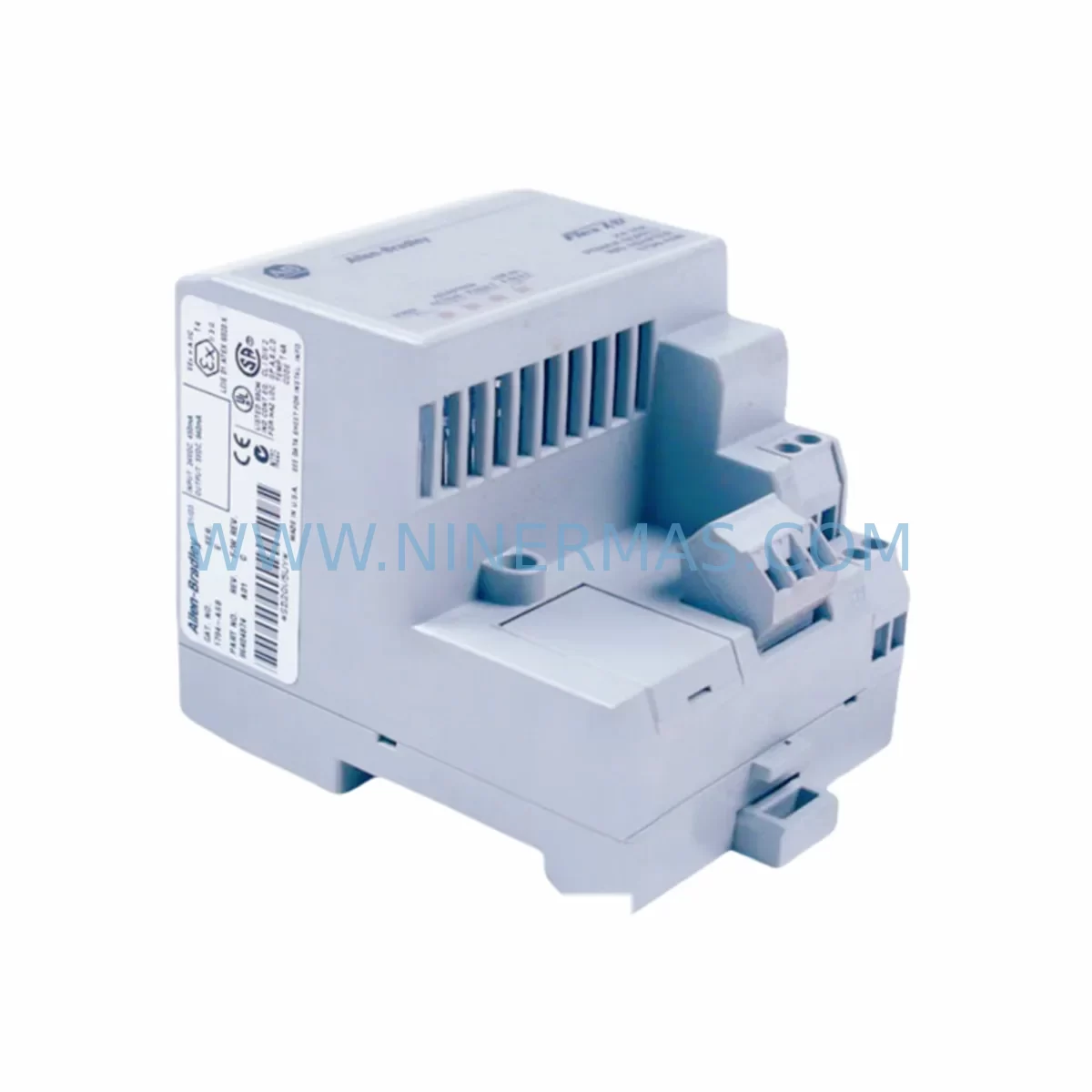

The Allen-Bradley 1794-ASB/E is a ruggedized Remote I/O Adapter module within the Rockwell Automation FLEX I/O platform, engineered to interface legacy Allen-Bradley Remote I/O (RIO) networks with modern distributed I/O architectures. As production lines age and original equipment manufacturers discontinue support for older PLC-5 and SLC 500 control platforms, the 1794-ASB/E has become a critical bridge component for facilities seeking to extend operational life without committing to a full control system overhaul. NINERMAS maintains verified stock of the 1794-ASB/E with pre-shipment functional testing and a 12-month warranty, supporting procurement teams, maintenance engineers, and system integrators across process and discrete manufacturing sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Facilities running legacy Allen-Bradley PLC-5 or SLC 500 systems frequently encounter the challenge of maintaining distributed I/O drops when the original 1794-ASB adapter fails or becomes unavailable through standard distribution channels. The 1794-ASB/E addresses this directly by maintaining full backward compatibility with the Remote I/O network topology, allowing maintenance teams to replace a failed adapter without reprogramming the host controller or restructuring the rack addressing scheme.

A successful retrofit begins with a thorough audit of the existing FLEX I/O terminal base configuration. The 1794-ASB/E mounts onto a compatible terminal base — typically a 1794-TB2 or 1794-TB3 — and draws 24V DC power from the local 1794-PS13 power supply module. Before removing the failed adapter, engineers should document the DIP switch settings governing rack number, starting quarter, and last chassis designation, as these directly determine how the PLC-5 scanner or SLC 500 with a 1747-SN Remote I/O Scanner module addresses the I/O drop. Incorrect switch configuration is the most common cause of communication faults during adapter replacement.

When the host controller is a ControlLogix platform using a 1756-DHRIO communication module, the 1794-ASB/E continues to function as a remote I/O node on the legacy RIO network segment, preserving the existing ladder logic and I/O map without modification. This is particularly valuable in hybrid migration projects where a facility is transitioning from PLC-5 to ControlLogix incrementally, retaining existing FLEX I/O drops during the transition period before eventually migrating to EtherNet/IP-based I/O using modules such as the 1794-AENT or 1794-AENTR adapter.

For I/O expansion within the same FLEX I/O drop, the 1794-ASB/E supports a range of 1794 series I/O modules including the 1794-IB16 (16-point 24V DC digital input), 1794-OB16 (16-point 24V DC digital output), 1794-IE8 (8-channel analog input), and 1794-OE4 (4-channel analog output). When adding modules to an existing drop, engineers must verify that the total backplane current draw does not exceed the capacity of the installed 1794-PS13 power supply. If current budgets are tight, a second power supply can be added at a mid-point in the terminal base assembly.

Signal integrity is another consideration during retrofit. In environments with high electrical noise — common in motor control centers and variable frequency drive (VFD) cabinets — the RIO coaxial cable shielding and termination resistors at each end of the RIO trunk must be inspected and replaced if degraded. The 1794-ASB/E’s ruggedized /E revision designation indicates enhanced noise immunity, making it the preferred choice over earlier revisions in electrically demanding environments. Where signal isolation is required between the RIO network and field devices, signal isolators or barriers should be installed at the terminal base level rather than modifying the adapter itself.

HMI integration should also be reviewed during the retrofit process. If the facility uses a PanelView or PanelView Plus terminal communicating via DH+ or RIO, the I/O tag addresses mapped to the 1794-ASB/E drop must be verified against the HMI screen database. Any rack or slot address changes introduced during the replacement will require corresponding updates in the HMI project file to prevent display errors or control faults at the operator station.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a failed 1794-ASB/E in a live production environment. NINERMAS recommends a structured hot-swap preparation protocol: before the replacement unit arrives on-site, the maintenance team should capture a full backup of the PLC-5 or SLC 500 program using RSLogix 5 or RSLogix 500 software, record all DIP switch positions on the failed adapter (if still readable), and photograph the terminal base wiring to confirm conductor assignments at the 1794-TB2 or 1794-TB3 terminal base.

Upon receipt of the replacement 1794-ASB/E, the DIP switches should be configured on the bench before installation, matching the documented rack address and quarter settings. This eliminates the need for switch adjustments inside the control cabinet under time pressure. The module can then be installed into the terminal base with the system de-energized, and power restored with the host controller in Program mode to allow communication verification before returning to Run mode.

For facilities with redundant control architectures, the RIO network segment carrying the 1794-ASB/E drop can often be isolated and restored without affecting other I/O drops on the same trunk, provided the trunk termination resistors are correctly repositioned. This approach limits the scope of the outage to the affected drop rather than the entire RIO network, preserving control continuity for the remainder of the production line.

NINERMAS ships the 1794-ASB/E with a pre-shipment functional test report confirming communication initialization, backplane power distribution, and DIP switch accessibility. Units are packaged in anti-static enclosures with original-style labeling to support traceability requirements in regulated manufacturing environments. Standard lead times are confirmed at order placement, with expedited options available for critical breakdown situations. All units carry a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions.

Retrofit Support FAQ

Q1: Is the 1794-ASB/E a direct replacement for the earlier 1794-ASB and 1794-ASB/A revisions?
Yes. The /E revision is backward compatible with all earlier 1794-ASB revisions. The DIP switch layout and backplane connector are identical, and no changes to the host controller program or I/O map are required when substituting the /E revision for an earlier variant. Confirm the terminal base model (1794-TB2, 1794-TB3, or 1794-TB32) is compatible before installation.

Q2: What commissioning steps are required after installing the replacement adapter?
After physical installation, verify DIP switch settings match the original rack address, starting quarter, and last chassis configuration. Power up the system with the host controller in Program mode and confirm the I/O drop appears in the scanner’s I/O configuration without fault codes. Check the RIO status LED on the adapter for solid green indication before switching the controller to Run mode. If faults persist, inspect the RIO coaxial cable connections and termination resistors at both ends of the trunk.

Q3: Can the 1794-ASB/E operate on a ControlLogix system using a 1756-DHRIO module?
Yes. The 1756-DHRIO module supports Remote I/O scanner functionality, allowing ControlLogix to communicate with 1794-ASB/E drops on a legacy RIO network. The I/O data is mapped into the ControlLogix controller tags via the 1756-DHRIO’s rack configuration. No changes to the 1794-ASB/E hardware or DIP switch settings are required when migrating the host controller from PLC-5 to ControlLogix, provided the rack addressing remains unchanged.

Q4: What warranty and testing documentation does NINERMAS provide with the 1794-ASB/E?
Each unit shipped by NINERMAS includes a pre-shipment functional test report documenting communication initialization, backplane power verification, and visual inspection results. The 12-month warranty covers manufacturing defects and communication failures under normal operating conditions. Warranty claims are processed via sale@ninermas.com with reference to the shipment documentation provided at delivery.
