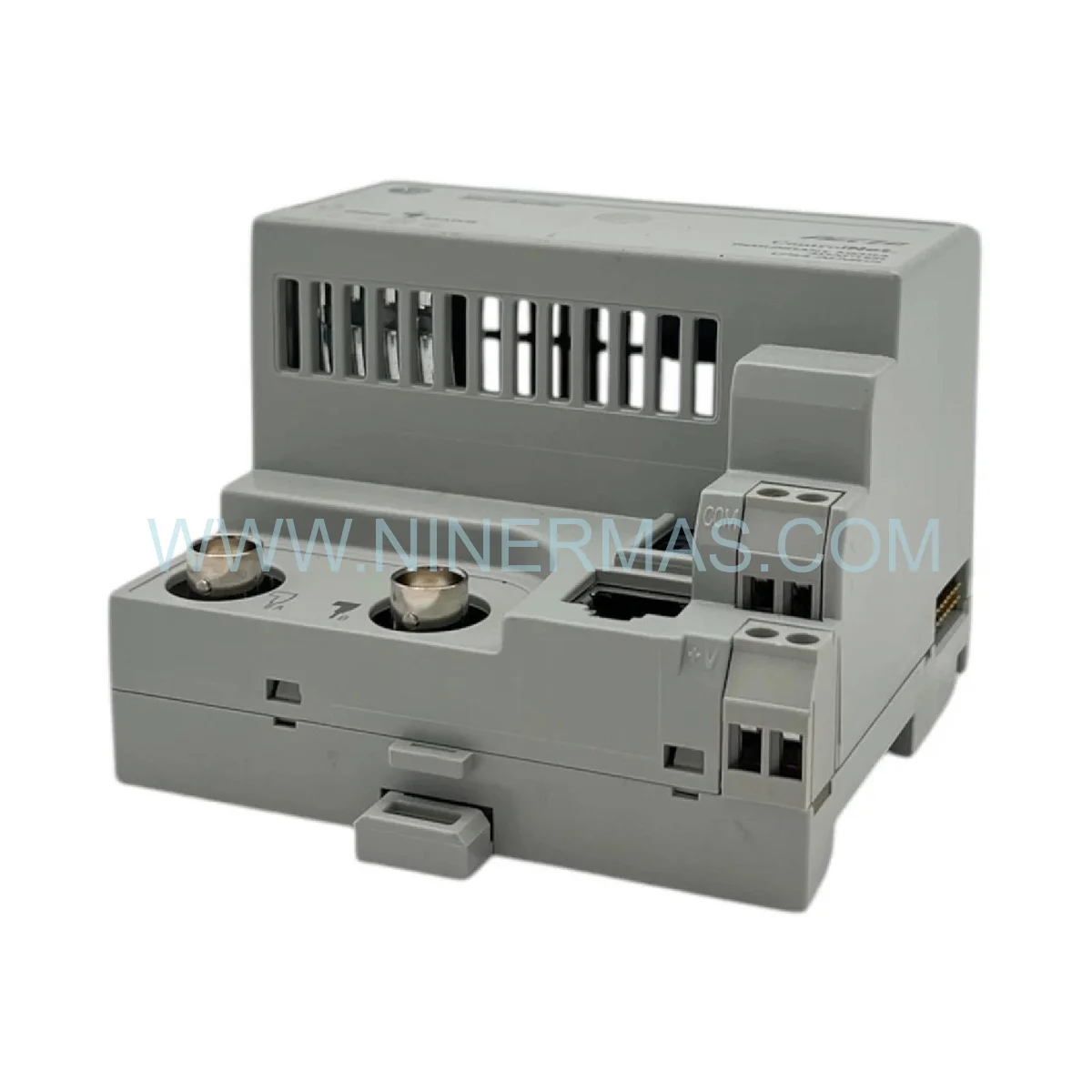

Allen-Bradley 1794-ACNR ControlNet Redundant Adapter — Retrofit & Upgrade

Allen-Bradley 1794-ACNR — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Allen-Bradley 1794-ACNR stands out as a cornerstone component in any ControlNet infrastructure modernization initiative. Its deterministic 5 Mbps dual-path architecture directly addresses the performance bottlenecks that plague aging single-channel FLEX I/O deployments, enabling facilities to extend operational lifespan while simultaneously elevating network reliability to modern standards. The Allen-Bradley 1794-ACNR bridges the gap between legacy field device wiring and contemporary high-availability control architectures without requiring a full system overhaul.

One of the most compelling advantages of this module in a retrofit context is its backward compatibility with the entire 1794 FLEX I/O chassis ecosystem. Existing backplane wiring, I/O modules, and ControlNet node configurations remain intact during the upgrade, dramatically reducing engineering rework hours. This plug-compatible design makes it the preferred upgrade path for facilities running obsolete single-media adapters that no longer meet uptime SLAs or safety integrity requirements.

From a migration risk and cost perspective, deploying the 1794-ACNR as part of a phased modernization strategy eliminates the need for costly parallel system runs or extended maintenance windows. Automatic media switchover occurs in milliseconds, meaning production continuity is preserved throughout the transition — a critical factor when calculating total cost of ownership for any retrofit project.

Upgrade Highlights & Compatibility

• ✅ Dual ControlNet Coax Ports — Redundant media paths eliminate single points of failure inherited from legacy single-channel adapters
• Millisecond Automatic Failover — Seamless integration with existing ControlNet scanners; no PLC program changes required
• ✅ Full 1794 Series Backward Compatibility — Drop-in replacement for aging FLEX I/O network adapters; preserves existing I/O module investments
• Hot-Swap Capable — Field replacement without chassis shutdown supports zero-downtime maintenance strategies
• ✅ RSNetWorx Integration — Real-time redundancy diagnostics enable predictive maintenance and future-proofing of network health monitoring
• Wide Operating Range — 0°C to 60°C thermal envelope suits both climate-controlled control rooms and harsh plant-floor enclosures

Modernization Use Cases & Success Stories

DCS Migration in Petrochemical Processing: A refinery operating a legacy Distributed Control System with single-media ControlNet adapters faced recurring unplanned shutdowns due to coax cable degradation. By replacing aging adapters with the 1794-ACNR across 12 FLEX I/O drops, the facility achieved 99.97% network availability — eliminating the root cause of production losses estimated at $180,000 per incident. The retrofit required no changes to existing PLC logic or field wiring.

Turbine Supervisory Instrumentation (TSI) Upgrade: A combined-cycle power plant modernizing its turbine monitoring infrastructure integrated the 1794-ACNR to provide redundant data paths between vibration/temperature I/O modules and the ControlLogix processor. The dual-path architecture ensured that safety interlock signals remained deterministic even during scheduled network maintenance, satisfying IEC 61511 functional safety audit requirements without a full system replacement.

Automotive Body Shop Retrofit: A Tier-1 automotive supplier upgraded paint booth and weld cell control networks by deploying 1794-ACNR modules across 8 FLEX I/O chassis. The performance enhancement reduced network scan time variability by 40%, improving robot synchronization accuracy and reducing weld defect rates — all achieved during a single planned weekend maintenance window.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Allen-Bradley 1794-ACNR | | **Network Protocol** | ControlNet (IEEE 802.3 coax, 5 Mbps deterministic) | | **Redundancy Architecture** | Dual-media automatic switchover | | **Failover Response Time** | <1 ms (sub-millisecond) | | **Compatible Chassis** | 1794 FLEX I/O series (all slot counts) | | **Power Supply** | 24V DC, 150 mA typical | | **Operating Temperature** | 0°C — 60°C (32°F — 140°F) | | **Mounting Standard** | DIN rail, 1794 backplane compatible | | **Lifecycle Status** | Active / Available for Legacy Retrofit | | **Certifications** | UL, CE, cUL | | **Hot-Swap Support** | Yes — zero-downtime field replacement | | **Diagnostic Interface** | RSNetWorx for ControlNet | | **Country of Origin** | United States |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every 1794-ACNR unit is sourced as genuine Allen-Bradley hardware — factory sealed, serialized, and traceable. No refurbished or remarked components. Authenticity documentation available upon request for regulated industries.

Expedited Global Logistics: Recognizing that retrofit projects operate on compressed timelines, we maintain ready stock with expedited international shipping to North America, Europe, Southeast Asia, and the Middle East. Emergency same-day dispatch available for critical plant outage scenarios.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in legacy ControlNet architecture — from node addressing conflicts to coax impedance matching for aging cable plants. We provide pre-deployment compatibility assessments, configuration guidance, and post-installation commissioning support to ensure your retrofit delivers the performance enhancement promised at project kickoff.

Retrofit FAQ (Upgrade Guide)

Q1: Can the 1794-ACNR physically replace an older single-media FLEX I/O adapter without chassis modification?
Yes. The 1794-ACNR uses the same 1794 backplane connector and occupies the same chassis slot position as standard FLEX I/O adapters. No mechanical modification is required. Verify chassis slot count compatibility (2-slot minimum for adapter + power supply) before ordering.

Q2: How does the 1794-ACNR handle communication between new ControlLogix processors and legacy ControlNet scanners?
The module operates transparently at the ControlNet media layer — it does not alter node addressing or connection scheduling. Existing scanner configurations in RSNetWorx remain valid. Both legacy 1756-CNB and current 1756-CN2 scanner modules are compatible, making it an ideal hardware upgrade without requiring software reconfiguration.

Q3: What is the recommended spare parts strategy for facilities running the 1794-ACNR in critical applications?
For high-availability environments (power generation, chemical processing), we recommend a minimum 1:4 hot-spare ratio — one spare unit per four installed modules. Given the module’s active lifecycle status, multi-year stocking agreements are available to protect against future supply chain disruptions for your retrofit investment.

Q4: Can the 1794-ACNR support migration from ControlNet to EtherNet/IP in a phased approach?
The 1794-ACNR is a ControlNet-specific adapter and does not natively bridge to EtherNet/IP. However, it serves as an ideal interim solution during phased migrations — maintaining ControlNet stability while EtherNet/IP infrastructure is built in parallel. When ready for full migration, the 1794-AENTR (EtherNet/IP adapter) provides a direct upgrade path within the same FLEX I/O chassis.

Q5: How do I verify network redundancy is functioning correctly after installation?
Use RSNetWorx for ControlNet to monitor both media paths in real time. The module’s onboard diagnostic LEDs (Module Status, Network A, Network B) provide immediate visual confirmation of redundancy health. Simulate a media fault by disconnecting one coax cable — the system should continue operating without any I/O data loss, confirming successful retrofit deployment.

Q6: Is the 1794-ACNR compatible with third-party ControlNet devices from other manufacturers?
Yes. ControlNet is an open, IEC-standardized protocol. The 1794-ACNR interoperates with any ControlNet-certified device regardless of manufacturer, making it a versatile component in mixed-vendor legacy systems undergoing modernization. Confirm ControlNet conformance certification of third-party devices before integration.
