Allen-Bradley 1791DS-IB16 Safety Input Module | 16-Point DeviceNet CompactBlock for Industrial Automation

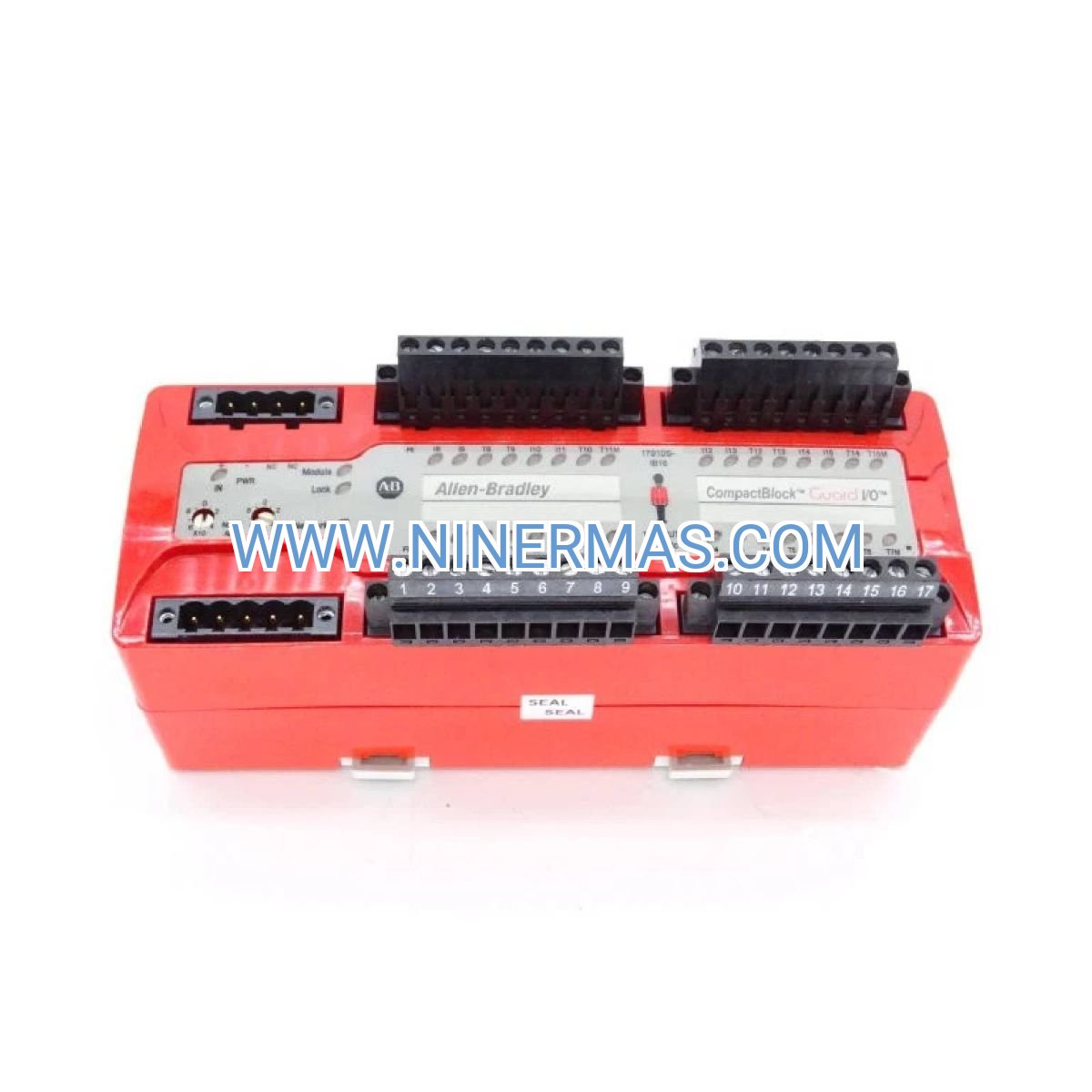

Allen-Bradley 1791DS-IB16 DeviceNet Safety Input Module (Industrial-Grade Safety Control System)

The Allen-Bradley 1791DS-IB16 is a professional DeviceNet safety input module designed for critical industrial safety applications. Through advanced SIL 3/PLe certified technology and CompactBlock architecture, it delivers reliable monitoring of emergency stops, safety interlocks, light curtains, and guard switches with exceptional diagnostic capabilities.

Ideal for manufacturing automation, packaging machinery, material handling systems, robotic work cells, and process control environments where personnel safety and equipment protection are paramount. This module addresses common challenges including inadequate safety response time, complex wiring requirements, limited diagnostic feedback, and integration difficulties with legacy safety devices.

Featuring standardized design with flexible configuration options, the 1791DS-IB16 offers rapid commissioning, comprehensive fault detection, seamless DeviceNet integration, and compliance with international safety standards. Suitable for system integrators, OEM machine builders, plant maintenance teams, and safety engineers. Contact our technical team for application-specific configuration guidance and quotation.

Core Features & Advantages

Certified Safety Performance
SIL 3 (IEC 61508) and PLe/Category 4 (ISO 13849-1) certified safety integrity level ensures compliance with global machinery safety directives. Provides dual-channel monitoring with cross-fault detection for maximum reliability in critical shutdown circuits.

16-Point Safety Input Capacity
Supports up to 16 independent safety input devices including emergency stop buttons, enabling devices, safety mats, interlock switches, and two-hand controls. Configurable input grouping allows flexible safety zone management within a single module.

DeviceNet Safety Protocol Integration
Native DeviceNet Safety (CIP Safety) communication enables seamless integration with GuardLogix, CompactLogix, and FlexLogix safety controllers. Reduces wiring complexity by up to 60% compared to hardwired safety systems while maintaining deterministic response times under 10ms.

CompactBlock Modular Design
Space-efficient DIN-rail mountable housing with removable terminal blocks facilitates quick installation and maintenance. Hot-swappable capability minimizes downtime during module replacement, with configuration stored in safety controller for automatic restoration.

Comprehensive Diagnostic Capabilities
Real-time monitoring of input status, wire break detection, short circuit identification, and module health indicators. LED status displays and network-accessible diagnostics enable rapid troubleshooting and predictive maintenance scheduling.

Robust Industrial Construction
IP20-rated enclosure with conformal coating protects against dust, moisture, and industrial contaminants. Operating temperature range of 0°C to 60°C (32°F to 140°F) suits harsh manufacturing environments including foundries, chemical plants, and outdoor installations.

Typical Application Scenarios

This safety input module is engineered for environments demanding high-integrity safety monitoring with network-based diagnostics, particularly in:

Automated Manufacturing & Assembly Lines
Monitors emergency stop circuits, safety gates, and presence-sensing devices across multi-station production systems. Enables centralized safety management while reducing cabinet space and wiring costs in automotive, electronics, and consumer goods manufacturing.

Packaging & Material Handling Equipment
Integrates safety interlocks for access doors, light curtain muting controls, and conveyor pull-cord switches. Supports complex safety logic for high-speed packaging machines, palletizers, and automated guided vehicle (AGV) systems in food, beverage, and logistics facilities.

Robotic Work Cells & Machine Tools
Provides safety-rated monitoring for collaborative robot safety zones, machine guard positions, and operator enabling devices. Facilitates compliance with ANSI/RIA R15.06 and ISO 10218 robotic safety standards in metal fabrication, welding, and precision machining applications.

Process Industry Safety Systems
Connects to safety instrumented systems (SIS) for monitoring critical process parameters, valve position feedback, and emergency shutdown initiators. Applicable in chemical processing, oil & gas, pharmaceutical manufacturing, and water treatment facilities requiring IEC 61511 compliance.

Technical Specifications & Selection Guide

To ensure optimal system design and compliance, we provide standardized electrical, mechanical, and environmental specifications. Custom configurations available for specialized applications.

Selection Considerations:
When specifying this module, evaluate: total number of safety input devices required, safety controller compatibility (GuardLogix 5570, CompactLogix 5380, etc.), DeviceNet network topology and cable distances, required safety response time for your application, environmental conditions (temperature, vibration, EMI), and applicable regional safety standards. For assistance with safety system architecture design, risk assessment calculations, or proof-test interval determination, our certified functional safety engineers can provide complimentary consultation based on your machine specifications.

Advanced Configuration Options

Flexible Input Grouping
Configure inputs as single-channel monitoring (standard sensors), dual-channel equivalent (redundant sensors), or test pulse compatible (OSSD devices). Supports mixed configurations within the same module for optimized device connectivity.

Network Redundancy Support
Compatible with DeviceNet redundant media configurations for enhanced network availability in critical applications. Automatic failover maintains safety function integrity during network segment failures.

Integration with Safety Controllers
Pre-configured Add-On Profiles (AOP) for Studio 5000 Logix Designer software enable rapid programming and commissioning. Electronic Data Sheets (EDS) files available for third-party DeviceNet master integration.

Diagnostic & Maintenance Features
Configurable fault response behaviors (stop outputs, maintain last state, or custom logic). Timestamped event logging accessible via safety controller for compliance documentation and incident investigation.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom-configured or high-volume orders may require 2-3 weeks; expedited processing available upon request.

Warranty: Backed by Allen-Bradley's standard 2-year limited warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Comprehensive support including pre-sales application engineering, configuration file development, on-site commissioning assistance (subject to location and scope), and remote diagnostic support. Access to Rockwell Automation TechConnect support portal for firmware updates and technical bulletins.

Documentation Package: Each module ships with complete technical documentation including installation instructions, wiring diagrams, safety function specifications, DeviceNet network configuration guidelines, and certificate of compliance. CAD drawings (DWG, STEP formats) and 3D models available for panel design integration.

Compliance & Certifications: Factory-tested to UL 1998 (Safety-Related Software), IEC 61508 (Functional Safety), and ISO 13849-1 (Safety of Machinery) standards. TÜV Rheinland certified with detailed safety manual documenting PFH_d (Probability of dangerous Failure per Hour) calculations for SIL verification.

Frequently Asked Questions (FAQ)

Q: How does the 1791DS-IB16 DeviceNet safety input module integrate with existing safety relay systems?
A: The module can operate alongside traditional safety relay logic or completely replace hardwired systems when paired with a GuardLogix or CompactLogix safety controller. Migration strategies include phased replacement (hybrid operation during transition) or complete system upgrade. Our application engineers can assess your current safety architecture and recommend the most cost-effective integration approach, including ROI analysis comparing wiring labor savings versus equipment investment.

Q: What is the maximum number of safety input devices one module can monitor?
A: The 1791DS-IB16 supports 16 physical input terminals. When configured for dual-channel (redundant) safety devices like Category 4 E-stops or safety gates, each device consumes two inputs, yielding 8 monitored devices. Single-channel devices (non-safety sensors for diagnostics) can utilize all 16 points. Input grouping is software-configurable via Studio 5000 safety programming environment.

Q: What energy savings or efficiency improvements can be expected with this safety I/O system?
A: While the module itself is not an energy-saving device, networked safety architecture reduces panel space requirements by approximately 40-50% compared to relay-based systems, lowering cooling loads and enabling smaller enclosures. Diagnostic capabilities reduce unplanned downtime by 25-35% through predictive maintenance, indirectly improving overall equipment effectiveness (OEE) and energy utilization per production unit.

Q: What are the environmental requirements for installation? What is the IP rating?
A: The module is rated IP20 for finger-safe protection and requires installation within an IP54 or higher rated control enclosure for industrial environments. Operating temperature range is 0°C to 60°C with 5-95% non-condensing humidity. For applications exceeding these parameters (extreme heat, corrosive atmospheres, outdoor exposure), consult regarding conformal coating options or alternative housing solutions such as NEMA 4X stainless steel enclosures.

Q: Can this module support remote monitoring and data collection? Which protocols are compatible?
A: Yes, when connected to a GuardLogix or CompactLogix safety controller, all diagnostic data is accessible via EtherNet/IP for integration with FactoryTalk View HMI, SCADA systems, or cloud-based analytics platforms. The safety controller can publish input status, fault codes, and module health metrics using standard industrial protocols including OPC UA, Modbus TCP (via gateway), and MQTT for IIoT applications. Real-time safety status remains on the dedicated DeviceNet Safety network to maintain deterministic performance.

Q: Is technical training available for programming and troubleshooting this safety system?
A: Rockwell Automation offers comprehensive training courses including "Safety System Fundamentals" (CCP146), "GuardLogix Safety Applications" (CCP299), and "DeviceNet Network Configuration" (CCP143) through authorized training centers worldwide. We also provide customized on-site training tailored to your specific safety application, including hands-on programming exercises and troubleshooting scenarios based on your equipment configuration.

Request Technical Support & Quotation

To receive detailed application engineering support, system configuration recommendations, or project quotation, please provide the following information: project name and industry sector, specific safety application (machine type, hazard description), number and types of safety input devices (E-stops, gates, light curtains, etc.), existing or planned safety controller model, DeviceNet network architecture and cable run distances, required certifications or compliance standards, installation environment conditions, and preferred delivery timeline.

Our certified functional safety engineers will respond within 24 hours with tailored recommendations including safety system architecture diagrams, bill of materials with pricing, estimated commissioning timeline, and compliance documentation requirements.
