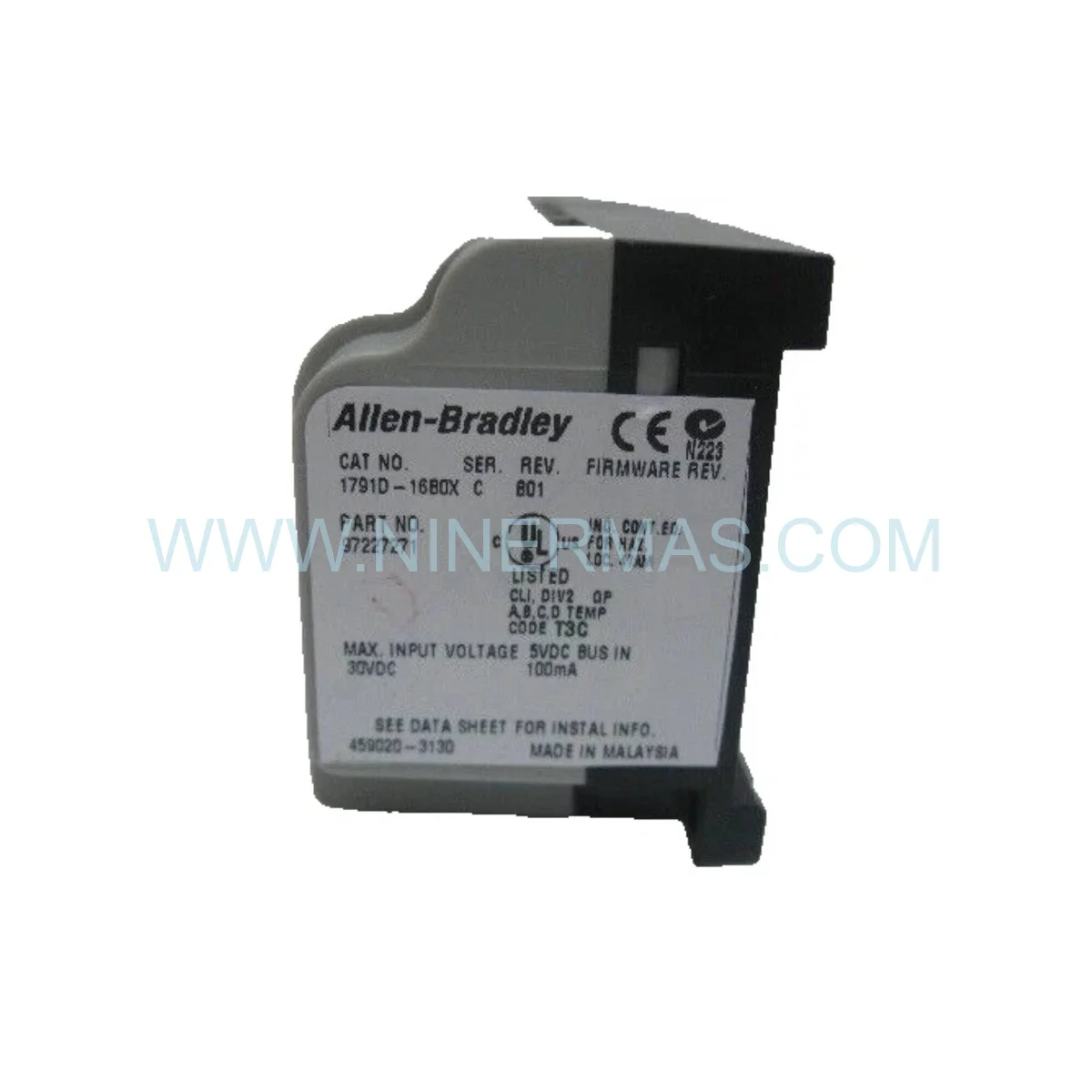

Allen-Bradley 1791D-16B0X | CompactBlock I/O DC Input Module

Allen-Bradley 1791D-16B0X CompactBlock I/O DC Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, the Allen-Bradley 1791D-16B0X represents a foundational component in modern Distributed Control System (DCS) and Process Control architectures. This 16-point discrete DC input expansion module is engineered to extend sensing capacity within CompactBlock I/O networks — a platform that has served as the backbone of Factory Sealed distributed automation for decades. The 1791D-16B0X integrates seamlessly into existing Fieldbus topologies, enabling engineers to scale signal acquisition without overhauling the entire control infrastructure.

What distinguishes this module from generic alternatives is its native compatibility with Allen-Bradley’s CompactBlock I/O backplane communication protocol. Unlike third-party substitutes, the 1791D-16B0X maintains full firmware-level handshaking with ControlLogix and CompactLogix controllers, ensuring deterministic scan times and zero data-loss under high-cycle conditions. Its DCS Hardware design philosophy prioritizes redundancy and fault isolation — critical attributes in safety-instrumented environments.

Original stock of the 1791D-16B0X has become increasingly scarce as Rockwell Automation transitions its portfolio toward next-generation platforms. For facilities operating legacy systems, sourcing a Factory Sealed, untouched unit is no longer a routine procurement task — it is a strategic supply chain decision that directly impacts operational continuity.

Key Technical Highlights

16 Discrete DC Input Points — Sinking/sourcing configurable, supporting 10-30V DC signal range for broad sensor compatibility across industrial environments.
High-Speed Signal Acquisition — Fast scan response time ensures real-time Process Control feedback with minimal latency in time-critical sequences.
Channel-to-Backplane Isolation — Built-in electrical isolation suppresses noise interference from adjacent power circuits, protecting signal integrity in electrically harsh environments.
Per-Channel LED Diagnostics — Individual status indicators on each of the 16 input channels accelerate fault identification and reduce mean-time-to-repair during unplanned shutdowns.
DIN Rail Mounting — Standard 35mm DIN rail compatibility enables compact panel installation and simplifies module replacement without disturbing field wiring.
Fieldbus Network Ready — Compatible with DeviceNet, ControlNet, and EtherNet/IP communication layers, supporting flexible Fieldbus topologies in both greenfield and brownfield deployments.
Redundancy Support — Designed to operate within redundant I/O configurations, the module supports hot-swap replacement to maintain system availability during maintenance windows.

Vertical Industry Applications

Petrochemical & Refining: In high-hazard process environments, the 1791D-16B0X collects discrete signals from pressure switches, emergency shutdown valves, and flame detectors. Its channel isolation and robust construction reduce the risk of spurious trips caused by electrical noise — directly minimizing unplanned system downtime in continuous-process facilities.

Mining & Mineral Processing: Conveyor belt monitoring, crusher position feedback, and sump level detection all demand reliable Legacy Components that can withstand vibration, dust ingress, and wide temperature swings. The 1791D-16B0X’s industrial-grade design meets these demands without requiring costly infrastructure upgrades.

Marine & Offshore Platforms: Shipboard automation and offshore drilling control systems frequently rely on established DCS Hardware platforms that cannot be easily replaced mid-lifecycle. The 1791D-16B0X provides a Factory Sealed replacement option that preserves system certification and avoids costly re-engineering.

Pharmaceutical & Food & Beverage: Batch process validation and regulatory compliance require consistent, traceable hardware. Sourcing an original 1791D-16B0X ensures that IQ/OQ/PQ documentation remains valid and that no revalidation cycle is triggered by hardware substitution.

Power Generation & Utilities: Turbine control, switchgear monitoring, and grid protection systems depend on deterministic I/O response. The module’s fast scan capability and Fieldbus integration make it a reliable choice for critical infrastructure where milliseconds matter.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Allen-Bradley 1791D-16B0X supplied through our inventory is 100% Original — sourced directly from authorized distribution channels and verified against Rockwell Automation’s genuine part specifications. We do not supply refurbished, remanufactured, or counterfeit components. Each module ships in its original Factory Sealed packaging with intact tamper-evident seals, providing full traceability from manufacturer to end-user.

Our 12-Month Comprehensive Warranty covers all manufacturing defects and functional failures under normal operating conditions. Should a unit fail within the warranty period, we provide direct replacement without bureaucratic delays — because we understand that downtime in industrial facilities is measured in thousands of dollars per hour.

For Emergency Repair scenarios, we maintain dedicated fast-response inventory with same-day dispatch capability. International shipments are executed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited — with full customs documentation, commercial invoices, and HS code classification provided to eliminate clearance delays at destination ports.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the 1791D-16B0X I receive is a genuine Allen-Bradley original and not a counterfeit?
A: Authentic units carry a Rockwell Automation holographic label on the module housing, a traceable date code stamped on the backplane connector, and original Allen-Bradley packaging with a factory-applied barcode. Upon request, we provide a Certificate of Conformance and can cross-reference the unit’s serial number against Rockwell’s production records.

Q2: Where can I obtain the official datasheet and wiring diagram for the 1791D-16B0X?
A: The official product documentation — including the installation instructions (Publication 1791D-IN001) and the CompactBlock I/O User Manual — is available through Rockwell Automation’s Literature Library. We can also provide a copy of the relevant technical documentation alongside your order upon request.

Q3: Is the 1791D-16B0X compatible with both ControlLogix and CompactLogix controller platforms?
A: Yes. The 1791D-16B0X is designed for the CompactBlock I/O system, which interfaces with Allen-Bradley controllers via adapter modules (such as the 1791D-16B0X series adapters). Compatibility depends on the specific adapter and network scanner used. We recommend confirming your system’s adapter model and firmware revision before ordering to ensure seamless integration.

Q4: Our facility is undergoing a Legacy Upgrade from an older DCS platform. Can the 1791D-16B0X be integrated into a hybrid architecture alongside newer Logix controllers?
A: Absolutely. The CompactBlock I/O platform was specifically designed to support phased migration strategies. The 1791D-16B0X can coexist within hybrid DCS Hardware architectures where legacy I/O nodes communicate via DeviceNet or ControlNet while newer segments operate on EtherNet/IP — making it an ideal bridge component during multi-phase modernization projects.

Q5: What is the typical lead time for emergency orders, and do you support air freight to remote locations?
A: For in-stock units, same-day or next-business-day dispatch is standard. We support air freight delivery to all major industrial hubs globally — including offshore platforms, remote mining sites, and island-based facilities — via DHL, FedEx, and UPS. Estimated transit times range from 1-5 business days depending on destination.

Q6: Is the 1791D-16B0X classified as an End-of-Life (EOL) component, and what are the implications for long-term procurement?
A: The 1791D-16B0X is a mature product within Rockwell Automation’s portfolio, and availability through standard distribution channels is declining. This makes it a Critical Part for Industry Safety in facilities that cannot migrate to newer platforms on short notice. We recommend establishing a Maintenance Stock reserve of 1-3 units per system to protect against future supply disruptions and avoid emergency sourcing premiums.
