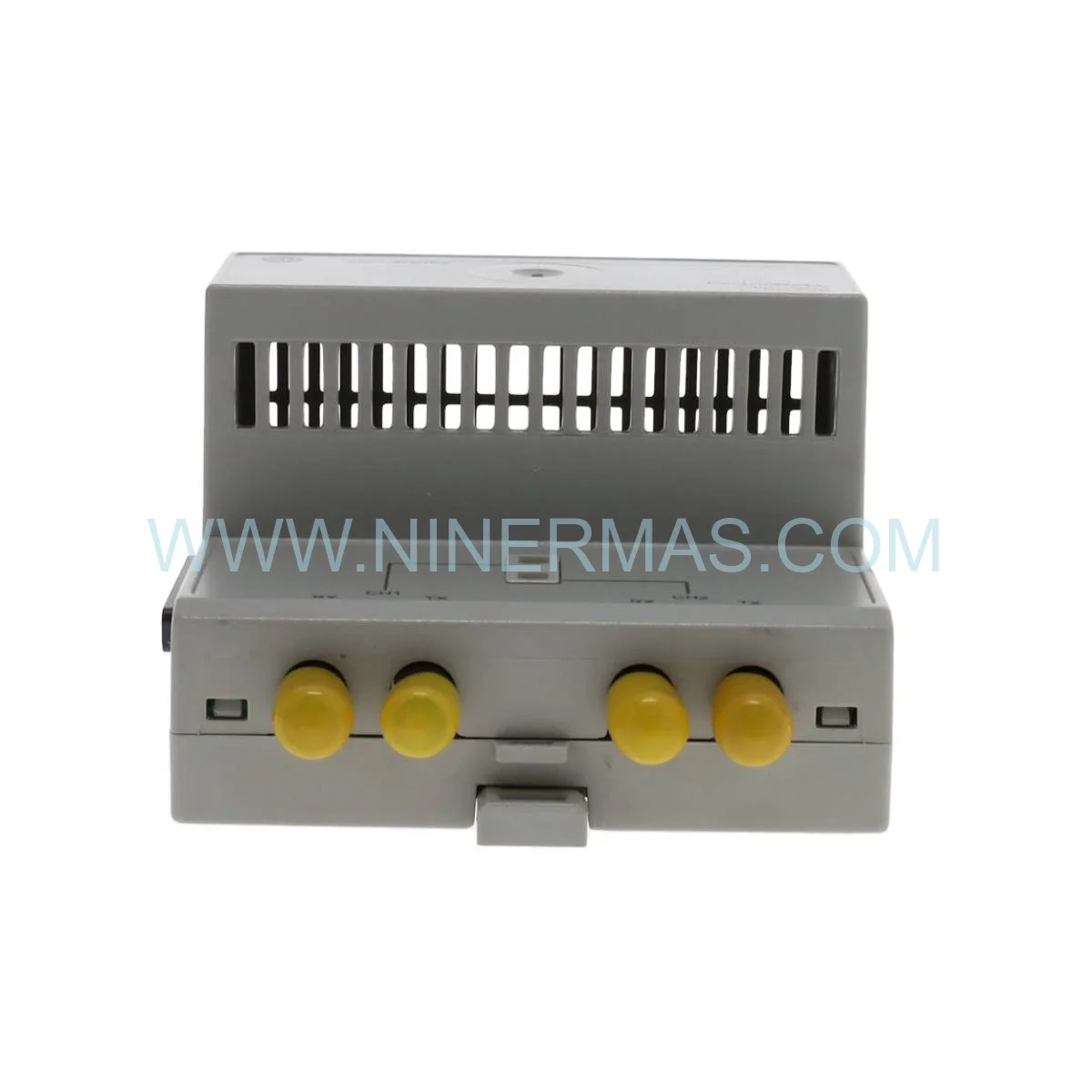

Allen-Bradley 1786-RPFM ControlNet Fiber Ring Module — New & Original

Allen-Bradley 1786-RPFM | Reliable ControlNet Fiber Ring Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing multi-zone production facilities, the Allen-Bradley 1786-RPFM stands as a cornerstone automation component for sustaining system availability in fiber-based ControlNet architectures. The 1786-RPFM delivers deterministic, 5 Mbps real-time data transmission across medium-distance ring topologies — a capability that directly reduces unplanned downtime and supports Operational Excellence targets in mission-critical environments. Whether coordinating distributed I/O modules, variable frequency drives, or HMI interfaces, this module ensures that time-sensitive control signals arrive with guaranteed latency, eliminating the communication bottlenecks that cascade into costly production stoppages.

Engineered to withstand the rigors of heavy industrial deployment, the 1786-RPFM operates reliably across a 0°C to 60°C thermal range and leverages fiber optic technology to achieve complete immunity from electromagnetic interference — a decisive advantage in motor control centers, welding bays, and high-voltage switchgear environments. Installation demands careful attention to fiber polarity at ST-style connectors and proper DIN rail seating to maintain vibration resistance; these steps are non-negotiable for long-term signal integrity. The module’s hot-swap capability further reduces maintenance windows, allowing technicians to replace units without halting the broader control network.

For SRE teams maintaining aging or end-of-life ControlNet infrastructure, stocking the 1786-RPFM as a critical spare is a proactive risk mitigation strategy. Legacy ControlNet networks remain deeply embedded in process industries worldwide, and sourcing delays for discontinued modules can extend mean-time-to-repair (MTTR) from hours to weeks. Securing verified, original inventory of this module is a direct investment in system resilience and Process Optimization continuity.

Key Operational Features

Deterministic Ring Topology: Guarantees message delivery timing for time-critical I/O Modules and drive coordination
Redundant Network Path Support: Ring architecture eliminates single points of failure, maximizing High Availability
EMI-Immune Fiber Optic Interface: Galvanic isolation protects against ground loops and voltage transients
Medium-Distance Reach (up to 3 km): Bridges geographically distributed control zones without signal degradation
Seamless Integration with ControlLogix & CompactLogix: Plug-and-play compatibility within existing Allen-Bradley System Integration frameworks
Hot-Swappable Design: Enables live module replacement to minimize maintenance impact on production schedules
Front-Panel Diagnostic LEDs: Instant visual fault identification accelerates troubleshooting response

Maintenance & Performance Benchmarks

The 1786-RPFM is architected to scale across diverse industrial network topologies — from compact single-plant ControlNet rings with fewer than 10 nodes to enterprise-scale architectures spanning multiple buildings with 99 addressable nodes per segment. In scheduled bandwidth mode, the module allocates deterministic time slots for mission-critical I/O traffic, while unscheduled bandwidth handles peer-to-peer messaging and HMI data polling without disrupting control loop timing.

Benchmark data from field deployments confirms network jitter below 1 ms under full scheduled load — a performance threshold that satisfies the most demanding motion control and safety interlock applications. Maintenance intervals are extended by the fiber medium itself: unlike coaxial ControlNet segments, fiber links are immune to corrosion, moisture ingress, and mechanical wear at termination points, reducing preventive maintenance labor by an estimated 30-40% over a 5-year operational cycle. Configuration and diagnostics are managed through RSNetWorx for ControlNet, enabling engineers to monitor node health, bandwidth utilization, and cable integrity from a centralized workstation.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1786-RPFM unit dispatched from our inventory is supplied in Original Factory Packaging, complete with manufacturer documentation and protective anti-static enclosures — preserving the optical components and PCB assemblies in transit-ready condition. For urgent plant recovery scenarios, same-day dispatch is available on confirmed in-stock units, with worldwide express logistics covering North America, Europe, Southeast Asia, and the Middle East.

Our sourcing network specializes in EOL (End-of-Life) and legacy Allen-Bradley automation components, maintaining buffer stock of the 1786-RPFM to serve facilities that cannot migrate away from established ControlNet infrastructure on short notice. Each unit is verified against OEM specifications prior to shipment, with optical power output and network handshake testing performed as standard quality gates. Global supply continuity for discontinued modules is our core competency — ensuring your maintenance team is never left without a verified replacement.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 1786-RPFM?
Mount the module on a 35 mm DIN rail within the control enclosure. Connect fiber optic cables to the ST-style ports, observing TX/RX polarity markings. Apply 24V DC power and verify the PWR LED illuminates green. Launch RSNetWorx for ControlNet, scan the network, and assign a node address (1-99). Validate scheduled bandwidth allocation and confirm all downstream nodes appear healthy before commissioning.

Q2: Which firmware versions are compatible with the 1786-RPFM?
The 1786-RPFM is a hardware repeater and does not carry user-upgradeable firmware. Compatibility is determined by the ControlNet network manager software version — RSNetWorx for ControlNet v2.x and later fully support this module. Ensure your ControlLogix or CompactLogix controller firmware is current to avoid scheduled bandwidth negotiation issues.

Q3: Can the 1786-RPFM be integrated into a mixed fiber and coaxial ControlNet network?
Yes. Use Allen-Bradley media converters or hybrid repeaters at the fiber-to-coax transition points. The 1786-RPFM handles the fiber ring segment while coaxial taps serve shorter, electrically benign runs. Ensure total node count across all segments does not exceed 99 per ControlNet channel.

Q4: How does the warranty claim process work?
Contact our technical support team at sale@ninermas.com within the 1-year warranty period. Provide the purchase order reference, module serial number, and a description of the observed fault. We will issue a Return Merchandise Authorization (RMA) and arrange collection. Replacement units are dispatched within 3-5 business days upon receipt and inspection of the returned module.

Q5: What diagnostic steps should I follow if the 1786-RPFM shows a fault LED?
First, verify fiber cable continuity and connector cleanliness using an optical power meter — contaminated ST connectors are the leading cause of link faults. Check that supply voltage is within 18-30V DC tolerance. Use RSNetWorx to review the module’s diagnostic object for error codes. If the fault persists after cable and power verification, the module may require replacement; contact our support team for expedited RMA processing.

Q6: Is the 1786-RPFM suitable for use in SIL-rated safety systems?
The 1786-RPFM is a standard ControlNet communication module and is not independently SIL-certified. For safety-instrumented system (SIS) applications, it must be used in conjunction with Allen-Bradley GuardLogix or Safety I/O modules that carry the appropriate SIL rating. Consult your functional safety engineer to confirm the overall SIL architecture before deployment.
