Allen-Bradley 1785-V40L Retrofit-Compatible Processor Module

Allen-Bradley 1785-V40L Retrofit-Compatible Processor Module: Legacy System Compatibility & Smooth Upgrade Path

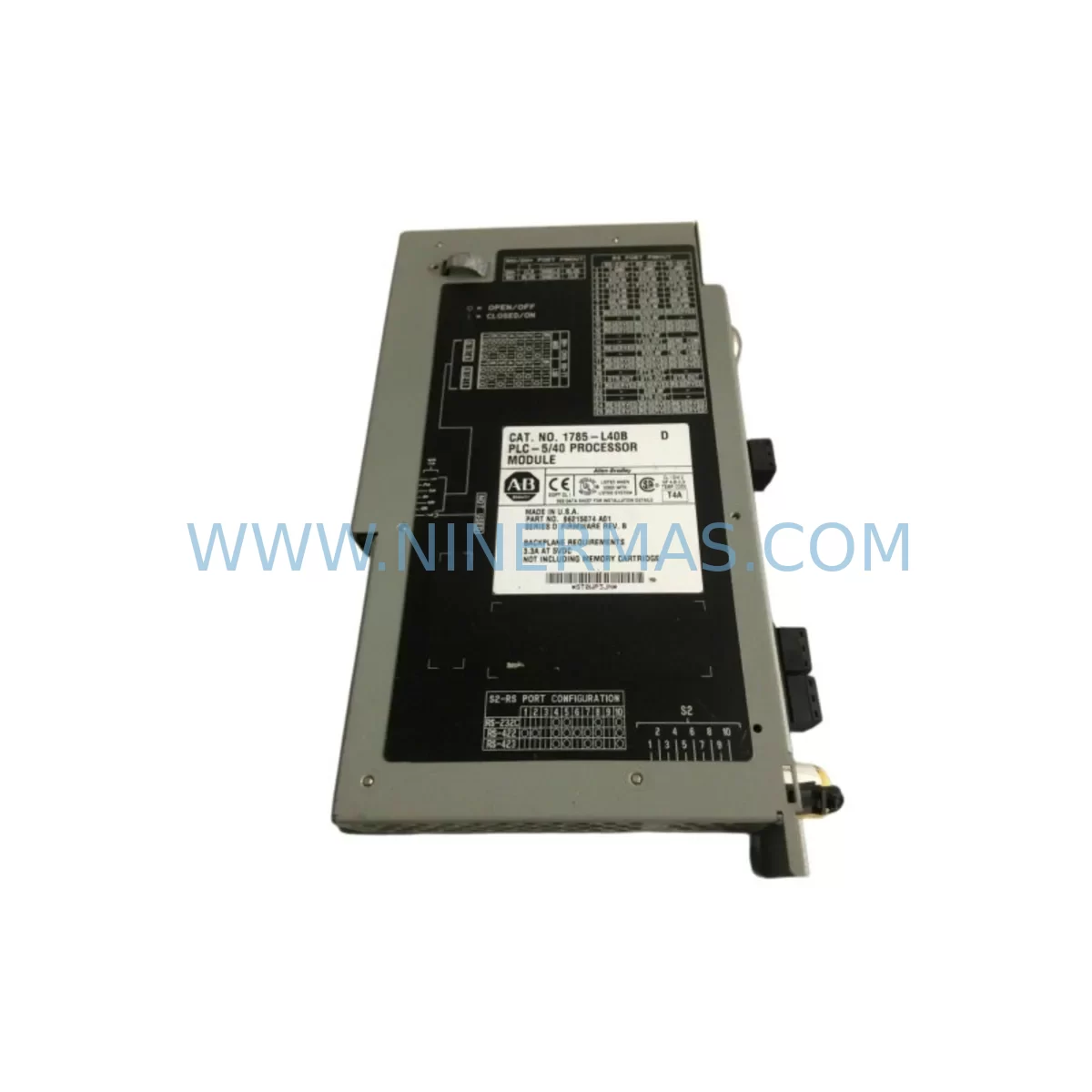

The Allen-Bradley 1785-V40L is a ruggedized PLC-5 series processor module designed for demanding industrial environments where temperature extremes, vibration, and electrical noise are constant challenges. For facilities running aging PLC-5 platforms, the 1785-V40L represents one of the most reliable retrofit-compatible options available — offering a direct replacement path without requiring a full control system overhaul. NINERMAS maintains verified stock of the 1785-V40L to support planned maintenance shutdowns, emergency replacements, and phased modernization projects across manufacturing, oil & gas, utilities, and heavy industry sectors.

When integrating the 1785-V40L into an existing PLC-5 rack, engineers must first confirm the backplane slot assignment and chassis compatibility. The 1785-V40L is designed for use within the 1771 I/O chassis family, and its physical footprint matches standard PLC-5 processor slots. Before installation, verify that the existing 1771-A1B, 1771-A2B, 1771-A3B, or 1771-A4B chassis has sufficient power budget to support the processor alongside installed I/O modules. The 1771-P7 or 1771-P4S power supply units commonly paired with these chassis should be evaluated for remaining capacity, particularly when the retrofit involves adding communication or specialty modules to the rack.

Terminal wiring and I/O module addressing must be carefully documented before removing the legacy processor. The 1785-V40L uses the same DH+ and Remote I/O communication ports found on earlier PLC-5 variants, which simplifies network topology preservation during the swap. If the existing system relies on a 1784-KTX or 1784-PCMK Data Highway Plus communication card for programming access, these remain compatible with the 1785-V40L and can be retained throughout the migration. Engineers should capture all rack configuration, I/O map, and program files using RSLogix 5 prior to any hardware change, ensuring the ladder logic, PID blocks, and data table structures are fully backed up and version-controlled.

One of the most critical steps in any 1785-V40L retrofit is confirming program compatibility. The processor supports the standard PLC-5 instruction set, and programs developed for the 1785-L40B, 1785-L60B, or 1785-L80B can typically be loaded with minimal modification. However, if the legacy system was running a processor with expanded memory or specialty function blocks, a compatibility audit should be performed before go-live. HMI screens connected via DH+ — whether running on PanelView 550, PanelView 900, or PanelView Plus terminals — should be tested against the restored program to confirm tag addressing and screen navigation remain intact after the processor swap.

Communication link integrity is another key consideration. The 1785-V40L supports DH+ at 57.6K, 115.2K, and 230.4K baud rates, and its Remote I/O scanner port allows continued operation of distributed 1771 I/O drops across the plant floor. If the modernization roadmap includes a future migration toward EtherNet/IP, a 1761-NET-ENI or 1756-ENBT bridge module can be introduced alongside the 1785-V40L to begin establishing Ethernet connectivity without disrupting the existing DH+ backbone. This phased approach allows production to continue uninterrupted while the network infrastructure is gradually upgraded.

Installation space within the control cabinet should be confirmed before ordering. The 1785-V40L occupies a single processor slot in the 1771 chassis and does not require additional mounting hardware beyond the standard backplane connector. Verify that cabinet ventilation is adequate for the processor’s operating temperature range, particularly in environments where ambient temperatures approach the module’s rated limits. Proper grounding of the chassis and shielded cable routing for communication lines are essential to maintaining signal integrity in electrically noisy industrial settings.

For facilities managing spare parts lifecycle, the 1785-V40L is a strategically important stock item. As Allen-Bradley has transitioned its primary PLC platform to the ControlLogix and CompactLogix families, original PLC-5 processors have entered end-of-life status, making verified aftermarket and refurbished units from trusted suppliers increasingly critical for sustaining legacy lines. NINERMAS sources, tests, and warehouses the 1785-V40L with full functional verification prior to shipment, supporting customers who need reliable backup processors for critical production equipment that cannot yet be migrated to newer platforms such as the 1756-L71, 1756-L74, or 1756-L85E ControlLogix controllers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 1785-V40L retrofit begins with a thorough audit of the existing control architecture. Start by documenting every module installed in the 1771 chassis — including analog input modules such as the 1771-IFE, digital output modules such as the 1771-OBD, and any specialty modules like the 1771-QDC servo control module or 1771-SDN DeviceNet scanner. Each module’s slot address, I/O map entry, and wiring termination must be recorded before the processor is removed.

If the system includes a 1785-CHBM chassis interconnect cable for multi-rack configurations, verify that the cable and remote adapter modules remain undisturbed during the processor swap. Remote I/O adapter modules such as the 1771-ASB should be confirmed operational before and after the replacement to ensure all distributed I/O drops reconnect correctly upon processor restart. Signal isolators installed between field devices and I/O modules — particularly in high-noise environments — should also be inspected as part of the retrofit preparation, since degraded isolation can cause intermittent faults that are difficult to diagnose after a processor change.

For systems where the 1785-V40L will be paired with a 1784-KTX programming card, confirm that the host PC running RSLogix 5 has the correct driver version installed and that the DH+ node address assigned to the programming card does not conflict with existing network nodes. Upload the current program from the legacy processor before removal, verify the checksum, and store a dated backup. After installing the 1785-V40L, download the program, force a full I/O scan, and verify all analog scaling, PID setpoints, and timer/counter presets match the pre-retrofit values.

Downtime Control During System Migration

Minimizing production downtime during a 1785-V40L swap requires careful pre-staging and a disciplined cutover procedure. The replacement processor should be bench-tested and program-loaded before the maintenance window begins, so that the actual on-site swap is limited to physical installation, communication link verification, and a controlled restart sequence. Where possible, schedule the cutover during a planned maintenance shutdown rather than responding to an unplanned failure, as emergency replacements under production pressure increase the risk of configuration errors.

To protect the original program logic, maintain at least two independent backups — one on the engineering workstation and one on removable media stored off-site. If the system controls safety-critical processes, coordinate with the safety team to confirm that all safety interlocks remain active and verified throughout the swap procedure. After the 1785-V40L is installed and the program is restored, perform a step-by-step I/O checkout: force each output individually, verify field device response, and confirm that all analog inputs are reading within expected engineering unit ranges before releasing the system to automatic control.

Communication link restoration should be verified before the system is returned to service. Confirm that all DH+ nodes — including HMI terminals, remote programming stations, and any data acquisition systems connected to the network — are communicating correctly with the new processor. If a 1761-NET-ENI Ethernet bridge is part of the installation, verify its IP address configuration and confirm that SCADA or historian systems are receiving data as expected. Document the completed retrofit with photographs, updated wiring diagrams, and a signed commissioning record to support future maintenance activities and regulatory compliance requirements.

Retrofit Support FAQ

Q: Is the 1785-V40L a direct drop-in replacement for the 1785-L40B?
A: The 1785-V40L is functionally compatible with the 1785-L40B in terms of instruction set and chassis interface, but it is the ruggedized variant designed for extended temperature operation. Confirm that your chassis slot and power supply capacity are compatible before installation. Program files developed for the 1785-L40B can be loaded directly into the 1785-V40L using RSLogix 5 without modification in most standard applications.

Q: What commissioning steps are required after installing the 1785-V40L?
A: After physical installation, download the backed-up program via RSLogix 5 using a 1784-KTX or equivalent DH+ interface. Perform a full I/O scan, verify all module status indicators, check analog scaling and PID parameters, and confirm HMI communication before placing the processor in Run mode. A complete I/O checkout with field verification is recommended before returning the system to automatic operation.

Q: Does NINERMAS test the 1785-V40L before shipment?
A: Yes. All 1785-V40L units supplied by NINERMAS undergo functional verification testing prior to shipment, including power-on self-test confirmation and communication port checks. Each unit is shipped with a 12-month warranty covering defects in materials and workmanship. Expedited shipping options are available for emergency replacement requirements.

Q: What is the lead time and stock availability for the 1785-V40L?
A: NINERMAS maintains inventory of the 1785-V40L to support both planned and emergency procurement. Standard orders are processed and shipped within 1–3 business days. For large quantity requirements or long-term supply agreements, contact our sales team directly to discuss availability and pricing. Emergency same-day dispatch may be available depending on current stock levels.
