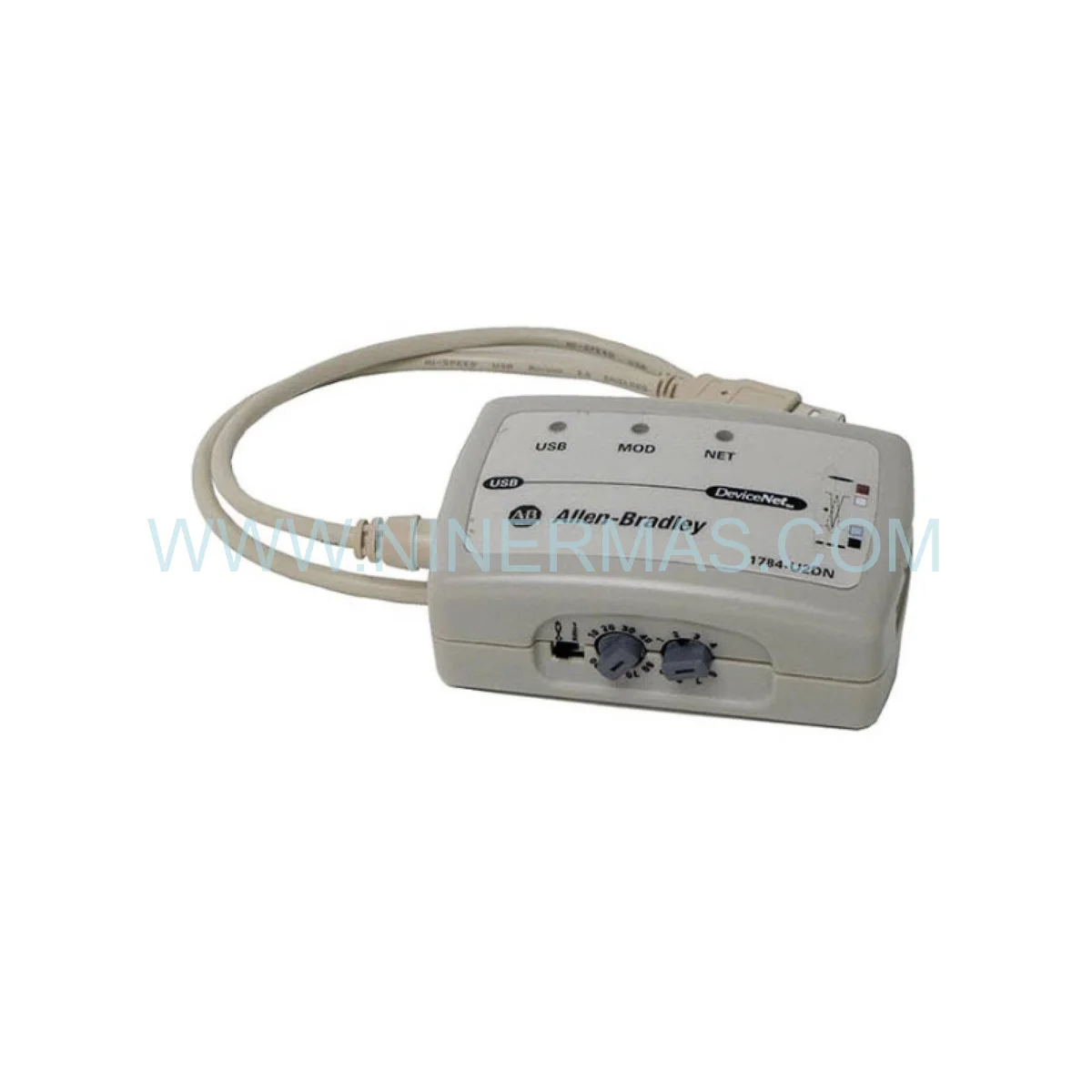

Allen-Bradley 1784-U2DN USB-to-DeviceNet Interface Module

Allen-Bradley 1784-U2DN | USB-to-DeviceNet Interface Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1784-U2DN stands as an indispensable automation component for maintaining maximum system availability across DeviceNet-based control architectures. The 1784-U2DN bridges USB-enabled engineering workstations directly to live DeviceNet segments, enabling real-time diagnostics, node commissioning, and I/O module parameter verification — all without interrupting ongoing process cycles. In high-uptime environments where every minute of unplanned downtime translates to measurable financial loss, this interface module delivers the operational excellence demanded by modern industrial networks.

Engineered to perform reliably in harsh industrial environments, the Allen-Bradley 1784-U2DN operates across a wide thermal range (0°C to 60°C) and tolerates humidity levels up to 95% non-condensing — conditions routinely encountered on plant floors, in electrical enclosures, and near heavy machinery. During installation, engineers should ensure the DeviceNet trunk cable termination resistors are correctly placed at both network ends, and that the module’s 5-pin terminal block connections are torqued to specification to prevent intermittent faults under vibration. Bus-powered operation via USB is suitable for light diagnostic tasks; external 24V DC supply is strongly recommended when the module must sustain network bus power for multiple nodes during maintenance windows.

As a critical spare part strategy, maintaining at least one 1784-U2DN unit in your site’s automation component inventory is a recognized best practice for SRE teams supporting legacy and active DeviceNet installations. End-of-life (EOL) procurement timelines for Rockwell Automation communication modules can extend significantly, making proactive sourcing essential for uninterrupted process optimization and system integration continuity.

Key Operational Features

Plug-and-Play USB 2.0 Connectivity — Eliminates the need for dedicated PCI/PCIe interface cards; connects directly to any modern engineering laptop or workstation.
Multi-Baud Rate Auto-Detection — Seamlessly adapts to 125 kbps, 250 kbps, and 500 kbps DeviceNet network speeds without manual configuration.
Dual Power Architecture — Operates bus-powered via USB or via external 24V DC, ensuring high availability across diverse field scenarios.
Redundancy-Ready Diagnostics — Supports real-time network scanning, device health monitoring, and fault isolation to minimize mean time to repair (MTTR).
Seamless Integration with RSLinx & RSNetWorx — Fully compatible with Rockwell Automation’s standard software suite for complete DeviceNet network management.
Industrial-Grade Construction — Compact housing rated for continuous operation in demanding manufacturing environments, supporting long-term operational excellence.

Maintenance & Performance Benchmarks

The 1784-U2DN is architected to integrate into industrial network topologies of varying scale — from small standalone DeviceNet segments with fewer than 10 nodes to large distributed automation networks spanning multiple production zones with up to 64 addressable nodes per segment.

In multi-segment architectures, the module enables engineers to isolate individual network branches for targeted diagnostics without affecting adjacent I/O modules or process controllers. Its support for all three standard DeviceNet baud rates allows deployment across both legacy installations running at 125 kbps and high-throughput modern networks operating at 500 kbps. For facilities undergoing phased automation upgrades, the 1784-U2DN serves as a consistent, vendor-standard interface tool that bridges old and new infrastructure without requiring protocol translation layers.

Performance benchmarks confirm sub-millisecond response latency for node interrogation at 500 kbps, making it suitable for time-sensitive commissioning tasks and live parameter adjustments on active production lines. Its compact form factor also supports portable field use — a key advantage for multi-site SRE teams managing geographically distributed automation assets.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Allen-Bradley 1784-U2DN unit dispatched from our facility is shipped in original factory packaging, complete with manufacturer documentation and protective anti-static materials — preserving component integrity from warehouse to installation point.

For in-stock units, same-day dispatch is available on orders confirmed before the daily cut-off time, supporting urgent maintenance scenarios where production continuity cannot be compromised. Our global supply network is specifically structured to source EOL (End-of-Life) and legacy automation components, ensuring that facilities running established DeviceNet architectures can procure critical interface modules without being forced into premature system-wide upgrades.

Worldwide express logistics partnerships enable delivery to major industrial hubs across North America, Europe, Southeast Asia, and the Middle East — with full shipment tracking and customs documentation support provided as standard.

Engineering Support & FAQ

Q1: What are the step-by-step installation procedures for the 1784-U2DN?
A: (1) Install RSLinx Classic or RSNetWorx for DeviceNet on a Windows PC. (2) Connect the 1784-U2DN to the PC via USB Type-B cable. (3) Allow Windows to auto-install the driver, or install manually from the Rockwell Automation driver package. (4) Wire the DeviceNet trunk cable to the 5-pin terminal block (V+, CAN H, Shield, CAN L, V ). (5) Apply external 24V DC if bus power is required. (6) Launch RSLinx, configure a new DeviceNet driver, and execute a network scan to enumerate connected nodes.

Q2: Which firmware versions and software revisions are compatible with the 1784-U2DN?
A: The 1784-U2DN is compatible with RSLinx Classic v2.5x and above, and RSNetWorx for DeviceNet v4.x and above. For Windows 10/11 environments, RSLinx Classic v3.90 or later is recommended to ensure full driver compatibility. Always verify the Rockwell Automation Product Compatibility and Download Center (PCDC) for the latest firmware and driver release notes specific to your software version.

Q3: Can the 1784-U2DN be used for online parameter changes on active DeviceNet nodes?
A: Yes. The module supports full read/write access to DeviceNet node parameters in both online and offline modes. Live parameter edits are possible without taking the network offline, though Rockwell Automation recommends placing the controller in Program mode before making changes to I/O module configurations to prevent unintended process disruptions.

Q4: What is the maximum DeviceNet cable length supported at each baud rate?
A: Per DeviceNet specification: 500 meters at 125 kbps, 250 meters at 250 kbps, and 100 meters at 500 kbps (trunk cable). Drop cable lengths are additionally constrained by cumulative drop length limits defined in the DeviceNet standard (ODVA).

Q5: How does the warranty claim process work?
A: All units carry a 1-year warranty covering manufacturing defects and functional failures under normal operating conditions. To initiate a warranty claim, contact our technical support team with the unit’s serial number, purchase order reference, and a description of the observed fault. Replacement or repair is processed within 5-7 business days upon receipt and inspection of the returned unit.

Q6: Is the 1784-U2DN suitable for use with third-party DeviceNet devices (non-Rockwell)?
A: Yes. The 1784-U2DN adheres to the open DeviceNet standard (ODVA-compliant), enabling communication with any conformant DeviceNet device regardless of manufacturer. EDS (Electronic Data Sheet) files for third-party devices can be registered in RSNetWorx to enable full parameter access and configuration.
