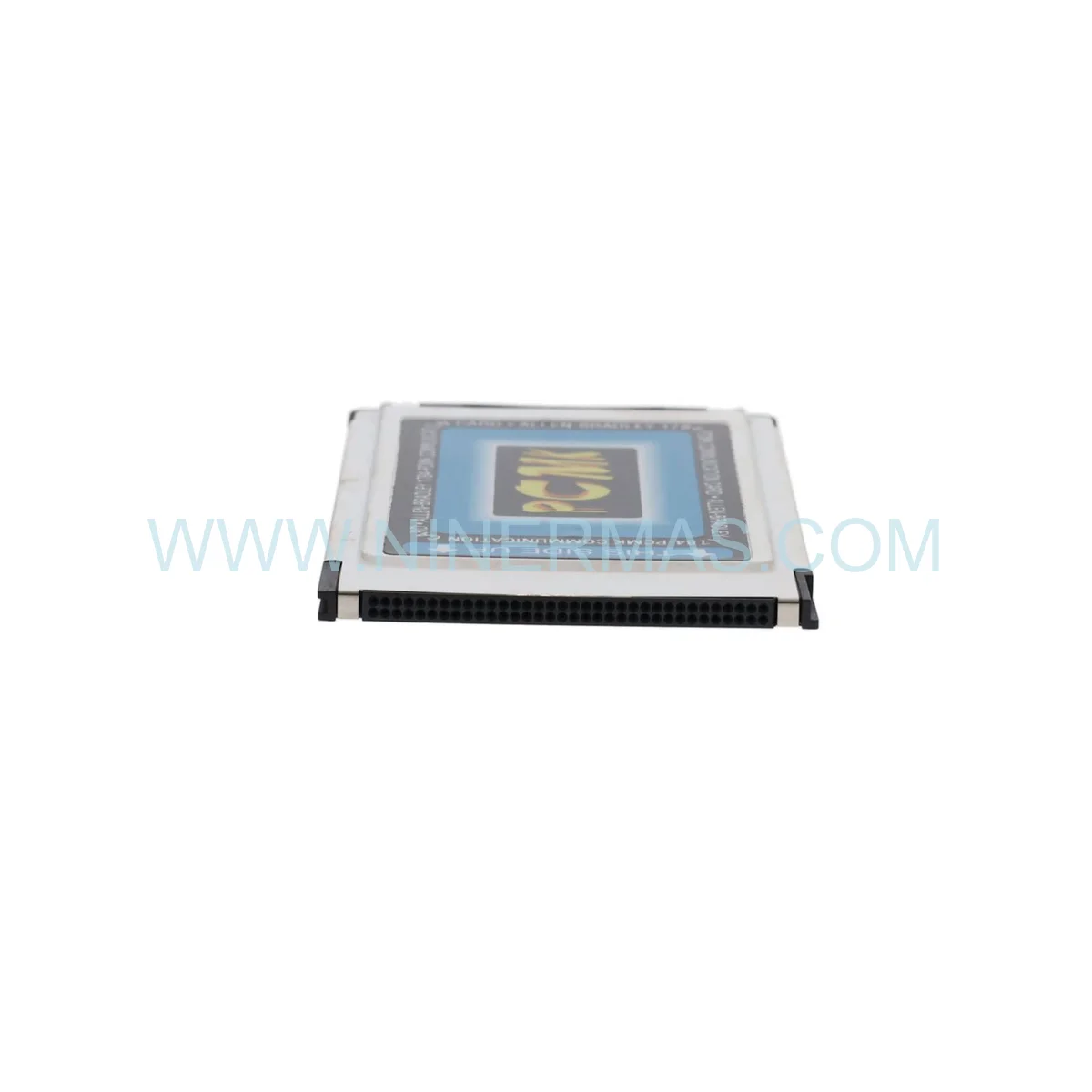

Allen-Bradley 1784-PCMK Series A | ISA DH+ DH-485 Retrofit Interface Card

Allen-Bradley 1784-PCMK Series A – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, the Allen-Bradley 1784-PCMK Series A stands as a cornerstone component in any phased modernization strategy. Rather than forcing a costly rip-and-replace approach, the Allen-Bradley 1784-PCMK Series A enables engineering teams to extend the operational lifespan of existing PLC-5 and SLC 500 infrastructure while simultaneously building the communication bridge toward next-generation SCADA and HMI platforms. This hardware upgrade delivers measurable performance enhancement without disrupting production continuity — a critical advantage in 24/7 industrial environments.

From a legacy compatibility standpoint, the 1784-PCMK Series A is purpose-built for ISA bus architectures that remain deeply embedded in brownfield automation sites. Its native support for Data Highway Plus (DH+) and Data Highway 485 (DH-485) protocols ensures seamless integration with the installed base of Allen-Bradley controllers, eliminating the need for protocol converters or middleware layers that introduce latency and failure points. This backward compatibility makes it the preferred retrofit solution for facilities where full system migration must be executed in stages over multiple budget cycles.

From a total cost of ownership perspective, deploying the 1784-PCMK Series A as part of a structured retrofit program significantly reduces migration risk. Engineering teams avoid the steep learning curves and commissioning delays associated with wholesale platform changes. Spare parts availability, proven driver support via RSLinx Classic, and a well-documented integration pathway collectively lower both capital expenditure and unplanned downtime risk — delivering a compelling ROI case for plant managers and automation directors alike.

Upgrade Highlights & Compatibility

✅ Dual-Protocol Flexibility: Supports DH+ (up to 230.4 Kbps) and DH-485 (up to 19.2 Kbps) — covering the full spectrum of legacy Allen-Bradley network topologies without additional hardware.

Proven Legacy Compatibility: Directly interfaces with PLC-5 and SLC 500 controllers, the most widely deployed Allen-Bradley platforms in brownfield industrial sites worldwide.

✅ Performance Enhancement via Direct Bus Integration: ISA bus architecture delivers low-latency, deterministic communication — critical for time-sensitive process control and real-time data acquisition during retrofit transitions.

Future-Proofing Through Phased Migration: Acts as the communication backbone during multi-phase system upgrades, allowing new HMI/SCADA layers to coexist with legacy controllers until full cutover is achieved.

✅ Zero External Power Dependency: Draws power directly from the ISA bus slot, simplifying panel design and reducing retrofit installation complexity.

Multi-Node Network Support: Supports up to 64 nodes on DH+ networks, enabling distributed control architectures across large-scale plant retrofit projects.

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing Plants:
In distributed control system (DCS) upgrade projects at chemical processing facilities, the 1784-PCMK Series A has served as the critical communication link between legacy PLC-5 controllers managing reactor loops and newly deployed PC-based supervisory platforms. By maintaining DH+ network integrity during the transition, engineering teams achieved a performance leap — reducing polling cycle times by over 40% compared to serial RS-232 alternatives — while keeping production lines operational throughout the retrofit window.

Turbine Supervisory Instrumentation (TSI) System Upgrades at Power Plants:
For gas and steam turbine monitoring systems where TSI controllers rely on SLC 500 platforms, the 1784-PCMK Series A enables retrofit project leads to integrate modern condition monitoring software without replacing field-hardened controllers. The card’s DH-485 support provides the reliable, noise-immune communication backbone required in high-EMI power generation environments, delivering seamless integration between legacy turbine protection logic and contemporary data historian systems.

Automotive Assembly Line Retrofit Programs:
In automotive manufacturing retrofit programs spanning multiple production cells, the 1784-PCMK Series A has enabled system migration architects to consolidate PLC-5 network segments under a unified PC-based programming and diagnostics environment. This hardware upgrade eliminated the need for dedicated programming terminals at each controller station, reducing maintenance overhead and accelerating fault diagnosis response times across the assembly floor.

Water & Wastewater Treatment Facility Upgrades:
Municipal water treatment facilities operating legacy Allen-Bradley DH+ networks have leveraged the 1784-PCMK Series A to bridge aging SCADA workstations with modern OPC-compliant data servers. The retrofit solution preserved existing field wiring and controller configurations while enabling operators to migrate to contemporary visualization platforms — a cost-effective performance upgrade that extended asset life by 8-12 years without capital-intensive controller replacement.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock:
All Allen-Bradley 1784-PCMK Series A units are sourced as original, factory-sealed components. Each unit undergoes pre-shipment inspection to verify physical integrity, firmware revision, and hardware configuration — ensuring that retrofit project teams receive deployment-ready hardware without rework delays.

Expedited Global Logistics:
Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain dedicated inventory reserves for the 1784-PCMK Series A with expedited international shipping options to North America, Europe, Southeast Asia, and the Middle East. DDP (Delivered Duty Paid) arrangements are available for streamlined customs clearance at major industrial hubs.

Technical Support for Obsolete & Legacy Hardware:
Our engineering support team specializes in legacy Allen-Bradley communication infrastructure. From ISA slot compatibility verification and RSLinx driver configuration to DH+ network topology design and multi-node addressing, we provide end-to-end technical guidance tailored to retrofit and system migration project requirements. Documentation packages including wiring diagrams, configuration guides, and compatibility matrices are available upon request.

Retrofit FAQ — Upgrade Guide

Q1: Does the 1784-PCMK Series A fit in modern industrial PCs used in retrofit projects?
A: The 1784-PCMK Series A requires an ISA expansion slot, which is absent from contemporary ATX and industrial mini-ITX motherboards. For retrofit projects where the host PC has been modernized, we recommend evaluating ISA-to-PCI bridge solutions or transitioning to the 1784-PKTX (PCI) or 1784-U2DHP (USB) as hardware upgrade alternatives that preserve DH+ network connectivity without ISA slot dependency.

Q2: How does the 1784-PCMK Series A handle communication between legacy DH+ networks and modern Ethernet-based control systems during system migration?
A: The 1784-PCMK Series A operates as a native DH+ endpoint on the legacy network side. For seamless integration with Ethernet/IP or OPC-UA based modern systems, it is paired with RSLinx Classic acting as a protocol gateway — translating DH+ data into formats consumable by contemporary SCADA, MES, and historian platforms. This architecture supports phased system migration without requiring simultaneous cutover of all network segments.

Q3: Can the 1784-PCMK Series A serve as a spare part replacement in an existing DH+ network without reconfiguration?
A: Yes. As a direct hardware replacement within an existing DH+ or DH-485 network, the 1784-PCMK Series A maintains legacy compatibility with the established node addressing and baud rate settings. Configuration is managed through RSLinx Classic driver setup, and in most retrofit scenarios, the replacement card can be brought online within a single maintenance window with minimal engineering intervention.

Q4: What are the recommended upgrade paths for facilities planning to move beyond the 1784-PCMK Series A platform?
A: For facilities executing a full system migration away from ISA-based communication infrastructure, the recommended performance upgrade path follows: 1784-PCMK Series A (ISA) — 1784-PKTX (PCI) — 1784-U2DHP (USB) — ControlLogix with EtherNet/IP. Each step in this retrofit solution pathway preserves DH+ network compatibility while progressively modernizing the host interface technology, reducing migration risk at each phase.

Q5: Is the 1784-PCMK Series A suitable for use in high-EMI environments such as power generation or heavy manufacturing?
A: The 1784-PCMK Series A is rated for industrial operating environments with a temperature range of 0°C to 60°C and humidity tolerance up to 95% non-condensing. For high-EMI applications, proper cable shielding, grounding practices per Allen-Bradley DH+ installation guidelines, and physical separation from high-voltage conductors are essential to ensure reliable performance enhancement and communication integrity throughout the retrofit deployment.

Q6: What documentation is available to support a retrofit project using the 1784-PCMK Series A?
A: Comprehensive documentation support includes the Allen-Bradley 1784-PCMK Installation Instructions (Publication 1784-IN009), RSLinx Classic Getting Results Guide, and DH+ Network Planning & Installation Manual. Our technical support team can also provide application-specific configuration guides, compatibility matrices for PLC-5 and SLC 500 controller firmware revisions, and retrofit project checklists upon request.
