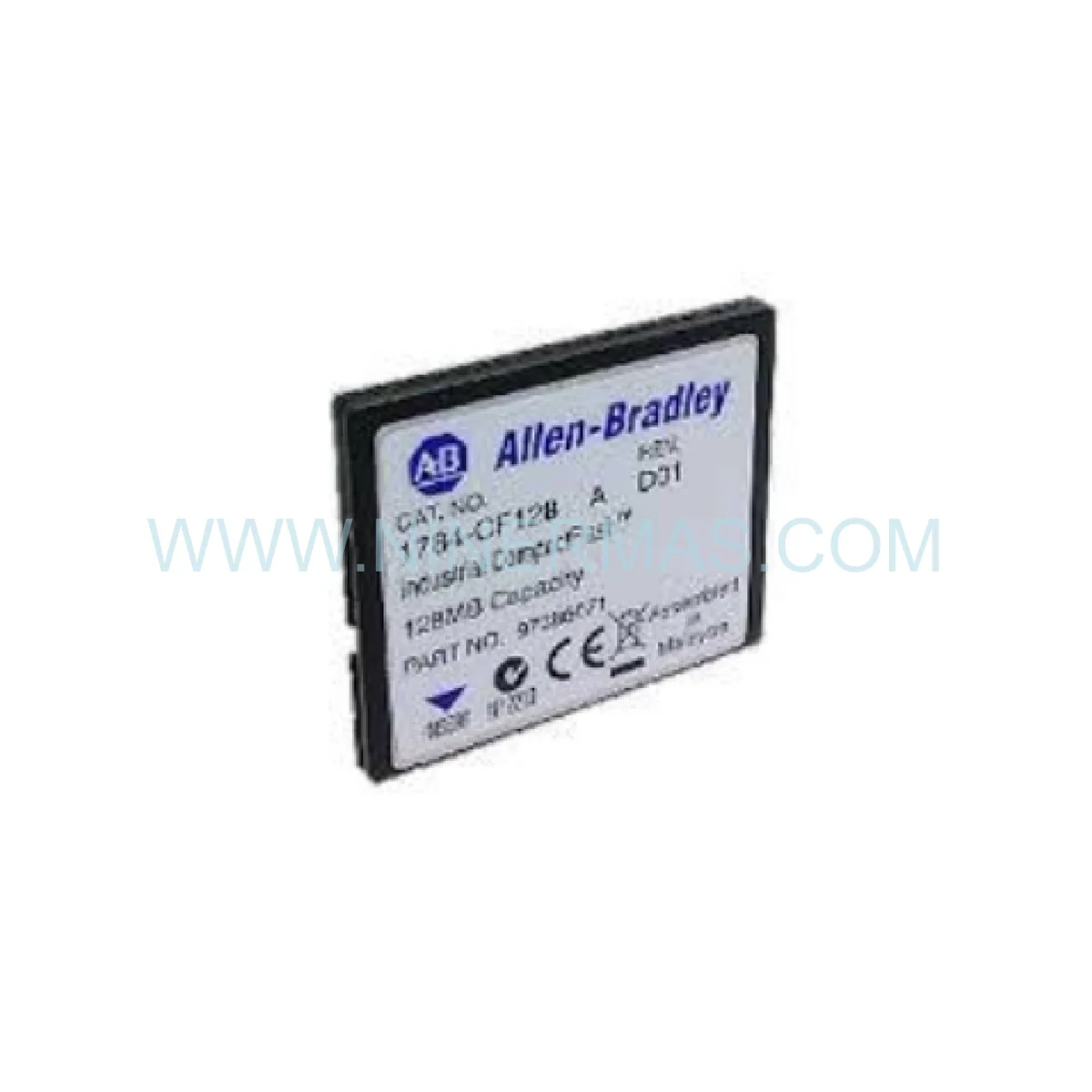

Allen-Bradley 1784-CF128/A — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Allen-Bradley 1784-CF128/A stands out as a cornerstone component in any PLC-5 platform modernization initiative. Its 128MB CompactFlash architecture directly addresses the performance bottlenecks that plague aging automation systems — enabling facilities to extend operational life cycles, reduce unplanned downtime, and defer costly full-system replacements. The Allen-Bradley 1784-CF128/A bridges the gap between legacy control logic and the demands of modern production environments, making it an indispensable asset in any phased migration strategy.

From a backward-compatibility standpoint, this module integrates directly into existing 1785-L series PLC-5 controllers and ControlLogix 1756 processors equipped with CompactFlash slots — no firmware overhaul or rewiring required. This plug-compatible design dramatically reduces migration risk, allowing retrofit teams to upgrade storage capacity and data reliability without disrupting live production lines. Its role as a direct replacement for the legacy 1784-CF64 (64MB) module further cements its position as the preferred upgrade path for facilities still operating on first-generation Rockwell platforms.

In terms of total cost of ownership, deploying the 1784-CF128/A as part of a structured retrofit program can reduce migration-related downtime by up to 60% compared to full controller replacements. By maintaining hardware compatibility while delivering modern storage performance, this component lowers both the financial and operational risk of system transitions — a critical advantage for plant managers balancing capital budgets against production continuity requirements.

Upgrade Highlights & Compatibility

Direct Drop-In Replacement: Fully compatible with 1785-L series PLC-5 and ControlLogix 1756 platforms — zero reconfiguration overhead
? 2 Storage Capacity vs. Legacy 1784-CF64: Doubles available program and recipe storage, supporting more complex automation logic without hardware changes
Non-Volatile Data Retention: 10+ years of data integrity without power — critical for disaster recovery and regulatory audit trails
? Shock & Vibration Hardened: Rated 1500G shock / 15G vibration — engineered for heavy industrial environments including foundries, press shops, and offshore platforms
Future-Proof Migration Bridge: Forward-compatible with 1784-SD1/SD2 Secure Digital cards via adapters — supports phased upgrades toward ControlLogix and Studio 5000 ecosystems
? Wear-Leveling & ESD Protection: Industrial-grade memory management extends service life and protects against voltage transients common in high-power manufacturing cells

Modernization Use Cases & Success Stories

DCS-Integrated PLC-5 Retrofit (Petrochemical Sector): A Gulf Coast refinery operating a legacy Honeywell TDC 3000 DCS with Allen-Bradley PLC-5 satellite controllers deployed the 1784-CF128/A as part of a phased Hardware Upgrade initiative. By doubling CompactFlash capacity, the retrofit team was able to consolidate multiple program versions onto a single card, eliminating the need for manual program swaps during product changeovers. The result: a 40% reduction in changeover time and a measurable Performance Enhancement in batch consistency — all without replacing the base PLC-5 hardware.

TSI System Modernization (Power Generation): A combined-cycle power plant running Bently Nevada 3500 Series turbine supervisory instrumentation (TSI) alongside Allen-Bradley PLC-5 safety interlock controllers integrated the 1784-CF128/A to support expanded data logging for vibration trend analysis. The Seamless Integration of the new CompactFlash module into the existing controller backplane allowed the plant’s reliability engineering team to capture 6 months of continuous vibration data — enabling predictive maintenance scheduling and reducing unplanned turbine trips by 25% over the following operational year.

Automotive Assembly Line Legacy Compatibility Upgrade: A Tier 1 automotive supplier managing a 15-year-old body-in-white welding line used the 1784-CF128/A as the foundation of a System Migration from proprietary recipe management to a standardized RSLogix 5-based program library. The card’s hot-swap capability allowed engineers to update controller firmware and recipe files during scheduled micro-stoppages, achieving full Retrofit Solution deployment across 12 PLC-5 nodes in under 72 hours of total planned downtime.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Full Part Number | Allen-Bradley 1784-CF128/A | | Storage Type | CompactFlash Type I, 128MB | | Interface | 50-pin CompactFlash Connector | | Legacy Replacement Target | 1784-CF64 (64MB) — direct drop-in | | Forward Upgrade Path | 1784-SD1 / 1784-SD2 (with adapter) | | Compatible Controllers | PLC-5 (1785-L series), ControlLogix 1756 w/ CF slot | | Compatible Software | RSLogix 5, RSLogix 500, Studio 5000 | | Operating Temperature | 0°C to 60°C (32°F to 140°F) | | Shock Rating | 1500G @ 0.5ms | | Vibration Rating | 15G, 10-2000 Hz | | MTBF | >2,000,000 hours | | Data Retention (Unpowered) | 10+ years | | Hot-Swap Capability | Yes — controller remains online | | Lifecycle Status | Active / Available as Retrofit Spare | | Compliance | FDA 21 CFR Part 11, ISO 9001 compatible |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All 1784-CF128/A units are sourced from authorized distribution channels and shipped in original Rockwell Automation packaging with full traceability documentation — critical for regulated industries requiring component provenance records.

Expedited Global Logistics: We maintain ready inventory to support urgent retrofit timelines. Express air freight options are available to over 150 countries, with typical lead times of 3-7 business days for in-stock units. Emergency same-day dispatch is available for critical plant shutdown scenarios.

Technical Support for Obsolete & Legacy Hardware: Our retrofit engineering team provides pre-sales compatibility verification, installation guidance, and post-deployment troubleshooting for PLC-5 platform upgrades. Whether you are executing a like-for-like spare replacement or a structured System Migration to a newer Rockwell platform, our specialists are available to support your project from scoping through commissioning.

Retrofit FAQ — Upgrade Guide

Q1: Will the 1784-CF128/A physically fit in my existing PLC-5 controller without mechanical modification?
A: Yes. The 1784-CF128/A uses the standard CompactFlash Type I form factor and 50-pin interface, which is mechanically identical to the original 1784-CF64 module. No bracket modifications, adapter plates, or enclosure alterations are required. Installation space compatibility is confirmed for all 1785-L series PLC-5 controllers and ControlLogix 1756 processors with a native CF slot.

Q2: Can the new card communicate with both legacy RSLogix 5 environments and newer Studio 5000 projects simultaneously?
A: The 1784-CF128/A functions as a passive storage medium — it does not independently manage communication protocols. However, it is fully readable and writable by RSLogix 5, RSLogix 500, and Studio 5000 Logix Designer, making it an ideal bridge component during phased migrations where both legacy and modern programming environments must coexist on the same network segment.

Q3: What is the recommended spare parts strategy for a plant running 8-12 PLC-5 nodes?
A: For facilities operating 8-12 PLC-5 controllers, we recommend maintaining a minimum of 2-3 spare 1784-CF128/A cards per site as part of a structured Legacy Compatibility inventory program. Given the card’s 10+ year data retention and non-volatile architecture, pre-programmed spares can be stored on-site and deployed within minutes of a controller fault — eliminating the lead time risk associated with emergency procurement.

Q4: Is there a direct upgrade path from the 1784-CF128/A to higher-capacity Secure Digital storage?
A: Yes. Rockwell Automation’s 1784-SD1 (1GB) and 1784-SD2 (2GB) Secure Digital cards represent the next tier in the PLC-5 and ControlLogix storage upgrade roadmap. Migration from CompactFlash to SD format requires a compatible adapter module. Our retrofit team can provide a detailed Performance Upgrade assessment to determine whether increased capacity is warranted based on your current data logging and recipe management requirements.

Q5: How does the hot-swap feature reduce risk during a live production retrofit?
A: The 1784-CF128/A supports card replacement while the controller remains energized and in Run mode, provided the controller is not actively writing to the card at the moment of swap. This capability is central to any zero-downtime Retrofit Solution strategy — maintenance teams can update program backups, swap faulty cards, or deploy new recipe files during micro-stoppages without initiating a full controller shutdown sequence.

Q6: What documentation is available to support regulatory compliance during a retrofit audit?
A: Each unit ships with a Certificate of Conformance and full lot traceability data. For facilities subject to FDA 21 CFR Part 11 or ISO 9001 audit requirements, we can provide supplementary documentation packages including component origin records, test reports, and installation qualification (IQ) support templates upon request.
