Allen-Bradley 1783-US06T Retrofit-Compatible Managed Switch

Allen-Bradley 1783-US06T Retrofit-Compatible Managed Switch for Legacy Automation Systems

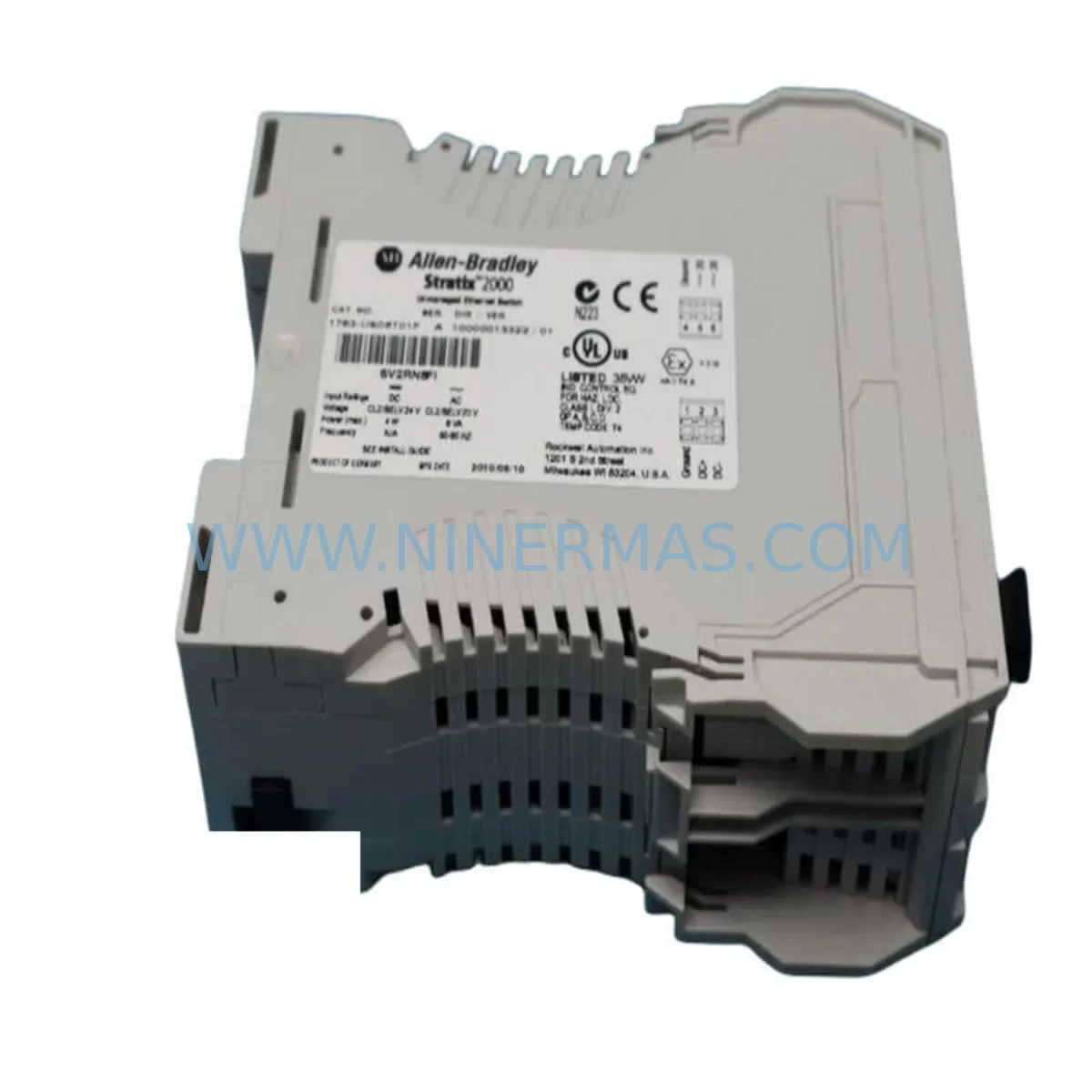

The Allen-Bradley 1783-US06T is a ruggedized, DIN-rail-mountable managed EtherNet/IP switch designed for demanding industrial environments. As part of the Stratix 2000 / 1783 series platform, the 1783-US06T delivers reliable Layer 2 switching with six unmanaged ports, making it a proven choice for plant-floor network infrastructure in process control, discrete manufacturing, and critical utility applications. With many legacy Rockwell Automation network components reaching end-of-life, the 1783-US06T serves as a retrofit-compatible replacement and upgrade path for aging control cabinet Ethernet backbones.

NINERMAS maintains verified in-stock inventory of the 1783-US06T with a 12-month warranty and pre-shipment functional testing, supporting customers who require rapid deployment during planned or emergency maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 1783-US06T into an existing control architecture, engineers must evaluate the full network topology of the affected control cabinet. In a typical Rockwell Automation cell, the 1783-US06T connects downstream devices — such as a 1756-EN2T EtherNet/IP communication module in a ControlLogix 1756 chassis, a PanelView Plus 7 HMI terminal, or a PowerFlex 525 variable frequency drive — back to the plant-floor managed switch layer. Replacing a failed or obsolete switch in this position requires confirming that all downstream device IP addresses, subnet masks, and gateway settings remain unchanged after the swap.

For cabinets that previously used an older 1783-US05T (5-port variant) and require an additional port for a newly added I/O device — such as a 1734-AENT POINT I/O EtherNet/IP adapter or a 1769-L33ER CompactLogix controller — the 1783-US06T provides a direct upgrade path without requiring changes to the existing wiring harness or terminal block layout. The additional port can be used to connect a new 1783-US08T downstream switch if further network expansion is anticipated.

Power supply capacity is a critical verification step. The 1783-US06T draws power from the cabinet’s 24 VDC bus. Before installation, confirm that the existing 1606-XLP power supply or equivalent unit has sufficient residual capacity to support the switch alongside other 24 VDC loads, including solenoid valves, safety relays, and I/O modules. A minimum of 3–5 W of headroom is recommended.

Terminal block wiring for the dual redundant power inputs should be verified against the original cabinet drawings. The 1783-US06T uses a 4-pin removable terminal connector for power; polarity markings must be confirmed before energizing. In retrofit scenarios where the original switch used a different connector style, a short adapter harness may be required — this can typically be fabricated from standard 1492-J terminal blocks and 22 AWG stranded wire.

For systems running Studio 5000 Logix Designer, no software changes are required when replacing an unmanaged switch, as the 1783-US06T is transparent to the EtherNet/IP network layer. However, if the cabinet also contains a 1783-BMS06SA Stratix 2000 managed switch that is being replaced simultaneously, the replacement unit’s IP address, VLAN configuration, and port mirroring settings must be re-applied using RSLinx Classic or Studio 5000 prior to going live. Signal isolators such as the MTL5000 series or Phoenix Contact MINI Analog isolators installed on analog I/O loops are unaffected by the Ethernet switch replacement.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing network infrastructure in a live production environment. For the 1783-US06T retrofit, the recommended approach is to pre-stage the replacement unit on a bench, verify all port LEDs illuminate correctly when connected to a known-good 24 VDC source, and confirm physical dimensions match the mounting position in the control cabinet before scheduling the cutover window.

During the cutover, the sequence should be: (1) document all device IP addresses and cable port assignments on the existing switch using a network scan tool or manual inspection; (2) power down the cabinet section feeding the switch — isolating only the affected network segment where possible to maintain control continuity on unaffected zones; (3) remove the failed unit and install the 1783-US06T, reconnecting cables in the same port order; (4) restore 24 VDC power and verify all downstream devices re-establish communication within 30 seconds; (5) confirm PLC I/O status in Studio 5000 or RSLogix 5000 shows no faulted modules before resuming production.

For systems where the Ethernet switch feeds a safety-rated network segment — for example, one carrying communications to a 1791DS-IB12 GuardLogix safety I/O module — the safety system integrator must be consulted before any network hardware replacement, and a formal proof test may be required per IEC 61511 or IEC 62061 procedures. In non-safety applications, the typical cutover window for a 1783-US06T replacement is 15–30 minutes, including cable reconnection, power restoration, and communication verification.

Maintaining a spare 1783-US06T in the site’s critical spare parts inventory is strongly recommended for facilities operating continuous processes where unplanned network outages carry significant production loss risk. NINERMAS supports long-term spare parts programs with scheduled stock reservations and priority dispatch for repeat customers.

Retrofit Support FAQ

Q1: Is the 1783-US06T a direct replacement for the 1783-US05T?
Yes. The 1783-US06T is physically and electrically compatible with the same DIN rail mounting position and 24 VDC power input as the 1783-US05T. The additional sixth port provides expanded connectivity. No software changes are required in the PLC program or HMI configuration when substituting an unmanaged switch.

Q2: What pre-shipment testing does NINERMAS perform on the 1783-US06T?
Each unit undergoes power-up verification, port link status confirmation on all six RJ45 ports, and LED indicator checks before dispatch. Units are shipped with original or equivalent protective packaging. A 12-month warranty is included from the date of shipment.

Q3: Can the 1783-US06T be used in an EtherNet/IP network alongside managed switches?
Yes. As an unmanaged switch, the 1783-US06T operates transparently within an EtherNet/IP network and is fully compatible with upstream managed switches such as the Stratix 5700 or Stratix 8000 series. It does not require VLAN configuration or IP address assignment and will not interfere with existing network segmentation.

Q4: What is the lead time and stock availability for the 1783-US06T?
NINERMAS maintains ready stock of the 1783-US06T for immediate dispatch. Standard lead time is 3–7 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock levels and arrange priority fulfillment.
