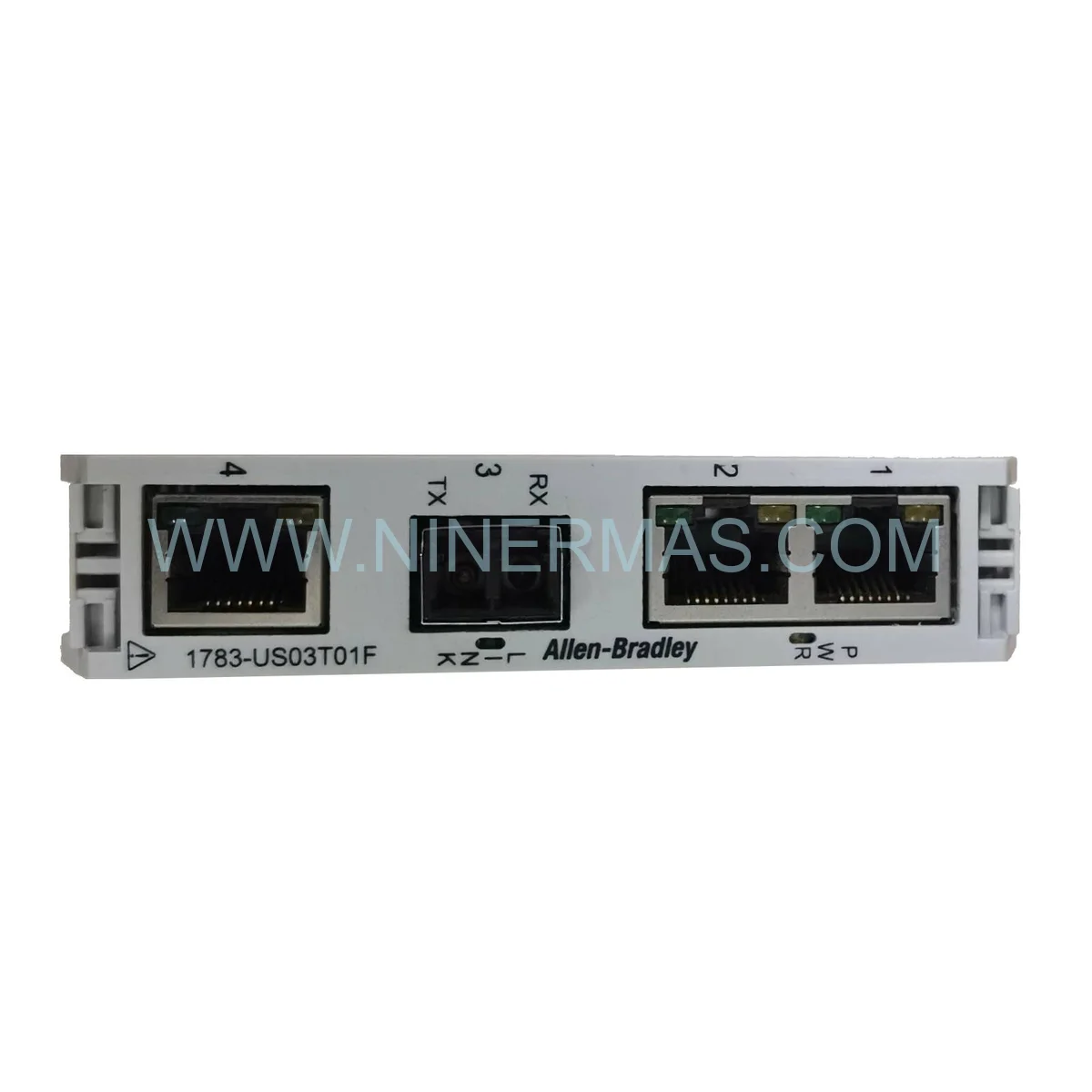

Allen-Bradley 1783-US03T01F/A | Industrial Retrofit & Network Upgrade Switch

Allen-Bradley 1783-US03T01F/A – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial network transformations, the Allen-Bradley 1783-US03T01F/A stands as a pivotal hardware upgrade component for facilities seeking to extend the operational lifespan of aging control architectures. In environments where downtime carries six-figure hourly costs, this unmanaged Ethernet switch delivers a low-risk, high-impact pathway to modernizing plant-floor communication layers — bridging the gap between legacy fieldbus topologies and contemporary EtherNet/IP-based automation frameworks. Its plug-and-play deployment model dramatically reduces engineering hours during phased migration projects, making it an indispensable asset in any retrofit toolkit.

The Allen-Bradley 1783-US03T01F/A maintains full backward compatibility with existing Rockwell Automation control architectures, including legacy ControlLogix and CompactLogix platforms. This downward compatibility is precisely what makes it the cornerstone of upgrade paths where a full system overhaul is cost-prohibitive or operationally impractical. Engineers can introduce modern Ethernet switching capability at the machine level without disturbing upstream SCADA or DCS configurations — a critical advantage when managing multi-phase migration timelines across large manufacturing campuses.

From a total cost of ownership perspective, deploying the 1783-US03T01F/A as part of a structured retrofit strategy significantly reduces migration risk. By standardizing on a proven, factory-sealed component within the Stratix 2000 family, project teams avoid the hidden costs of compatibility testing, custom driver development, and unplanned integration failures — delivering measurable ROI from day one of commissioning.

Upgrade Highlights & Compatibility

• ✅ Zero-Config Deployment: Eliminates complex setup procedures — ideal for rapid retrofit rollouts across multiple production cells simultaneously.
• Legacy Compatibility: Fully interoperable with ControlLogix, CompactLogix, PanelView HMIs, and PowerFlex drives within existing Rockwell ecosystems.
• ✅ Performance Enhancement: 4 — 10/100 Mbps auto-negotiating ports with store-and-forward switching ensure deterministic data delivery in high-cycle automation environments.
• Future-Proofing: DIN-rail form factor and 24V DC industrial power align with next-generation cabinet designs, protecting infrastructure investment beyond the current upgrade cycle.
• ✅ Seamless Integration: Native compatibility with Studio 5000 Logix Designer and FactoryTalk View SE/ME reduces software reconfiguration during hardware migration.
• Rugged Reliability: Metal enclosure rated for 0°C to 60°C operation withstands the thermal and vibration demands of continuous industrial duty cycles.

Modernization Use Cases & Success Stories

DCS Network Layer Modernization: In distributed control system (DCS) retrofit projects, the 1783-US03T01F/A has been deployed to replace aging hub-based Ethernet segments with switched architecture. This transition eliminates collision domains that degrade real-time process data throughput, achieving measurable cycle-time improvements of up to 40% in high-density I/O environments — without requiring changes to the DCS host software or controller firmware.

Turbine Supervisory Instrumentation (TSI) Upgrade: Power generation facilities integrating modern TSI platforms alongside legacy vibration monitoring systems have leveraged the 1783-US03T01F/A to create isolated, high-integrity Ethernet segments for critical machinery protection networks. The switch’s store-and-forward architecture prevents broadcast storms from propagating into safety-critical monitoring loops, a performance leap that directly supports compliance with IEC 61511 functional safety requirements.

Machine-Level Retrofit in Automotive Assembly: Tier-1 automotive suppliers executing line-speed upgrade programs have standardized on the 1783-US03T01F/A to connect upgraded servo drives, vision inspection systems, and barcode readers within existing control cabinets — achieving Hardware Upgrade objectives without panel redesign or additional conduit runs, compressing retrofit project timelines by an average of 3 weeks per production cell.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | **Allen-Bradley 1783-US03T01F/A** | | Product Family | Stratix 2000 Unmanaged Ethernet Switch | | Port Configuration | 4 — 10/100 Mbps RJ45 (Auto-MDI/MDIX) | | Switching Architecture | Store-and-Forward | | Power Input | 24V DC, Industrial-Grade | | Operating Temperature | 0°C to 60°C (32°F to 140°F) | | Mounting | DIN-Rail Compatible | | Certifications | UL, CE, RCM | | Lifecycle Status | Active | | Retrofit Compatibility | ControlLogix, CompactLogix, PanelView, PowerFlex | | Software Ecosystem | Studio 5000, FactoryTalk View SE/ME | | Configuration Requirement | Zero-configuration (unmanaged) | | Enclosure | Rugged Metal Housing | | Diagnostics | Per-port LED Status Indicators |

Supply Chain & Deployment Support

• Original & Factory Sealed: Every unit is sourced as genuine Allen-Bradley hardware — factory sealed with full manufacturer traceability documentation, ensuring authenticity for regulated industries and audit-ready procurement records.
• Expedited Global Logistics: Stocked inventory with express shipping options to North America, Europe, Southeast Asia, and the Middle East. Emergency retrofit orders fulfilled within 24-72 hours to minimize production downtime exposure.
• Technical Support for Legacy Hardware: Our retrofit engineering team provides pre-sales compatibility verification, installation guidance, and post-deployment troubleshooting for obsolete and end-of-life system environments — ensuring your migration project stays on schedule and within budget.
• Documentation Package: Full datasheet, wiring diagrams, and integration notes available upon request to support your engineering team’s retrofit planning process.

Retrofit FAQ (Upgrade Guide)

Q1: Will the 1783-US03T01F/A fit within existing control cabinet cutouts designed for older hub-based Ethernet devices?
A: Yes. The DIN-rail mounting profile of the 1783-US03T01F/A is standardized to 35mm DIN rail, which is universally compatible with existing cabinet rail infrastructure. Its compact footprint typically requires less panel space than the legacy hubs it replaces, often freeing space for additional I/O modules or terminal blocks in the same retrofit cycle.

Q2: How does this switch handle communication between new EtherNet/IP devices and older Modbus TCP or legacy serial-bridged nodes on the same network segment?
A: As an unmanaged Layer 2 switch, the 1783-US03T01F/A transparently forwards all Ethernet frames regardless of upper-layer protocol. EtherNet/IP, Modbus TCP, and other Ethernet-encapsulated protocols coexist on the same switched segment without configuration. For serial legacy devices, a protocol gateway (e.g., ProSoft Technology MVI series) upstream of the switch handles the conversion, while the 1783-US03T01F/A manages the Ethernet distribution layer.

Q3: Are there approved spare part substitutes if the 1783-US03T01F/A becomes unavailable during a critical retrofit window?
A: The closest functional equivalents within the Stratix family are the 1783-US05T (5-port variant) and the 1783-US08T (8-port variant), both sharing identical electrical and mechanical form factors. For managed switching requirements that emerge during system modernization, the Stratix 5700 series (1783-BMS series) provides a direct upgrade path with VLAN and QoS capabilities while maintaining EtherNet/IP compatibility.

Q4: What is the recommended commissioning procedure when integrating this switch into a live production network during a phased retrofit?
A: Best practice for live-network integration involves pre-staging the switch offline with all device connections verified against the network topology diagram. During the cutover window, disconnect the legacy hub segment, install the 1783-US03T01F/A on the DIN rail, reconnect all Ethernet cables, and restore 24V DC power. Auto-negotiation activates all ports within seconds. No software configuration is required, making the live cutover window as short as 5-10 minutes per switch location.

Q5: Does this switch support network diagnostics tools used in modern industrial cybersecurity assessments?
A: As an unmanaged switch, the 1783-US03T01F/A does not support SNMP, port mirroring, or managed VLAN segmentation. For retrofit projects where network visibility and cybersecurity segmentation are requirements, we recommend pairing this switch at the machine level with a managed Stratix 5700 or 5900 series switch at the cell/area zone boundary — a topology fully aligned with the ISA/IEC 62443 defense-in-depth model.

Q6: What warranty and lifecycle support can we expect for the 1783-US03T01F/A in a long-term retrofit deployment?
A: The 1783-US03T01F/A carries Allen-Bradley’s standard hardware warranty and is currently classified as Active lifecycle status, meaning full manufacturer support, firmware updates (where applicable), and spare parts availability are maintained. For retrofit projects with 10+ year operational horizons, we recommend establishing a strategic spare inventory at project commissioning to hedge against future lifecycle transitions.
