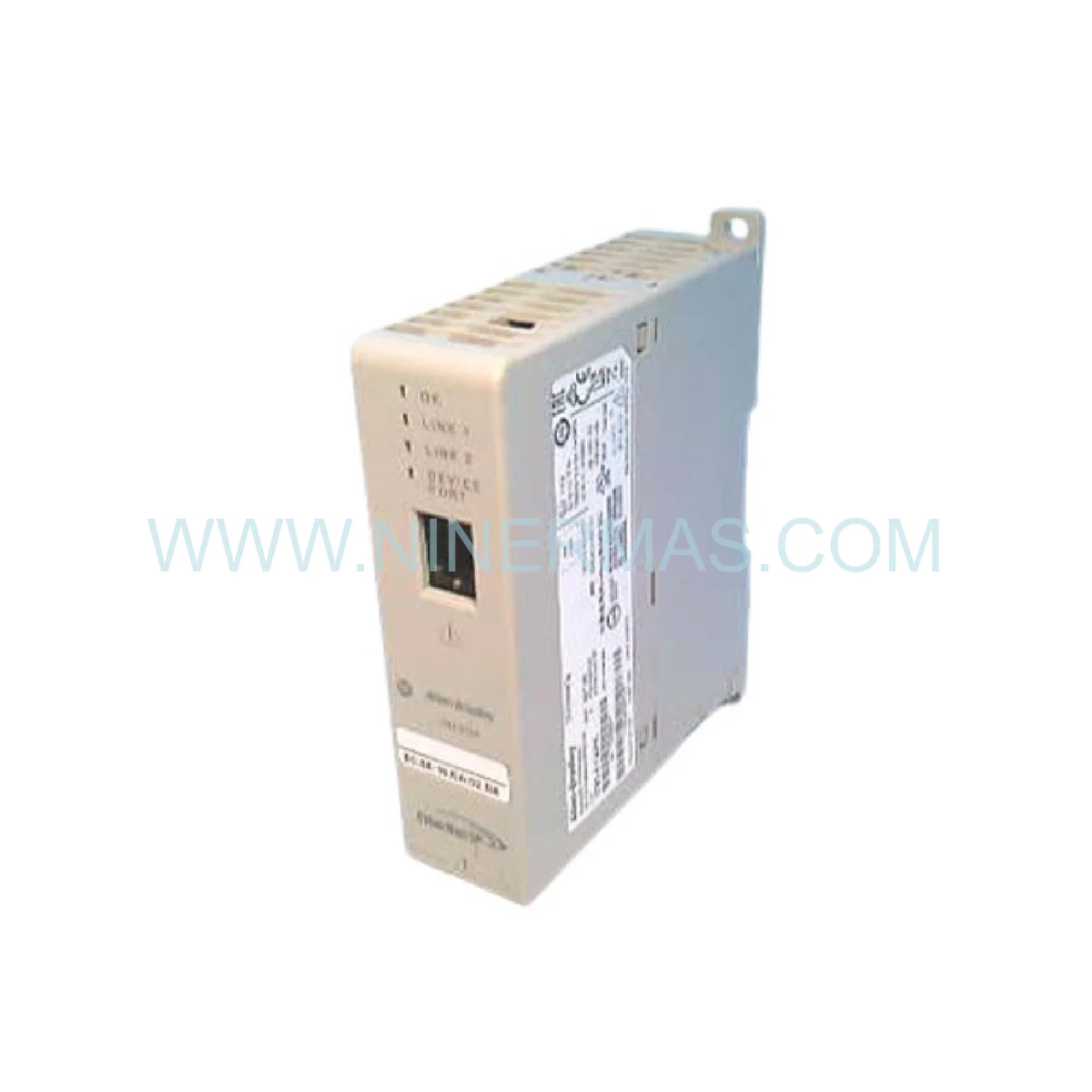

Allen-Bradley 1783-ETAPK EtherNet/IP Tap

Allen-Bradley 1783-ETAPK EtherNet/IP Tap Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components are as quietly indispensable as a high-integrity network tap in a live Distributed Control System environment. The Allen-Bradley 1783-ETAPK is precisely that component — a ruggedized, conformal-coated EtherNet/IP tap module engineered to deliver non-intrusive network diagnostics without interrupting the real-time communications that keep critical Process Control infrastructure operational. In petrochemical refineries, offshore platforms, and large-scale manufacturing facilities, the ability to monitor Fieldbus and EtherNet/IP traffic passively is not a luxury; it is a fundamental requirement for system integrity.

What distinguishes the 1783-ETAPK from generic network taps is its deep compatibility with Rockwell Automation’s ControlLogix and CompactLogix ecosystems, as well as its compliance with ODVA EtherNet/IP standards — making it a preferred Legacy Component for engineers who must maintain aging DCS Hardware without introducing new failure points. Its dual RJ45 inline architecture supports 10/100 Mbps auto-negotiation, ensuring backward compatibility with both modern and legacy network segments across Factory Sealed, original-condition deployments.

As industrial automation systems age and OEM support windows close, sourcing Factory Sealed, original-condition units of the 1783-ETAPK becomes increasingly difficult. This is precisely where our global supply chain capability delivers measurable value: we maintain verified stock of this critical spare part, ready for emergency dispatch to maintenance teams worldwide.

Key Technical Highlights

Protocol Compatibility: Full EtherNet/IP and CIP (Common Industrial Protocol) support — seamlessly integrates into existing Distributed Control System architectures without reconfiguration.
Passive Tap Architecture: Zero-impact inline monitoring; network traffic is mirrored to the diagnostic port without introducing latency or packet loss into the live control loop.
High-Speed Data Capture: 10/100 Mbps auto-negotiation ensures compatibility with both legacy and modern Fieldbus-adjacent Ethernet segments.
Redundancy-Ready Design: Supports deployment in redundant network topologies, enabling continuous monitoring even during switchover events in high-availability DCS environments.
Conformal Coating Protection: Industrial-grade coating shields internal circuitry from moisture, chemical vapors, and particulate contamination — critical for harsh Process Control environments.
DIN Rail Mounting: Standard DIN rail form factor simplifies integration into existing control panel layouts without additional hardware modifications.
Wide Operating Temperature: Rated 0°C to 60°C (32°F to 140°F), suitable for both climate-controlled control rooms and exposed field enclosures.

Vertical Industry Applications

Petrochemical & Refining: In continuous-process refinery environments, unplanned network downtime can trigger costly emergency shutdowns. The 1783-ETAPK enables maintenance engineers to monitor EtherNet/IP traffic between PLCs and field devices in real time — identifying communication anomalies before they escalate into process upsets, without taking the network offline.

Mining & Mineral Processing: Mining operations rely on distributed automation across vast geographic footprints. Deploying this tap module at critical network junctions allows remote diagnostic teams to capture and analyze Fieldbus traffic, dramatically reducing the mean time to repair (MTTR) for communication faults in conveyor, crusher, and flotation control systems.

Marine & Offshore Platforms: Offshore installations demand components that withstand salt-laden atmospheres and vibration. The conformal-coated 1783-ETAPK meets these environmental requirements while providing the network visibility necessary for safe, compliant operation of DCS Hardware in dynamic positioning and ballast control systems.

Power Generation & Utilities: Grid stability depends on the uninterrupted operation of SCADA and DCS networks. This tap module supports non-intrusive monitoring of EtherNet/IP segments connecting RTUs, protection relays, and HMI stations — enabling predictive maintenance without risking system availability.

Automotive & Discrete Manufacturing: High-throughput assembly lines cannot tolerate diagnostic-induced downtime. The passive tap architecture of the 1783-ETAPK allows quality engineers and system integrators to capture network data during live production runs, accelerating root-cause analysis for intermittent communication faults.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 1783-ETAPK supplied through our network is 100% Original Allen-Bradley, sourced directly from authorized distribution channels and verified against manufacturer documentation. We do not supply refurbished, remanufactured, or counterfeit components. Each unit ships in Factory Sealed Condition, with original packaging, labels, and accompanying documentation intact.

Our 12-Month Comprehensive Warranty covers all manufacturing defects and functional failures under normal operating conditions — providing procurement teams and maintenance managers with the confidence to stock critical spare parts without risk. For emergency maintenance scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for in-stock units. Customs documentation, commercial invoices, and export compliance paperwork are prepared in-house to eliminate delays at international borders.

This is a Critical Part for Industry Safety. In systems where network visibility directly impacts process safety and regulatory compliance, accepting anything less than a verified original component is not an option.
