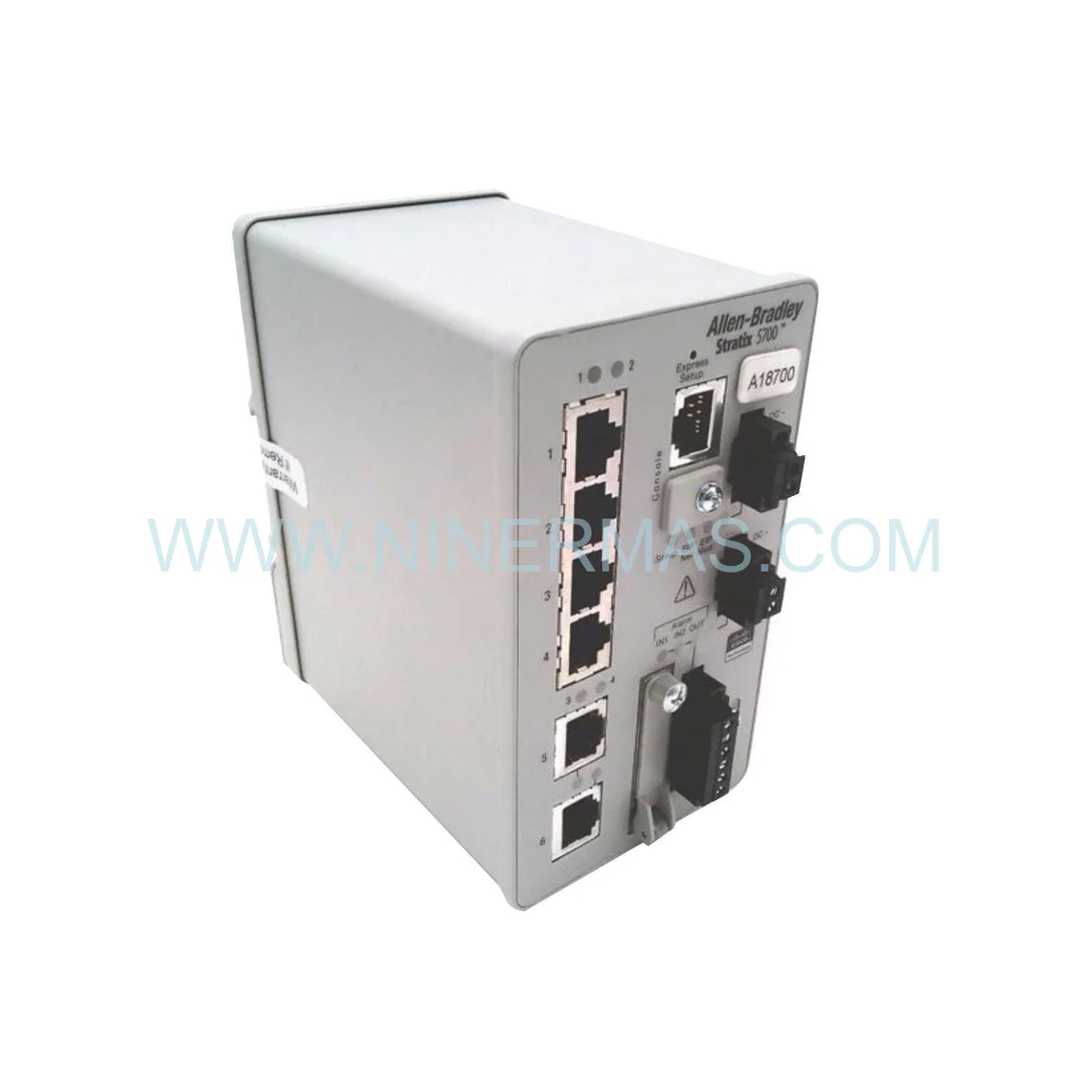

Allen-Bradley 1783-BMS10CGL Stratix 5700 Switch

Allen-Bradley Stratix 5700 1783-BMS10CGL | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the 1783-BMS10CGL is a cornerstone component in sustaining high-availability industrial Ethernet architectures. Deployed across power generation, petrochemical processing, and discrete manufacturing environments, the 1783-BMS10CGL delivers deterministic Layer 2/Layer 3 switching performance that directly reduces unplanned downtime — a mission-critical requirement where every second of production loss carries measurable financial consequence. Its native integration with Rockwell Automation’s EtherNet/IP ecosystem enables seamless system integration without protocol conversion overhead, supporting process optimization at the network infrastructure level.

Engineered for operational excellence in harsh industrial conditions, this module withstands extended temperature ranges from -40°C to +70°C, making it suitable for outdoor substations, foundry floors, and offshore platforms. During installation, engineers should verify DIN-rail torque specifications and confirm redundant DC power feed polarity before commissioning. Fiber uplink ports must be cleaned and inspected per IEC 61300-3-35 standards to prevent signal degradation in high-vibration environments. Proper VLAN segmentation during initial configuration is essential to isolate OT traffic from IT network segments.

As production lines age and OEM support windows close, maintaining a verified stock of automation components like the 1783-BMS10CGL becomes a strategic imperative. Procurement teams managing EOL (End-of-Life) and legacy module inventories recognize that sourcing genuine, factory-packaged I/O modules and network switches from a reliable global supplier eliminates the lead-time risk that can stall entire production campaigns.

Key Operational Features

Redundancy & High Availability: Supports Device Level Ring (DLR) and Media Redundancy Protocol (MRP) for sub-50ms failover, eliminating single points of failure on critical production lines.
Seamless Integration: Pre-configured EtherNet/IP profiles for ControlLogix, CompactLogix, and GuardLogix platforms reduce commissioning time and integration complexity.
Advanced QoS & Traffic Prioritization: Ensures time-sensitive control data receives deterministic bandwidth allocation across converged OT/IT network segments.
Cybersecurity Hardened: IEEE 802.1X port authentication, CIP Security extensions, and encrypted SNMP management protect against unauthorized access in connected plant environments.
Industrial-Grade Durability: UL/cUL Class I Division 2 and ATEX Zone 2 certified — rated for hazardous location deployment where standard commercial switches cannot operate.
Scalable Architecture: Stackable with Stratix 8000 modular switches to support expanding automation infrastructure without topology redesign.

Maintenance & Performance Benchmarks

The 1783-BMS10CGL is designed to adapt across diverse industrial network architectures — from small-cell machine-level rings with fewer than 10 nodes to plant-wide convergence networks spanning multiple production zones. In star topology deployments, the switch functions as a distribution-layer aggregation point, consolidating traffic from field-level I/O modules and HMI stations before uplink to the supervisory SCADA layer.

In ring-based architectures leveraging DLR or MRP, the module’s rapid reconfiguration capability ensures that a single cable or node failure does not interrupt real-time control loops. Maintenance teams should schedule quarterly firmware audits using Rockwell’s FactoryTalk Network Manager to verify compatibility with connected PLC firmware versions. MTBF data indicates >500,000 hours of continuous operation under rated conditions, supporting long-interval preventive maintenance cycles and reducing total cost of ownership for mission-critical automation networks.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1783-BMS10CGL unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and dispatched in Original Factory Packaging with full traceability documentation. For time-critical plant shutdowns or emergency maintenance scenarios, same-day dispatch is available for in-stock units — ensuring your production line returns to operational status with minimal delay.

Our global supply network specializes in EOL and legacy automation components, maintaining verified inventory of discontinued Rockwell Automation modules that are no longer available through standard distribution. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to any facility — whether a refinery in the Middle East, an automotive plant in Eastern Europe, or a semiconductor fab in Southeast Asia. All shipments include commercial invoice, packing list, and certificate of conformity for customs clearance.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1783-BMS10CGL in a DLR ring topology?
A: Begin by configuring the ring supervisor node (typically a ControlLogix controller) before connecting ring participants. Install the 1783-BMS10CGL as a ring node, verify DLR capability is enabled via Studio 5000 or RSLogix 5000, then connect ring ports sequentially. Confirm ring status via the module’s web interface before energizing the full network segment.

Q2: Which firmware versions are compatible with this switch for use alongside ControlLogix L8x controllers?
A: The 1783-BMS10CGL is compatible with firmware versions 15.x and above for Stratix 5700 series. When paired with ControlLogix L8x (v32.x firmware), ensure the switch firmware is at minimum v15.6 to support CIP Security extensions. Always consult Rockwell Automation’s Product Compatibility and Download Center (PCDC) for the latest compatibility matrix before firmware upgrades.

Q3: How do I initiate a warranty claim for a unit purchased through NINERMAS?
A: Contact our technical support team at sale@ninermas.com with your order reference number, unit serial number, and a description of the fault condition. Our team will issue an RMA (Return Merchandise Authorization) within 24 business hours. The 1-year warranty covers manufacturing defects and component failure under rated operating conditions. Physical damage or incorrect installation is excluded per standard warranty terms.

Q4: Can the 1783-BMS10CGL be managed via Rockwell’s FactoryTalk Network Manager?
A: Yes. The switch is fully compatible with FactoryTalk Network Manager (FTNM) for centralized topology visualization, firmware management, and SNMP-based event monitoring. Ensure FTNM version 4.x or later is installed for full feature support including automated network health reporting.

Q5: Is this module suitable for use in hazardous classified areas?
A: The 1783-BMS10CGL carries UL/cUL Class I Division 2 and ATEX Zone 2 certifications, making it suitable for deployment in areas where flammable gases or vapors may be present under abnormal conditions. Verify local regulatory requirements and consult your safety engineer before installation in classified locations.

Q6: What is the lead time for out-of-stock units?
A: For units not currently in stock, our global sourcing team typically confirms availability within 3-5 business days. Expedited sourcing for urgent plant requirements is available — contact sale@ninermas.com with your required delivery date for priority handling.
