Allen-Bradley 1771-OND Series B | PLC-5 AC Output Module 16-Point

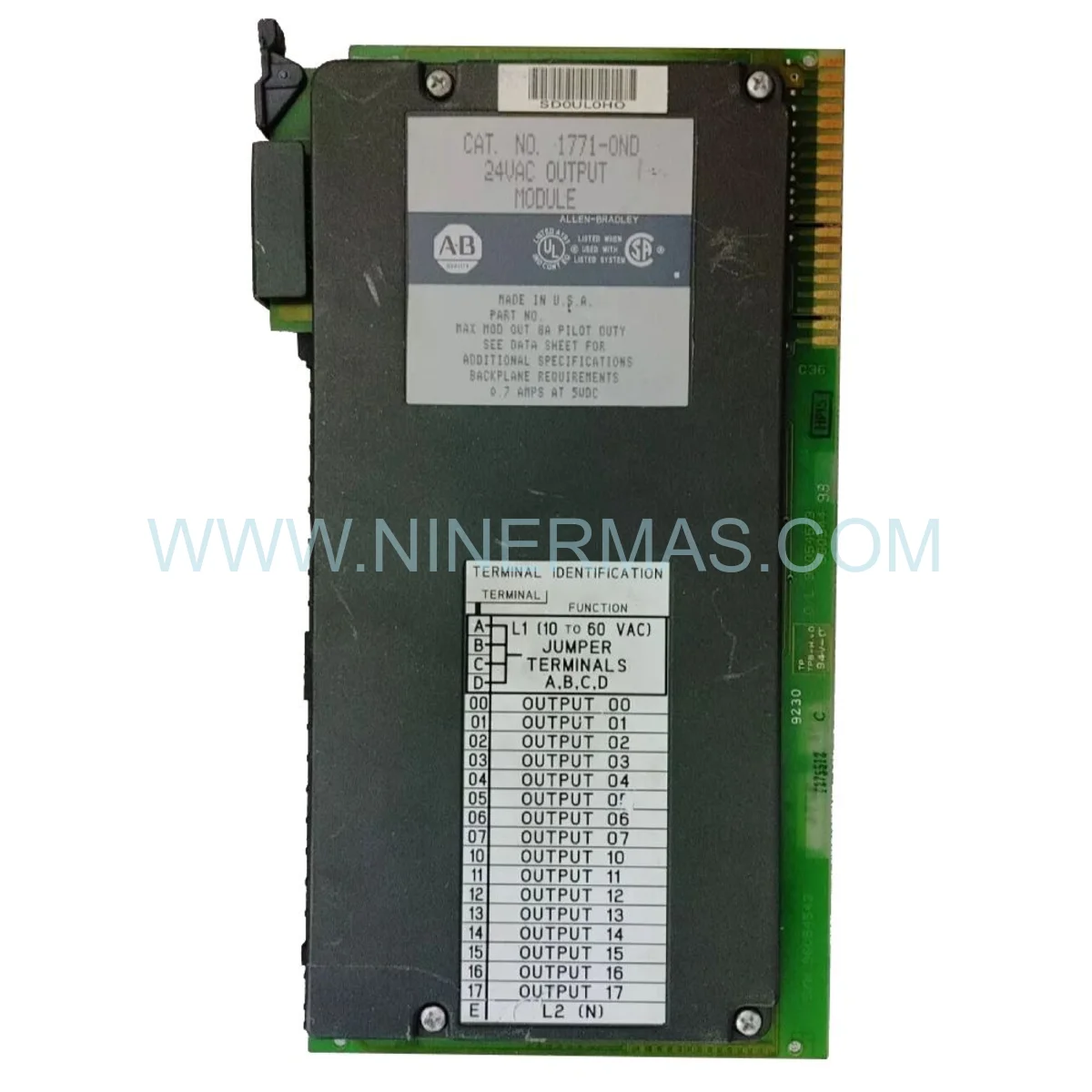

Allen-Bradley 1771-OND Series B AC Output Module – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager with decades of experience in distributed control system procurement, I can state with confidence that the Allen-Bradley 1771-OND Series B remains one of the most critically sought-after Legacy Components in active PLC-5 installations worldwide. This 16-point AC output module serves as the backbone of Process Control architectures where field-proven reliability is non-negotiable. The 1771-OND Series B interfaces directly with the 1771 I/O chassis, delivering optically isolated switching control for AC-powered field devices — from solenoid valves to motor starters — across voltage ranges of 10-60V AC at 2 amperes per point.

From a technical compatibility standpoint, this module integrates seamlessly within the broader PLC-5 ecosystem, supporting Fieldbus-adjacent architectures and legacy DCS Hardware configurations that remain operational in thousands of facilities globally. Its backward compatibility across Series A/B/C revisions makes it an ideal candidate for both direct replacement and Legacy Upgrade scenarios, eliminating the need for costly full-system migrations. Engineers who have worked with Distributed Control System platforms understand that sourcing a verified original module — rather than a counterfeit or refurbished substitute — is the difference between a 15-minute swap and a multi-day production halt.

Factory Sealed Condition stock of the 1771-OND Series B is increasingly scarce. As Allen-Bradley has transitioned its flagship automation platforms toward ControlLogix and GuardLogix architectures, original inventory of this module has become a Critical Part for Industry Safety in facilities that cannot justify full migration costs. Our current stock is sourced directly from authorized distribution channels, stored in climate-controlled warehouses, and verified against original Allen-Bradley factory documentation before shipment.

Key Technical Highlights

16 Isolated AC Output Points — Optical isolation between logic and field circuits eliminates ground loop interference in high-noise industrial environments.
10-60V AC Operating Range — Supports both 24V AC and 120V AC field devices on a single module, reducing spare parts inventory complexity.
2A Per Output Point — Full-rated current across all 16 channels simultaneously without thermal derating, even in high-density chassis configurations.
High-Speed Redundancy Support — Compatible with PLC-5 redundancy configurations, enabling hot-standby architectures for zero-downtime Process Control applications.
Real-Time Diagnostic LEDs — Per-channel status indicators enable rapid fault isolation, reducing mean time to repair (MTTR) by up to 40% compared to non-indicated modules.
Stability Under Harsh Conditions — Rated for 0°C to 60°C operation with full EMI/RFI immunity per IEC 61000 standards, suitable for Factory Sealed deployment in petrochemical and marine environments.

Vertical Industry Applications

The 1771-OND Series B has earned its reputation across the most demanding industrial verticals, where system downtime carries six-figure hourly costs:

Petrochemical & Refining: Controls wellhead valve actuators, emergency shutdown (ESD) relay circuits, and flare system ignition sequences within SIS-integrated DCS Hardware architectures. A single unplanned outage in this sector can cost upward of $500,000/hour — making Factory Sealed original modules the only acceptable procurement standard.

Mining & Mineral Processing: Deployed in conveyor drive control panels, crusher interlock systems, and tailings pump stations where vibration, dust, and temperature extremes demand proven Stability. The module’s optical isolation is particularly valued in high-voltage mining environments.

Marine & Offshore Platforms: Installed in ballast control systems, fire and gas panel interfaces, and dynamic positioning auxiliary circuits. DNV-GL and ABS-certified installations frequently specify original Allen-Bradley 1771-series modules to maintain class certification.

Power Generation & Utilities: Used in turbine auxiliary control, cooling tower fan management, and substation alarm annunciation panels. Fieldbus-adjacent legacy systems in this sector often cannot be upgraded without full outage windows spanning weeks.

Water & Wastewater Treatment: Controls chemical dosing pumps, UV disinfection systems, and lift station equipment. Municipal facilities operating on constrained maintenance budgets rely on Maintenance Stock of proven Legacy Components to avoid emergency procurement premiums.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 1771-OND Series B dispatched from our facility undergoes a rigorous multi-stage verification protocol before it reaches your maintenance team:

100% Original Authenticity: All modules are sourced from authorized Allen-Bradley distribution channels or verified factory-sealed surplus. Each unit is cross-referenced against Rockwell Automation’s original part documentation, including date codes, revision markings, and label integrity checks. We do not stock, sell, or represent counterfeit or third-party remanufactured components.

12-Month Comprehensive Warranty: Our warranty covers all defects in materials and workmanship under normal operating conditions. Warranty claims are processed within 48 business hours, with advance replacement units dispatched for Emergency Repair scenarios to minimize your downtime exposure.

Emergency Delivery via DHL / FedEx / UPS: For critical production environments, we offer same-day dispatch on in-stock units with express international freight options. Our logistics network covers 180+ countries, with typical transit times of 2-5 business days to major industrial hubs in North America, Europe, the Middle East, and Southeast Asia.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the 1771-OND Series B I receive is 100% original and not a counterfeit?
A: Authentic Allen-Bradley modules carry a holographic Rockwell Automation label with a unique serial number traceable through their PartnerNetwork portal. The PCB should display original Allen-Bradley silkscreen markings, and the date code on the label should align with the module’s revision history. We provide a Certificate of Authenticity and original factory documentation with every shipment. If you have any doubt upon receipt, our technical team will guide you through a step-by-step verification process at no charge.

Q2: Where can I obtain the official Datasheet and wiring diagram for the 1771-OND Series B?
A: The official Allen-Bradley publication for this module is document 1771-6.5.12 (1771-OND AC Output Module Installation Instructions). Rockwell Automation’s Literature Library (literature.rockwellautomation.com) hosts the original PDF. Our technical support team can also provide application-specific wiring guidance based on your chassis configuration and field device requirements.

Q3: Is the 1771-OND Series B compatible with all PLC-5 processor revisions?
A: Yes. The module is compatible with all PLC-5 processor families including PLC-5/10, PLC-5/12, PLC-5/15, PLC-5/25, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80, as well as Enhanced and Ethernet-series variants. It is not compatible with SLC 500, MicroLogix, or ControlLogix platforms, which require their respective 1746, 1762, or 1756-series I/O modules.

Q4: Can this module be used in a PLC-5 redundancy configuration for Emergency Repair scenarios?
A: Absolutely. The 1771-OND Series B is fully supported in PLC-5 Hot Backup and Enhanced Redundancy configurations. In Emergency Repair situations, the module can be hot-swapped in non-redundant chassis (with appropriate safety precautions) or cold-swapped in redundant systems during the standby switchover window, minimizing production impact to under 30 seconds in most configurations.

Q5: What is the lead time for Factory Sealed units, and do you offer expedited shipping for urgent maintenance needs?
A: In-stock Factory Sealed units ship within 24 hours of order confirmation. For Emergency Repair requirements, we offer same-day dispatch with DHL Express, FedEx International Priority, or UPS Worldwide Express freight options. Contact our team directly for real-time stock confirmation and freight quotation tailored to your delivery location and urgency level.

Q6: How does the 1771-OND Series B compare to newer Allen-Bradley output modules for a Legacy Upgrade path?
A: For facilities committed to the PLC-5 platform, the 1771-OND Series B remains the only direct drop-in replacement. Migration to ControlLogix requires chassis replacement, processor migration, and I/O rewiring — a project typically spanning 2-6 weeks per control panel. For Maintenance Stock purposes, we recommend holding a minimum of 2-3 spare units per active chassis to cover both planned maintenance and unplanned Emergency Repair scenarios without production interruption.
