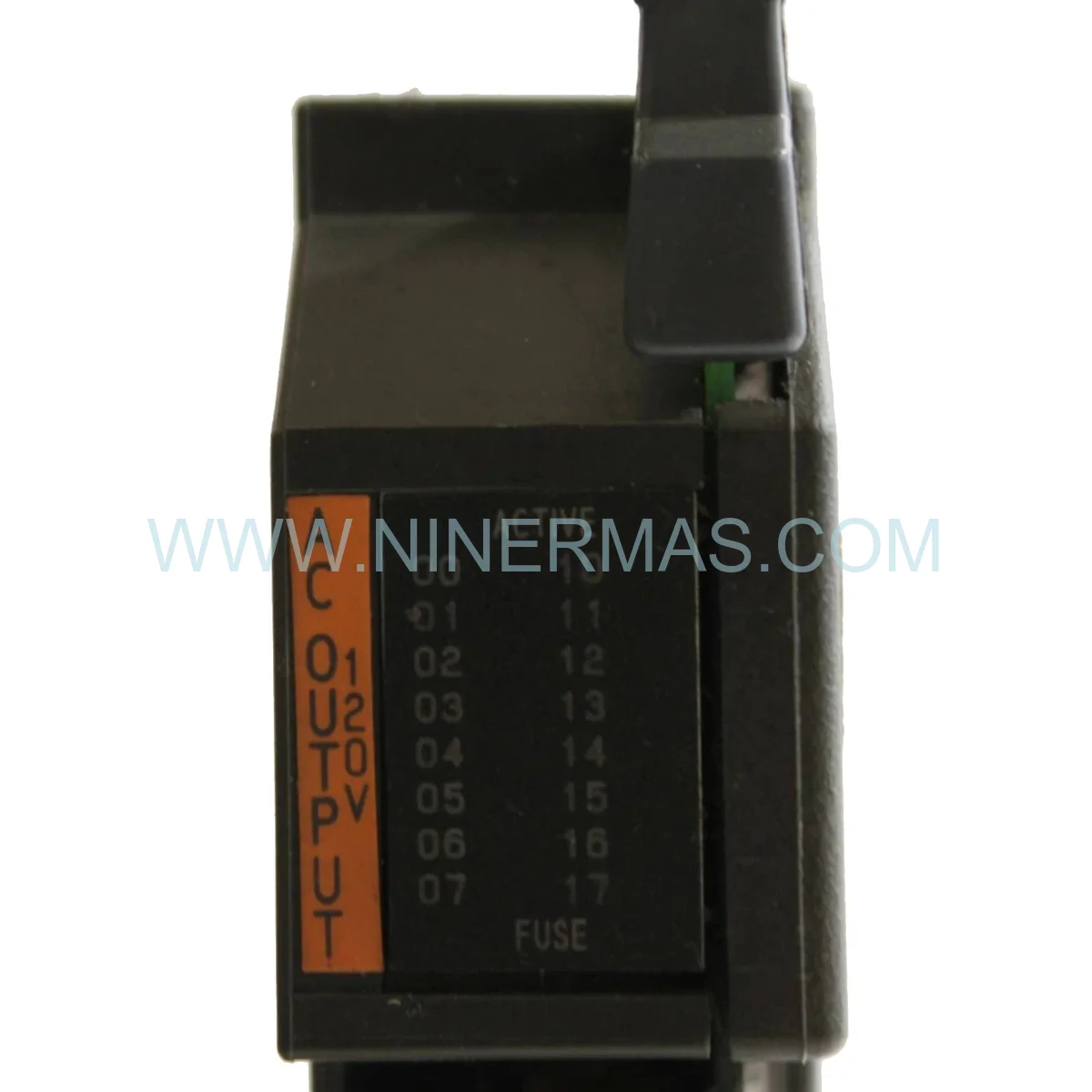

Allen-Bradley 1771-OD16/A | Legacy PLC Retrofit & System Upgrade Module

Allen-Bradley 1771-OD16/A – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, the Allen-Bradley 1771-OD16/A stands out as a mission-critical hardware component in any legacy system modernization roadmap. This 16-point AC output module plays a pivotal role in extending the operational lifespan of PLC-5 and SLC 500 platforms — enabling facilities to sustain production continuity while phased migration strategies are executed. The Allen-Bradley 1771-OD16/A bridges the gap between aging field infrastructure and modern control architectures, delivering measurable performance enhancement without forcing a full platform overhaul.

One of the most compelling advantages of this module lies in its backward compatibility with the 1771 I/O chassis ecosystem. For retrofit engineers managing brownfield sites, this means the 1771-OD16/A can be deployed as a direct hardware upgrade within existing rack configurations — eliminating costly rewiring, minimizing downtime windows, and preserving validated I/O mapping. Its legacy compatibility makes it the preferred choice for facilities that must maintain operational continuity during multi-phase system migration projects.

From a total cost of ownership perspective, sourcing the 1771-OD16/A as part of a structured retrofit solution dramatically reduces migration risk. Rather than committing to a full DCS or PLC platform replacement in a single capital event, operations teams can implement targeted hardware upgrades — stabilizing critical control loops, reducing unplanned downtime, and deferring large-scale capital expenditure until operational conditions allow a seamless integration transition.

Upgrade Highlights & Compatibility

• ✅ Direct Chassis Compatibility: Drop-in fit for all 1771 I/O chassis — zero structural modification required for retrofit deployment.
• Dual Voltage Flexibility: 120/240V AC operation supports both legacy and modernized field device standards across global facilities.
• ✅ Optical Isolation Architecture: 1500V isolation barrier protects PLC logic from field-side transients — critical for performance enhancement in electrically noisy environments.
• 16-Channel Independent Switching: Granular output control enables precise sequencing for complex retrofit automation scenarios.
• ✅ LED Channel Diagnostics: Per-point status indicators accelerate fault isolation during commissioning and post-migration validation.
• Future-Proofing via Phased Migration: Supports incremental system migration strategies — upgrade I/O infrastructure without replacing the entire control platform.

Modernization Use Cases & Success Stories

DCS Hybrid Migration — Chemical Processing Plant: A regional petrochemical facility operating a legacy PLC-5 architecture faced escalating spare parts scarcity and increasing MTTR (Mean Time to Repair). By integrating the 1771-OD16/A as a stabilizing retrofit solution within their existing 1771 chassis, the engineering team extended platform viability by 4+ years — buying critical time for a phased DCS migration without production interruption. The module’s seamless integration with existing field wiring eliminated a projected $180,000 rewiring cost.

Turbine Supervisory Instrumentation (TSI) Upgrade — Power Generation: A combined-cycle power plant required performance enhancement of its turbine monitoring and protection I/O layer. The 1771-OD16/A was deployed as a hardware upgrade within the TSI output tier, replacing degraded legacy modules while maintaining full compatibility with existing BPCS logic. The result: a 40% reduction in nuisance trips attributed to aging output hardware, and a validated retrofit solution that satisfied both OEM and insurance compliance requirements.

Automotive Assembly Line Retrofit — Manufacturing: An automotive body shop running SLC 500-based conveyor control required rapid hardware upgrade of failing AC output modules during a scheduled maintenance window. The 1771-OD16/A’s plug-compatible form factor enabled a 2-hour swap-and-validate cycle — versus a projected 3-day platform replacement — demonstrating the module’s value as a legacy compatibility anchor in high-throughput manufacturing environments.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Allen-Bradley 1771-OD16/A | | **Module Type** | 16-Point AC Digital Output | | **Voltage Range** | 120 / 240V AC, 50/60 Hz | | **Current per Point** | 2A (max) | | **Current per Common** | 8A (max) | | **Isolation Rating** | 1500V optical isolation | | **Response Time** | 1 ms ON/OFF | | **Chassis Compatibility** | All Allen-Bradley 1771 I/O chassis | | **Platform Support** | PLC-5, SLC 500 | | **Operating Temperature** | 0°C — 60°C (32°F — 140°F) | | **Diagnostics** | Per-channel LED status indicators | | **Lifecycle Status** | Legacy / Retrofit-Supported | | **Retrofit Role** | Direct replacement & performance upgrade | | **Migration Strategy** | Phased I/O modernization compatible | | **Certifications** | UL Listed, CE Marked |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All 1771-OD16/A units are sourced as genuine Allen-Bradley components — original packaging, factory-sealed condition, with full traceability documentation available upon request. No refurbished or counterfeit risk.

Expedited Global Logistics: Recognizing that retrofit and system migration projects operate under compressed timelines, we maintain ready inventory with expedited international shipping to support emergency hardware upgrade requirements across North America, Europe, the Middle East, and Asia-Pacific.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy compatibility challenges — from I/O mapping validation and chassis slot configuration to cross-referencing obsolete part numbers and identifying compatible retrofit solution alternatives. We support your migration from first inquiry through post-installation commissioning.

Retrofit FAQ (Upgrade Guide)

Q1: Is the 1771-OD16/A physically compatible with all 1771 chassis sizes?
Yes. The Allen-Bradley 1771-OD16/A is designed for universal installation across all 1771 I/O chassis configurations — including 4-slot, 8-slot, 12-slot, and 16-slot variants. No mechanical modification is required, making it an ideal retrofit solution for facilities with mixed chassis generations.

Q2: Can the 1771-OD16/A communicate with modern DCS or SCADA platforms during a phased migration?
The 1771-OD16/A operates as a field-side output module within the PLC-5 or SLC 500 I/O backplane. During system migration, it continues to function under legacy PLC control while higher-level SCADA or DCS integration is implemented at the communication layer — enabling seamless integration without disrupting field device operation.

Q3: What are the recommended substitute or upgrade path options if the 1771-OD16/A becomes unavailable?
For facilities planning a longer-term hardware upgrade, the migration path typically progresses toward ControlLogix or CompactLogix platforms with equivalent digital output modules. However, for near-term operational continuity, the 1771-OD16/A remains the most direct legacy compatibility solution. Our team can provide cross-reference analysis and retrofit solution planning upon request.

Q4: How does the optical isolation in the 1771-OD16/A protect existing control systems during retrofit?
The 1500V optical isolation barrier electrically decouples the PLC logic circuitry from AC field devices. During retrofit deployments — where new and legacy wiring may coexist — this isolation prevents ground loops, voltage transients, and inductive kickback from propagating into the control backplane, significantly reducing the risk of logic faults or processor damage during the migration window.

Q5: What documentation is available to support installation and commissioning during a system migration project?
We provide access to original Allen-Bradley installation instructions, wiring diagrams, and technical manuals for the 1771-OD16/A. For complex retrofit projects, our engineering support team can assist with I/O configuration validation, slot addressing verification, and pre-commissioning checklist development.

Q6: Is the 1771-OD16/A suitable for use in safety-instrumented or high-availability systems?
The 1771-OD16/A is a standard (non-SIL-rated) digital output module. For safety-instrumented system (SIS) retrofit applications, a formal functional safety assessment is required. However, for general process control and performance enhancement applications outside the safety layer, the module delivers proven reliability in demanding industrial environments.
