Allen-Bradley 1771-OBN/B Isolated DC Output Module

Allen-Bradley 1771-OBN/B Isolated DC Output Module – Industrial Process Solution

Technical Overview & First Impression

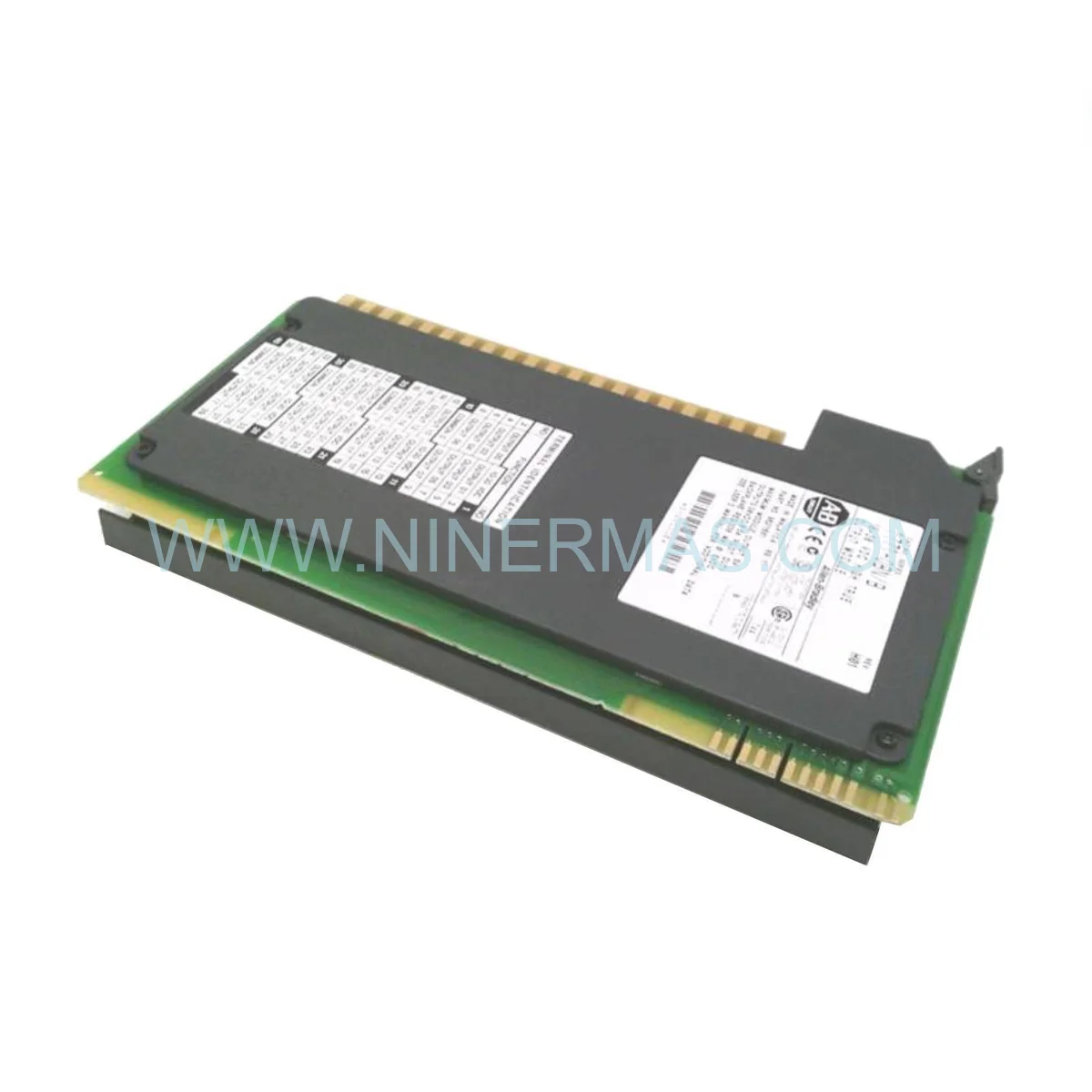

From the perspective of a seasoned Industrial Solution Architect, few discrete output modules have demonstrated the sustained reliability of the Allen-Bradley 1771-OBN/B across decades of mission-critical deployments. Within a Distributed Control System or PLC-5 chassis, the 1771-OBN/B functions as the decisive interface between control logic and field-side actuators — translating digital commands into precise 10-30V DC switching signals that drive solenoids, motor starters, relay coils, and indicator lamps. Its role in Process Control environments is not merely functional; it is foundational to system uptime.

What distinguishes the Allen-Bradley 1771-OBN/B from generic alternatives is its 1500V optical isolation barrier, which decouples the PLC backplane from field-side electrical noise, ground loops, and transient surges endemic to heavy industrial environments. This technical architecture makes it a preferred Legacy Component in Fieldbus-integrated systems where signal integrity cannot be compromised. Engineers managing DCS Hardware upgrades consistently specify this module when backward compatibility with existing 1771 I/O chassis is non-negotiable.

Original factory-sealed units of the 1771-OBN/B are increasingly scarce as Rockwell Automation has transitioned its portfolio toward ControlLogix platforms. For facilities operating PLC-5 or SLC 500 systems — particularly in petrochemical, mining, and marine sectors — sourcing a genuine, untouched module represents a critical supply chain priority. Our inventory is 100% original, Factory Sealed Condition, and available for immediate dispatch.

Key Technical Highlights

16-Point Isolated DC Outputs — Each point independently isolated; eliminates inter-channel interference in high-density wiring environments.
10-30V DC Operating Range — Broad voltage tolerance accommodates diverse field device requirements without additional signal conditioning.
2A Per Point / 8A Per Common — Sufficient current capacity for direct solenoid valve and motor starter actuation without external relays.
1500V Optical Isolation — Protects PLC backplane from field-side transients; essential for Stability in high-noise industrial environments.
1ms Typical ON/OFF Response — High-speed switching supports time-critical sequencing in automated production lines.
Redundancy-Ready Architecture — Compatible with 1771 redundant chassis configurations for systems requiring continuous availability.
Per-Point LED Diagnostics — Accelerates fault isolation and reduces Mean Time To Repair (MTTR) during unplanned shutdowns.

Vertical Industry Applications

Petrochemical & Refining: The 1771-OBN/B controls emergency shutdown valve actuators and process isolation valves in SIS-integrated DCS environments. Its optical isolation prevents ground-loop faults from propagating into safety instrumented systems, directly reducing unplanned process shutdowns that can cost operators tens of thousands of dollars per hour.

Mining & Mineral Processing: In conveyor drive control and crusher sequencing applications, this module’s robust current rating and short-circuit protection sustain operations in environments characterized by heavy electrical interference from variable-frequency drives and high-power motors.

Marine & Offshore Platforms: Shipboard automation systems demand components rated for vibration, humidity, and salt-air exposure. The 1771-OBN/B’s proven field record on offshore drilling platforms makes it a trusted Legacy Component for marine engineers maintaining aging automation infrastructure.

Power Generation & Utilities: Turbine control auxiliaries, cooling tower fan sequencing, and switchgear interlocking circuits rely on the deterministic switching behavior of this module. Its compatibility with existing 1771 chassis eliminates the need for costly backplane redesigns during partial modernization projects.

Food & Beverage Processing: Hygienic production lines use the 1771-OBN/B to control CIP (Clean-In-Place) valve manifolds and conveyor gate diverters. The module’s fast response time supports high-throughput packaging operations where millisecond-level timing directly impacts product quality.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every Allen-Bradley 1771-OBN/B unit in our inventory is sourced directly from authorized distribution channels and verified against Rockwell Automation’s original packaging standards. We do not supply refurbished, remarked, or counterfeit components. Each module undergoes a multi-point inspection protocol before dispatch.

100% Original Factory Sealed Condition — Tamper-evident packaging intact; no signs of prior installation or field use.
12-Month Comprehensive Warranty — Full replacement guarantee covering manufacturing defects and functional failures under normal operating conditions.
Emergency Delivery via DHL / FedEx / UPS — Global express logistics with same-day or next-business-day dispatch for critical maintenance scenarios. Customs documentation and export compliance handled in-house.
Traceability Documentation — Certificate of conformity, original datasheet, and supply chain records provided upon request.

For facilities managing Emergency Repair situations — where a failed 1771-OBN/B has halted an entire production line — our expedited sourcing desk operates across time zones to confirm stock availability and initiate shipment within hours of order confirmation. The 1771-OBN/B is a Critical Part for Industry Safety in systems where output module failure can trigger cascading process shutdowns or safety system activations.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a 1771-OBN/B unit is 100% original and not a counterfeit?
Authentic Allen-Bradley 1771-OBN/B modules carry a Rockwell Automation holographic label on the module housing, a date code stamped on the PCB visible through the ventilation slots, and catalog number silk-screened directly onto the front bezel. The revision letter “/B” must appear as part of the catalog number — not as a separate sticker. Request a photo of the original sealed packaging and the module’s label before purchase.

Q2: Where can I obtain the official datasheet and wiring diagram for the 1771-OBN/B?
The official Allen-Bradley 1771-OBN/B installation instructions (Publication 1771-IN009) are available through Rockwell Automation’s Literature Library. We also provide a copy of the original datasheet with every shipment upon customer request. Contact our technical team with your application details for wiring diagram support.

Q3: Is the 1771-OBN/B compatible with both PLC-5 and SLC 500 chassis?
Yes. The 1771-OBN/B is designed for the 1771 I/O chassis platform, which is shared across PLC-5 and SLC 500 processor families. However, slot addressing and I/O configuration differ between processor types. Verify your chassis backplane revision and processor firmware version against Rockwell Automation’s compatibility matrix before installation.

Q4: Can the 1771-OBN/B be used in a redundant control system configuration?
The 1771-OBN/B supports deployment in redundant 1771 chassis configurations when paired with appropriate redundancy modules and a compatible PLC-5R processor. Redundancy behavior is governed by the processor’s fault-handling configuration, not the output module itself. Consult your system integrator for redundancy architecture validation.

Q5: What is the lead time for emergency orders, and which regions do you ship to?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST. We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Express. Typical transit times range from 1-3 business days to North America and Europe, and 2-5 business days to Southeast Asia, the Middle East, and South America. All shipments include tracking and commercial invoice documentation.

Q6: Is the 1771-OBN/B still in production, and what are the recommended migration paths?
The Allen-Bradley 1771-OBN/B is an end-of-life (EOL) Legacy Component. Rockwell Automation’s recommended migration path is to the ControlLogix 1756-OB16E or CompactLogix 5370 platforms. However, for facilities not yet ready for a full DCS Hardware migration, maintaining a Maintenance Stock of original 1771-OBN/B modules is the most cost-effective strategy to ensure continued system availability without a capital-intensive platform upgrade.
