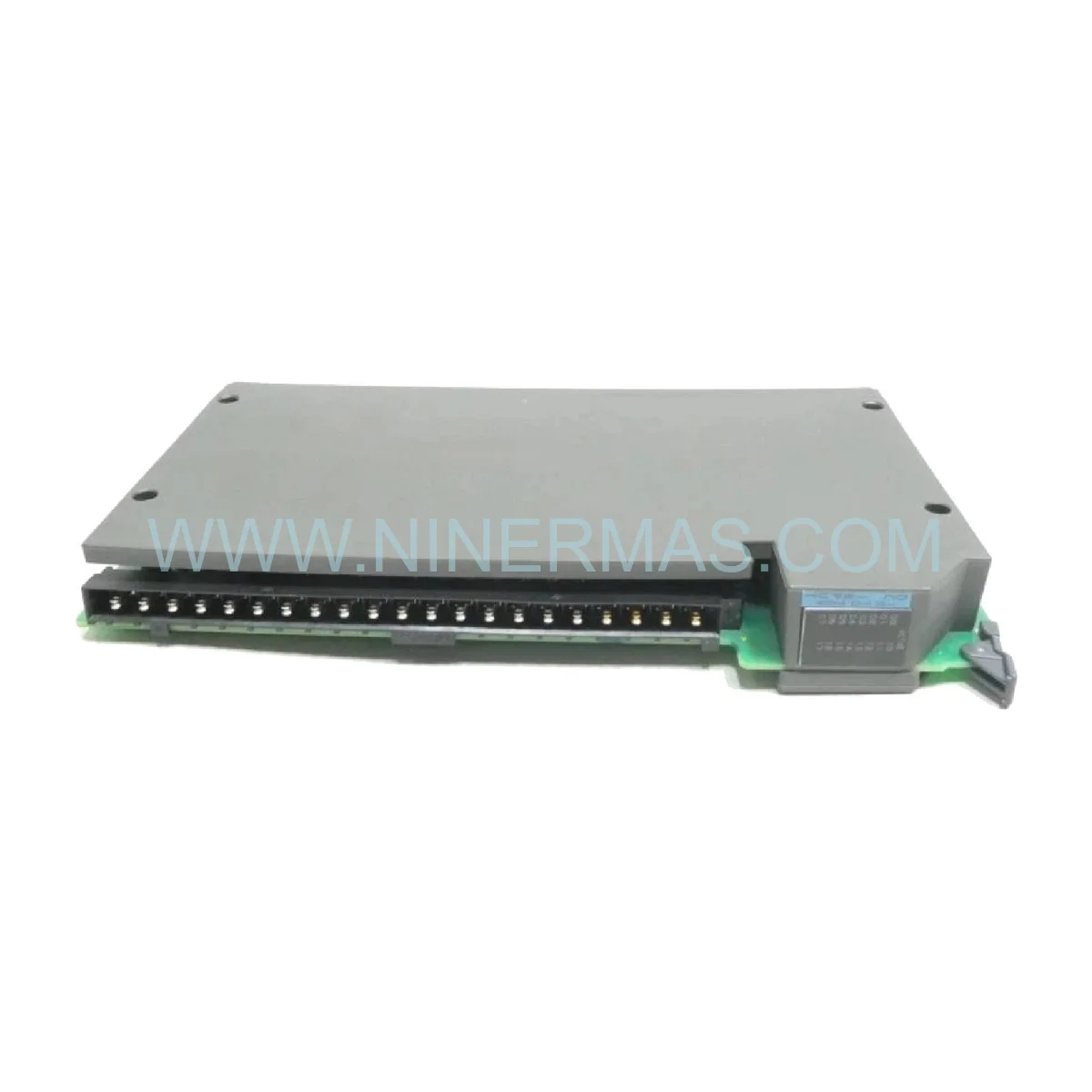

Allen-Bradley 1771-IBDK DC Input Module

Allen-Bradley 1771-IBDK DC Input Module – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager with over a decade of experience in distributed control system procurement, I can state with confidence that the Allen-Bradley 1771-IBDK occupies a mission-critical position within the PLC-5 I/O architecture. This 16-point DC input module serves as the primary interface between field-level discrete sensors and the PLC-5 processor, enabling real-time acquisition of 24V DC signals across complex Process Control environments. Its role in maintaining uninterrupted data flow within Fieldbus-integrated systems cannot be overstated — it is the sensory nerve of the control loop.

From a technical compatibility standpoint, the Allen-Bradley 1771-IBDK integrates seamlessly into any 1771 I/O chassis without requiring firmware modifications or adapter hardware. For facilities operating legacy DCS Hardware alongside modern SCADA layers, this module provides a cost-effective bridge that avoids full system migration. Its optical isolation architecture ensures signal integrity even in electrically noisy environments, making it a preferred substitute where counterfeit or refurbished alternatives have historically caused process upsets.

Original stock of the 1771-IBDK has become increasingly scarce as Allen-Bradley has transitioned its product roadmap toward ControlLogix and CompactLogix platforms. Factory Sealed units sourced directly from authorized distribution channels represent a finite and diminishing supply — making immediate procurement a strategic priority for any facility running PLC-5-based automation infrastructure.

Key Technical Highlights

Input Voltage Range: 10-30V DC (24V DC nominal) — compatible with standard field sensor outputs across global installations
Input Density: 16 optically isolated discrete input points per module — maximizes chassis slot utilization
Optical Isolation Rating: 1500V per input group — delivers superior noise immunity and backplane protection in high-EMI environments
Response Speed: 9 ms ON/OFF transition delay — supports high-speed sensor polling in time-critical process loops
Redundancy-Ready: Compatible with 1771 redundant chassis configurations — supports hot-standby architectures for Safety Instrumented Systems (SIS)
Per-Channel LED Diagnostics: Instant visual fault identification reduces MTTR and supports rapid field troubleshooting
Operating Temperature: 0°C to 60°C — rated for continuous duty in industrial plant environments
Removable Terminal Blocks: Simplify wiring maintenance and module replacement without rewiring field cables

Vertical Industry Applications

Petrochemical & Refining: The 1771-IBDK monitors pressure switches, valve position feedback, and emergency shutdown (ESD) inputs within Distributed Control System architectures. Its optical isolation prevents ground loop interference from corrupting safety-critical signals, directly reducing unplanned process shutdowns.

Mining & Mineral Processing: In conveyor control and crusher automation systems, this module interfaces with proximity sensors and belt alignment switches. Its rugged design tolerates vibration and dust-laden environments, maintaining system uptime in remote mining operations where spare parts logistics are challenging.

Marine & Offshore Platforms: Offshore drilling control systems rely on Legacy Components like the 1771-IBDK to maintain operational continuity. The module’s compact form factor and wide operating temperature range make it suitable for space-constrained marine control panels.

Pharmaceutical & Food Processing: Regulatory compliance in batch manufacturing requires deterministic input scanning. The 1771-IBDK’s consistent 9 ms response time supports validated process sequences, reducing the risk of batch failures caused by missed sensor events.

Power Generation & Utilities: Turbine control and substation automation systems built on PLC-5 platforms depend on Factory Sealed replacement modules to maintain OEM-equivalent performance. Substituting with non-original parts in these environments introduces unacceptable reliability risk.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every Allen-Bradley 1771-IBDK unit we supply undergoes a rigorous multi-stage verification process before shipment. All modules are sourced exclusively from authorized distribution channels or directly from factory-sealed OEM inventory, ensuring 100% original Allen-Bradley components — never refurbished, never counterfeit.

Our quality assurance protocol includes visual inspection for factory seal integrity, functional bench testing against OEM specifications, and ESD-safe packaging to prevent electrostatic damage during transit. Each unit ships with a 12-Month Comprehensive Warranty covering manufacturing defects and functional failures under normal operating conditions.

For emergency maintenance scenarios, we offer expedited global delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express. Orders confirmed before 14:00 CST are typically dispatched same business day. We maintain strategic inventory buffers specifically for critical Legacy Components like the 1771-IBDK to support unplanned plant shutdowns and emergency repair situations where production continuity is at stake.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the 1771-IBDK I receive is 100% original Allen-Bradley and not a counterfeit?
Authentic Allen-Bradley 1771-IBDK modules feature a factory-applied holographic label on the module housing, a date code stamped on the PCB visible through the ventilation slots, and Rockwell Automation’s standard catalog label format. We provide photographic documentation of each unit’s serial number and date code upon request, and all units are cross-referenced against Rockwell Automation’s authorized product database before shipment.

Q2: Where can I obtain the official datasheet and wiring diagram for the 1771-IBDK?
The official Allen-Bradley 1771-IBDK installation instructions (Publication 1771-IN009) and the PLC-5 I/O Modules User Manual (Publication 1771-UM002) are available through Rockwell Automation’s Literature Library. Our technical team can also provide application-specific wiring guidance and configuration support as part of our pre-sales engineering service.

Q3: Is the 1771-IBDK compatible with all PLC-5 processor series?
Yes. The 1771-IBDK is compatible with all PLC-5 processor variants including PLC-5/10, PLC-5/12, PLC-5/15, PLC-5/20, PLC-5/25, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80 series, provided they are installed in a 1771 I/O chassis. It is also compatible with 1771 Remote I/O adapter configurations for distributed Fieldbus architectures.

Q4: Can the 1771-IBDK be used as a direct replacement for other 1771 DC input modules?
The 1771-IBDK is specifically designed for 24V DC input applications and is not a direct drop-in replacement for AC input variants (e.g., 1771-IA, 1771-IB) or high-density modules with different point counts. Verify your existing module catalog number and chassis slot configuration before ordering. Our engineering team can assist with cross-reference validation at no charge.

Q5: What is the typical lead time for emergency orders of the 1771-IBDK?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST. International delivery via DHL Express typically reaches major industrial hubs in Asia, Europe, and the Americas within 2-5 business days. For remote locations or customs-sensitive regions, our logistics team provides proactive documentation support to minimize clearance delays.

Q6: Is the 1771-IBDK still in production, and what is its end-of-life status?
The Allen-Bradley 1771-IBDK has been classified as a discontinued (EOL) product by Rockwell Automation. No new production runs are planned. Available inventory consists entirely of factory-sealed new-old-stock (NOS) and tested surplus units. Given the finite global supply of this Critical Part for Industry Safety, procurement planning for multi-year maintenance stock is strongly recommended for facilities with ongoing PLC-5 dependencies.
