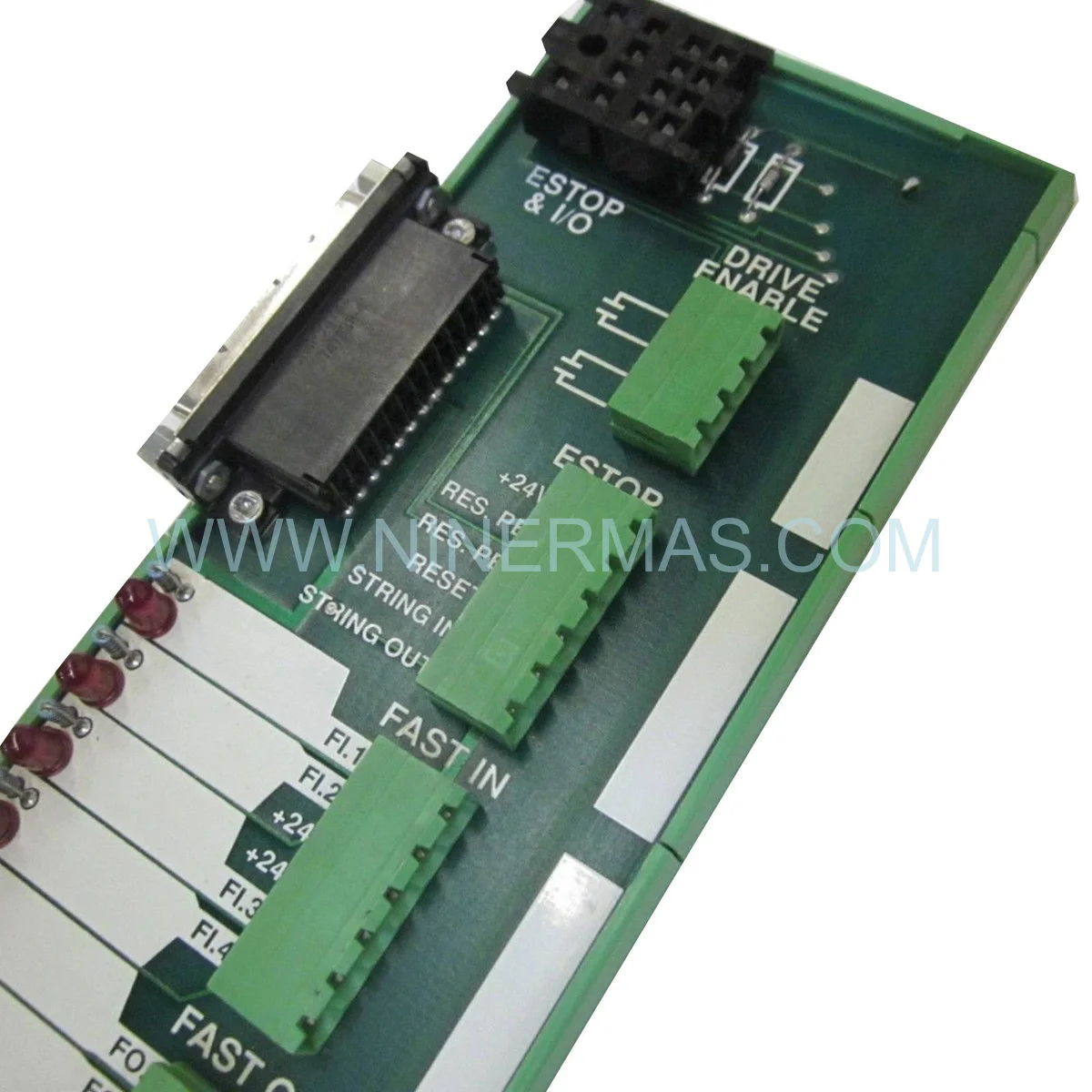

Allen-Bradley 1771-HT3 Termination Panel – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the Allen-Bradley 1771-HT3 is far more than a passive wiring accessory — it is a foundational component within the Rockwell Automation PLC-5 Distributed Control System architecture. In large-scale Process Control environments, where hundreds of field signals converge at the I/O chassis, the Allen-Bradley 1771-HT3 serves as the critical interface layer between field instrumentation and the DCS Hardware backbone, ensuring signal integrity across every Fieldbus-connected device.

What distinguishes this component from generic alternatives is its engineered compatibility with the entire 1771 series I/O module ecosystem. Unlike third-party substitutes that introduce impedance mismatches or mechanical tolerances outside specification, the 1771-HT3 maintains full electrical and mechanical conformance — a non-negotiable requirement in Safety Instrumented Systems (SIS) and high-availability process loops. Its screw-clamp terminal design accommodates 12-22 AWG conductors, supporting both copper and tinned-wire field cables without derating.

Original stock of this component is increasingly scarce. As the PLC-5 platform transitions through its End-of-Life (EOL) cycle, Factory Sealed units sourced directly from authorized distribution channels represent the last reliable supply for facilities committed to long-term Legacy Components maintenance strategies. Securing verified original inventory now is the most cost-effective risk mitigation available to maintenance engineers worldwide.

Key Technical Highlights

Full PLC-5 & 1771 Series Compatibility: Designed exclusively for Allen-Bradley 1771 I/O chassis; zero-compromise integration with digital, analog, and specialty I/O modules.
High-Density Screw-Clamp Terminals: Supports 12-22 AWG field wiring; vibration-resistant clamping mechanism rated for continuous industrial duty cycles.
Redundancy-Ready Architecture: Supports dual-channel wiring configurations essential for SIS and high-availability DCS loops in petrochemical and power generation facilities.
Flame-Retardant Thermoplastic Housing: UL 94 V-0 rated enclosure material; maintains structural integrity at sustained operating temperatures up to 60°C.
DIN-Rail & Panel-Mount Flexibility: Dual mounting options reduce retrofit engineering hours and simplify integration into existing control cabinet layouts.
Factory Sealed Condition: Each unit ships in original manufacturer packaging with full traceability documentation, eliminating counterfeit risk in critical process environments.

Vertical Industry Applications

Petrochemical & Refining: In continuous process units — distillation columns, reactor control loops, and compressor trains — the 1771-HT3 provides the stable field termination infrastructure that prevents nuisance trips caused by loose or corroded connections. A single unplanned shutdown in this sector can cost upward of $500,000 per hour; reliable termination hardware is not optional.

Mining & Mineral Processing: Conveyor control systems, crusher automation, and slurry pump management rely on robust I/O termination in high-vibration, dust-laden environments. The screw-clamp design of this panel maintains connection integrity where spring-cage alternatives fail prematurely.

Marine & Offshore Platforms: Vessel automation and offshore production platform control systems demand components certified for harsh environmental conditions. The 1771-HT3’s UL Listed and CE compliant status satisfies classification society requirements for marine electrical installations.

Power Generation & Utilities: Turbine control, boiler management, and grid-tie automation systems built on PLC-5 Distributed Control System platforms depend on this termination panel for reliable sensor and actuator signal routing across extended Fieldbus cable runs.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operating legacy PLC-5 SCADA architectures require Factory Sealed replacement parts to maintain regulatory compliance and avoid costly platform migrations during active operational periods.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Allen-Bradley 1771-HT3 supplied through our network is 100% Original — sourced from authorized distribution channels and verified against Rockwell Automation’s original part traceability records. We do not supply refurbished, remanufactured, or relabeled components. Each shipment is accompanied by a Certificate of Conformance and, upon request, third-party inspection documentation.

Our 12-Month Comprehensive Warranty covers all manufacturing defects and functional failures under normal operating conditions, providing procurement teams and maintenance managers with the assurance required for critical spare parts budgeting. Warranty claims are processed within 5 business days with advance replacement options available for emergency situations.

For facilities facing unplanned shutdowns or critical maintenance windows, we offer Emergency Delivery via DHL / FedEx / UPS with same-day dispatch from strategically located global warehouses. Export documentation, including commercial invoices, packing lists, and ECCN classification, is prepared in parallel with shipment to eliminate customs clearance delays. We serve maintenance teams across North America, Europe, the Middle East, Southeast Asia, and Latin America with consistent lead times of 24-72 hours for in-stock items.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the 1771-HT3 I receive is a genuine Allen-Bradley original and not a counterfeit?
Authentic units carry Rockwell Automation’s holographic certification label on the original packaging, along with a date code and lot number traceable through the manufacturer’s verification portal. We provide full documentation with every shipment, including the original manufacturer’s label scan and our Certificate of Conformance. If you require independent third-party inspection prior to shipment, we accommodate that at no additional charge.

Q2: Where can I obtain the official Datasheet and installation manual for the 1771-HT3?
The official Allen-Bradley 1771-HT3 installation instructions and technical datasheet are published by Rockwell Automation under their Literature Library. Our technical team can provide the relevant publication numbers and assist with locating the correct revision for your specific system configuration upon inquiry.

Q3: Is the 1771-HT3 compatible with all revisions of the PLC-5 I/O chassis?
The 1771-HT3 is designed for use across the PLC-5 family I/O chassis, including Series A through Series E revisions. Compatibility with specific 1771 I/O modules depends on the module’s wiring arm specification. We recommend confirming the wiring arm type (HT, NT, or WS series) against your module’s catalog number before ordering. Our engineering support team is available to assist with compatibility verification at no cost.

Q4: What is the typical lead time for emergency orders, and which shipping carriers do you use?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 local warehouse time. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express. Typical transit times range from 24 hours (within Asia) to 72 hours (transatlantic). Tracking numbers are provided within 2 hours of dispatch.

Q5: Can the 1771-HT3 be used as a direct replacement in a Legacy Upgrade project migrating from relay logic to PLC-5?
Yes. The 1771-HT3 is specifically engineered to simplify legacy relay panel retrofits by providing a standardized, labeled termination interface that maps directly to 1771 I/O module wiring arms. This eliminates the need for custom wiring harnesses and significantly reduces retrofit engineering hours. It is one of the most cost-effective components in a PLC-5 modernization project.

Q6: Is this component classified as a Critical Part for Industry Safety applications?
Yes. In Safety Instrumented System (SIS) architectures and high-availability process control loops, the integrity of field wiring termination is a critical factor in system reliability calculations. The 1771-HT3 is recognized as a Critical Part for Industry Safety in facilities where PLC-5 platforms manage emergency shutdown (ESD) and fire & gas (F&G) detection systems. Substituting non-original components in these applications introduces unquantified risk that most safety auditors will flag during HAZOP reviews.

—
