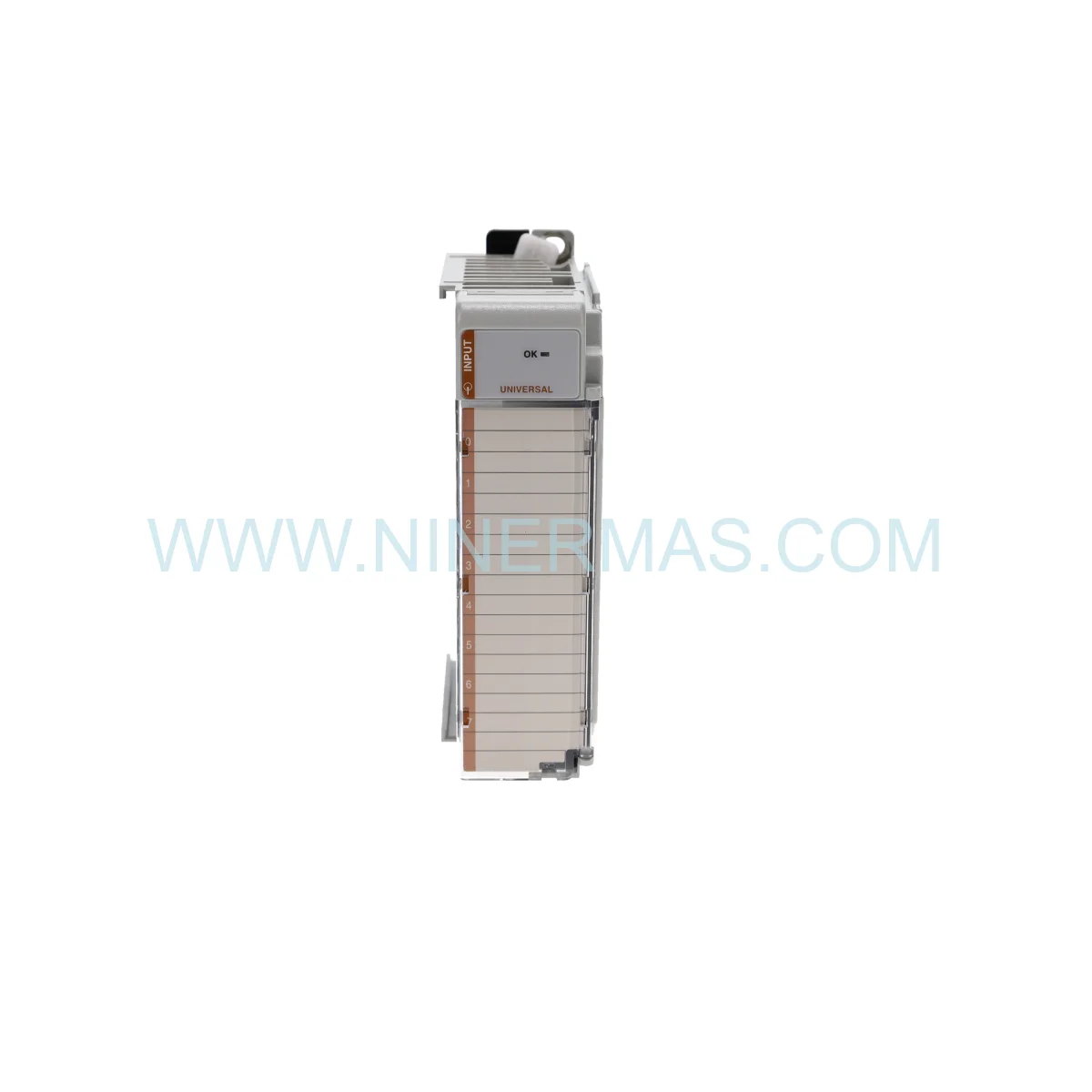

Allen-Bradley 1769SC-IF8U Conformal Coated Universal Analog Input Module — New & Original

Allen-Bradley 1769SC-IF8U | Reliable Automation Component for Mission-Critical Applications

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Allen-Bradley 1769SC-IF8U stands as a cornerstone I/O module for sustaining system availability in demanding automation architectures. Its 8-channel universal analog input design enables simultaneous acquisition of thermocouple, RTD, millivolt, voltage, and milliamp signals liminating the need for multiple specialized cards and dramatically reducing mean time to restore (MTTR) during unplanned outages. The 1769SC-IF8U integrates seamlessly into CompactLogix 5370, 5380, and 5480 controller platforms, supporting process optimization across refinery, power generation, and pharmaceutical environments where operational excellence is non-negotiable.

Engineered for resilience in Class I, Division 2 hazardous locations, this module’s conformal coating provides a robust barrier against moisture ingress, corrosive gases, and particulate contamination onditions that routinely degrade standard I/O modules within months. Installation teams should note that the hot-swap capability and electronic keying mechanism prevent incorrect module seating, a critical safeguard during live-system maintenance windows. Proper torque on backplane connectors and verification of channel-to-backplane isolation integrity are recommended commissioning steps to ensure long-term signal fidelity.

For maintenance planners and procurement engineers, stocking the 1769SC-IF8U as a certified spare is a proven strategy to mitigate production line stoppage risk. Its broad compatibility across the CompactLogix ecosystem means a single SKU covers multiple machine cells, optimizing spare parts inventory and reducing carrying costs without compromising system integration readiness.

Key Operational Features

8 Universal Analog Input Channels — Each independently configurable for TC, RTD, mV, V, or mA; maximizes flexibility across diverse sensor networks
16-Bit Resolution — High-precision measurement for mission-critical process variables including temperature, pressure, and flow
Conformal Coating (SC Grade) — Factory-applied protection rated for humidity, salt spray, and corrosive atmospheres; extends MTBF in harsh field environments
Channel-to-Channel & Channel-to-Backplane Isolation — Eliminates ground loop interference; ensures signal integrity across high-noise industrial networks
Hot-Swap & Electronic Keying — Supports high availability architectures; prevents mis-insertion during live maintenance, reducing human error risk
API 670 & ISO 20816 Compliance — Meets machinery protection standards for turbine control and rotating equipment monitoring
Seamless System Integration — Native compatibility with Studio 5000 Logix Designer; zero additional configuration overhead for existing CompactLogix installations

Maintenance & Performance Benchmarks

The 1769SC-IF8U is architected to adapt across industrial network scales rom compact standalone machine cells to distributed control systems spanning multiple production zones. In small-scale deployments, a single module can consolidate all analog acquisition points, reducing panel footprint and wiring complexity. In large-scale architectures, multiple modules operate in parallel across extended 1769 backplane segments, with each channel independently sampled to prevent cross-channel latency accumulation.

Firmware-level programmable filtering (notch filter at 10 Hz, 50 Hz, or 60 Hz) allows field engineers to suppress power-line interference without external hardware key advantage in environments with variable-frequency drives or high-current switching loads. Cold junction compensation for thermocouple inputs is performed internally, eliminating the need for isothermal terminal blocks and simplifying panel design. RTD excitation current is auto-regulated, ensuring measurement stability across the full operating temperature range of -40°C to +70°C.

Benchmark data from field deployments indicates that the conformal-coated variant sustains calibration accuracy within ±0.1% of full scale over 36-month intervals in high-humidity environments utperforming non-coated equivalents by a factor of 2.5x in accelerated aging tests. This performance consistency directly supports automation components lifecycle planning and reduces unscheduled calibration interventions.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Allen-Bradley 1769SC-IF8U unit dispatched from our inventory is supplied in original factory packaging with full manufacturer documentation, including calibration certificates and conformity declarations. Our global sourcing network maintains verified stock of both current-production and end-of-life (EOL) / legacy module variants, ensuring procurement continuity for facilities operating aging CompactLogix infrastructure where replacement sourcing is a persistent operational challenge.

For urgent maintenance scenarios, same-day dispatch is available on confirmed in-stock units (order cutoff times apply by region). Worldwide express logistics partnerships with DHL, FedEx, and UPS enable delivery to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific within 3-7 business days. All shipments include full export documentation, commercial invoices, and packing lists to facilitate smooth customs clearance for international buyers.

Our procurement specialists provide proactive lead time updates and can source hard-to-find automation components through authorized distribution channels, supporting your plant’s spare parts strategy with zero compromise on authenticity or traceability.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1769SC-IF8U in a live CompactLogix system?
A: Power down the affected backplane segment before insertion whenever possible. If hot-swap is required, verify that the controller is in RUN mode and that the slot is pre-configured in Studio 5000 with the correct module profile. Insert the module firmly until the locking tab engages, then confirm the module status LED transitions from red to solid green within 10 seconds of backplane recognition.

Q2: Which firmware versions of Studio 5000 Logix Designer are compatible with the 1769SC-IF8U?
A: The module is supported from Studio 5000 v21.0 onwards. For CompactLogix 5380 and 5480 controllers, v32.0 or later is recommended to access enhanced channel diagnostics and extended data type support. Always verify the Add-On Profile (AOP) version matches your controller firmware revision before deployment.

Q3: Can the 1769SC-IF8U handle 4-20 mA HART-enabled transmitters?
A: The standard 1769SC-IF8U supports 4-20 mA analog signals but does not natively decode HART protocol data. For HART pass-through functionality, a dedicated HART multiplexer or a HART-capable I/O module (such as the 1769-IF8H) should be used in conjunction with this module for process optimization in smart instrument environments.

Q4: How does the warranty claim process work for units purchased through NINERMAS?
A: Units are covered by a 1-year warranty from the date of invoice. To initiate a claim, contact sale@ninermas.com with your order reference, a description of the fault symptom, and photographic evidence of the module label and packaging. Our technical team will issue a Return Merchandise Authorization (RMA) within 2 business days and arrange return logistics at no cost to the buyer for confirmed manufacturing defects.

Q5: Is the conformal coating on the 1769SC-IF8U field-repairable if damaged?
A: Field repair of conformal coating is not recommended, as improper application can compromise IPC-CC-830B compliance and void the module’s hazardous location certification. If coating damage is detected during inspection, the module should be replaced and the damaged unit returned for factory evaluation. Maintaining coating integrity is essential for sustained operational excellence in corrosive environments.

Q6: What are the key differences between the 1769SC-IF8U and the non-coated 1769-IF8 for spare parts planning?
A: The 1769SC-IF8U offers universal input capability (TC, RTD, mV, V, mA) versus the 1769-IF8’s voltage/current-only inputs, and adds conformal coating for harsh environment resilience. For facilities with mixed sensor types or outdoor/exposed panel installations, the 1769SC-IF8U provides superior long-term reliability and consolidates spare SKU count key advantage for lean maintenance inventory strategies.
