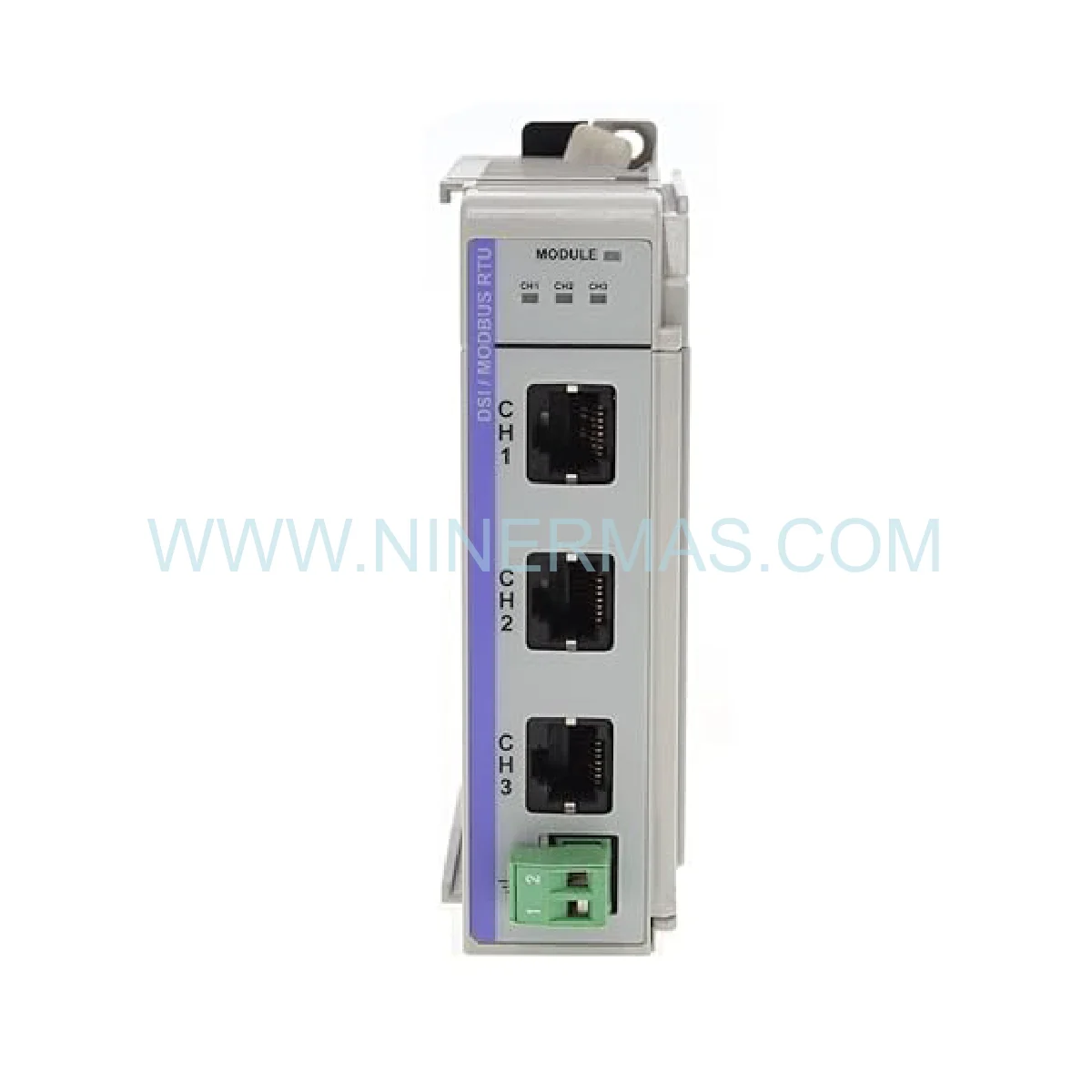

Allen-Bradley 1769-SM2 DSI/Modbus Communication Module (CompactLogix) — New & Original

Allen-Bradley 1769-SM2 | Reliable DSI/Modbus Communication Module for CompactLogix

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production lines, the Allen-Bradley 1769-SM2 stands as a cornerstone automation component for maximizing system availability. The 1769-SM2 bridges CompactLogix PLCs with DSI and Modbus RTU-enabled field devices — eliminating protocol conversion bottlenecks that are a leading cause of unplanned downtime. Its native backplane integration ensures deterministic data exchange, a non-negotiable requirement in high-throughput process optimization environments.

Engineered for operational excellence in harsh industrial conditions, the 1769-SM2 withstands ambient temperatures from 0°C to 60°C and humidity levels up to 95% RH (non-condensing). During installation, engineers should verify backplane slot compatibility with the target CompactLogix chassis and confirm that the power supply budget accommodates the module’s draw. Proper DIN rail torque and cable shielding on DSI lines are critical steps that directly impact long-term signal integrity and system integration stability.

As production assets age and OEM support windows close, maintaining a certified spare of the 1769-SM2 in your critical parts inventory is a proven strategy for reducing mean time to repair (MTTR). EOL and legacy module availability is a persistent challenge — securing original factory stock now protects against costly line stoppages in the future.

Key Operational Features

Dual Protocol Support (DSI + Modbus RTU): Enables seamless system integration with a broad range of drives, sensors, and third-party field devices without additional gateways.
High Availability Architecture: Backplane-powered design eliminates external power dependencies, reducing single points of failure in I/O modules configurations.
Seamless CompactLogix Integration: Fully compatible with L1, L2, and L3 series controllers; natively supported in Studio 5000 / RSLogix 5000 for zero-friction commissioning.
Hot-Swap Capability: Supports online module replacement (controller-dependent), enabling maintenance without full system shutdown — a key enabler of operational excellence.
Diagnostic LED Indicators: Real-time fault and communication status LEDs accelerate troubleshooting and reduce diagnostic time on the plant floor.
Compact, Space-Efficient Footprint: Optimized for high-density control panel layouts where every slot counts in mission-critical automation components deployments.

Maintenance & Performance Benchmarks

The 1769-SM2 is designed to adapt across diverse industrial network architectures — from small standalone CompactLogix cells to large-scale, multi-chassis distributed I/O systems. In single-chassis configurations, the module delivers sub-millisecond DSI polling cycles, supporting real-time motor control feedback loops. In distributed architectures connected via EtherNet/IP, the module’s data is accessible plant-wide through the CompactLogix controller’s tag database, enabling centralized SCADA and MES integration without additional middleware.

For preventive maintenance programs, the module’s diagnostic registers provide actionable data on communication error counts, device fault codes, and network health — all readable directly from the controller’s I/O tree. This telemetry supports condition-based maintenance strategies, reducing reactive repair costs and extending overall system lifecycle. Firmware compatibility should be validated against the host controller revision prior to deployment; Rockwell Automation’s Product Compatibility and Download Center (PCDC) is the authoritative reference for version alignment.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1769-SM2 unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and delivered in original factory packaging — ensuring full traceability, authentic firmware, and uncompromised hardware integrity. For time-sensitive plant recovery scenarios, same-day dispatch is available for in-stock units (order cutoff times apply; confirm availability at inquiry). Our global supply network is specifically structured to support EOL and legacy module procurement, providing a reliable source for automation components that have been discontinued or are subject to extended lead times from primary distributors. Express logistics partnerships with DHL, FedEx, and UPS ensure worldwide delivery within 3-7 business days to most industrial regions.

Engineering Support & FAQ

Q1: What is the step-by-step installation procedure for the 1769-SM2?
A: Power down the CompactLogix chassis. Insert the 1769-SM2 into an available I/O slot adjacent to the controller or expansion adapter. Secure the module latch. Power up the system and add the module to your RSLogix 5000 / Studio 5000 project I/O tree. Configure DSI or Modbus RTU parameters (baud rate, node address, polling rate) via the module’s configuration dialog. Download the project and verify LED status indicators show normal operation.

Q2: Which firmware versions are compatible with the 1769-SM2?
A: The 1769-SM2 is supported from RSLogix 5000 v16 onward. For Studio 5000 Logix Designer, v21+ is recommended for full Add-On Profile (AOP) support. Always cross-reference the host controller firmware revision against Rockwell Automation’s PCDC to confirm compatibility before deployment.

Q3: Can the 1769-SM2 communicate with non-Rockwell drives via Modbus RTU?
A: Yes. The module’s Modbus RTU port supports communication with any third-party device that adheres to the Modbus RTU standard, including drives, meters, and sensors from other manufacturers. Node addressing and register mapping must be configured to match the target device’s Modbus map.

Q4: How does the warranty claim process work?
A: Units exhibiting defects in materials or workmanship within the 1-year warranty period are eligible for replacement or repair at no charge. Initiate a claim by contacting sale@ninermas.com with your order reference, a description of the fault, and photographic evidence. Our engineering team will issue an RMA number and coordinate return logistics within 2 business days.

Q5: Is the 1769-SM2 suitable for use in hazardous (Class I, Division 2) locations?
A: The standard 1769-SM2 is rated for general industrial environments. For Class I, Division 2 hazardous location applications, consult Rockwell Automation’s official hazardous location product portfolio and verify applicable certifications with your safety engineer before installation.

Q6: What is the maximum number of DSI devices supported per module?
A: The 1769-SM2 supports up to 2 DSI/Modbus RTU ports, each capable of addressing multiple devices depending on the protocol configuration. Refer to the module’s user manual (Publication 1769-UM009) for detailed multi-drop network topology guidelines.
