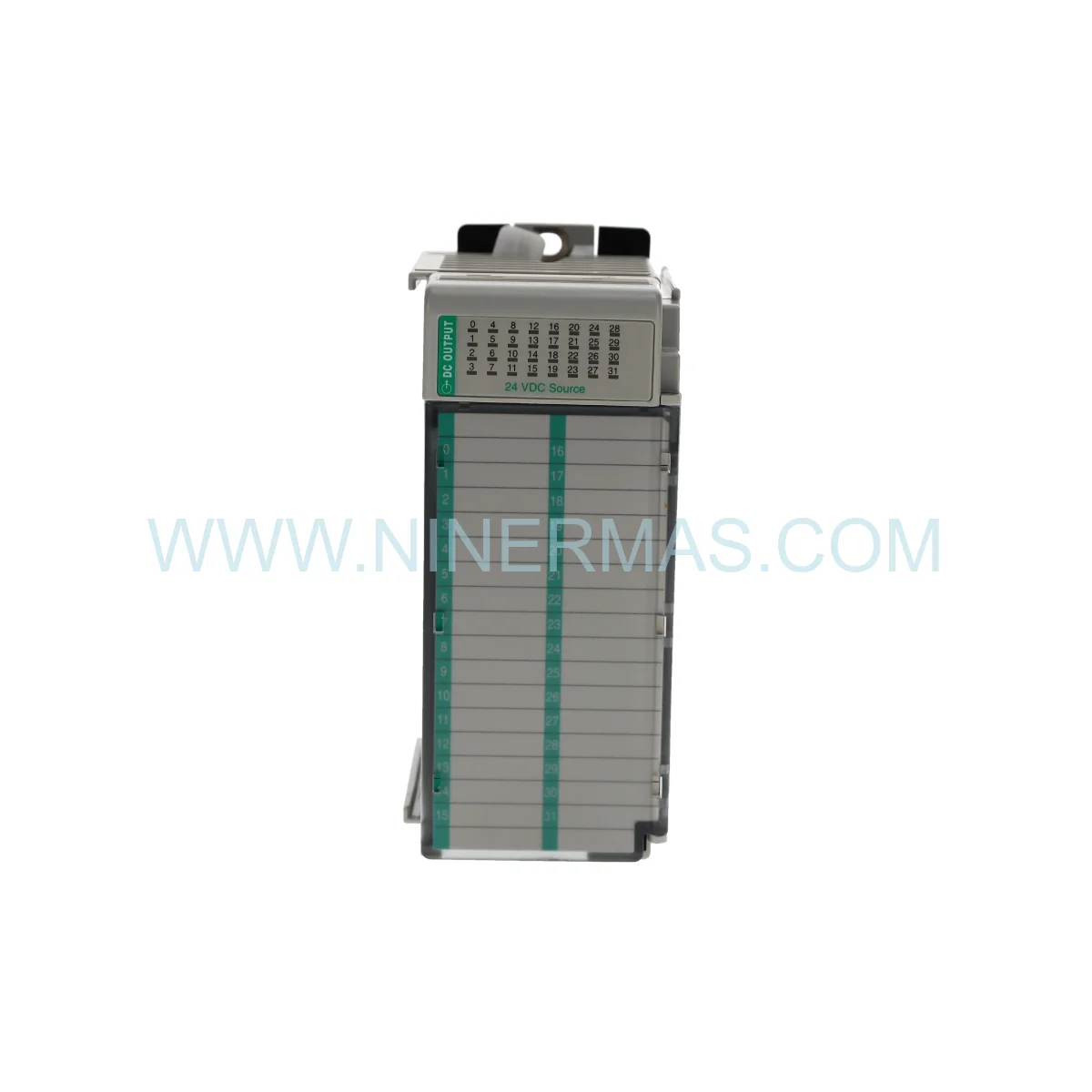

Allen-Bradley 1769-OB32 | 32-Pt 24VDC Output Module

Allen-Bradley 1769-OB32 | Reliable Automation Component for Mission-Critical Operations

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-availability production environments, the Allen-Bradley 1769-OB32 stands as a cornerstone I/O module for sustaining system uptime in demanding industrial networks. Its 32-point 24VDC discrete output architecture enables seamless integration into CompactLogix control platforms, directly contributing to process optimization and operational excellence across manufacturing, energy, and material handling sectors. The 1769-OB32 is engineered to eliminate single points of failure in output-intensive control loops, making it an indispensable automation component for engineers who cannot afford unplanned downtime.

Deployed across environments where ambient temperatures fluctuate between 0°C and +60°C, the 1769-OB32 demonstrates exceptional durability under thermal stress, vibration (10-500 Hz, 5G), and electrical noise. During installation, engineers must ensure proper DIN rail torque specifications are observed and that each output channel is individually fused per IEC 60364 guidelines to maintain warranty validity and system integrity. Conformal coating on the PCB provides an additional barrier against moisture ingress and corrosive atmospheres — a critical advantage in chemical processing and offshore automation environments.

As production lines age and OEM support windows close, maintaining a certified stock of the 1769-OB32 as a mission-critical spare part is a proactive reliability strategy. EOL (End-of-Life) and legacy module availability directly impacts Mean Time to Repair (MTTR); sourcing verified original units in advance is the single most effective measure to protect system availability ratios above 99.5%.

Key Operational Features

32 Discrete 24VDC Outputs — High-density I/O configuration reduces rack footprint while maximizing control capacity for complex automation architectures.
Optical Isolation (1500V) — Protects the backplane and controller from field-side voltage transients, ensuring high availability of the entire control system.
Hot-Swap Capability — Supports module replacement without full system shutdown, enabling zero-interruption maintenance cycles on live production lines.
Removable Terminal Blocks — Accelerates field wiring changes and reduces technician labor hours during system integration or retrofit projects.
Per-Channel LED Diagnostics — Real-time visual fault indication on all 32 output points enables rapid fault isolation, minimizing diagnostic time during unplanned stops.
Redundancy-Ready Architecture — Compatible with CompactLogix redundancy configurations, supporting seamless failover in high-availability process control environments.

Maintenance & Performance Benchmarks

The 1769-OB32 is architected to scale across diverse industrial network topologies — from standalone CompactLogix cells to distributed I/O architectures spanning multiple production zones. In small-scale deployments, a single 1769-OB32 can manage an entire pneumatic valve manifold or conveyor drive bank. In enterprise-scale system integration projects, multiple modules operate in coordinated arrays managed via EtherNet/IP, delivering synchronized output control with sub-millisecond response latency.

Performance benchmarks confirm a maximum output switching frequency of 20 Hz per channel, with a current rating of 0.5A per point and a total module current draw of 160mA at 5VDC from the backplane. These parameters position the 1769-OB32 as a high-efficiency automation component that minimizes power budget impact while delivering robust field-side control. Thermal management is passive — no forced cooling required — further reducing maintenance overhead in sealed enclosure installations.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1769-OB32 unit dispatched from our facility is shipped in Original Factory Packaging with intact manufacturer labels, serial number traceability, and full documentation — including the original datasheet and calibration records where applicable. Same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST, supporting urgent maintenance scenarios where production continuity is at stake.

Our global supply network is specifically structured to serve engineers sourcing EOL and legacy automation components. As Rockwell Automation transitions product lines, the 1769-OB32 remains available through our verified inventory channels, ensuring that facilities running legacy CompactLogix architectures can maintain operational excellence without forced system upgrades. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to North America, Europe, Southeast Asia, and the Middle East within 3-7 business days.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1769-OB32 in a CompactLogix chassis?
A: Power down the CompactLogix system before insertion. Align the module with the chassis slot guides, press firmly until the locking tab engages, then connect the removable terminal block. After power-up, the module auto-configures via the backplane — no manual addressing required. Verify LED status indicators show solid green on active output channels.

Q2: Which firmware versions of Studio 5000 are compatible with the 1769-OB32?
A: The 1769-OB32 is supported from RSLogix 5000 v16.0 onward, including all Studio 5000 Logix Designer releases. For optimal diagnostic feature access, firmware v20.0 or later is recommended. Always verify controller firmware revision matches the project file revision before deployment.

Q3: Can the 1769-OB32 be used in a redundant CompactLogix configuration?
A: Yes. The module is compatible with CompactLogix redundancy systems when paired with supported redundancy controllers. Consult Rockwell Automation Publication 1769-UM011 for chassis slot assignment rules in redundant topologies to ensure seamless failover behavior.

Q4: How do I initiate a warranty claim for a defective 1769-OB32 unit?
A: Contact our support team at sale@ninermas.com with your order number, module serial number, and a description of the observed fault. Our RMA process is initiated within 24 business hours. Units confirmed defective under normal operating conditions are replaced or refunded within the 1-year warranty window at no additional cost.

Q5: Is external fusing mandatory for the 1769-OB32 output circuits?
A: While the module incorporates electronic overcurrent protection per output group, external fusing is strongly recommended per NEC Article 430 and IEC 60364-4-43 for installations in regulated industries. Use fast-blow fuses rated at 1A maximum per output group to maintain compliance and protect field wiring.

Q6: What distinguishes the 1769-OB32 from the 1769-OB32T variant?
A: The 1769-OB32 uses standard transistor outputs optimized for general-purpose 24VDC loads. The 1769-OB32T variant incorporates MOSFET-based outputs with faster switching characteristics and lower on-state voltage drop, making it preferable for high-frequency servo interface or precision timing applications. For standard valve and actuator control, the 1769-OB32 delivers equivalent reliability at a lower cost point.
