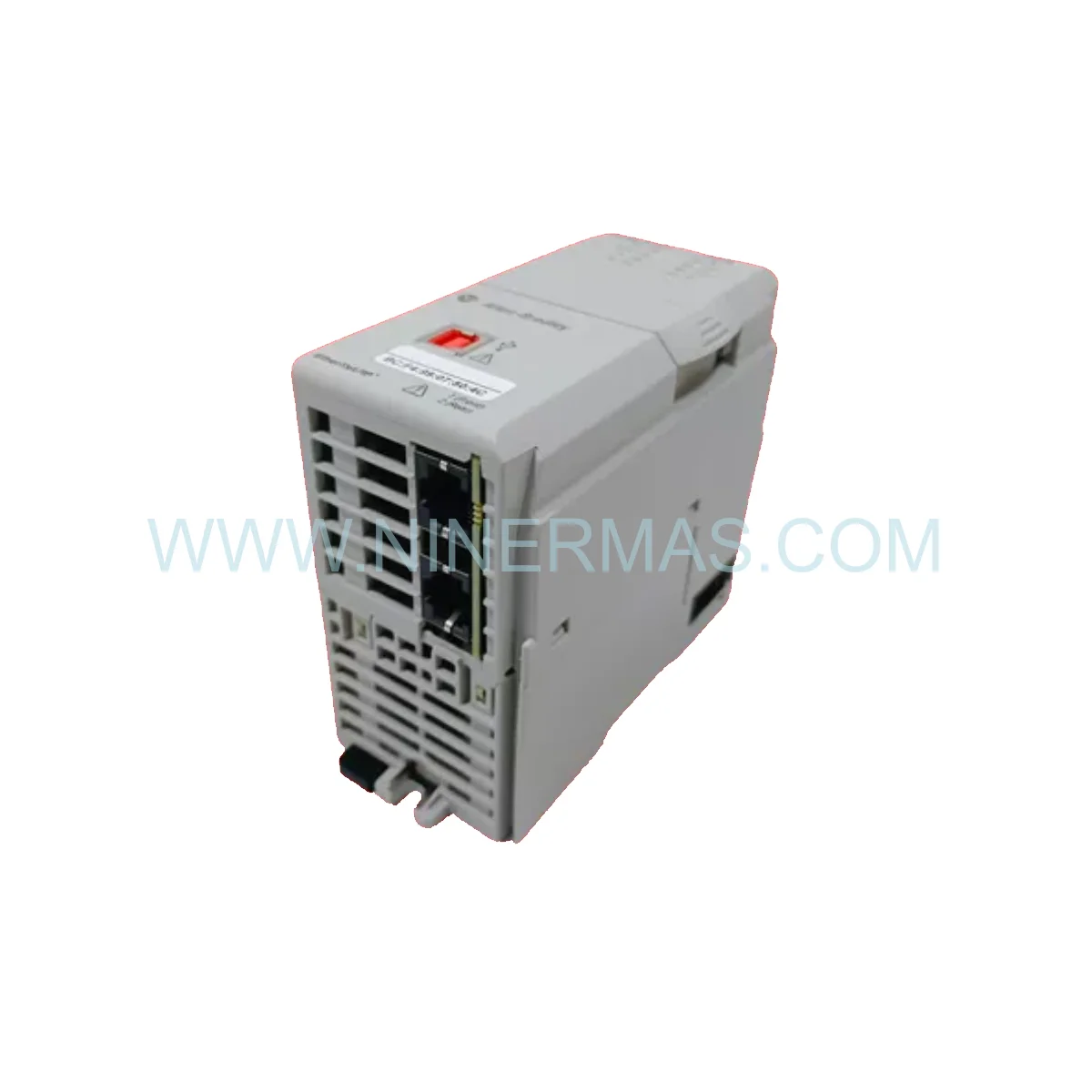

Allen-Bradley 1769-L38ERM CompactLogix 5MB Controller | Dual Ethernet & 4-Axis CIP Motion

Allen-Bradley 1769-L38ERM CompactLogix 5MB Controller | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1769-L38ERM stands as a cornerstone of system availability in demanding industrial environments. This CompactLogix 5370 L3 controller delivers 5MB of user memory, dual EtherNet/IP ports with Device Level Ring (DLR) topology support, and integrated 4-axis CIP motion — a combination that directly reduces unplanned downtime and supports Operational Excellence across continuous process and discrete manufacturing lines. The 1769-L38ERM enables seamless integration into existing EtherNet/IP architectures, making it a preferred choice for Process Optimization initiatives where system uptime is non-negotiable.

Engineered for harsh industrial conditions, this controller operates reliably across a temperature range of 0°C to 60°C with up to 95% relative humidity tolerance. Its compact DIN-rail form factor and embedded USB programming port simplify installation and commissioning, while the onboard SD card slot (1GB, expandable to 2GB) supports firmware backup and rapid recovery — critical considerations for any SRE managing legacy or EOL system transitions. Proper grounding, cable shielding, and adherence to Rockwell Automation’s wiring guidelines are essential during deployment to maintain signal integrity in high-EMI environments.

As a strategic spare part, maintaining at least one 1769-L38ERM unit in your critical inventory buffer is a proven practice for minimizing mean time to repair (MTTR). Given the global supply constraints on legacy automation components, proactive sourcing of this controller ensures your production line remains protected against extended lead times and obsolescence risks.

Key Operational Features

Dual EtherNet/IP with DLR Support — Provides network redundancy and high availability for I/O Modules and distributed devices
5MB User Memory — Sufficient capacity for complex ladder logic, function block, and structured text programs
4-Axis Integrated CIP Motion with Kinematics — Enables coordinated motion control without additional motion controllers
Up to 8 Local 1769 Compact I/O Modules — Supports flexible System Integration with local expansion
Up to 16 EtherNet/IP Nodes — Scalable architecture for distributed I/O and remote device connectivity
Open Socket Communication — Native support for barcode readers, printers, and third-party TCP/IP devices
Embedded USB Port — Streamlines firmware updates and programming without network dependency
SD Card Storage (1GB 2GB) — Enables fast program restore and data logging for predictive maintenance workflows

Maintenance & Performance Benchmarks

The 1769-L38ERM is architected to serve as the central processing node in both small-scale standalone cells and large-scale distributed control networks. Its dual Ethernet ports allow simultaneous connection to a supervisory SCADA network and a device-level EtherNet/IP ring, eliminating the need for external managed switches in many topologies. This architecture directly supports Redundancy strategies by enabling DLR fault recovery in under 3ms — a benchmark that satisfies the availability requirements of most Automation Components deployed in automotive, food & beverage, and oil & gas sectors.

For multi-axis motion applications, the controller’s integrated CIP Motion engine offloads servo coordination from the host PLC scan cycle, maintaining deterministic I/O scan times even under peak motion demand. Engineers integrating this unit into larger ControlLogix-based systems can leverage Produced/Consumed Tags for inter-controller data exchange, enabling a unified data fabric across the plant floor without proprietary middleware. This capability is foundational to modern System Integration frameworks and supports long-term scalability as production demands evolve.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1769-L38ERM unit shipped by our team is sourced directly from authorized distribution channels and dispatched in Original Factory Packaging with all protective inserts, documentation, and firmware media intact. We maintain dedicated stock of this controller to support same-day dispatch for orders confirmed before the daily cut-off, ensuring your maintenance team receives the replacement unit with minimal delay.

Our global supply network is specifically structured to address End-of-Life (EOL) and Legacy Module procurement challenges. Whether you require a single emergency replacement or a bulk reserve for a multi-site rollout, our sourcing team can fulfill orders with Worldwide Express Logistics to over 150 countries. Each shipment includes a traceable serial number record and is backed by a 1-Year Warranty covering manufacturing defects and functional failures under normal operating conditions.

Engineering Support & FAQ

Q1: What firmware version is required for the 1769-L38ERM to support 4-axis CIP Motion?
The 1769-L38ERM requires Studio 5000 Logix Designer v21.00 or later to enable full CIP Motion with Kinematics functionality. Rockwell Automation recommends using the latest compatible firmware revision available via the Product Compatibility and Download Center (PCDC) to ensure optimal performance and security patch coverage.

Q2: How do I install the 1769-L38ERM on a DIN rail alongside existing 1769 I/O modules?
Mount the controller on a standard 35mm DIN rail and connect adjacent 1769 Compact I/O modules using the integrated side-bus connector. Ensure the power supply module is positioned at the left end of the bank. Torque all terminal screws to the manufacturer’s specification (0.5-0.6 N·m) and verify ground continuity before applying power.

Q3: Is the 1769-L38ERM compatible with existing CompactLogix 5370 L1/L2 programs?
Yes. Programs developed for CompactLogix 5370 L1 and L2 controllers can be imported into the L3 platform with minor revision. I/O configuration and motion axis assignments may require remapping if the local I/O bank structure differs. Always validate the converted project in an offline simulation environment before deploying to a live system.

Q4: What is the warranty claim process for a defective unit?
Contact our technical support team at sale@ninermas.com with your order reference number, unit serial number, and a description of the observed fault. Our team will initiate an RMA (Return Merchandise Authorization) within 1 business day. Confirmed defective units are replaced or repaired at no charge within the 1-year warranty period, with return shipping covered for verified manufacturing defects.

Q5: Can the 1769-L38ERM communicate with third-party SCADA systems via OPC-UA?
Direct OPC-UA server functionality is not embedded in the 1769-L38ERM firmware. However, Rockwell Automation’s FactoryTalk Linx or third-party OPC-DA/UA gateway software (e.g., Kepware KEPServerEX) can bridge EtherNet/IP data to OPC-UA clients, enabling full SCADA and MES integration without hardware modification.

Q6: How should the SD card be used for program backup and recovery?
The onboard SD card supports Load Image on First Scan (LIFS) functionality. Store a validated project image on the SD card as a recovery baseline. In the event of controller replacement, insert the SD card into the new 1769-L38ERM unit and configure the Load Image parameter in the controller properties to restore the program automatically on first power-up — reducing recovery time to under 5 minutes in most scenarios.
