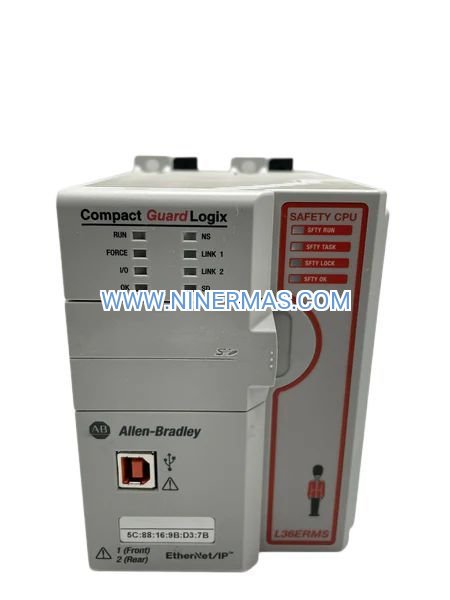

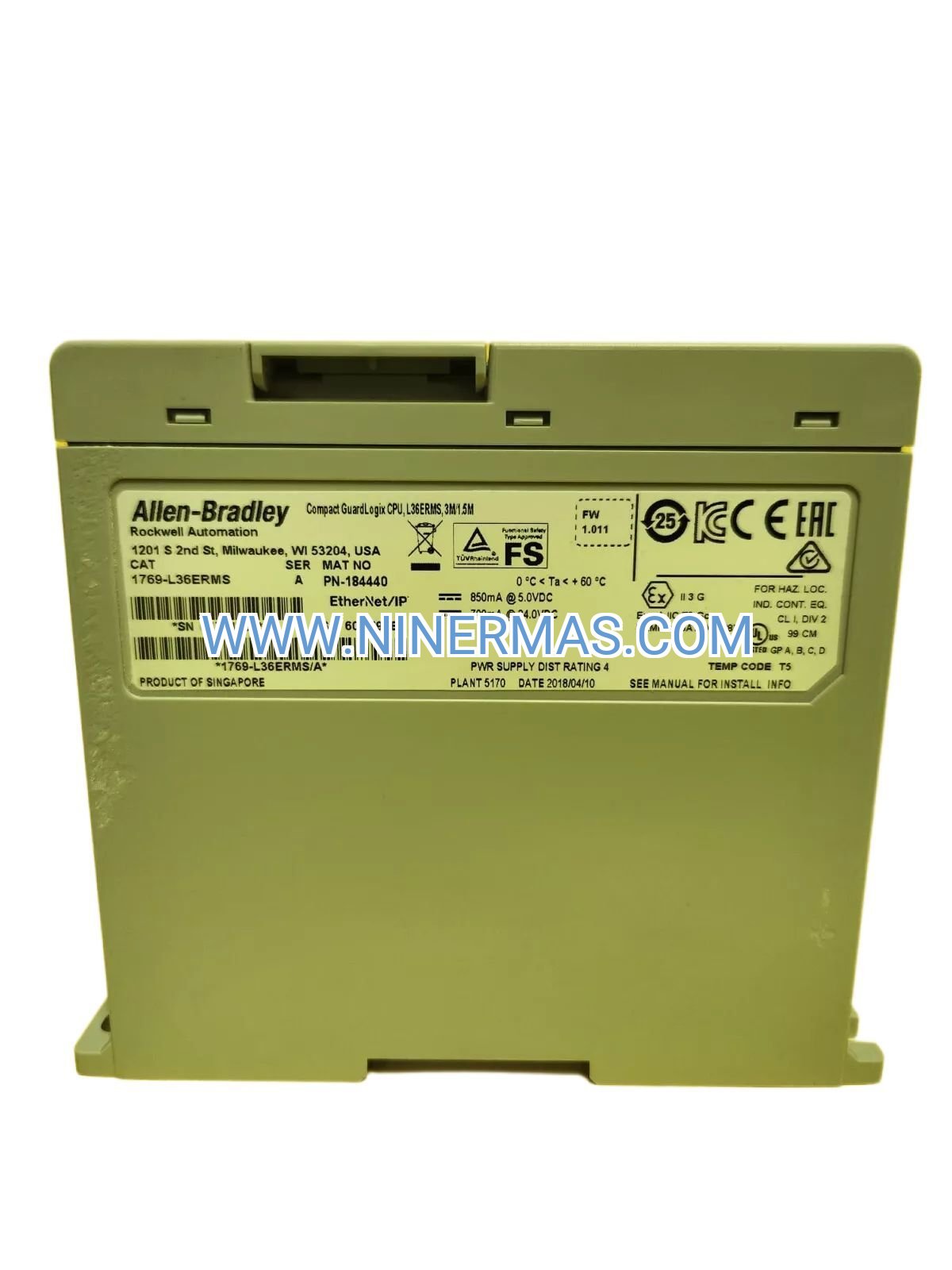

1769-L36ERMS GuardLogix Safety Controller (Industrial-Grade Integrated Safety Platform)

The 1769-L36ERMS represents a unified approach to industrial safety and automation control, merging SIL 3 / PLe-rated safety logic with standard process control in a single compact controller. Built on the proven CompactLogix architecture, this safety-certified platform delivers 3MB of user memory alongside 1.5MB dedicated safety application space, enabling engineers to consolidate previously separate safety and control systems into one streamlined solution.

Designed for manufacturing environments where functional safety compliance is non-negotiable, the L36ERMS addresses the challenge of integrating emergency stop circuits, light curtain monitoring, safe motion control, and guard door interlocks without deploying standalone safety relays or dedicated safety PLCs. Target users include automation engineers, machine builders, system integrators, and plant maintenance teams managing equipment subject to ISO 13849-1 or IEC 61508 safety standards.

Key advantages include TÜV-certified safety performance up to Category 4 / PLe, dual EtherNet/IP ports for Device Level Ring topology, native CIP Safety protocol support, and seamless integration with existing CompactLogix I/O infrastructure. This controller reduces panel space, simplifies wiring, accelerates commissioning, and lowers total cost of ownership compared to hybrid safety architectures.

Core Features & Benefits

• ✓ Dual-Domain Memory Architecture: 3MB standard control memory + 1.5MB safety memory enables simultaneous execution of complex automation sequences and safety-critical interlocks without resource contention
• ✓ SIL 3 / PLe Functional Safety Certification: TÜV-validated compliance with IEC 61508 (SIL 3) and ISO 13849-1 (PLe Category 4) ensures regulatory acceptance for machinery directive applications across EU, North America, and Asia-Pacific markets
• ✓ Integrated Dual EtherNet/IP Ports: Built-in redundant network interfaces support Device Level Ring (DLR) configurations, eliminating single points of failure and enabling hot-swap I/O module replacement without system shutdown
• ✓ CIP Safety Protocol Native Support: Communicate directly with safety-rated drives (Kinetix 5500/5700), safety I/O (1791ES-IB8XOBV8), and safety HMIs over standard Ethernet infrastructure without protocol gateways or converters
• ✓ Expanded I/O Capacity: Control up to 30 local CompactLogix modules plus 63 distributed EtherNet/IP adapters, providing scalability from small machine cells to plant-wide safety zones
• ✓ Studio 5000 Unified Programming: Single development environment for both standard ladder logic and safety function blocks reduces training overhead, simplifies version control, and accelerates troubleshooting

Application Scenarios & Industry Solutions

→ Automated Assembly Lines with Perimeter Guarding: Deploy the L36ERMS to manage safety light curtains, two-hand control stations, and emergency stop circuits across multi-zone assembly cells. The controller's safety I/O response time (configurable 10-500ms) meets muting requirements for part detection while maintaining SIL 3 integrity for operator protection.

→ Collaborative Robot Work Cells: Integrate safe torque-off (STO) and safe speed monitoring (SSM) functions for cobots operating in shared workspaces. The L36ERMS coordinates safety-rated position feedback from servo drives with area scanner inputs, enabling dynamic speed reduction zones without hard guarding.

→ Packaging Machinery with Multiple Access Points: Consolidate guard door monitoring, safety interlock sequencing, and safe standstill verification for horizontal form-fill-seal or cartoning equipment. The controller's safety memory capacity supports complex muting logic for product flow while preventing unexpected startup during maintenance access.

→ Material Handling Conveyors & Sortation Systems: Implement safety-rated zone control for high-speed conveyor networks with emergency stop propagation across distributed I/O racks. The dual EtherNet/IP architecture ensures safety command transmission even during network cable failures or switch malfunctions.

→ Process Equipment with Hazardous Energy Isolation: Execute safety-rated shutdown sequences for mixers, reactors, or thermal processing units requiring coordinated valve closure, motor de-energization, and lockout verification. The L36ERMS logs safety events with timestamp precision for regulatory audit trails.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1769-L36ERMS when your application requires SIL 3 / PLe safety performance with moderate to high memory demands (safety programs exceeding 0.5MB or standard programs above 1MB). For smaller safety applications with basic interlock logic, consider the 1769-L30ERMS (1MB/0.5MB). If motion control is primary and safety is secondary, evaluate the 1769-L33ERM motion controller with add-on safety modules. For pure standard control without integrated safety, the 1769-L37ERM offers 4MB memory at lower cost.

Extended Capabilities & Integration Options

Industrial IoT Connectivity: Leverage built-in EtherNet/IP to connect the L36ERMS to FactoryTalk View HMIs, FactoryTalk Analytics for condition monitoring, or third-party SCADA systems via OPC-UA gateways. Safety status data can be published to cloud platforms for predictive maintenance analytics while maintaining air-gapped safety logic execution.

Advanced Safety Functions: Beyond basic emergency stop and guard monitoring, the controller supports safe limited speed (SLS), safe direction (SDI), safely-limited position (SLP), and safe brake control (SBC) when paired with Kinetix 5500/5700 servo drives. These functions enable reduced-speed maintenance modes, safe homing routines, and controlled zone transitions.

Customization & Expansion: The CompactLogix platform accepts specialized I/O modules including high-speed counter cards (1769-HSC), analog input modules (1769-IF8), and communication adapters (1769-AENTR for remote I/O). Custom safety function blocks can be developed in Studio 5000 and validated through TÜV certification processes for proprietary machine designs.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via DHL/FedEx Express. Typical delivery to North America, Europe, and Asia-Pacific regions is 3-7 business days from order confirmation.

Custom Configuration: Controllers requiring pre-programmed safety applications or specific firmware versions ship within 5-10 business days after engineering review and Safety Lock key generation.

Warranty Coverage: All 1769-L36ERMS controllers include a 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service with cross-ship options to minimize downtime.

Technical Support: Access to application engineers for safety program architecture review, CIP Safety network design consultation, and Studio 5000 configuration assistance. Support includes safety validation documentation templates for machinery directive compliance.

Documentation Package: Each controller ships with safety manual (publication 1769-UM021), installation instructions, TÜV certificate of conformity, and quick-start guide. Digital resources include sample safety programs, safety I/O wiring diagrams, and EtherNet/IP configuration files.

Frequently Asked Questions

Q: What programming tools are required for safety application development on the 1769-L36ERMS?
A: You need Studio 5000 Logix Designer version 21 or later with the GuardLogix safety instruction set enabled. Safety programming requires a Safety Lock activation key (purchased separately or included with controller bundles). The software supports both ladder diagram and function block diagram for safety logic, with built-in safety signature generation for TÜV validation.

Q: Can the L36ERMS controller replace an existing CompactLogix L35E in a retrofit scenario?
A: Yes, the 1769-L36ERMS is mechanically and electrically compatible with all 1769 chassis and I/O modules. You can perform a direct swap in the same chassis slot, reuse existing I/O configurations, and migrate standard control programs from RSLogix 5000. However, you'll need to develop new safety programs using GuardLogix safety instructions, as standard CompactLogix controllers lack safety certification.

Q: What is the achievable safety response time for emergency stop circuits using this controller?
A: Safety I/O response time is configurable based on network topology and I/O module selection. Typical configurations achieve 20-50ms total response time (input detection to safety output de-energization) when using 1791ES safety I/O modules on a dedicated EtherNet/IP network. This meets Category 4 / PLe requirements for most machinery applications. For ultra-fast response (<10ms), consider hardwired safety relays for critical functions.

Q: Does the controller support integration with non-Rockwell safety devices like Pilz or Schmersal components?
A: The L36ERMS communicates via CIP Safety protocol, which is primarily supported by Rockwell Automation safety I/O and drives. For third-party safety devices using PROFINET Safety or other protocols, you'll need protocol gateways or hybrid architectures. However, standard safety relay outputs from any manufacturer can be wired to GuardLogix safety input modules for monitoring.

Q: How do I calculate the required safety memory for my application?
A: Safety memory consumption depends on the number of safety tasks, safety I/O points, and safety function block complexity. As a guideline, basic emergency stop circuits with 10-20 safety I/O points consume approximately 50-100KB. Complex applications with safe motion control, muting logic, and multiple safety zones may require 500KB-1MB. Studio 5000 provides memory usage estimates during compilation, and the 1.5MB safety memory in the L36ERMS accommodates most mid-sized machinery applications.

Q: What are the power supply requirements and redundancy options for safety-critical installations?
A: The controller operates on 24VDC nominal (19.2-31.2VDC range) and draws approximately 8W. For safety-critical applications, deploy redundant 24VDC power supplies (1769-PA4 dual supply) with diode-OR configuration to prevent single-point power failures. The controller includes power loss detection and safe shutdown sequencing to maintain SIL 3 integrity during brownout conditions.

Ready to Integrate Safety & Control?

The 1769-L36ERMS GuardLogix controller eliminates the complexity of parallel safety systems while delivering TÜV-certified SIL 3 performance. Whether you're designing new machinery or retrofitting existing equipment for safety compliance, this platform provides the memory capacity, network redundancy, and programming flexibility to meet evolving safety standards.

Request a technical consultation to review your safety architecture requirements, or order now to receive factory-sealed units with complete documentation and 12-month warranty coverage. Our application engineers are available to assist with CIP Safety network design, safety program validation, and machinery directive compliance documentation.
