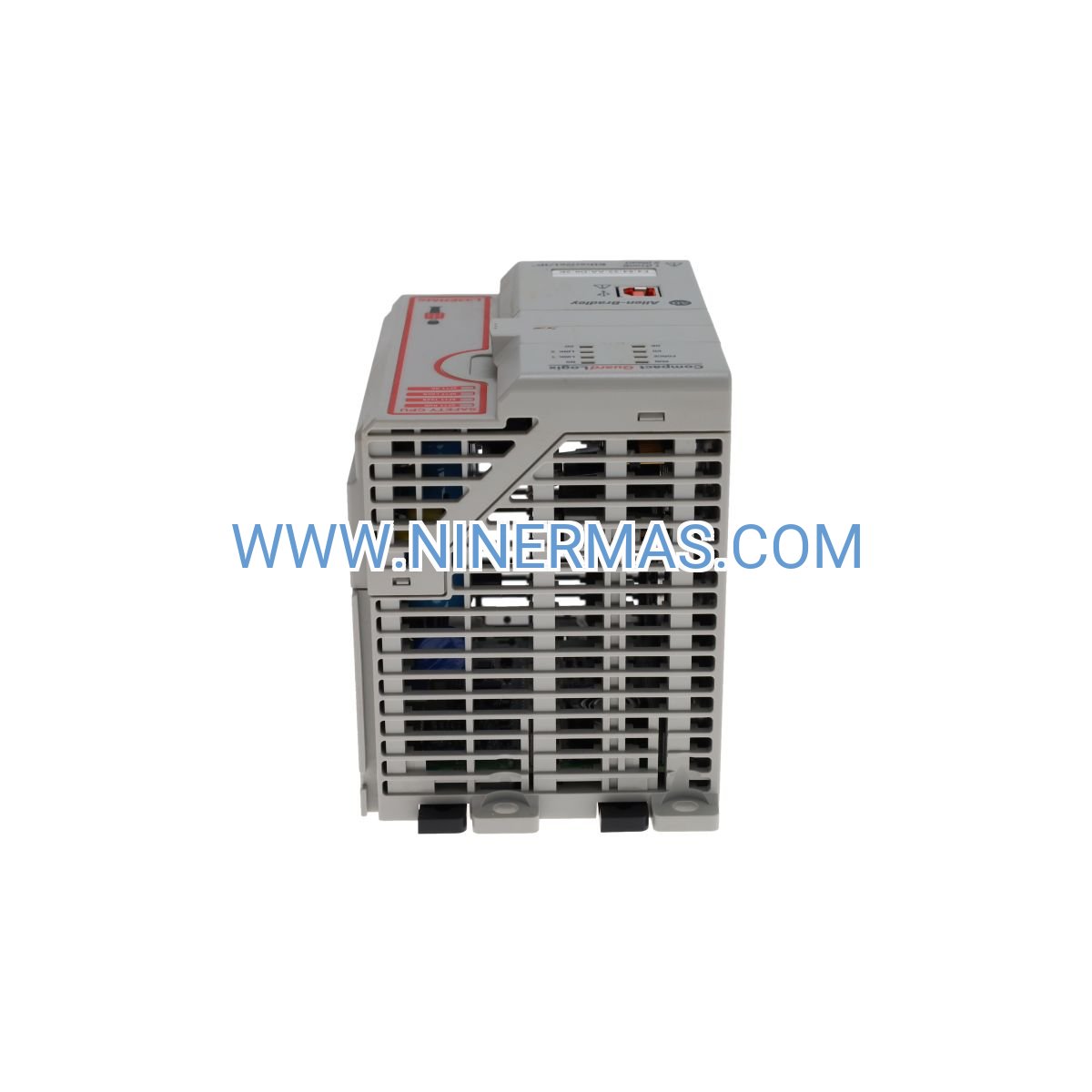

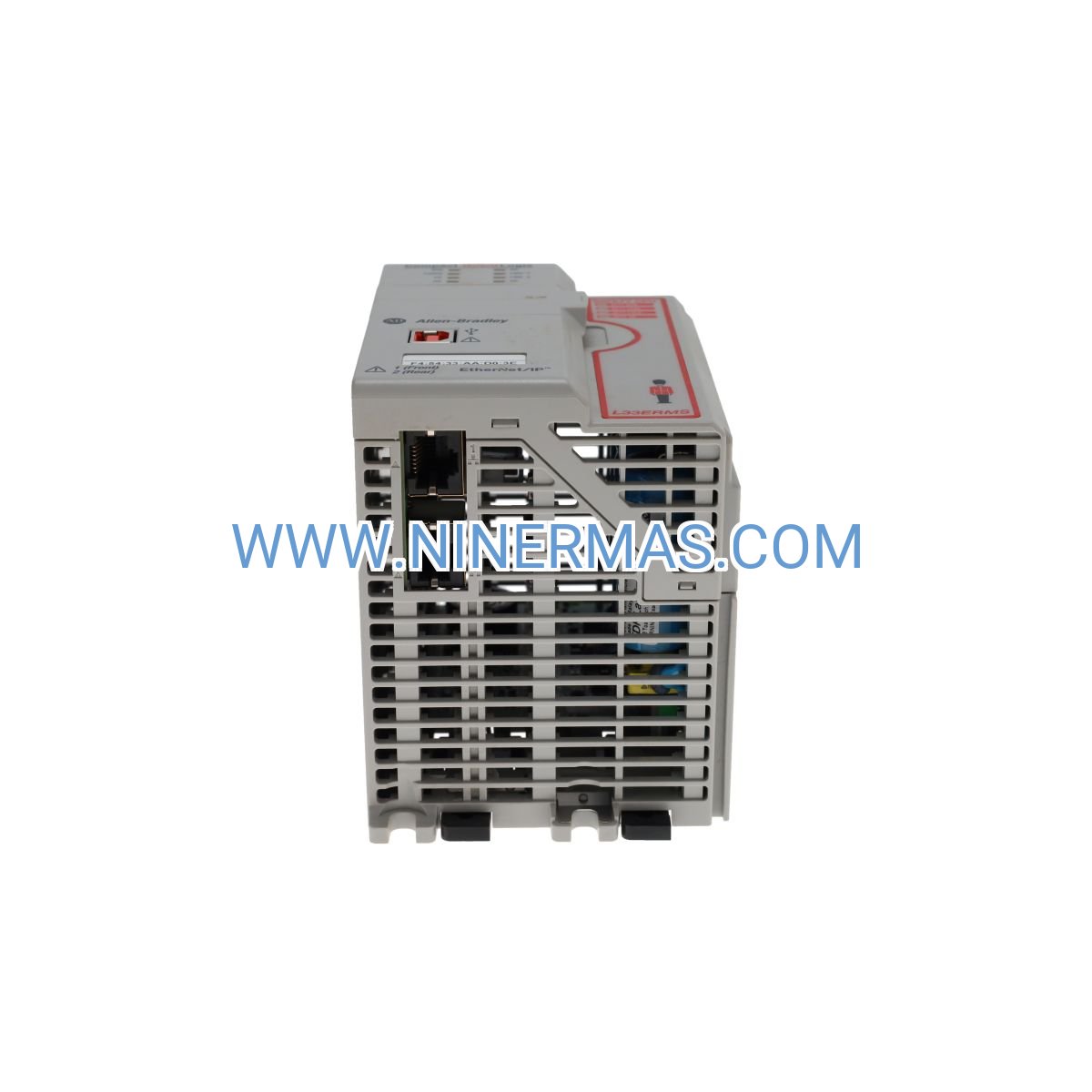

1769-L33ERMS Compact GuardLogix Safety Controller (Industrial-Grade Performance)

The 1769-L33ERMS delivers enterprise-level safety and motion control in a compact footprint, purpose-built for manufacturers who demand certified protection without compromising throughput. Combining 2MB user memory with 1MB dedicated safety memory, this controller executes complex safety logic and multi-axis motion coordination simultaneously—eliminating the need for separate safety PLCs and motion controllers in your automation architecture.

Designed for OEMs and system integrators operating in high-risk environments, the 1769-L33ERMS addresses the critical challenge of integrating safety-rated functions with standard process control. Whether you're retrofitting legacy systems or engineering new production lines, this controller reduces panel space by 40% compared to distributed safety relay architectures while maintaining SIL 3/PLe/CAT 4 certification compliance.

With dual Ethernet ports supporting Device Level Ring (DLR) topology and 16-axis integrated motion over EtherNet/IP™, the 1769-L33ERMS streamlines commissioning, cuts wiring costs, and provides deterministic network performance for time-critical safety applications. Factory-tested and backed by comprehensive technical documentation, this controller accelerates project timelines from design to production validation.

Key Features & Business Value

→ Unified Safety & Motion Architecture
Execute safety-rated logic and CIP Motion™ control within a single controller platform. Eliminates dual-processor complexity, reduces programming overhead by 30%, and simplifies validation documentation for machinery directive compliance.

→ Certified Safety Performance (SIL 3 / PLe / CAT 4)
Factory-validated safety instruction set with 1oo2 hardware redundancy ensures compliance with IEC 61508, ISO 13849-1, and ANSI/RIA R15.06 standards. Supports safety-rated I/O modules for emergency stop, light curtain muting, safe torque-off, and two-hand control functions.

→ Network Resilience with DLR Ethernet
Dual copper Ethernet ports enable ring topology with sub-3ms failover recovery. Maintains deterministic communication during cable breaks or switch failures—critical for continuous process industries and high-availability packaging lines.

→ Scalable I/O Expansion (Up to 16 Local Modules)
Deploy mixed standard and safety-rated Bulletin 1769 I/O modules within the same distributed rack. Supports analog, digital, specialty, and communication modules for flexible system architecture without external gateways.

✓ 16-Axis Integrated Motion Control
Coordinate servo drives, linear actuators, and rotary tables via CIP Motion over EtherNet/IP. Supports electronic gearing, camming, and synchronized motion profiles—ideal for packaging, material handling, and assembly automation.

✓ 2MB User Memory / 1MB Safety Memory
Accommodates large ladder logic programs, structured text routines, and safety function blocks. Sufficient capacity for complex batch recipes, HMI data tables, and diagnostic logging without external memory expansion.

Industrial Application Scenarios

Automated Packaging Lines
High-speed cartoning and palletizing systems require coordinated motion with integrated safety zones. The 1769-L33ERMS manages pick-and-place robots, conveyor indexing, and safety light curtain muting—reducing cycle time while maintaining operator protection. Typical installations achieve 15% throughput improvement versus relay-based safety systems.

Material Handling & Conveyor Networks
Distribution centers and warehouse automation demand reliable emergency stop circuits across extended conveyor runs. DLR Ethernet topology ensures safety commands propagate within 10ms across 32 networked nodes, while integrated motion control handles zone accumulation and merge/divert logic without external motion cards.

Robotic Work Cells (Collaborative & Fenced)
Automotive and electronics assembly cells integrate collaborative robots with traditional guarding. The controller executes safe speed monitoring, safe limited position, and enabling device logic while coordinating multi-robot motion sequences. Simplifies validation documentation for ISO/TS 15066 collaborative robot applications.

Process Equipment with Rotating Machinery
Centrifuges, mixers, and turbomachinery require safety-rated speed monitoring and vibration interlocks. The 1769-L33ERMS processes encoder feedback for safe speed range verification while executing standard PID control loops—consolidating safety and process control in a single platform.

Machine Tool & CNC Integration
Metal fabrication equipment demands coordinated motion with door interlocks, light curtain monitoring, and safe torque-off for servo axes. The controller's safety instruction set handles guard locking, muting sequences, and restart interlocks while managing tool changer positioning and spindle control.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-L33ERMS when your application requires both safety-rated control and multi-axis motion within a compact form factor. For applications requiring only safety control without motion (≤8 axes), consider the 1769-L30ERMS. For advanced motion applications exceeding 16 axes or requiring 4MB user memory, evaluate the 1769-L37ERMS platform.

Extended Capabilities & System Integration

IoT & Remote Diagnostics: Integrate with FactoryTalk® View HMI and FactoryTalk Analytics for real-time performance monitoring. Export diagnostic data via OPC UA for enterprise MES/ERP integration and predictive maintenance analytics.

Advanced Motion Functions: Execute electronic camming, gearing, and coordinated motion profiles using Studio 5000 Motion Analyzer. Supports position, velocity, and torque control modes with configurable acceleration/deceleration ramps.

Customization Options: Available with conformal coating for harsh environments (chemical, humidity, dust). Custom firmware configurations available for OEM applications requiring specialized safety function blocks or motion kinematics.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units (Asia-Pacific region). Express shipping available for critical downtime situations.

Custom Configuration: 7-10 business days for pre-programmed controllers with customer-specific logic and I/O mapping.

Warranty Coverage: 12-month manufacturer warranty covering hardware defects, firmware issues, and component failures. Extended warranty plans available for mission-critical applications.

Technical Support: Lifetime access to application engineering support via email and phone. Includes firmware update notifications, security patch alerts, and obsolescence planning guidance.

Documentation Package: Each controller ships with installation manual, safety function validation reports, CE/UL certification documents, and Studio 5000 sample code library.

Frequently Asked Questions

What programming software is required for the 1769-L33ERMS safety controller?
Studio 5000 Logix Designer version 21 or later with the GuardLogix safety instruction library. The software supports both ladder logic and structured text programming for safety and standard control functions. A single development environment handles safety validation, motion tuning, and HMI tag integration.

Can this controller replace legacy PLC-5 or SLC 500 safety relay systems?
Yes, with appropriate I/O mapping and logic conversion. The 1769-L33ERMS supports Bulletin 1769 I/O modules that interface with existing 24VDC sensor infrastructure. Migration tools within Studio 5000 assist with RSLogix 500/5 program conversion, though safety logic requires re-validation per IEC 61508 standards.

How does the dual Ethernet DLR topology improve system reliability?
Device Level Ring automatically detects cable breaks or switch failures and reroutes communication within 3 milliseconds. This ensures safety-critical commands (emergency stops, light curtain signals) reach all networked devices even during single-point network failures—critical for distributed conveyor systems and multi-zone packaging lines.

What is the maximum safety response time for emergency stop circuits?
Total safety response time depends on I/O module scan time, network propagation delay, and safety task execution. Typical configurations achieve 8-12ms response time from input detection to safety output activation. Properly configured DLR networks with optimized RPI (Requested Packet Interval) settings ensure deterministic performance.

Does the controller support third-party safety devices via EtherNet/IP?
Yes, via CIP Safety™ protocol. Compatible devices include safety laser scanners (SICK, Keyence), safety light curtains (Banner, Omron), and configurable safety relays. All devices must carry TÜV certification for SIL 3/PLe operation and appear in the Rockwell Automation Integrated Architecture compatibility matrix.

What motion control capabilities are included without additional hardware?
The controller natively supports 16 axes of coordinated motion over EtherNet/IP, with 8 axes capable of CIP Motion (advanced functions like camming, gearing, and coordinated path control). Servo drives must support CIP Motion profile—compatible vendors include Kinetix, SEW Eurodrive, and Bosch Rexroth.

Start Your Safety & Motion Integration Project

Ready to consolidate your safety and motion control architecture? Our application engineering team provides pre-sales technical consultation, I/O configuration worksheets, and Studio 5000 project templates to accelerate your deployment. Contact us for project-specific pricing, volume discounts, and custom programming services.
