Allen-Bradley 1769-L20 CompactLogix Retrofit & Upgrade Controller

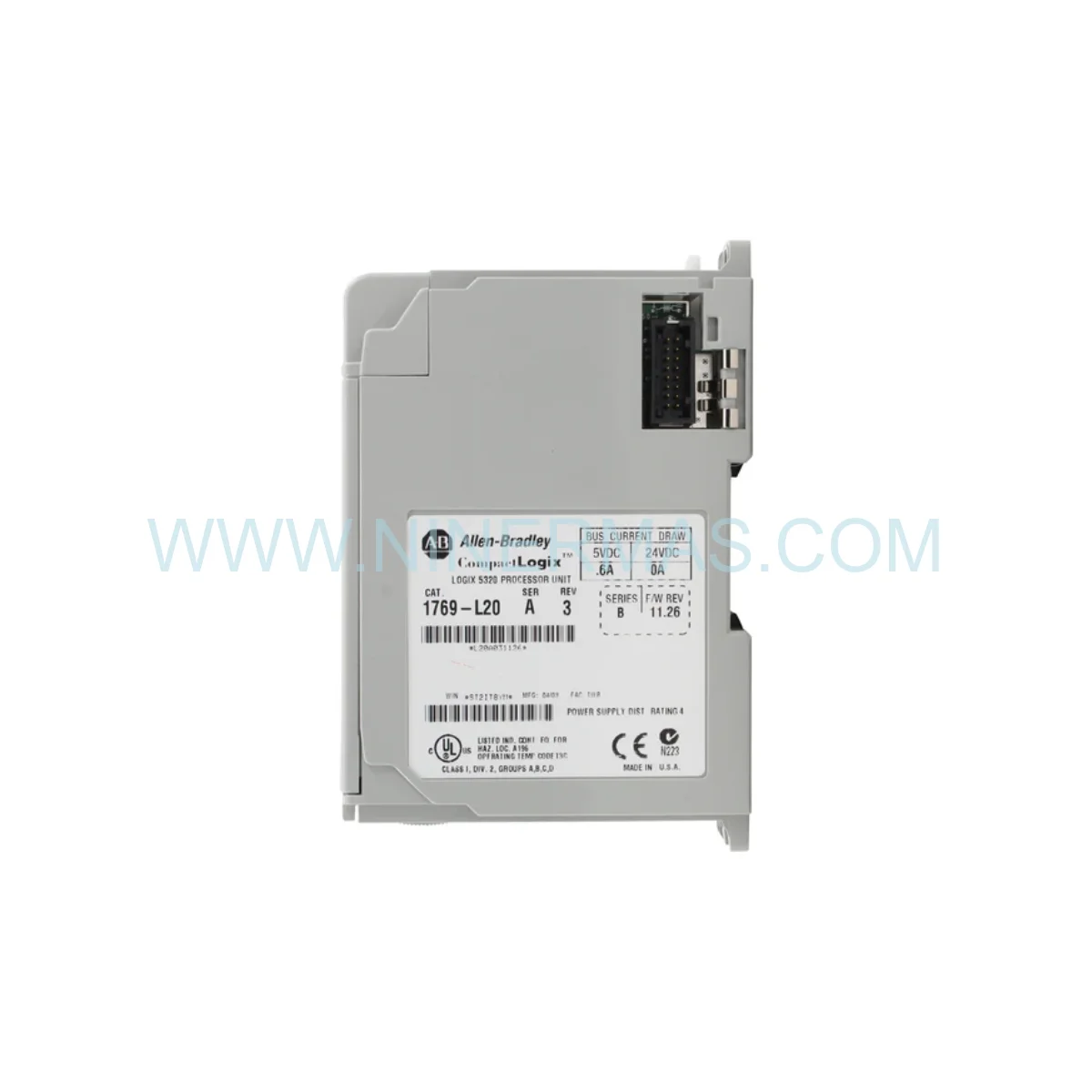

Allen-Bradley 1769-L20 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead working across global manufacturing facilities and power generation sites, the Allen-Bradley 1769-L20 stands out as a pivotal hardware upgrade component in any system modernization roadmap. Its compact form factor, combined with 64KB of user memory and RS-232 serial communication, makes it an indispensable bridge between aging relay-logic panels and modern industrial network architectures. The Allen-Bradley 1769-L20 directly addresses the performance bottlenecks that plague legacy control systems — reducing scan-time latency, improving diagnostic visibility, and enabling structured programming via Studio 5000 Logix Designer, all within the familiar CompactLogix ecosystem.

One of the most compelling advantages of this controller in a retrofit context is its backward compatibility with the 1769 I/O module family. Existing field wiring and I/O infrastructure can often be retained during migration, dramatically reducing downtime and capital expenditure. Whether you are replacing an obsolete SLC 500 or a first-generation MicroLogix installation, the 1769-L20 serves as the upgrade path core — preserving your hardware investment while delivering a measurable performance enhancement at the controller level.

From a risk management perspective, deploying the 1769-L20 as part of a phased migration strategy minimizes operational disruption. Its proven reliability in OEM and process environments means engineering teams can execute cutover procedures with confidence, knowing that the hardware has been factory-sealed and quality-verified. The result: lower migration risk, reduced commissioning costs, and a faster return to full production capacity.

Upgrade Highlights & Compatibility

✅ Seamless Integration — Drop-in compatible with the full 1769 CompactLogix I/O module range; existing field wiring can be preserved in most retrofit scenarios.
Performance Enhancement — Optimized execution engine delivers faster scan times versus legacy relay or first-generation PLC platforms.
? Legacy Compatibility — RS-232 serial port enables direct communication with older HMIs, barcode readers, and third-party serial devices during transition phases.
Future-Proofing — Scalable CompactLogix architecture allows controller swap-out to higher-capacity models (e.g., 1769-L33ER, 1769-L37ERM) without replacing I/O infrastructure.
? Common Engineering Environment — RSLogix 5000 / Studio 5000 programming platform shared across the entire Logix controller family reduces retraining costs.
Hardware Upgrade Path — Supports DeviceNet and ControlNet distributed I/O expansion, enabling gradual network modernization without full system replacement.

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing Plants: Facilities running obsolete distributed control systems with proprietary serial backbones have successfully integrated the 1769-L20 as a local controller node. By leveraging its RS-232 port for legacy device communication and its CompactLogix backplane for modern I/O, engineers achieved a phased DCS-to-PLC migration with zero unplanned downtime — a critical requirement in continuous-process environments.

Turbine Supervisory Instrumentation (TSI) Retrofit: In power generation applications, the 1769-L20 has been deployed to replace aging TSI monitoring controllers. Its deterministic scan cycle and structured text programming capability allow engineers to replicate complex vibration and temperature monitoring logic previously locked in proprietary firmware, enabling full data integration with modern SCADA and historian platforms.

OEM Machine Builder Upgrades: Machine builders facing end-of-life (EOL) component shortages on legacy platforms have standardized on the 1769-L20 as a cost-effective retrofit solution. The controller’s compact footprint fits existing panel cutouts in most cases, and its Studio 5000 compatibility means existing engineering teams can maintain and expand programs without specialist retraining.

Remote Monitoring Station Modernization: Water treatment and utilities operators have deployed the 1769-L20 to replace aging relay panels at remote pump stations. The controller’s low power consumption and wide operating temperature range (0°C to 60°C) make it suitable for harsh, unmanned environments where hardware upgrade reliability is non-negotiable.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every Allen-Bradley 1769-L20 unit shipped from our inventory is sourced from authorized distribution channels and arrives in original manufacturer packaging with full factory seals intact. Authenticity documentation is available upon request for regulated industries.

Expedited Global Logistics: We maintain ready stock to support urgent retrofit and emergency replacement scenarios. Expedited air freight options are available to all major industrial regions, including North America, Europe, Southeast Asia, and the Middle East — ensuring your production line returns to operation with minimal delay.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy system compatibility analysis. Whether you need guidance on migrating from SLC 500, MicroLogix, or a proprietary DCS platform to the 1769-L20, our retrofit specialists provide pre-sales consultation, installation documentation, and post-deployment troubleshooting assistance throughout the product lifecycle.

Retrofit FAQ — Upgrade Guide

Q1: Will the 1769-L20 fit into my existing control panel without major modifications?
A: In most retrofit scenarios, yes. The 1769-L20 uses the standard CompactLogix rail-mount form factor. Panel cutout dimensions and DIN rail spacing are compatible with the majority of existing enclosures designed for 1769-series hardware. For non-standard enclosures, our team can provide dimensional drawings to assist your mechanical engineering review.

Q2: How does the 1769-L20 communicate with older serial-based devices during the migration transition period?
A: The integrated RS-232 serial port supports ASCII, DF1, and Modbus RTU protocols, enabling direct communication with legacy HMIs, variable frequency drives, barcode scanners, and third-party serial instruments. This allows a phased migration approach where new and old devices coexist on the same control network during cutover.

Q3: Can I reuse my existing 1769 I/O modules when upgrading from an older CompactLogix controller?
A: Yes. The 1769-L20 is fully compatible with the existing 1769 I/O module family. Field wiring, terminal blocks, and I/O modules can typically be retained, significantly reducing retrofit labor costs and minimizing the risk of wiring errors during migration.

Q4: What is the recommended upgrade path if my application outgrows the 1769-L20’s 64KB memory capacity?
A: The CompactLogix platform is designed for seamless controller upgrades. You can migrate to the 1769-L33ER (2MB) or 1769-L37ERM (4MB with integrated motion) while retaining all existing I/O modules and field wiring. Program migration is supported via Studio 5000 import/export tools, minimizing re-engineering effort.

Q5: Is the 1769-L20 suitable as a spare part for an existing system that I need to keep running beyond its EOL date?
A: Absolutely. Maintaining a spare 1769-L20 in your critical spare parts inventory is a proven strategy for extending the operational life of legacy CompactLogix installations. Our factory-sealed stock ensures the unit will perform identically to the original installed controller, with no firmware or hardware deviations.

Q6: What documentation and support is available for integrating the 1769-L20 into a modern SCADA or MES environment?
A: We provide access to Rockwell Automation’s official technical documentation, including installation instructions, user manuals, and EDS files. Our retrofit support team can also assist with OPC-UA gateway configuration and historian integration planning to connect your 1769-L20-based system to modern Industry 4.0 data infrastructure.
