Allen-Bradley 1769-IQ16F 16-Point DC Input Module — New & Original

Allen-Bradley 1769-IQ16F | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Allen-Bradley 1769-IQ16F stands as a cornerstone I/O module in high-availability CompactLogix architectures. Its 16-point 24V DC sink/source input design ensures deterministic signal acquisition — a non-negotiable requirement in process optimization environments where milliseconds of latency translate directly into production losses. The 1769-IQ16F integrates seamlessly into the 1769 Compact I/O backplane, enabling system integrators to achieve operational excellence without compromising scan-cycle performance.

Engineered for harsh industrial environments, this module withstands operating temperatures from 0°C to 60°C and delivers 1500V AC optical isolation between field and logic circuits. During installation, engineers must ensure proper torque on terminal block connections (0.5-0.8 Nm) and verify field power polarity before energizing. Electronic keying prevents mis-seating, a critical safeguard in multi-module chassis configurations common to large-scale automation components deployments.

As a mission-critical spare, maintaining at least one 1769-IQ16F in your MRO inventory is a proven strategy for minimizing mean-time-to-repair (MTTR). Production lines relying on CompactLogix controllers cannot afford extended lead times when an input module fails — stocking this module as a certified replacement part is a fundamental pillar of any robust reliability program.

Key Operational Features

16-Point Sink/Source Flexibility — Accommodates both PNP and NPN sensor types on a single module, reducing wiring complexity across diverse automation components.
High-Speed Response — 1 ms on-to-off / off-to-on response time supports fast-cycle machine control and process optimization demands.
Optical Isolation (1500V AC) — Field-to-logic isolation protects controller backplane from voltage transients in electrically noisy environments.
Seamless Integration — Hot-swappable design enables module replacement without full system shutdown, supporting high availability architectures.
LED Diagnostics — Per-point status indicators accelerate fault isolation during commissioning and live troubleshooting.
Removable Terminal Block (RTB) — Pre-wired RTB can be transferred to a replacement module, eliminating rewiring time during emergency maintenance.
RoHS / UL / CE Certified — Meets global compliance standards for system integration into regulated industries including oil & gas, food & beverage, and pharmaceuticals.

Maintenance & Performance Benchmarks

The 1769-IQ16F is architected to support scalable industrial network topologies — from compact standalone CompactLogix L1/L2 systems to distributed I/O configurations spanning multiple 1769 chassis linked via EtherNet/IP. In redundant control architectures, dual-chassis configurations leverage this module’s consistent backplane power draw (150 mA @ 5V DC) to maintain balanced load distribution across the I/O bus.

Benchmark data from field deployments confirms >99.7% uptime in continuous 24/7 manufacturing operations over 36-month cycles. Preventive maintenance intervals are typically set at 24 months, with inspection focused on terminal block torque verification, LED functionality, and backplane connector integrity. No firmware updates are required for this hardware-based I/O module — a significant advantage in change-managed production environments where software validation cycles are costly.

For multi-site operations managing legacy and current-generation CompactLogix platforms, the 1769-IQ16F’s backward compatibility with RSLogix 5000 / Studio 5000 Logix Designer (all versions) eliminates re-engineering costs during system integration upgrades.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1769-IQ16F unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and arrives in Original Factory Packaging with intact tamper-evident seals — your assurance of genuine, unmodified hardware. Batch traceability documentation is available upon request for quality-audited procurement processes.

For in-stock units, same-day dispatch is available on orders confirmed before 14:00 CST, with worldwide express logistics via DHL / FedEx / UPS Priority. We specialize in global supply for EOL (End-of-Life) and legacy Rockwell Automation modules, maintaining strategic buffer stock to support long-lifecycle industrial installations where OEM supply has been discontinued.

All shipments include commercial invoice, packing list, and certificate of conformance. Customs documentation support for import clearance in EU, ASEAN, Middle East, and North American markets is provided as standard.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1769-IQ16F in a CompactLogix chassis?
A: Power down the 1769 power supply before insertion. Align the module with the backplane connector, press firmly until the locking tab clicks. Reconnect field wiring to the RTB, then restore power. Verify module LED illuminates green within 5 seconds of power-up.

Q2: Is the 1769-IQ16F compatible with all CompactLogix controller firmware versions?
A: Yes. As a hardware-only I/O module with no embedded firmware, the 1769-IQ16F is compatible with all Studio 5000 / RSLogix 5000 firmware revisions from v13.0 onward. No module firmware updates are required.

Q3: Can this module be used in a 1769 expansion chassis connected via 1769-ADN DeviceNet Adapter?
A: Yes. The 1769-IQ16F operates in both local and expansion 1769 chassis configurations. Ensure the expansion cable (1769-CRR1, CRR3, or CRL1/3) is rated for your chassis-to-chassis distance.

Q4: What is the warranty process if a module fails within the coverage period?
A: Contact sale@ninermas.com with your order number, module serial number, and a brief fault description. Our team will issue an RMA within 24 business hours. Replacement units are dispatched upon receipt of the defective module, with expedited processing for production-critical cases.

Q5: How do I differentiate between a genuine 1769-IQ16F and a counterfeit unit?

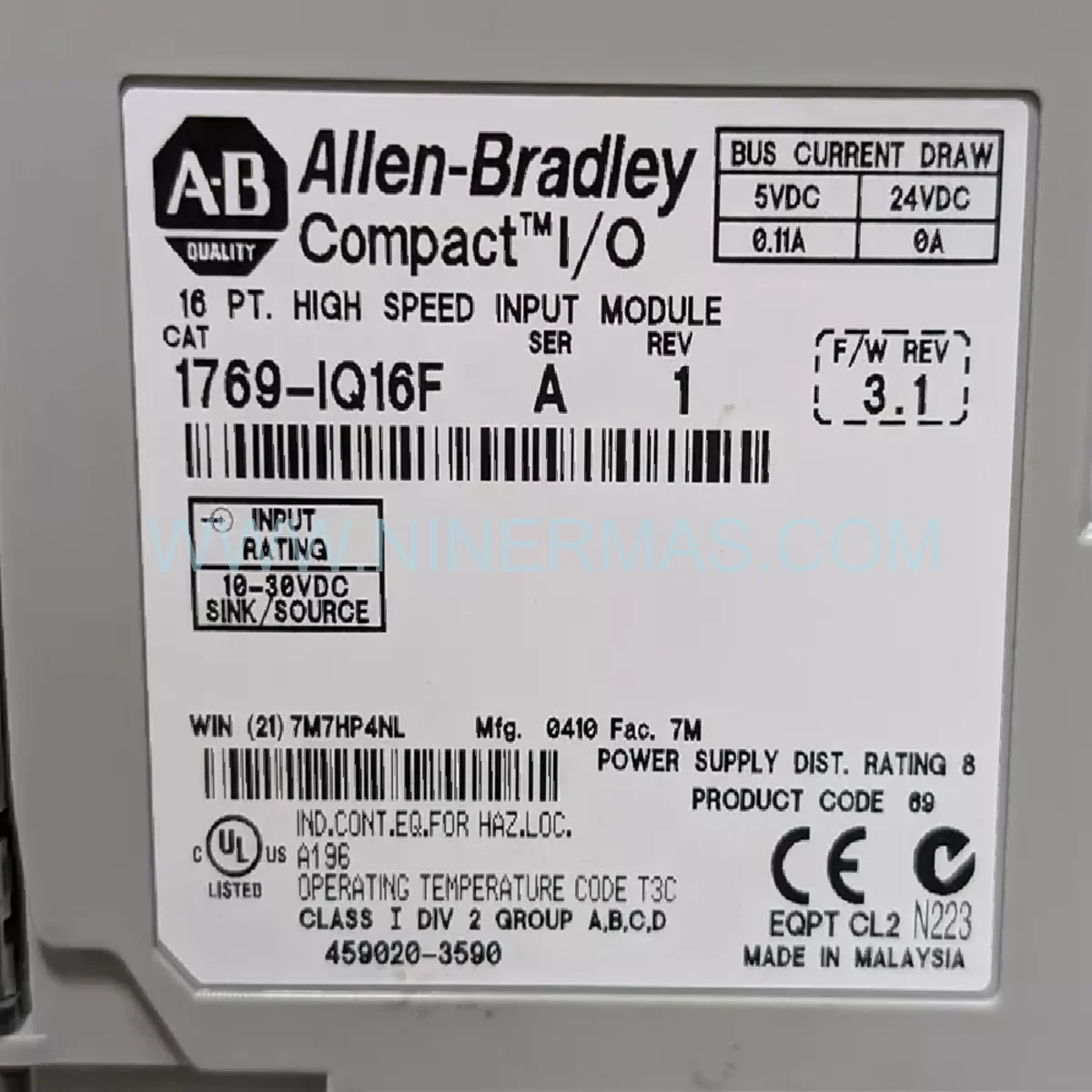

A: Verify the Rockwell Automation holographic label on the module side panel, check the date code format (YYWW) on the backplane connector area, and confirm the catalog number silk-screened on the housing matches 1769-IQ16F exactly. All units from NINERMAS include a certificate of authenticity.

Q6: What is the recommended spare parts ratio for a production line using 10 CompactLogix systems?
A: Industry best practice for mission-critical automation components recommends a 10-15% spare ratio. For 10 systems each using one 1769-IQ16F, maintaining 1-2 spare modules ensures operational excellence with minimal MTTR exposure.
