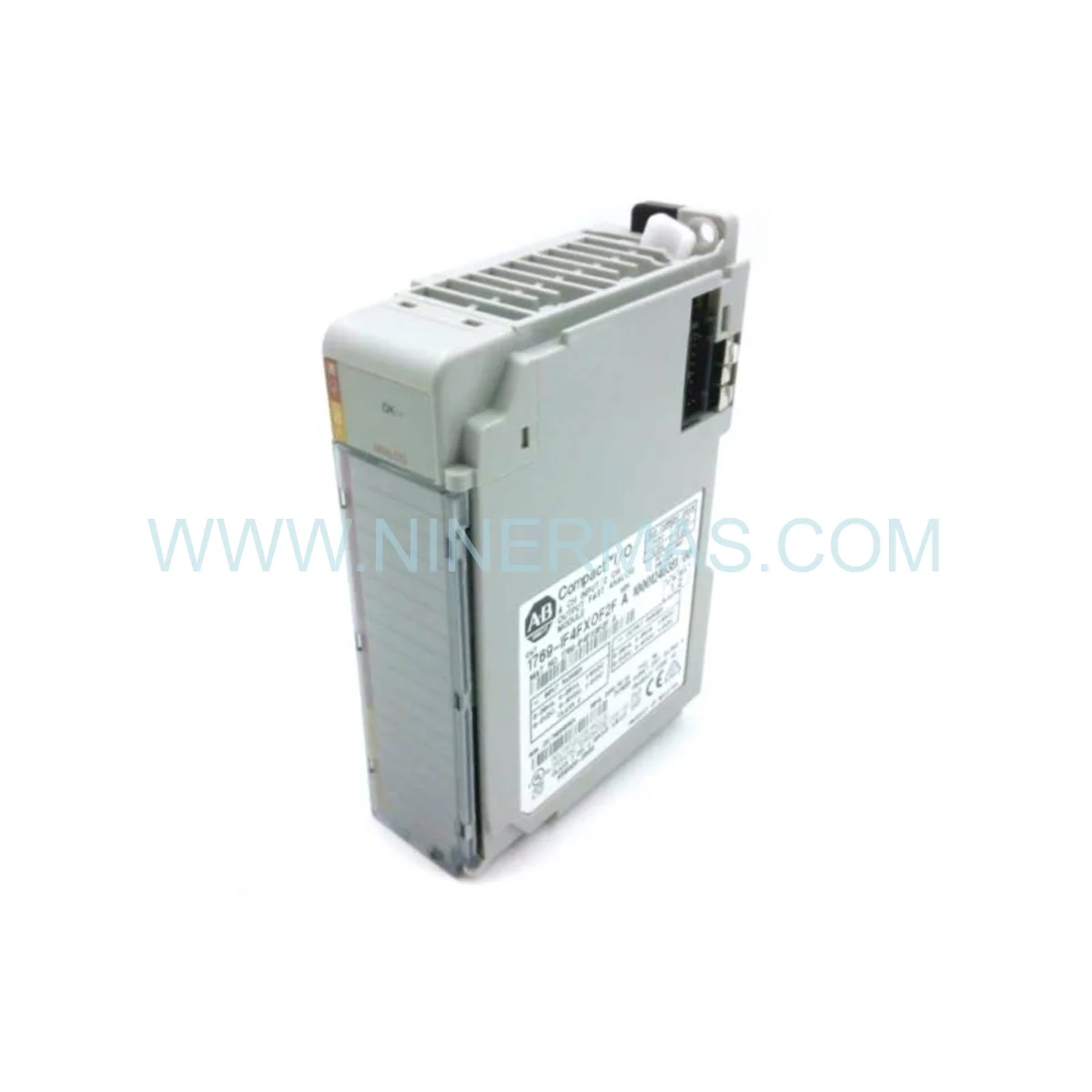

Allen-Bradley 1769-IF4XOF2F | CompactLogix Analog I/O Certified Module

Allen-Bradley 1769-IF4XOF2F – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1769-IF4XOF2F occupies a foundational role in maintaining the operational integrity of mission-critical control architectures. As a certified analog combination I/O module engineered for CompactLogix platforms, the 1769-IF4XOF2F delivers 16-bit resolution across 4 differential analog inputs and 2 isolated analog outputs — a configuration that directly supports Safety Integrity requirements in process-intensive environments where signal fidelity is non-negotiable. Its Original Documentation and factory-sealed provenance ensure full traceability, a prerequisite for regulated industries operating under IEC 61511 or ISA-84 frameworks.

Within the evolving landscape of Industrial 4.0 architecture, the 1769-IF4XOF2F demonstrates sustained long-term compatibility with CompactLogix 5370, 5380, and 5480 controller families. Its Lifecycle Management profile is characterized by Rockwell Automation’s extended product support commitments, enabling Asset Optimization strategies that defer costly system overhauls. The module’s deterministic 10ms per-channel conversion time and ±0.1% full-scale accuracy at 25°C align with System Performance benchmarks demanded by continuous process operations.

As a certified original component, the 1769-IF4XOF2F contributes directly to system safety by eliminating the risk of counterfeit-induced signal drift or firmware incompatibility. Compliance Standards adherence — from CE marking to UL/cUL certification — ensures that every deployment meets the jurisdictional requirements of global industrial installations, reinforcing the long-term value proposition of genuine Allen-Bradley assets.

Compliance & Safety Benchmarks

✅ Certification Integrity: Fully compliant with UL, cUL, CE, and C-Tick standards, ensuring regulatory acceptance across North American, European, and Asia-Pacific industrial jurisdictions.

✅ Channel Isolation Architecture: Channel-to-channel and channel-to-backplane isolation eliminates ground loop interference, a critical Compliance Standard for pharmaceutical and chemical process environments.

Durability Under Thermal Stress: Rated for continuous operation from 0°C to 60°C (32°F to 140°F), with storage tolerance extending to -40°C to 85°C, supporting Standard Adherence in harsh industrial enclosures.

✅ EMC Resilience: Designed to IEC 61000 electromagnetic compatibility standards, ensuring signal integrity in high-noise industrial environments including variable frequency drive (VFD) proximity zones.

Electronic Keying: Integrated electronic keying prevents incorrect module substitution during maintenance cycles, a fundamental Safety Integrity safeguard for live system modifications.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: Precision analog feedback is indispensable in semiconductor fabrication, where the 1769-IF4XOF2F enables sub-millivolt process variable monitoring for etch rate control, chemical mechanical planarization (CMP) pressure regulation, and cleanroom environmental management. Its 16-bit resolution supports the tight tolerance windows required by SEMI standards.

Pharmaceutical & Bioprocessing: In FDA-regulated bioreactor and fermentation environments, the module’s isolated analog outputs facilitate precise peristaltic pump speed control and dissolved oxygen regulation. Its compliance with 21 CFR Part 11-compatible control architectures supports electronic batch record integrity and audit trail requirements.

Chemical Processing: The 1769-IF4XOF2F’s support for 4-20mA HART-compatible signal ranges (passive) enables seamless integration with field transmitters in hazardous area installations. Its robust isolation architecture mitigates the risk of common-mode voltage faults in multi-loop reactor control systems.

Energy & Power Generation: Turbine governor control, generator excitation monitoring, and grid synchronization applications benefit from the module’s deterministic scan time and high-accuracy voltage/current measurement capabilities, supporting Operational Excellence in utility-scale power management.

Water & Wastewater Treatment: Municipal treatment facilities leverage the module’s multi-range input flexibility (±10V DC, 0-10V DC, 0-20mA, 4-20mA) to interface with diverse sensor technologies — from pH electrodes to ultrasonic level transmitters — within a single unified I/O footprint.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 1769-IF4XOF2F unit is dispatched in its original, factory-sealed packaging with intact tamper-evident seals, ensuring that the module arrives in a condition consistent with Rockwell Automation’s Original Documentation and quality control standards. Batch traceability records are available upon request for regulated industry procurement teams.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, European, and North American corridors, standard dispatch occurs within 2-5 business days. Expedited air freight options are available for critical system downtime scenarios, with real-time shipment tracking provided throughout the delivery lifecycle.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a comprehensive 12-Month Quality Guarantee, encompassing defects in materials, workmanship, and firmware integrity. This extended warranty framework is specifically structured to support legacy CompactLogix installations where component availability from primary distribution channels may be constrained, ensuring uninterrupted Asset Optimization for aging control infrastructure.

Expert Technical FAQ

Q: How does the 1769-IF4XOF2F comply with IEC 61508 Safety Integrity Level (SIL) requirements?
A: While the 1769-IF4XOF2F is not independently SIL-rated, it is designed for integration within SIL-assessed CompactLogix safety architectures. System-level SIL compliance is achieved through redundant I/O configurations and validated safety application programs developed in accordance with IEC 61511. Consult Rockwell Automation’s Safety Reference Manual (Publication 1769-RM006) for detailed SIL assessment data.

Q: What firmware version is required to ensure full feature compatibility and certification validity?
A: The 1769-IF4XOF2F requires Studio 5000 Logix Designer version 20.00 or later for full Add-On Profile (AOP) support. Firmware compatibility is maintained across all CompactLogix 5370/5380/5480 controller revisions. Operating with outdated firmware may invalidate CE compliance declarations; always verify controller firmware against Rockwell’s Product Compatibility and Download Center (PCDC) prior to deployment.

Q: What environmental certifications apply to installations in chemically aggressive atmospheres?
A: The module carries C-Tick certification for EMC compliance and meets IEC 60068-2 environmental test standards for vibration, shock, and humidity. For installations in ATEX Zone 2 or NEC Class I Division 2 classified areas, the module must be housed within appropriately rated enclosures (minimum IP54) with certified cable glands. Consult the 1769-IF4XOF2F Installation Instructions (Publication 1769-IN041) for zone-specific wiring compliance guidance.

Q: How should the 1769-IF4XOF2F be validated after installation to confirm signal accuracy and compliance?
A: Post-installation validation should follow a structured loop calibration procedure using a certified process calibrator (e.g., Fluke 754 or equivalent) traceable to NIST standards. Verify each channel’s zero and span accuracy against the ±0.1% full-scale specification. Document calibration results in the facility’s Instrument Calibration Management System (ICMS) to satisfy ISO 9001 and GMP audit requirements.

Q: Can the module be used in high-vibration environments such as rotating machinery or compressor skids?
A: Yes. The 1769-IF4XOF2F is tested to IEC 60068-2-6 sinusoidal vibration standards (5-500Hz, 2g) and IEC 60068-2-27 shock standards (15g, 11ms). For installations on compressor skids or pump bases, supplementary vibration isolation mounting hardware is recommended to extend module service life and maintain long-term signal accuracy within Compliance Standards thresholds.

Q: What is the recommended lifecycle replacement interval for the 1769-IF4XOF2F in continuous process applications?
A: Rockwell Automation’s Lifecycle Management framework classifies the 1769 Compact I/O series as Active product status, with a projected support horizon extending beyond 2030. For continuous process applications operating 24/7, a proactive replacement assessment is recommended at 10-year intervals, coinciding with major control system audits. Maintaining a certified spare unit on-site is considered best practice for Operational Excellence in critical infrastructure environments.
