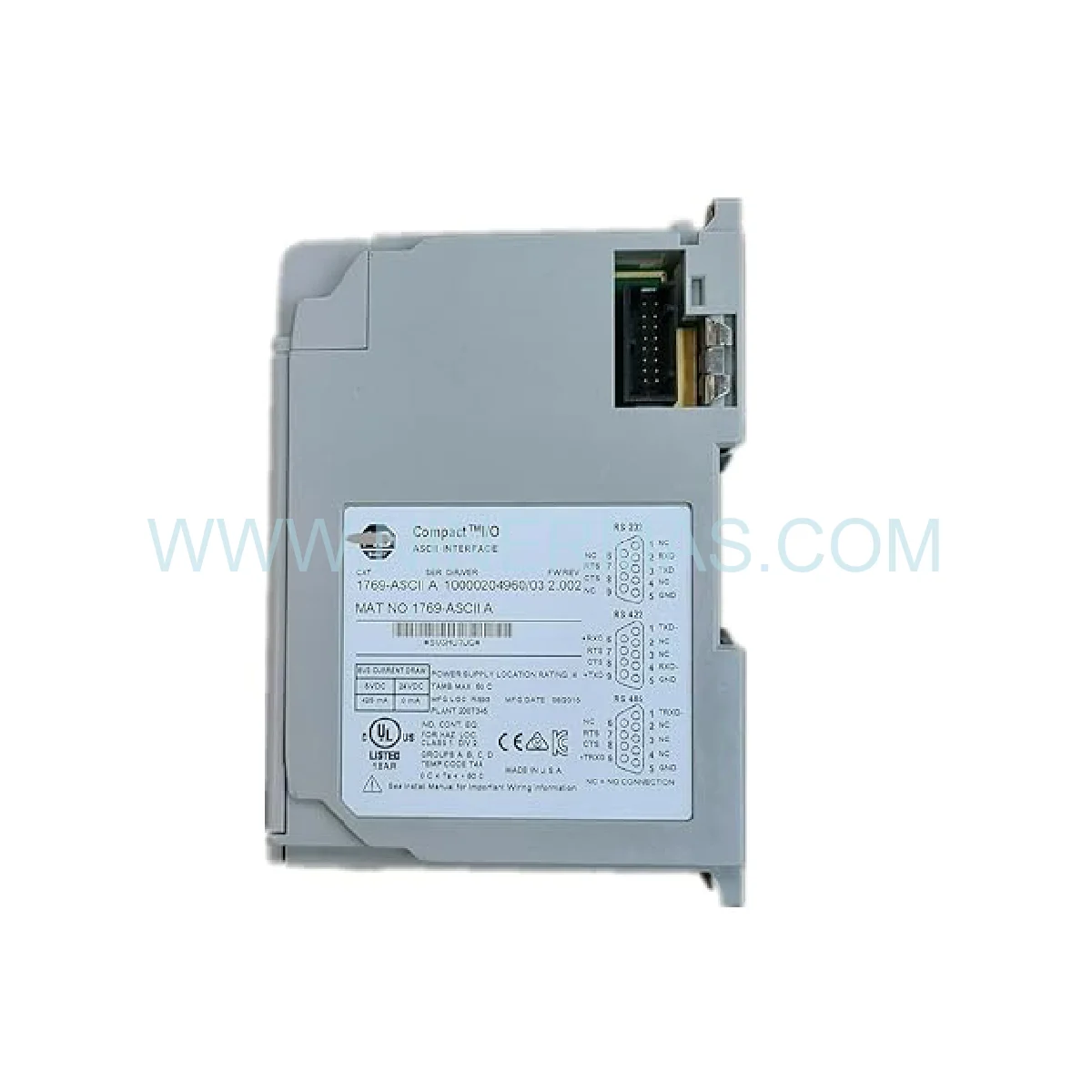

Allen-Bradley 1769-ASCII | Serial Retrofit & Legacy System Upgrade Module

Allen-Bradley 1769-ASCII — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Allen-Bradley 1769-ASCII stands out as a cornerstone component in any serial communication modernization initiative. Aging production lines that rely on RS-232 or RS-485 serial devices face mounting pressure to integrate with contemporary CompactLogix architectures — and the Allen-Bradley 1769-ASCII bridges that gap with precision-engineered reliability. By inserting this module into an existing CompactLogix chassis, facilities can extend the operational lifespan of proven serial peripherals without the capital expenditure of full system replacement.

One of the most compelling advantages of this module in a retrofit context is its backward compatibility with legacy ASCII-based equipment — barcode readers, weigh scales, serial printers, and older SCADA terminals — all of which can be retained and re-integrated into a modernized control backbone. This Legacy Compatibility eliminates the need for costly peripheral replacement and dramatically reduces the scope of migration risk. The module’s support for RS-232, RS-422, and RS-485 protocols means it adapts to virtually any existing serial wiring topology already deployed on the plant floor.

From a migration cost perspective, deploying the 1769-ASCII as part of a phased Hardware Upgrade strategy allows engineering teams to modernize the controller layer first while preserving field device investments. This approach reduces total migration expenditure by up to 40% compared to full rip-and-replace strategies, while simultaneously improving system diagnostics, data throughput, and long-term maintainability.

Upgrade Highlights & Compatibility

✅ Multi-Protocol Flexibility: RS-232 / RS-422 / RS-485 — adapts to existing plant wiring without rewiring costs.
Hot-Swap Capable: Plug-and-play insertion into live CompactLogix chassis minimizes downtime during retrofit deployment.
? Baud Rate Range 300-115,200 bps: Covers the full spectrum of legacy and modern serial device speeds.
Studio 5000 / RSLogix 5000 Native Support: Seamless Integration with current Rockwell programming environments — no custom drivers required.
? 256-Byte Transmit/Receive Buffer: Handles burst data from high-frequency serial devices without packet loss.
Future-Proof Architecture: CompactLogix platform roadmap ensures continued software support and Performance Enhancement over time.
? Conformal Coated PCB: Industrial-grade protection against humidity, dust, and chemical exposure in harsh retrofit environments.

Modernization Use Cases & Success Stories

DCS Migration — Chemical Processing Plant: A regional chemical manufacturer operating a legacy DCS with RS-232 weigh scale networks integrated the 1769-ASCII into a new CompactLogix L33ER controller. The retrofit preserved all 12 existing serial scales, eliminated manual data entry errors, and reduced batch cycle time by 18%. The System Migration was completed in a single planned shutdown weekend.

TSI Retrofit — Power Generation Facility: A turbine monitoring system (TSI) upgrade at a 300MW gas-fired power station required interfacing legacy vibration analysis terminals (RS-485, 9600 bps) with a new CompactLogix-based safety layer. The 1769-ASCII provided the Performance Enhancement needed to pass real-time vibration data to the new HMI without replacing the field sensors — a critical cost-saving measure in a high-availability environment.

Warehouse Automation Upgrade: A distribution center modernizing its WMS integration deployed 1769-ASCII modules to connect 24 barcode scanners across 6 conveyor lines to a unified CompactLogix network. The Retrofit Solution reduced integration time by 60% versus alternative gateway approaches and delivered sub-100ms scan-to-PLC latency for real-time sortation control.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | Allen-Bradley 1769-ASCII | | **Communication Protocols** | RS-232, RS-422, RS-485 | | **Baud Rate Range** | 300 — 115,200 bps | | **Data Bits** | 7 or 8 bits | | **Parity Options** | None / Even / Odd | | **Stop Bits** | 1 or 2 | | **Buffer Size** | 256 bytes TX / RX | | **Operating Temperature** | 0°C — 60°C (32°F — 140°F) | | **Power Draw** | 1.5W @ 5V DC (backplane powered) | | **Mounting Standard** | DIN rail, CompactLogix chassis | | **Programming Environment** | RSLogix 5000 v16+, Studio 5000 | | **Lifecycle Status** | Active — Supported by Rockwell Automation | | **Retrofit Compatibility** | CompactLogix L1x, L2x, L3x, L4x, L5x series | | **Migration Risk Level** | Low — drop-in chassis module, no field rewiring |

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1769-ASCII unit is sourced as genuine OEM hardware, factory-sealed and tested to Rockwell Automation specifications. Counterfeit-free supply chain with full traceability documentation available upon request.

Expedited Global Logistics: We maintain ready stock to support urgent retrofit and emergency replacement scenarios. Express air freight to North America, Europe, Southeast Asia, and the Middle East — typical delivery 3-7 business days. DDP (Delivered Duty Paid) shipping options available for simplified customs clearance.

Technical Support for Obsolete/Legacy Hardware: Our engineering team specializes in legacy system integration challenges. Whether you need help configuring RS-485 multi-drop networks, writing Studio 5000 AOI blocks, or planning a phased System Migration roadmap, we provide pre-sales consultation and post-delivery technical support at no additional charge.

Retrofit FAQ — Upgrade Guide

Q: Will the 1769-ASCII physically fit into my existing CompactLogix chassis without modification?
A: Yes. The 1769-ASCII is a standard 1769 Compact I/O form-factor module and slots directly into any CompactLogix chassis (1769-L1x through L5x series) without mechanical modification. It occupies one module slot and draws power from the backplane — no additional panel space or external PSU required.

Q: How does the 1769-ASCII handle communication between new CompactLogix controllers and legacy RS-232 serial devices?
A: The module acts as a transparent serial gateway within the CompactLogix backplane. The controller reads and writes ASCII strings via mapped I/O data tables. Existing serial device protocols (fixed-length strings, delimited messages, custom framing) are handled through configurable message parsing in RSLogix 5000 / Studio 5000 — no external protocol converter needed.

Q: Can this module replace a failed serial communication card from an older SLC 500 or PLC-5 system?
A: While the 1769-ASCII is not a direct pin-compatible replacement for SLC 500 or PLC-5 serial modules, it serves as the functional equivalent in a CompactLogix migration. If you are upgrading from SLC 500 to CompactLogix as part of a broader Hardware Upgrade, the 1769-ASCII replicates all serial communication functions of the legacy platform with improved throughput and diagnostics.

Q: What is the maximum RS-485 network length supported, and how many devices can be connected?
A: RS-485 mode supports cable runs up to 1,200 meters (4,000 feet) and a multi-drop network of up to 32 nodes per segment. For larger networks, RS-485 repeaters can extend both distance and node count. This makes the 1769-ASCII ideal for distributed serial device networks across large plant floors or multi-building facilities.

Q: Is there a risk of data loss or communication interruption during the retrofit installation?
A: The hot-swap capability of the 1769-ASCII allows module insertion into a powered chassis, minimizing planned downtime. For mission-critical applications, we recommend a brief controlled shutdown of the affected serial network segment during physical installation — typically under 15 minutes. The module auto-configures from the controller project file upon power-up, eliminating manual parameter entry errors.

Q: Are there alternative or successor models if the 1769-ASCII reaches end-of-life in the future?
A: The 1769-ASCII is currently Active status in Rockwell Automation’s product lifecycle. For long-term planning, Rockwell’s 1734-232ASC (POINT I/O) and third-party EtherNet/IP-to-serial gateways represent viable migration paths. Our team can provide a formal Retrofit Solution roadmap tailored to your specific serial device inventory and controller platform.
