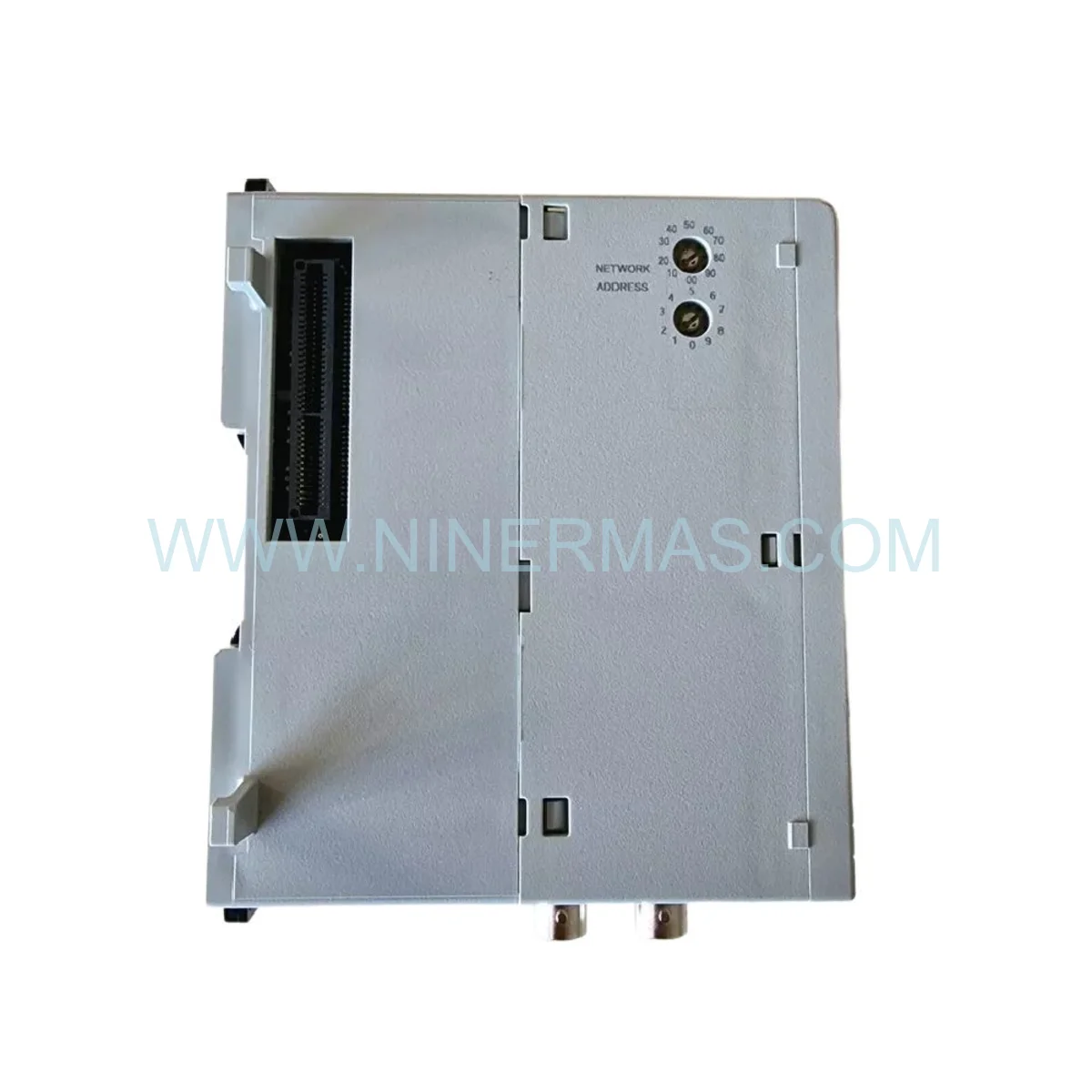

Allen-Bradley 1768-CNBR ControlNet Redundant Module — New & Original

Allen-Bradley 1768-CNBR | Reliable Automation Component for Mission-Critical Networks

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-availability production environments, the Allen-Bradley 1768-CNBR stands as a cornerstone component for sustaining system uptime in demanding industrial architectures. This ControlNet redundant interface module integrates directly into the CompactLogix 1768 chassis, delivering deterministic, scheduled communication across distributed I/O networks — a non-negotiable requirement for process optimization in sectors where milliseconds of latency translate into measurable production loss.

Engineered for operational excellence in harsh field conditions, the 1768-CNBR features dual BNC connectors enabling true redundant media operation. Installation demands strict adherence to ControlNet topology rules: use quad-shield RG-6 coaxial cable (Belden 9463 or equivalent), maintain proper termination at both trunk ends, and position the module exclusively in slots 1-4 of the 1768 chassis. Operating across a 0-60°C thermal range with 5g vibration resistance per IEC 60068-2-6, this module sustains performance integrity even in environments subject to mechanical stress and thermal cycling.

For maintenance planners and procurement engineers, stocking the 1768-CNBR as a critical spare is a fundamental risk mitigation strategy. As a legacy-generation CompactLogix communication module, global availability is tightening — securing verified original units ensures seamless system integration without firmware re-qualification or hardware redesign.

Key Operational Features

Redundant Media Architecture: Dual-channel BNC design eliminates single points of failure; automatic failover with zero controller interruption.
High Availability Communication: Supports up to 48 simultaneous connections across 99 ControlNet nodes at 5 Mbps — sustaining throughput under peak I/O load.
Seamless Integration: Fully compatible with RSLogix 5000 / Studio 5000; supports producer/consumer messaging model for efficient multicast data exchange.
Deterministic Scan Performance: Scheduled ControlNet messaging guarantees predictable cycle times for time-critical automation components and coordinated motion sequences.
Mission-Critical Certification: Meets IEC 61131-2 industrial controller standards; CE/UL certified for global deployment across regulated industries.
Compact Footprint: Single-slot form factor (132 — 56.7 — 105.1 mm) minimizes chassis space consumption while delivering full redundancy capability.

Maintenance & Performance Benchmarks

The 1768-CNBR is architected to serve as the communication backbone across a wide spectrum of industrial network scales — from compact standalone cells to enterprise-wide distributed control systems.

Small-Scale Deployments: In single-cell manufacturing environments, the module’s 48-connection capacity comfortably handles all local I/O modules and HMI nodes, with bandwidth headroom for future expansion without hardware replacement.

Mid-Tier Process Networks: For multi-zone process plants, the redundant media paths ensure that a cable fault or connector failure in one trunk segment does not propagate to the controller — a critical safeguard for system integration across geographically distributed equipment.

Large-Scale Industrial Infrastructure: In oil & gas, power generation, and chemical processing facilities operating 24/7, the module’s deterministic ControlNet protocol maintains synchronization across 99 nodes, supporting coordinated turbine control, reactor sequencing, and safety instrumented system (SIS) data exchange without jeopardizing scan time integrity.

Firmware compatibility is managed through RSNetWorx for ControlNet. Always verify module firmware revision against the controller’s major/minor revision before deployment to ensure full feature parity and avoid unexpected behavior during commissioning.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1768-CNBR unit dispatched from our facility is shipped in original factory packaging, preserving ESD protection and physical integrity throughout transit. For urgent maintenance scenarios, same-day dispatch is available on confirmed in-stock units — contact our team before 14:00 CST to qualify.

As Rockwell Automation progressively transitions legacy CompactLogix platforms toward end-of-life (EOL) status, sourcing verified original 1768-CNBR modules through authorized distribution channels becomes increasingly critical. Our global supply network maintains access to new and surplus stock across North America, Europe, and Asia-Pacific, ensuring continuity for facilities that cannot undertake full system migration on short timelines.

All units are traceable to original manufacturer documentation. We provide full material traceability records upon request, supporting your internal quality assurance and regulatory compliance requirements.

Engineering Support & FAQ

Q1: What are the correct installation steps for the 1768-CNBR?
A: Power down the 1768 chassis completely before insertion. Seat the module firmly in slots 1-4 only. Connect coaxial trunk cables to both BNC ports using proper terminators (75Ω) at each trunk end. Power up the chassis, then use RSNetWorx for ControlNet to configure node address and redundant media parameters. Download configuration and verify LED status indicators (MOD and NET).

Q2: Which firmware versions are compatible with this module?
A: The 1768-CNBR is compatible with CompactLogix controllers running firmware v16.x through v20.x. Always cross-reference the module’s firmware revision (readable via RSLinx Classic) against the controller’s major revision to confirm feature compatibility before going live.

Q3: How does the redundant media failover function in practice?
A: The module continuously monitors both media paths. Upon detecting a fault on the primary channel (cable break, connector failure, or signal degradation), it switches to the secondary path within one ControlNet network update time (NUT) — typically 2-100 ms depending on configuration — without generating a controller fault or interrupting scheduled I/O transfers.

Q4: What is the warranty claim process?
A: Contact sale@ninermas.com with your order reference, module serial number, and a description of the observed fault. Our technical team will issue an RMA authorization within 1 business day. Defective units are replaced or repaired at no charge within the 12-month warranty period, covering manufacturing defects in materials and workmanship.

Q5: Can the 1768-CNBR operate alongside GuardLogix safety controllers?
A: Yes. The module is electrically and logically compatible with GuardLogix 1768-L4xS controllers. However, it does not transmit safety-rated (black channel) data — safety I/O must be routed through dedicated safety network modules per IEC 61508 / IEC 62061 requirements.

Q6: Is hot-swapping supported during live production?
A: No. The 1768 CompactLogix platform does not support hot-swap for communication modules. A planned maintenance window with full chassis power-down is required for module replacement. Factor this into your spare parts strategy and MTTR calculations.
