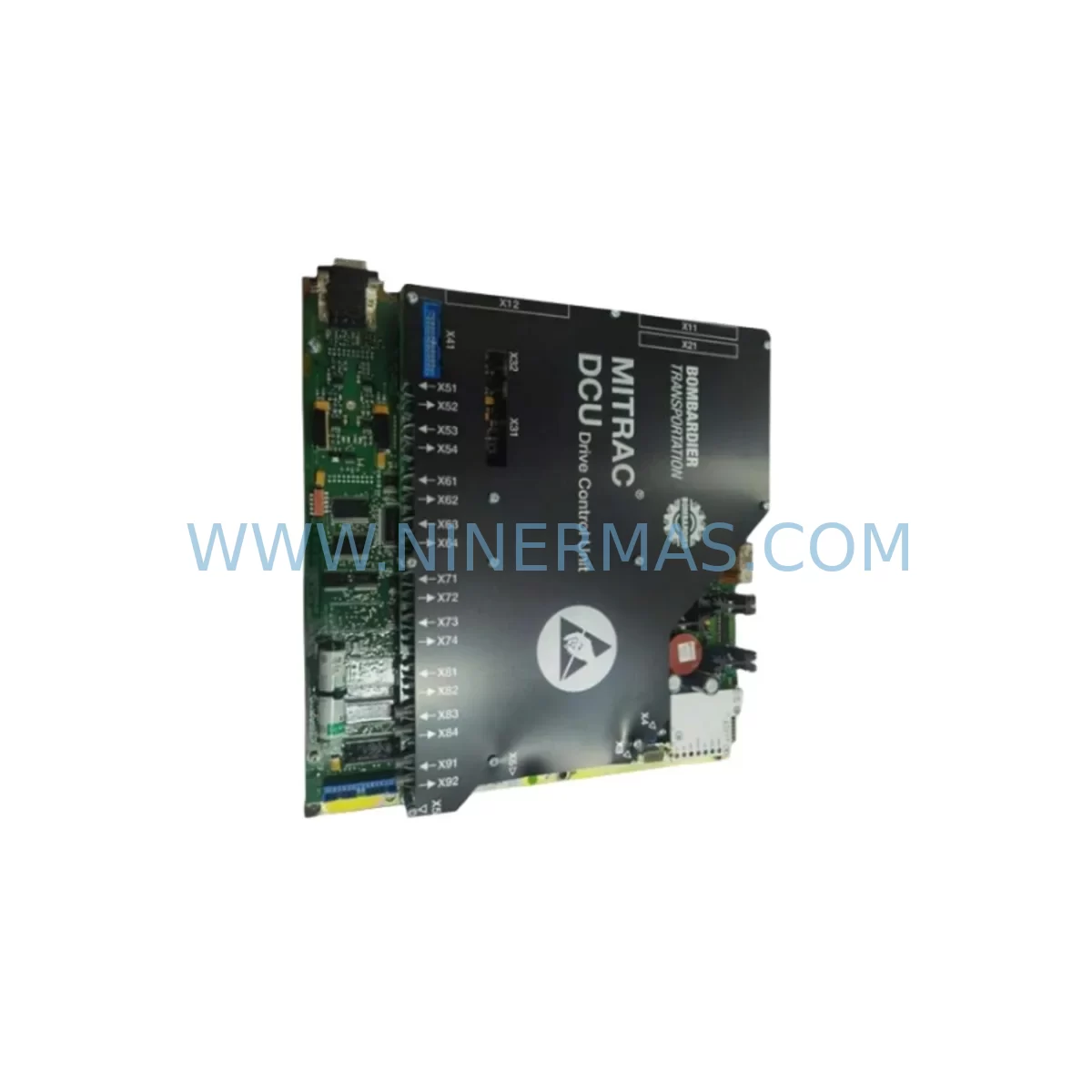

BOMBARDIER DCC2223A Safety-Reliable Drive Control Module

BOMBARDIER DCC2223A Safety-Reliable Drive Control Module

The BOMBARDIER DCC2223A is a ruggedized drive control module engineered for mission-critical industrial and traction control applications where unplanned downtime is not an option. Designed to operate reliably under extreme electromagnetic interference, mechanical vibration, thermal stress, and high-humidity conditions, the DCC2223A delivers consistent drive control performance across the most demanding continuous production and safety-critical environments. Whether deployed in heavy rail propulsion systems, industrial drive cabinets, or high-cycle automated manufacturing lines, this module provides the control loop stability and signal integrity that plant engineers and maintenance teams depend on.

In critical control architectures, a failing drive control module can cascade into full production shutdowns, safety interlock failures, and costly emergency maintenance. The DCC2223A is built to prevent exactly these scenarios. Its robust hardware design suppresses signal drift, eliminates spurious trip events caused by power fluctuations, and maintains stable communication with upstream controllers even in environments with severe conducted and radiated EMI. This makes it an ideal replacement and long-term spare for facilities operating legacy Bombardier drive systems where component availability is a persistent operational risk.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a high-reliability drive control cabinet, the BOMBARDIER DCC2223A does not operate in isolation — it functions as part of an integrated safety and control ecosystem. When the DCC2223A is paired with a compatible BOMBARDIER DCU (Drive Control Unit) and supported by a BOMBARDIER GTO gate drive board, the entire propulsion or industrial drive chain benefits from coordinated fault detection and controlled shutdown capability. This is especially critical in applications where a drive fault must trigger a safe-state response rather than an uncontrolled trip.

Power quality is a primary threat to drive control module longevity. Surge events, voltage sags, and high-frequency switching noise from adjacent inverter stages can corrupt control signals and accelerate component aging. Integrating a BOMBARDIER power supply filter module or a compatible line reactor upstream of the drive cabinet significantly reduces the transient stress on the DCC2223A’s internal logic circuits. Similarly, a BOMBARDIER feedback interface card or encoder signal conditioner ensures that speed and position feedback signals reaching the DCC2223A remain clean and accurate, preventing nuisance trips caused by signal noise rather than actual drive faults.

For communication-intensive installations where the DCC2223A interfaces with a BOMBARDIER TCMS (Train Control and Management System) or a plant-level SCADA via MVB (Multifunction Vehicle Bus) or CAN bus interface modules, maintaining communication link integrity is essential. A communication fault at the drive control level can be misinterpreted as a safety event, triggering unnecessary shutdowns. Proper shielding, grounding, and the use of certified BOMBARDIER communication interface boards compatible with the DCC series architecture are standard practice in high-availability installations.

Additionally, thermal management within the control cabinet directly impacts the DCC2223A’s operational lifespan. Pairing the module with a properly rated cabinet cooling unit or heat exchanger and ensuring adequate airflow around the drive control rack prevents thermal derating and premature failure — a common root cause of unplanned drive outages in steel mills, cement plants, and port crane installations.

Critical Industrial Safety Applications

The BOMBARDIER DCC2223A is deployed across a wide range of safety-critical and continuous-process industrial environments:

Rail and Urban Transit Propulsion: As a core component of Bombardier traction drive systems, the DCC2223A controls motor torque and speed in metro, light rail, and mainline locomotive applications. Reliable drive control is a direct safety requirement in these environments, where a control module failure can affect braking, acceleration, and emergency stop functions.

Port and Heavy Crane Operations: In port container cranes and ship-to-shore crane drives, the DCC2223A ensures precise load control and anti-sway performance. Drive control failures in these applications risk both equipment damage and personnel safety incidents.

Steel and Metallurgical Plants: Continuous casting lines, rolling mills, and ladle crane drives require uninterrupted drive control. The DCC2223A’s ruggedized design withstands the high ambient temperatures, vibration, and electromagnetic noise characteristic of steelmaking environments.

Mining and Mineral Processing: Conveyor drives, hoist systems, and crusher drives in underground and surface mining operations demand drive control modules that maintain performance in dusty, humid, and vibration-intensive conditions — exactly the operating envelope the DCC2223A is designed for.

Water and Wastewater Treatment: Pump and blower drive systems in water treatment facilities rely on stable drive control to maintain flow rates and process continuity. The DCC2223A supports reliable variable-speed drive operation in these 24/7 critical infrastructure environments.

Shipbuilding and Marine Propulsion: Marine electric propulsion and thruster control systems require drive control modules certified for high-humidity, salt-air, and vibration environments. The DCC2223A’s ruggedized construction makes it suitable for marine drive retrofit and maintenance applications.

Safety and Quality FAQ

Q1: What warranty is provided with the BOMBARDIER DCC2223A?
A: Every DCC2223A unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty commitment reflects our confidence in the quality of every unit we supply.

Q2: Is the DCC2223A tested before shipment?
A: Yes. All units undergo a pre-shipment functional inspection to verify electrical integrity and basic operational parameters before dispatch. This process is designed to catch latent defects and ensure that the module arrives at your facility ready for installation and commissioning.

Q3: How do I confirm compatibility with my existing BOMBARDIER drive system?
A: The DCC2223A is designed for use within BOMBARDIER DCC-series drive control architectures. Compatibility depends on your specific drive system generation and software version. We recommend providing your existing module’s full part number and system documentation when enquiring, so our technical team can confirm a direct replacement or advise on any required configuration steps.

Q4: Can NINERMAS support long-term supply of the DCC2223A for ongoing maintenance programs?
A: Yes. NINERMAS maintains dedicated inventory of critical industrial spare parts including the DCC2223A, with a focus on long-term supply continuity for end-of-life and hard-to-source components. We support planned maintenance programs, emergency replacement orders, and consignment stock arrangements for high-volume customers.
