Allen-Bradley 1764-24AWA Service-Ready Spare Part

Allen-Bradley 1764-24AWA Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

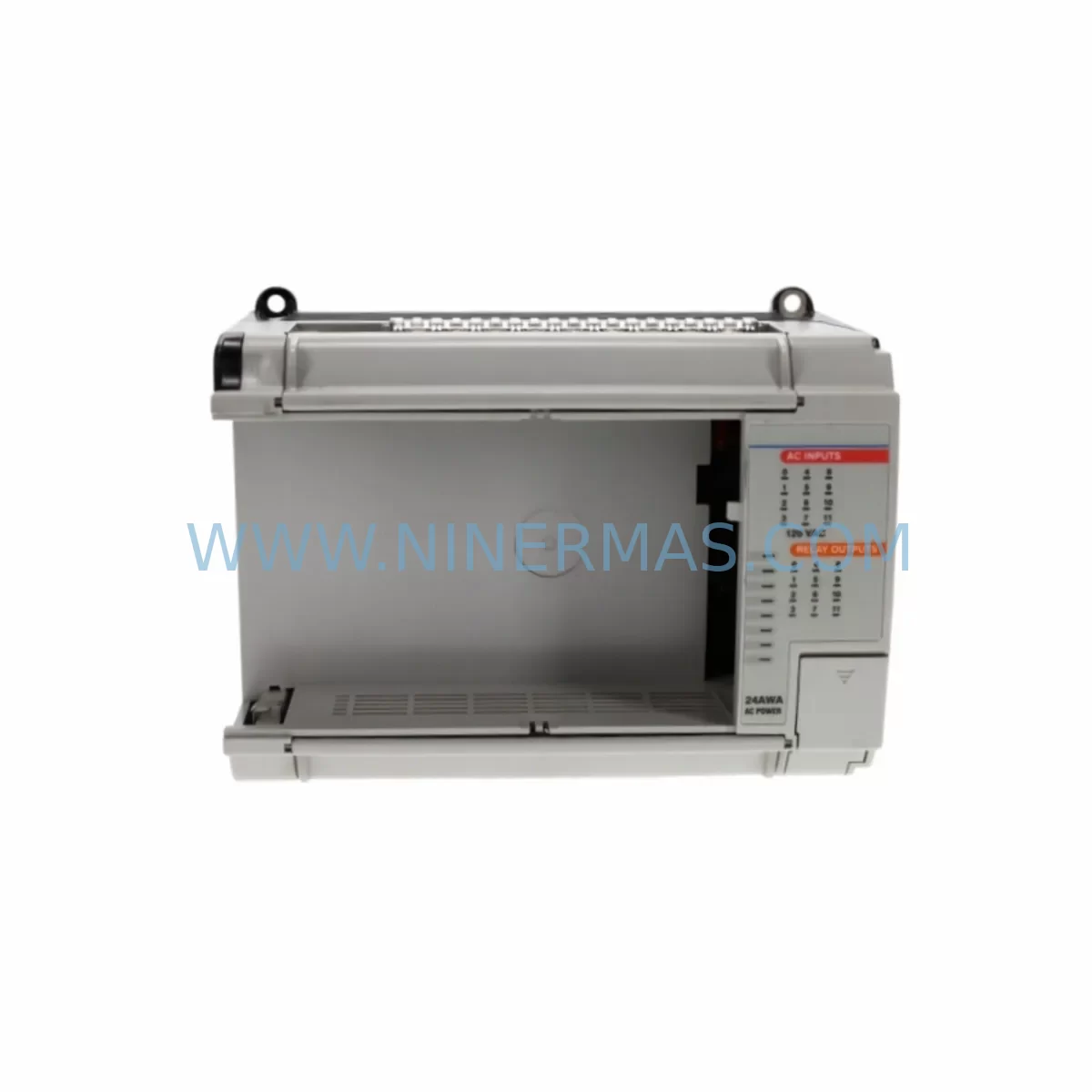

The Allen-Bradley 1764-24AWA is a 24-point I/O base unit for the MicroLogix 1500 programmable controller series, designed for demanding industrial environments where uptime is non-negotiable. This unit supports 120/240VAC input power and provides a robust platform for discrete control applications across manufacturing, utilities, material handling, and process automation. Sourced as an original spare, the 1764-24AWA is a critical component for maintenance engineers managing aging MicroLogix 1500 installations where replacement availability directly determines recovery time after an unplanned fault.

For facilities operating legacy Allen-Bradley MicroLogix 1500 systems, the 1764-24AWA base unit is frequently the single point of failure that halts an entire production line. Unlike newer platforms with broad third-party support, the MicroLogix 1500 architecture relies on matched base units, memory modules, and I/O expansion to maintain program integrity and communication continuity. Stocking a verified original 1764-24AWA eliminates the most common cause of extended downtime: waiting weeks for a sourced replacement while the line sits idle.

Procurement engineers should treat the 1764-24AWA as a Tier-1 critical spare — one unit minimum on-shelf per active MicroLogix 1500 installation. For multi-line facilities, a 2:10 spare ratio (two units per ten installed) is a practical benchmark aligned with industry maintenance standards. Each unit shipped by NINERMAS undergoes pre-shipment functional verification and is covered by a 12-month warranty, providing documented assurance for both maintenance records and procurement audits.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A field replacement of the 1764-24AWA base unit should never be treated as an isolated swap. The MicroLogix 1500 platform integrates tightly with surrounding electrical and control infrastructure, and a thorough site inspection during any base unit replacement significantly reduces the risk of repeat faults and secondary failures.

Before installing a replacement 1764-24AWA, maintenance engineers should inspect and verify the following associated components:

Power Supply and Wiring: Confirm that the panel power supply delivering 120/240VAC to the base unit is within specification. Aging industrial power supplies — particularly those rated for 24VDC auxiliary circuits feeding I/O field devices — should be load-tested. Loose terminal connections on the power input block are a common cause of intermittent base unit faults that are misdiagnosed as processor failures.

Memory Module (1764-MM1 / 1764-MM2 / 1764-MM3): The memory module seated in the base unit should be inspected for corrosion on the connector pins. A corrupted or unseated memory module will prevent the processor from loading the user program after a base unit swap, causing unnecessary additional downtime. Stocking at least one spare memory module alongside the 1764-24AWA base unit is strongly recommended.

Processor Module (1764-LSP / 1764-LRP): The processor module should be tested independently if available. In many fault scenarios, the base unit and processor fail together due to a shared power event such as a voltage spike or sustained overcurrent. Replacing only the base unit without verifying the processor can result in a second failure within hours of restart.

I/O Expansion Modules (1769 Compact I/O): If the installation includes 1769-IQ16 digital input modules or 1769-OW16 relay output modules connected via the expansion bus, inspect the bus connectors and verify that each module’s status LED returns to normal after the base unit replacement. Faulty expansion modules can generate fault codes that appear to originate from the base unit itself.

Communication Cables and Ports: The RS-232 and DH-485 communication ports on Channel 0 and Channel 1 of the 1764-24AWA are frequently damaged by electrostatic discharge or improper cable handling during maintenance. Inspect the 1761-CBL-PM02 or equivalent programming cable for continuity and verify that the HMI or SCADA connection — often a PanelView terminal or third-party operator panel — re-establishes communication cleanly after the swap.

Terminal Blocks and Field Wiring: All I/O terminal connections should be re-torqued to specification during the replacement. Loose field wiring on input circuits — particularly those connected to proximity sensors, limit switches, or 4–20mA signal conditioners and signal isolators — can generate spurious input states that trigger program faults immediately after restart.

Surge Protection and Fusing: Verify that any DIN-rail mounted surge protection devices and branch circuit fuses protecting the MicroLogix 1500 panel are intact and within rating. A blown fuse or degraded surge suppressor that was the root cause of the original base unit failure will cause the replacement unit to fail in the same manner if not addressed before restart.

Site Replacement Workflow

Step 1 — Document and Back Up: Before removing the failed 1764-24AWA, upload the existing program from the processor to a laptop running RSLogix 500. Confirm the backup file is readable and complete. If the processor is non-responsive, retrieve the program from the 1764-MM memory module directly.

Step 2 — De-energize and Isolate: Isolate the panel from all power sources including 120/240VAC mains and any 24VDC auxiliary supplies. Follow site-specific lockout/tagout (LOTO) procedures. Allow capacitors to discharge for a minimum of 60 seconds before handling the base unit.

Step 3 — Remove and Inspect: Remove the processor module and memory module from the failed base unit before unclipping it from the DIN rail. Inspect both modules for physical damage, burn marks, or corrosion. Retain the memory module for program recovery if the processor is also damaged.

Step 4 — Install Replacement 1764-24AWA: Mount the replacement base unit on the DIN rail and reconnect all I/O field wiring and power terminals. Re-seat the processor and memory modules. Verify that the expansion bus connector to any 1769 Compact I/O modules is fully engaged.

Step 5 — Power-Up and Verify: Restore power and observe the base unit status LEDs. The RUN LED should illuminate green within 10 seconds of power-up if the program loaded successfully. Verify all I/O status indicators against the known field device states before returning the system to automatic mode.

Step 6 — Communication Re-establishment: Reconnect the HMI, SCADA, or programming terminal and confirm that the communication link is stable. For DH-485 networks, verify that the node address and baud rate settings on the replacement unit match the original configuration. A PanelView or third-party HMI should display the home screen within 30 seconds of communication restoration.

This workflow is designed to minimize total downtime to under two hours for a prepared maintenance team with a verified spare 1764-24AWA on hand. Without a pre-stocked spare, the same replacement typically extends to 5–15 business days depending on regional distributor availability for end-of-life MicroLogix 1500 components.

Spare Parts Support FAQ

Q1: Is the 1764-24AWA still in production, and how long can I expect supply availability?
The Allen-Bradley 1764-24AWA has reached end-of-life (EOL) status with Rockwell Automation. However, NINERMAS maintains sourced original stock from authorized distribution channels and surplus inventory networks. We provide long-term supply commitments for critical industrial spare parts and can advise on multi-year procurement strategies to protect your MicroLogix 1500 installations against future supply disruptions.

Q2: How is the 1764-24AWA tested before shipment?
Every unit undergoes a pre-shipment functional verification that includes power-up testing, I/O point continuity checks, and communication port validation. Units that do not pass verification are not shipped. A test report is available upon request for quality-critical procurement requirements.

Q3: Can the 1764-24AWA be used as a direct drop-in replacement for a failed unit without reprogramming?
Yes, provided the replacement unit is paired with the original 1764-MM memory module containing the user program. The MicroLogix 1500 architecture stores the program in the memory module, not the base unit, so a direct swap with the original memory module will restore the system to its previous operating state without requiring a laptop or programming software on-site.

Q4: What warranty and after-sales support does NINERMAS provide?
All 1764-24AWA units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Warranty coverage includes defects in materials and workmanship under normal operating conditions. Our technical support team is available to assist with compatibility verification, installation guidance, and replacement logistics. Contact us at sale@ninermas.com or +0086 187 5021 5667 for pre-purchase consultation or post-sale support.
