Allen-Bradley 1763-L16BBB Retrofit-Compatible PLC for Legacy Systems

Allen-Bradley 1763-L16BBB Retrofit-Compatible PLC for Legacy Systems

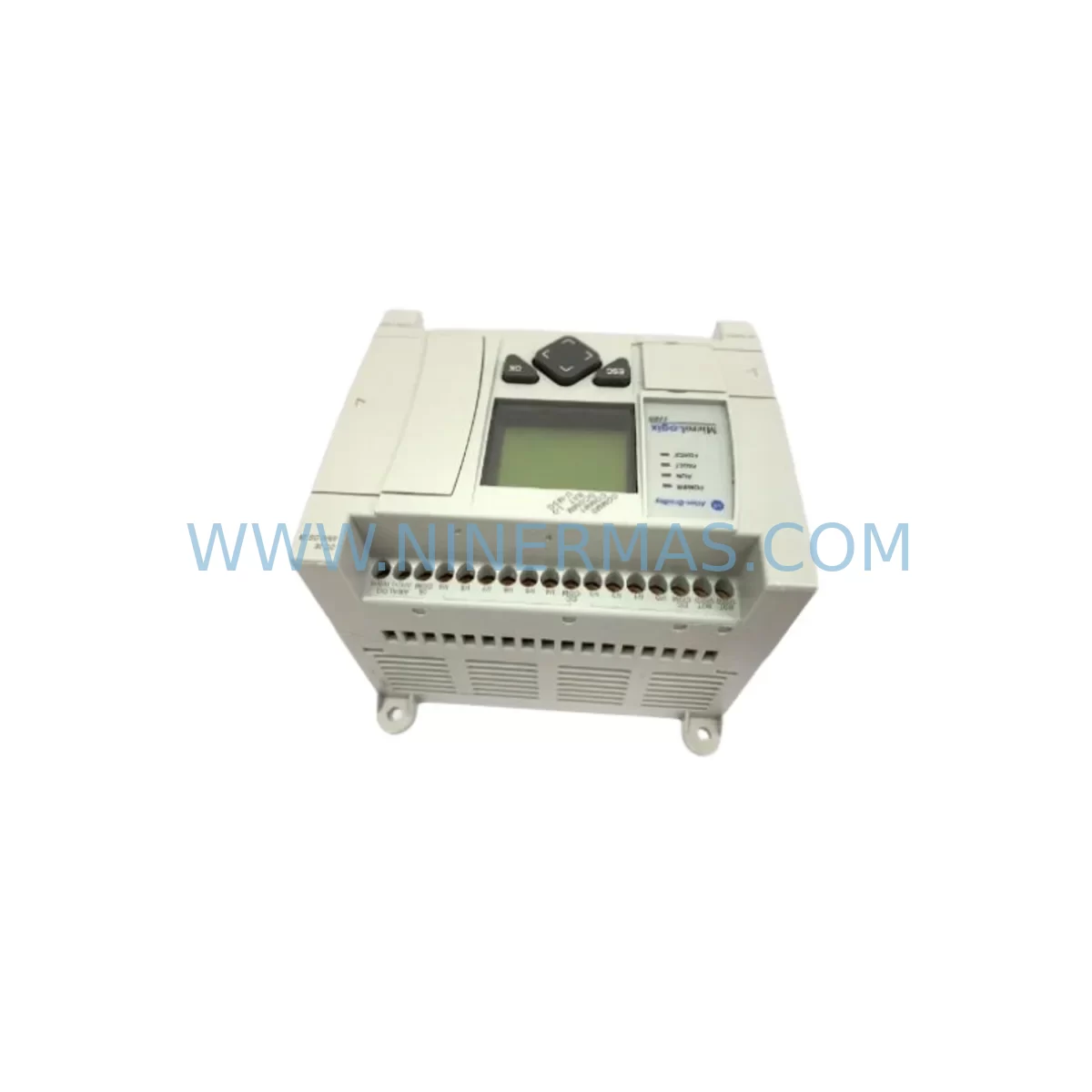

The Allen-Bradley 1763-L16BBB is a MicroLogix 1100 series programmable logic controller designed for seamless integration into legacy automation environments. With 16 onboard I/O points (10 DC inputs, 6 relay outputs), built-in EtherNet/IP and RS-232 communication ports, and a compact DIN-rail form factor, the 1763-L16BBB is a proven retrofit solution for aging control panels, discontinued PLC platforms, and production lines requiring a smooth, low-risk upgrade path. NINERMAS maintains verified stock of the 1763-L16BBB with pre-shipment functional testing and a 12-month warranty on every unit shipped.

For engineers managing spare parts lifecycle programs or planning a phased migration away from end-of-life controllers, the 1763-L16BBB offers a cost-effective bridge between legacy field wiring and modern network-connected control architectures. Its compatibility with RSLogix 500 and Studio 5000 Logix Designer programming environments means existing ladder logic programs can often be adapted with minimal rework, significantly reducing engineering hours and commissioning risk during system changeover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit with the 1763-L16BBB begins well before the unit arrives on site. Engineers should start by auditing the existing control cabinet for available DIN-rail space, terminal block layout, and the current power supply capacity. The 1763-L16BBB draws 24V DC and its current consumption must be factored alongside any attached 1762-series expansion modules such as the 1762-IQ8 digital input module or the 1762-OW8 relay output module, both of which are commonly used to extend the base I/O count when replacing larger legacy controllers.

For systems previously running on a MicroLogix 1000 (catalog 1761-L16BWA or 1761-L32BWA), the 1763-L16BBB offers a direct upgrade path with a compatible instruction set and similar terminal wiring conventions. Engineers should document all existing field wiring terminations — particularly analog signal loops connected through signal isolators or barriers — before disconnecting the old unit. Where the legacy system used a 1747-SIC serial interface cable or a 1747-CP3 programming cable for the SLC 500 platform, the 1763-L16BBB uses a standard USB-to-serial adapter or the 1761-CBL-PM02 cable for RS-232 programming access.

Communication migration is a critical planning step. Many legacy lines rely on DH-485 multi-drop networks connecting multiple MicroLogix or SLC 500 nodes. The 1763-L16BBB’s built-in RS-232 port supports DH-485 via the 1761-NET-AIC Advanced Interface Converter, allowing the new controller to participate in an existing DH-485 segment without rewiring the entire network. For sites transitioning to EtherNet/IP, the onboard Ethernet port enables direct connection to managed switches and integration with FactoryTalk View SE SCADA systems or third-party HMI platforms using standard EtherNet/IP explicit messaging.

I/O address mapping requires careful attention when migrating programs from older platforms. The 1763-L16BBB uses data file-based addressing (I:0, O:0, N7, T4, C5, etc.) consistent with RSLogix 500 conventions. If the original program was written for a SLC 5/03 or SLC 5/04, subroutine structures and PID loop configurations will need to be reviewed and adapted. NINERMAS recommends performing a full offline simulation in RSLogix 500 before downloading to the replacement controller, particularly for systems with complex sequencing logic or analog PID control loops managed through 1762-IF4 analog input modules.

Backplane and rack considerations apply when the 1763-L16BBB is used as part of a broader panel upgrade. Unlike SLC 500 rack-based systems that use a 1746-A4 or 1746-A7 chassis, the MicroLogix 1100 is a standalone unit with a side-bus expansion connector. This means the physical installation approach differs from rack-mounted architectures, and cabinet layout drawings should be updated accordingly. Where space is constrained, the compact footprint of the 1763-L16BBB often allows it to be installed alongside a 1763-MM1 memory module and a 1762-OB16 output expansion without requiring a larger enclosure.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any control system retrofit. With the 1763-L16BBB, a structured migration plan can reduce changeover time to a single planned maintenance window. The recommended approach is to pre-configure and bench-test the replacement controller fully before the scheduled outage. This includes loading the adapted RSLogix 500 program, verifying all I/O forcing functions, confirming communication driver settings in RSLinx Classic, and performing a dry-run simulation with the actual field wiring disconnected.

During the physical swap, label all terminal connections on the existing controller before removal. The 1763-L16BBB’s terminal layout is documented in Allen-Bradley publication 1763-UM001, and a side-by-side comparison with the legacy unit’s wiring diagram will identify any terminal position differences that require jumper adjustments. For systems where the original controller managed safety interlocks or emergency stop circuits, ensure that all safety relay modules and hardwired E-stop loops are verified independently before returning the machine to automatic mode.

Once the 1763-L16BBB is installed and powered, use the online monitoring features in RSLogix 500 to verify I/O status in real time before enabling outputs. Forced I/O testing — activating each output individually while monitoring the corresponding field device — confirms correct wiring before the program is placed in Run mode. For lines with HMI panels such as a PanelView Component C600 or a PanelView Plus 6, update the communication path in FactoryTalk View to point to the new controller’s IP address or node number, and verify that all screen tags resolve correctly before handing the system back to operations.

NINERMAS ships the 1763-L16BBB with a pre-tested functional report and full configuration documentation, reducing on-site commissioning time and supporting a faster return to production. All units carry a 12-month warranty covering hardware defects identified after installation, with technical support available throughout the commissioning process.

Retrofit Support FAQ

Q1: Is the 1763-L16BBB a direct replacement for the MicroLogix 1000 (1761-L16BWA)?
The 1763-L16BBB is functionally compatible with MicroLogix 1000 applications in most cases. The I/O count and relay output configuration are similar, but the 1763-L16BBB adds EtherNet/IP connectivity and expanded memory not available on the 1761 series. Program migration requires a review of instruction compatibility in RSLogix 500, particularly for HSC (high-speed counter) and PTO functions. NINERMAS can provide pre-migration technical guidance upon request.

Q2: What commissioning tools are required for the 1763-L16BBB?
RSLogix 500 (v12.0 or later) and RSLinx Classic are the standard tools for programming and driver configuration. A 1761-CBL-PM02 RS-232 programming cable or a USB-to-serial adapter is required for initial connection if EtherNet/IP is not yet configured. For sites using Connected Components Workbench, the 1763-L16BBB is fully supported as a target controller.

Q3: Can the 1763-L16BBB connect to an existing DH-485 network without replacing other nodes?
Yes. Using the 1761-NET-AIC Advanced Interface Converter connected to the RS-232 port, the 1763-L16BBB can participate in an existing DH-485 network alongside other MicroLogix or SLC 500 nodes. No changes to other network nodes are required, making this a non-disruptive integration option for phased migration projects.

Q4: What does the NINERMAS 12-month warranty cover for the 1763-L16BBB?
The 12-month warranty covers hardware defects confirmed through pre-shipment functional testing. Each unit is tested for I/O operation, communication port function, and power supply integrity before dispatch. Warranty claims are supported by NINERMAS technical staff, and replacement units are dispatched from verified stock. Units are supplied with a test report and, where available, original Allen-Bradley documentation.
