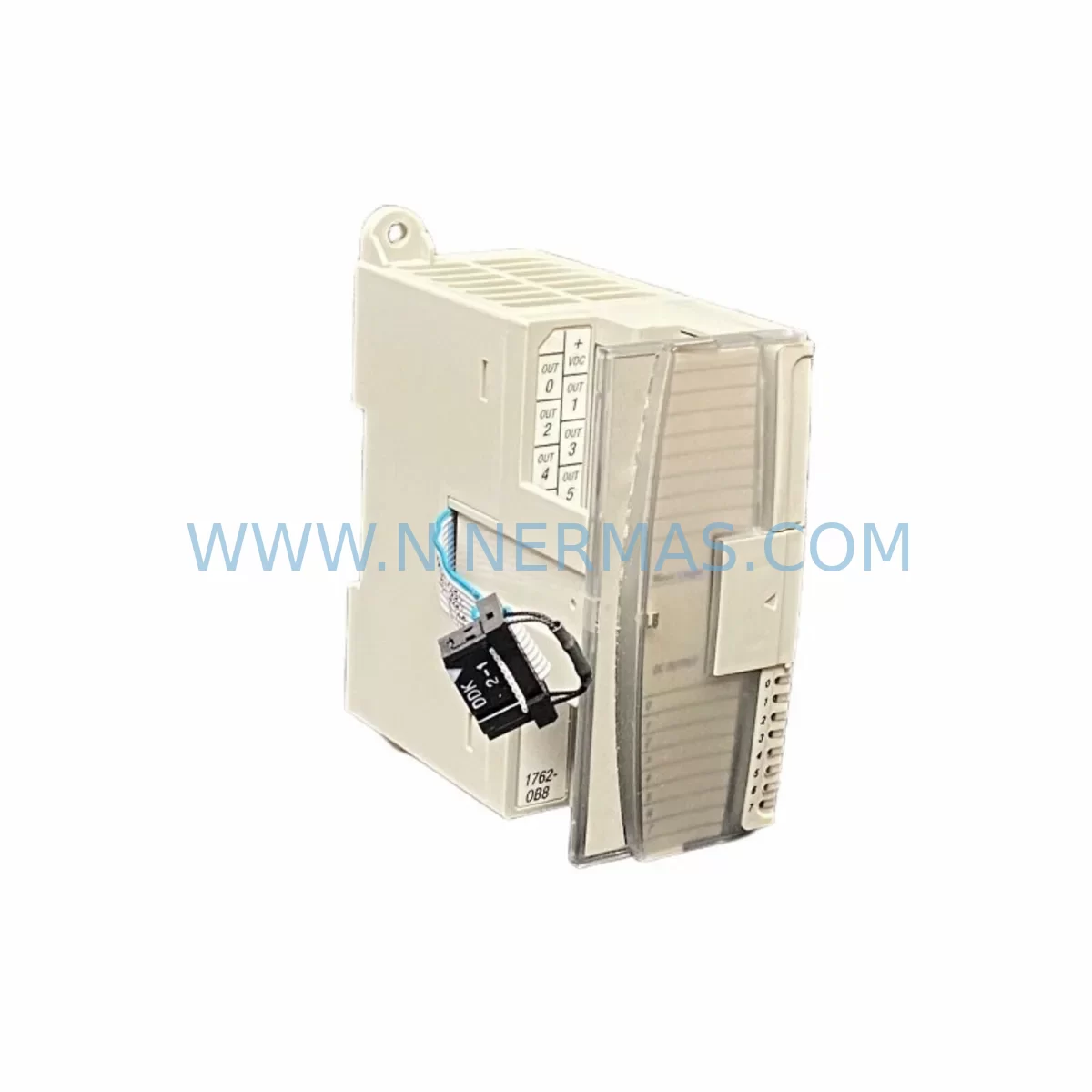

The Allen-Bradley 1762-OA8 is an 8-point 120/240V AC output module designed for the MicroLogix 1200 Series programmable logic controller platform. As a direct expansion module, it integrates seamlessly into existing MicroLogix 1200 control architectures, providing reliable discrete AC output control for motor starters, solenoid valves, pilot lights, and other field devices in industrial automation environments.

At NINERMAS, every 1762-OA8 unit is sourced as an original Allen-Bradley component, individually inspected, and tested prior to shipment. Our service-ready spare parts program is designed to support maintenance engineers and procurement teams who require fast, reliable replacement components to minimize unplanned downtime and protect production continuity. With a 12-month warranty on every unit, you can stock with confidence and plan your spare parts inventory for the long term.

Whether you are responding to an emergency output module failure, executing a scheduled annual overhaul, or building a preventive maintenance spare parts kit for your MicroLogix 1200 control cabinet, the 1762-OA8 is a critical line item. Its compact form factor and plug-in expansion bus connection allow for rapid field replacement without specialized tooling, reducing mean time to repair (MTTR) and restoring production lines faster.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1762-OA8 AC output module in a MicroLogix 1200 control cabinet, a thorough maintenance engineer will treat the replacement as an opportunity to audit the surrounding electrical environment. Output module failures in AC discrete control circuits are rarely isolated events — they are often preceded or accompanied by stress on adjacent components.

Begin by verifying the 1762-L24BWA or 1762-L40BWA MicroLogix 1200 base controller unit itself. Check the CPU status LEDs, confirm firmware revision, and verify that the I/O configuration in RSLogix 500 or Studio 5000 Logix Designer still matches the physical module layout after the replacement. A corrupted I/O map can cause the new output module to fault immediately on power-up.

Inspect the 1762-IQ8 or 1762-IQ16 DC input modules installed in the same expansion rack. Input modules sharing the same backplane bus can exhibit intermittent communication faults if the expansion bus connector is worn or contaminated — a condition that often surfaces during module swap procedures. Clean the bus connector and inspect for bent pins before re-seating the replacement 1762-OA8.

Review the 24VDC power supply feeding the MicroLogix 1200 logic bus. Units such as the Allen-Bradley 1606-XLP or equivalent 24VDC DIN-rail power supplies should be load-tested to confirm output voltage remains within ±1% under full I/O load. A sagging power supply is a common root cause of intermittent output module faults that are misdiagnosed as module failures.

Check all terminal blocks and field wiring connected to the 1762-OA8 output terminals. AC output modules driving inductive loads — motor starters, solenoid coils, contactor coils — are subject to voltage transients that degrade triac output stages over time. Verify that RC snubber circuits or MOV surge suppressors are installed across inductive loads. If not, add them during this maintenance window to extend the service life of the replacement module.

If the control cabinet includes a 1762-OW8 relay output module for high-current or mixed-voltage switching duties, inspect the relay contacts for wear and confirm contact resistance is within specification. Relay output modules in the same cabinet often share the same field power distribution rail as the AC output module — a loose terminal on the power rail can cause nuisance tripping across multiple output points.

For cabinets with 1761-NET-ENI or 1761-NET-AIC communication adapters providing Ethernet or DH-485 connectivity to the MicroLogix 1200, verify network communication is stable after the module replacement. Output module swaps that require controller power cycling can occasionally cause communication adapters to lose their IP address lease or DH-485 node address — confirm connectivity from the SCADA or HMI before returning the line to production.

If the system includes a PanelView 300 or PanelView 550 HMI connected via DH-485, verify that all output status tags are displaying correctly after the replacement. HMI tag mapping errors following a module swap are a common source of post-maintenance production delays.

Finally, document the replacement in your maintenance log, record the new module’s serial number, and update your spare parts inventory. NINERMAS recommends maintaining a minimum of one 1762-OA8 unit per active MicroLogix 1200 system in your on-site spare parts buffer to ensure same-shift replacement capability for any future output module fault.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the control cabinet following your site LOTO (Lockout/Tagout) procedure. Confirm zero voltage on the AC output field terminals using a calibrated multimeter before touching any wiring.

Step 2 — Documentation: Photograph the existing wiring layout on the 1762-OA8 terminal block before disconnecting any wires. Label each wire if not already marked. Record the slot position of the module in the MicroLogix 1200 expansion rack.

Step 3 — Module Removal: Disconnect the field wiring terminal block (the terminal block on the 1762-OA8 is removable without disconnecting individual wires). Release the DIN-rail mounting clip and slide the module out of the expansion bus connector. Inspect the bus connector on both the module and the adjacent unit for contamination or damage.

Step 4 — Replacement Installation: Align the NINERMAS-supplied 1762-OA8 replacement unit with the expansion bus connector. Press firmly until the bus connector is fully seated and the DIN-rail clip engages. Re-attach the field wiring terminal block.

Step 5 — Power-Up & Verification: Re-energize the cabinet. Observe the module status LED — a solid green RUN LED confirms the module is recognized by the MicroLogix 1200 controller. From RSLogix 500, verify the I/O configuration matches and force-test each output point individually before returning to automatic mode.

Step 6 — System Handover: Confirm with the production supervisor that all controlled devices (motor starters, solenoids, pilot lights) are responding correctly. Update the maintenance record and replenish your spare parts stock.

This workflow is compatible with both hot-standby and cold-standby replacement scenarios and is designed to minimize total downtime to under 30 minutes for a trained maintenance technician.

Spare Parts Support FAQ

Q1: Is the NINERMAS 1762-OA8 an original Allen-Bradley component or a compatible aftermarket unit?
Every 1762-OA8 supplied by NINERMAS is an original Allen-Bradley (Rockwell Automation) component. We do not supply aftermarket, clone, or remanufactured substitutes. Each unit is individually verified for authenticity and tested for functional integrity before shipment.

Q2: What does the 12-month warranty cover, and how is a warranty claim handled?
The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, contact sale@ninermas.com with your order reference and a description of the fault. We will arrange a replacement shipment or credit at our discretion, typically within 5 business days of fault confirmation.

Q3: Can I use the 1762-OA8 as a direct replacement for an existing module without reprogramming the MicroLogix 1200 controller?
Yes. The 1762-OA8 is a direct plug-in replacement for any existing 1762-OA8 module in the same slot position. No controller reprogramming is required. The MicroLogix 1200 will automatically recognize the replacement module using the existing I/O configuration stored in the controller’s user program. Verify the slot assignment in RSLogix 500 matches the physical installation before power-up.

Q4: Does NINERMAS support long-term supply agreements for the 1762-OA8 and other MicroLogix 1200 spare parts?
Yes. NINERMAS offers long-term supply commitments for critical spare parts including the 1762-OA8 and related MicroLogix 1200 expansion modules. Contact our procurement team at sale@ninermas.com to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your annual maintenance budget.
