Allen-Bradley 1762-L40BXBR Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1762-L40BXBR Service-Ready Spare Part for Industrial Maintenance

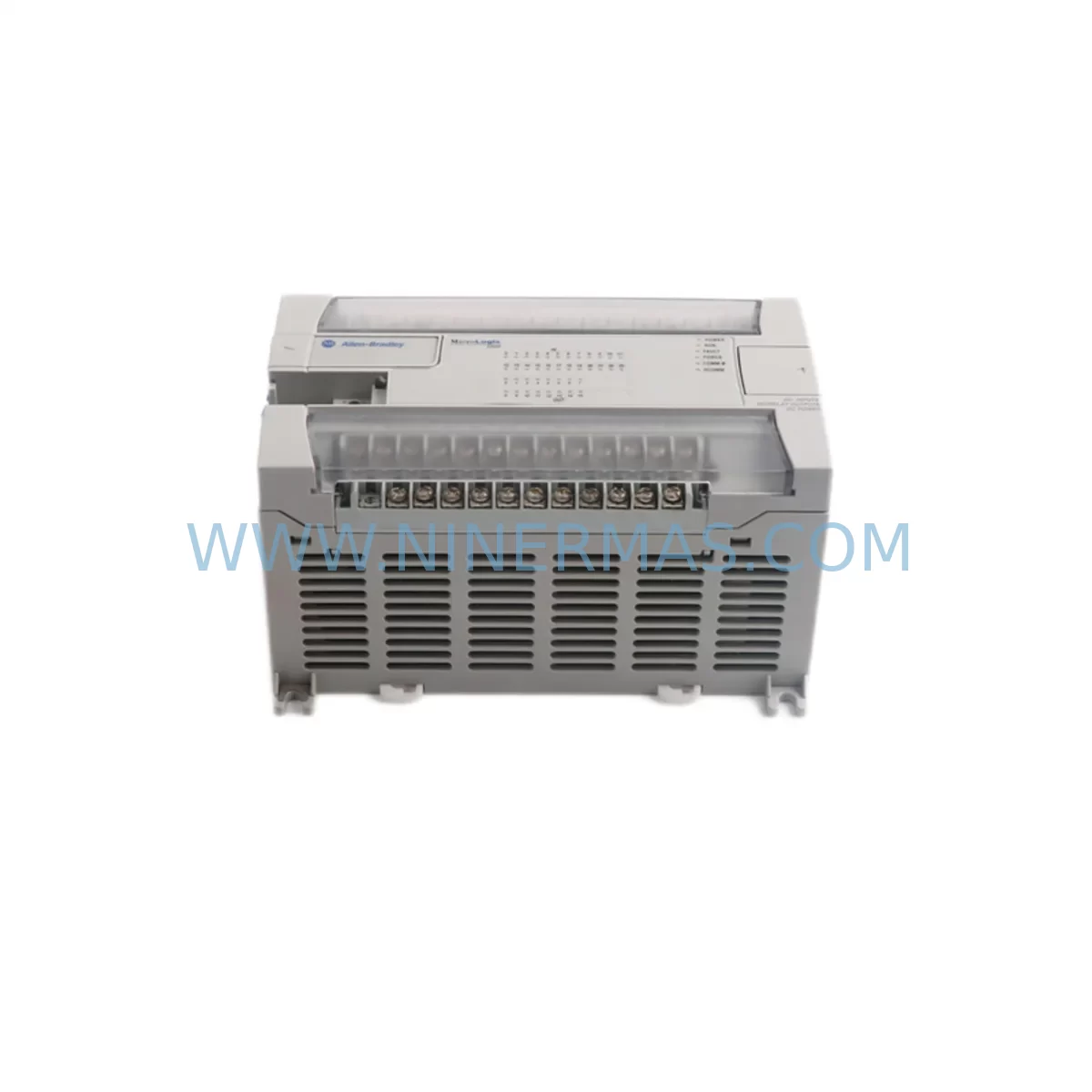

The Allen-Bradley 1762-L40BXBR is a MicroLogix 1200 Series programmable logic controller (PLC) designed for demanding industrial automation environments. As a service-ready spare part, the 1762-L40BXBR is an essential component for maintenance engineers managing production lines, control cabinets, and process automation systems where unplanned downtime carries significant operational and financial risk. Whether you are responding to an emergency fault, executing a scheduled annual overhaul, or building a proactive spare parts inventory, having a verified, original Allen-Bradley 1762-L40BXBR on hand is a critical element of any robust maintenance strategy.

The 1762-L40BXBR features 40 I/O points (24 DC inputs, 16 relay outputs), onboard RS-232 and RS-485 communication ports, and is fully compatible with the MicroLogix 1200 Series expansion modules. Its relay output configuration makes it particularly well-suited for applications requiring direct load switching, motor starter control, and solenoid valve actuation in harsh industrial environments. The controller supports standard Allen-Bradley RSLogix 500 programming software, ensuring seamless program transfer and commissioning during replacement operations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1762-L40BXBR in a live production environment, a thorough inspection of the surrounding electrical system is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should begin by verifying the 24V DC power supply feeding the controller — a failing or under-spec power supply is a leading cause of PLC faults and premature component failure. The 1762-PA8 or 1762-PA2 power supply modules commonly used in MicroLogix 1200 panels should be tested for output voltage stability and ripple before the new controller is commissioned.

Next, inspect all 1762 Series expansion I/O modules connected to the base unit. Modules such as the 1762-IQ16 (16-point DC input), 1762-OW16 (16-point relay output), and 1762-IF4 (4-channel analog input) should be checked for loose terminal connections, contamination, and correct addressing. A single faulty expansion module can generate persistent I/O faults that are incorrectly attributed to the base controller, leading to unnecessary replacements.

Communication integrity is equally critical. The RS-232 and RS-485 ports on the 1762-L40BXBR are frequently used for HMI connectivity and SCADA integration. Inspect the communication cables connecting to operator panels — such as PanelView 300 or PanelView 550 HMI terminals — for insulation damage, connector corrosion, and correct termination resistors on RS-485 networks. Signal isolators installed on long RS-485 runs should also be tested to confirm they are not introducing communication delays or data corruption.

Relay output wiring deserves particular attention during replacement. The 16 relay outputs on the 1762-L40BXBR are subject to contact wear from inductive loads. Before reconnecting motor starters, solenoid valves, or contactor coils, inspect the output terminal blocks and verify that surge suppression devices (RC snubbers or varistors) are in place across inductive loads. Fuse protection on each output circuit should also be verified — blown fuses on output circuits are a common finding during fault investigations that initially appear to be controller failures.

For facilities running older MicroLogix 1200 systems, this replacement is also an opportunity to audit the entire control cabinet. Check the 1762-Series backplane connectors for oxidation, verify that all DIN rail mounting clips are secure, and inspect the cabinet’s internal wiring harness for heat damage near power components. If the system includes a 1761-NET-AIC Advanced Interface Converter for DeviceNet or DH-485 network connectivity, confirm that the network adapter firmware is compatible with the replacement controller’s firmware revision.

Site Replacement Workflow

A structured on-site replacement workflow minimizes downtime and reduces the risk of commissioning errors when substituting the 1762-L40BXBR for an aging or failed unit. Begin by backing up the existing PLC program using RSLogix 500 via the RS-232 port before the controller is powered down — if the existing unit is still partially functional, this step is critical to preserving the current ladder logic, data table values, and communication settings.

Once the backup is confirmed, de-energize the control panel following your site’s lockout/tagout (LOTO) procedure. Photograph the existing I/O wiring and communication cable connections before disconnecting. The 1762-L40BXBR uses a removable terminal block design, which significantly reduces rewiring time — transfer the terminal blocks directly to the replacement unit where possible, verifying wire labeling against the panel’s electrical drawings.

After physical installation, restore power and download the backed-up program to the new controller. Verify the controller’s node address and baud rate settings match the original configuration, particularly if the unit is connected to an RS-485 DH-485 network with other Allen-Bradley devices. Perform a full I/O force test to confirm all 24 inputs and 16 relay outputs are responding correctly before returning the system to automatic operation.

This replacement workflow is equally applicable when upgrading from earlier MicroLogix 1200 variants or when consolidating aging spare parts inventory. The 1762-L40BXBR is a direct form-fit-function replacement for compatible MicroLogix 1200 base units, making it an efficient solution for both emergency repairs and planned lifecycle upgrades without requiring panel redesign or software migration.

Spare Parts Support FAQ

Q1: Is the 1762-L40BXBR compatible with all MicroLogix 1200 expansion modules?
Yes. The 1762-L40BXBR is fully compatible with the complete range of 1762 Series expansion I/O modules, including digital input, digital output, analog input, analog output, and specialty modules. Expansion modules connect via the integrated backplane bus and are automatically recognized by the controller during power-up. Always verify that the total I/O count does not exceed the controller’s expansion capacity (up to 6 expansion modules for the MicroLogix 1200 Series).

Q2: What is included in the 12-month warranty, and how does it apply to spare parts inventory?
Every 1762-L40BXBR supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of shipment. For spare parts held in inventory, we recommend storing units in their original anti-static packaging in a climate-controlled environment. Warranty claims are supported with pre-shipment functional test documentation provided with each unit.

Q3: How do you verify compatibility before shipment, and what testing is performed?
Each 1762-L40BXBR undergoes pre-shipment functional testing that includes power-on verification, I/O point continuity checks, communication port response testing, and firmware version confirmation. A test report is available upon request. For customers requiring compatibility verification against a specific existing system configuration or firmware revision, our technical team can assist prior to order confirmation.

Q4: Can NINERMAS support long-term or recurring supply of the 1762-L40BXBR for ongoing maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including legacy and discontinued Allen-Bradley MicroLogix Series components. We support blanket purchase orders, scheduled delivery programs, and priority stock reservation for maintenance teams managing large installed bases. Contact our sales team to discuss volume pricing, lead time commitments, and customized spare parts support agreements tailored to your facility’s maintenance schedule.
