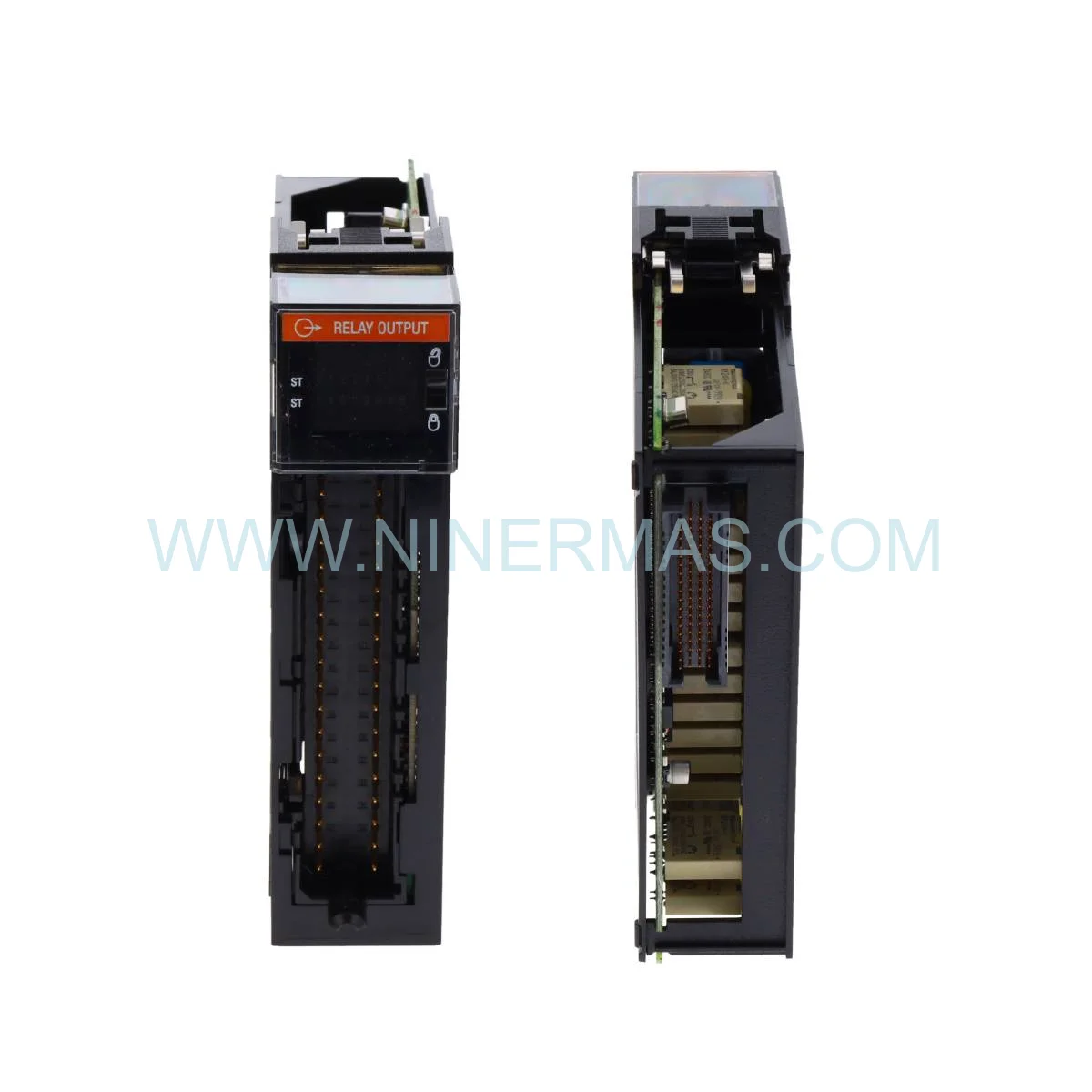

Allen-Bradley 1756-OW16I Relay Output Module | ControlLogix I/O in Stock

Allen-Bradley 1756-OW16I | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Allen-Bradley 1756-OW16I stands as a cornerstone I/O module for sustaining system availability in ControlLogix-based automation architectures. Its 16 individually isolated normally-open relay contacts deliver deterministic switching performance across AC and DC load circuits, directly reducing unplanned downtime in mission-critical applications where every second of production loss carries measurable financial impact. The 1756-OW16I integrates seamlessly into existing ControlLogix chassis without requiring external relay panels, streamlining both system integration and long-term maintenance overhead.

Engineered for operational excellence in harsh industrial environments, this module features conformal-coated circuitry that resists moisture, dust, and chemical contaminants — conditions routinely encountered in petrochemical, water treatment, and heavy manufacturing facilities. Installation demands attention to terminal block selection and torque specifications; using compatible 1756-TBCH or 1756-TBS6H terminal blocks ensures connection integrity over extended service cycles. Electronic keying enforces correct slot placement, eliminating costly mis-insertion errors during maintenance windows.

Maintaining a stocked spare of the 1756-OW16I is a recognized best practice in reliability-centered maintenance programs. As a legacy-compatible yet actively supported module within the ControlLogix ecosystem, it serves as a critical reserve component — enabling rapid mean-time-to-repair (MTTR) reduction when field replacements are required under production pressure.

Key Operational Features

16 Individually Isolated Relay Outputs — Form A (NO) contacts rated 2A @ 24-250V AC/DC for versatile load switching
High Availability Design — 1,500V AC optical isolation between field and logic sides ensures fault containment and system redundancy
Seamless Integration — Hot-swappable in any ControlLogix slot; fully configurable via Studio 5000 / RSLogix 5000 for rapid process optimization
LED Point Diagnostics — Per-channel status indication accelerates fault isolation, minimizing diagnostic time during live operations
Extended Mechanical Life — 10 million switching operations per contact, supporting long-interval maintenance schedules
Broad Compliance — UL Listed, CE marked, RoHS compliant; meets global automation components standards for multi-region deployments

Maintenance & Performance Benchmarks

The 1756-OW16I is architected to perform reliably across small-scale machine cells and large distributed control networks alike. In multi-chassis ControlLogix configurations, the module communicates over the backplane at 800mA @ 5V DC — a conservative power draw that preserves headroom for high-density I/O expansion without chassis power supply upgrades in most standard deployments.

Response characteristics — 10ms typical ON, 5ms typical OFF — satisfy the timing requirements of the majority of discrete automation sequences, including solenoid valve actuation, motor starter control, and alarm annunciation circuits. For facilities operating under IEC 62443 cybersecurity frameworks or ISA-99 guidelines, the module’s hardware-level isolation architecture provides an inherent barrier against cross-circuit fault propagation, supporting operational excellence objectives at the system level.

Firmware compatibility is managed through the ControlLogix controller revision; no module-level firmware updates are required, simplifying lifecycle management and reducing the risk of version-mismatch faults during planned maintenance outages.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Allen-Bradley 1756-OW16I unit dispatched from our inventory is supplied in original factory packaging with full manufacturer documentation, ensuring traceability from production to your facility. We maintain dedicated global stock of both current-production and end-of-life (EOL) / legacy ControlLogix modules, providing a reliable supply chain for facilities operating long-lifecycle automation systems where OEM availability has been discontinued.

Same-day dispatch is available for in-stock units when orders are confirmed before the daily cut-off window — a critical advantage for operations facing unplanned equipment failures. Our worldwide express logistics network covers major industrial regions across North America, Europe, Southeast Asia, and the Middle East, with full shipment tracking and customs documentation support included as standard. All units undergo pre-shipment functional verification to confirm module integrity prior to delivery.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 1756-OW16I?
A: Power down field wiring before connecting terminal blocks. Insert the module into any available ControlLogix slot — electronic keying will prevent incorrect placement. Connect the appropriate terminal block (1756-TBCH recommended for standard wiring). In Studio 5000, add the module to the I/O tree, configure electronic keying mode, and verify tag assignments. Apply field power and confirm LED status indicators show expected output states.

Q2: Which controller firmware versions are compatible with this module?
A: The 1756-OW16I is compatible with all ControlLogix controller firmware revisions from v13.x onward. No module-level firmware is required. Always verify your Studio 5000 / RSLogix 5000 software version matches your controller firmware revision to avoid configuration mismatch faults.

Q3: Can this module switch both AC and DC loads simultaneously across different output points?
A: Yes. Because each of the 16 relay contacts is individually isolated, different output points can independently switch AC or DC loads at different voltage levels — up to 250V and 2A per contact — without cross-interference between circuits.

Q4: What is the warranty coverage and claim process?
A: All units carry a 1-year warranty covering manufacturing defects and functional failures under normal operating conditions. To initiate a warranty claim, contact our technical support team with the purchase order reference and a description of the observed fault. Replacement or repair is processed within the agreed service lead time, with advance replacement available for critical production environments.

Q5: Is the 1756-OW16I still in production, or is it an EOL component?
A: Rockwell Automation continues to support the 1756-OW16I within the active ControlLogix portfolio. However, for facilities managing long-lifecycle systems, we recommend securing spare inventory proactively, as global allocation for automation components can fluctuate with supply chain conditions.

Q6: What diagnostic data does the module report back to the controller?
A: The module provides per-point output status, over-temperature fault flags, and communication health data accessible through the controller’s I/O diagnostic tags in Studio 5000. This enables proactive condition monitoring and supports predictive maintenance workflows without additional hardware.
