Allen-Bradley 1756-OG16 Safety-Reliable DC Output for ControlLogix

Allen-Bradley 1756-OG16 Safety-Reliable DC Output Module for ControlLogix Critical Control Sites

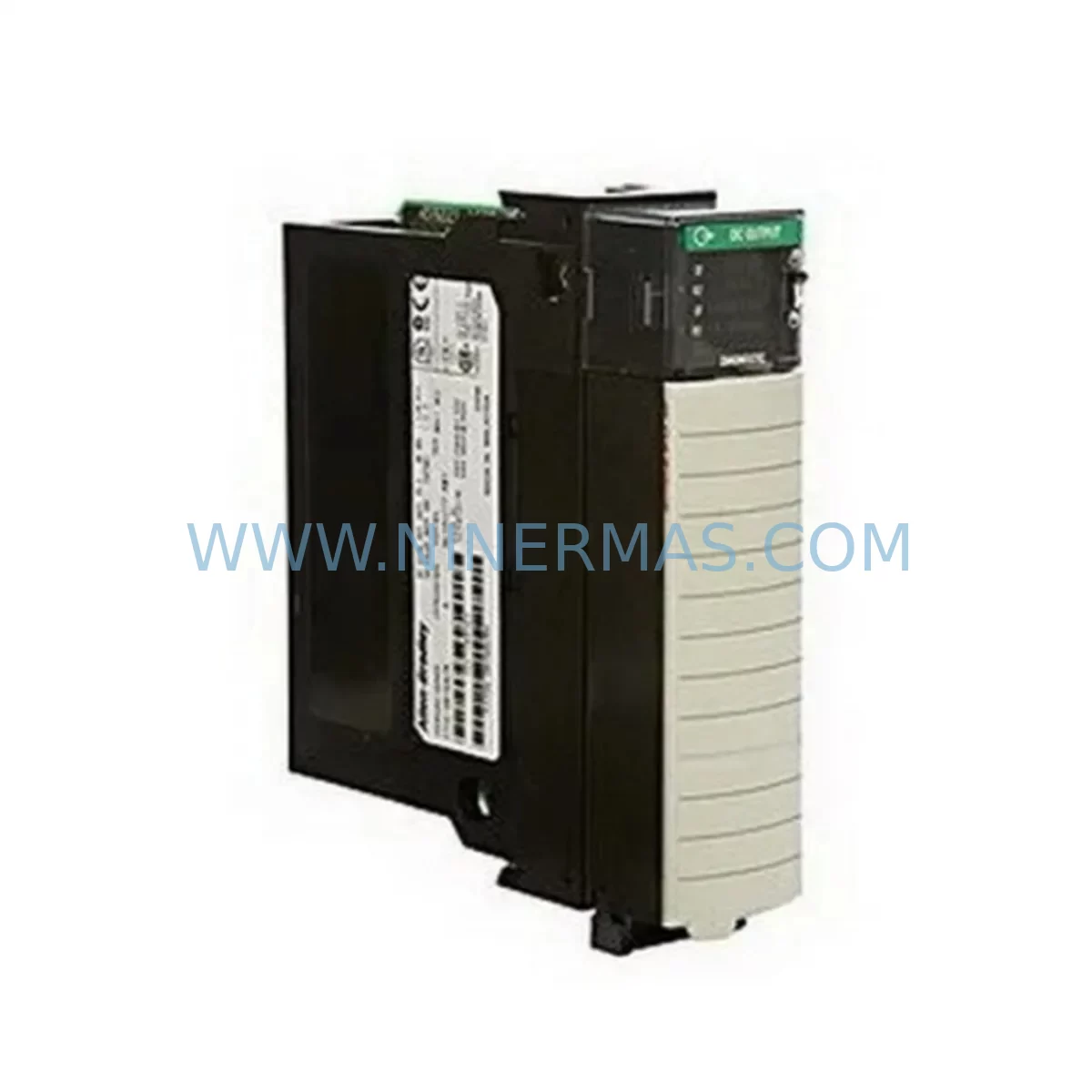

The Allen-Bradley 1756-OG16 is a 16-point 12/24VDC sourcing output module designed for the ControlLogix Series A backplane platform. Engineered for continuous production environments where control interruption is not an option, the 1756-OG16 delivers deterministic output switching with high noise immunity, making it a cornerstone component in safety-critical control cabinets across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and heavy manufacturing facilities.

At NINERMAS, every 1756-OG16 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring your critical control loop stays protected from the moment of installation through its full service cycle.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinets — particularly those managing critical interlock loops, heavy motor drives, or multi-axis servo systems — a single output module failure can cascade into unplanned downtime, process upsets, or safety system activation. The 1756-OG16 is designed to minimize these risks through group-isolated output architecture, which prevents a fault on one output group from propagating to adjacent circuits.

For complete cabinet-level protection, the 1756-OG16 is commonly deployed alongside the 1756-PA75 power supply, which provides stable 5 VDC and 24 VDC backplane power with built-in surge protection — essential for preventing voltage transients from reaching the output module’s internal logic. In applications where redundant power is required, the 1756-PA75R redundant power supply ensures seamless switchover without interrupting output states.

On the input side, the 1756-IG16 16-point DC input module pairs directly with the 1756-OG16 to form a complete digital I/O layer within the same ControlLogix chassis, reducing inter-module wiring complexity and signal propagation delays in time-critical interlock circuits. For analog process variables feeding the same control loop, the 1756-IF16 analog input module provides 16-channel isolated current/voltage acquisition with high common-mode rejection — critical in environments with strong electromagnetic interference from variable frequency drives or large transformer banks.

Communication integrity is equally vital. The 1756-EN2T EtherNet/IP communication module enables deterministic network communication between the ControlLogix controller and SCADA or DCS systems, while the 1756-CN2 ControlNet module supports scheduled, time-critical data transfers in process-critical architectures. In facilities where DeviceNet field devices — such as safety light curtains, emergency stop relays, or smart motor starters — are integrated into the same safety loop, the 1756-DNB DeviceNet bridge module provides reliable protocol translation without introducing latency.

For the controller itself, the 1756-L71 ControlLogix processor manages the execution of ladder logic and function block programs that drive the 1756-OG16 outputs. In safety-rated applications, the 1756-L7SP safety partner module can be paired with the standard controller to achieve SIL 2 / SIL 3 safety integrity levels without requiring a separate safety PLC chassis. Surge protection at the field wiring terminals is further enhanced by installing Phoenix Contact TRABTECH surge protection devices on each output circuit, clamping transient voltages before they reach the module’s output transistors.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units, compressor control panels, and emergency shutdown (ESD) systems, the 1756-OG16 controls solenoid valves, motor contactors, and alarm annunciators. Its group isolation architecture ensures that a ground fault on one output circuit does not disable adjacent safety-critical outputs, maintaining the integrity of the ESD loop even under fault conditions.

Power Generation & Substation Automation: Turbine control systems and generator protection panels demand output modules with exceptional noise immunity. The 1756-OG16’s compliance with IEC 61000-4 EMC standards makes it suitable for installation in high-voltage switchgear rooms where electromagnetic interference from bus bars and high-current switching events is constant. It reliably drives trip coils, breaker control relays, and excitation system contactors without signal drift or spurious operation.

Mining & Mineral Processing: Underground and surface mining operations expose control equipment to extreme vibration, dust ingress, and wide temperature swings. Installed within sealed IP65 or IP67 control enclosures, the 1756-OG16 controls conveyor drive starters, crusher motor contactors, and ventilation fan relays. Its 30 g shock resistance and 2 g vibration tolerance ensure continued operation even in proximity to blasting operations or heavy crushing machinery.

Water & Wastewater Treatment: Pump station control panels and chemical dosing systems in water treatment facilities require output modules that perform reliably in high-humidity, chemically aggressive environments. The 1756-OG16 drives submersible pump starters, chlorination system solenoids, and UV disinfection unit contactors, with its non-condensing humidity rating (5–95%) providing confidence in coastal or underground pump station installations.

Metallurgy & Steel Manufacturing: Rolling mill control systems, electric arc furnace (EAF) panels, and continuous casting machine controls operate in environments with extreme heat, heavy vibration, and intense electromagnetic fields from high-current bus systems. The 1756-OG16’s robust output transistor design and backplane isolation maintain reliable output switching even when adjacent high-power equipment generates significant conducted and radiated interference.

Port Logistics & Marine Applications: Ship-to-shore crane control systems, automated stacking crane panels, and vessel engine room automation require output modules certified for marine-grade environments. The 1756-OG16, housed within climate-controlled control cabinets, controls hoist motor contactors, anti-collision relay circuits, and load monitoring alarm outputs — ensuring safe cargo handling operations around the clock.

Safety and Quality FAQ

Q1: Does the 1756-OG16 come with a warranty, and what does it cover?
Yes. Every Allen-Bradley 1756-OG16 supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, NINERMAS provides replacement or repair support. Contact sale@ninermas.com for warranty claims.

Q2: What pre-shipment testing is performed on each 1756-OG16 unit?
Each unit undergoes a full functional output verification test prior to shipment. This includes point-by-point output activation testing, backplane communication verification, and visual inspection for physical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1756-OG16 compatible with all ControlLogix chassis and firmware versions?
The 1756-OG16 is designed for the 1756 ControlLogix Series A chassis platform and is compatible with standard ControlLogix processors including the 1756-L61, 1756-L62, 1756-L63, 1756-L71, and 1756-L73 series. Compatibility with specific firmware revisions should be confirmed against Rockwell Automation’s product compatibility matrix. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q4: Can NINERMAS support long-term or repeat supply of the 1756-OG16 for maintenance and spare parts programs?
Yes. NINERMAS maintains ongoing inventory of the 1756-OG16 and other ControlLogix I/O modules to support planned maintenance schedules, emergency spare parts procurement, and capital project builds. Long-term supply agreements and priority stock reservation are available for facilities with critical uptime requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply program needs.
