Allen-Bradley 1756-OF8K Safety-Reliable Output for Critical Sites

Allen-Bradley 1756-OF8K Safety-Reliable Output for Critical Sites

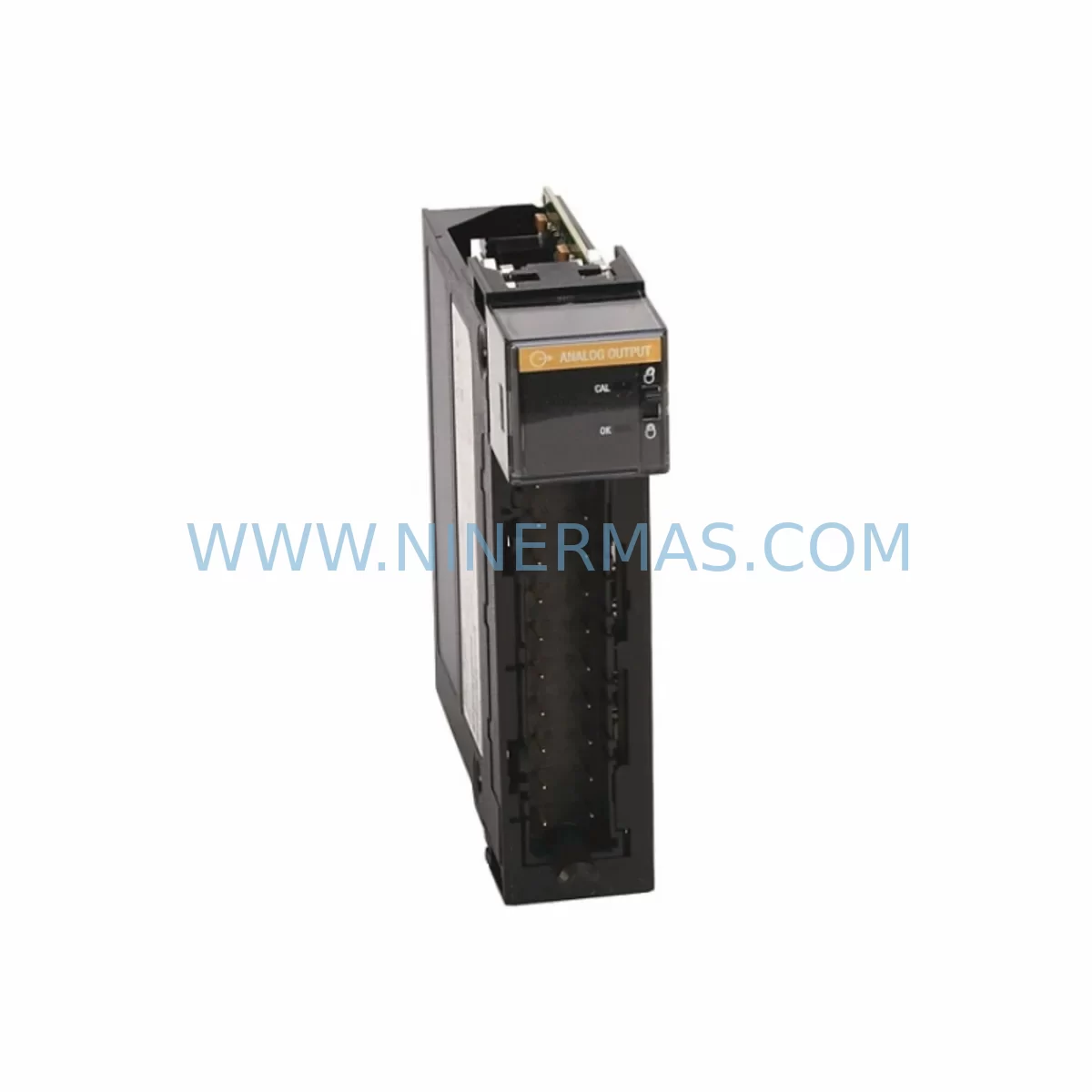

The Allen-Bradley 1756-OF8K is an 8-channel analog current/voltage output module engineered for the ControlLogix 1756 platform. Featuring conformal coating (denoted by the ‘K’ suffix), this module is purpose-built to sustain reliable analog signal delivery in environments subject to high humidity, condensation, airborne particulates, corrosive gases, and mechanical vibration — conditions routinely encountered in petrochemical plants, power generation facilities, metallurgical operations, water treatment stations, and continuous process manufacturing lines. Where control loop integrity is non-negotiable, the 1756-OF8K provides the output stability and environmental resilience that safety-critical automation demands.

Each channel independently drives 4–20 mA current loops or ±10 V voltage signals with high-resolution conversion, ensuring that final control elements — including control valves, variable-frequency drives, and electro-pneumatic positioners — receive precise, drift-free command signals. Signal drift, output saturation, and channel cross-talk are among the most insidious causes of process deviation and unplanned shutdowns in continuous production environments. The 1756-OF8K’s isolated channel architecture and conformal-coated circuitry directly address these failure modes, reducing the probability of spurious actuator movement and control loop instability.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered ControlLogix control cabinet, the 1756-OF8K does not operate in isolation — its reliability is interdependent with the quality and compatibility of every adjacent component. Power supply stability is foundational: the 1756-PA75 AC power supply and 1756-PB75 DC power supply are the recommended chassis power sources, providing regulated, low-ripple backplane voltage that prevents analog output drift caused by power rail fluctuation. Surge events on the AC supply side — common in heavy industrial environments near large motor starters and arc furnaces — can propagate into the backplane if not properly attenuated; surge protection devices such as the 1756-SPESMNK are therefore a recommended addition to the power entry point of any critical ControlLogix rack.

The chassis itself matters: the 1756-A17 17-slot chassis provides sufficient physical space to co-locate the 1756-OF8K alongside processor, communication, and I/O modules without forced proximity to high-heat components. The 1756-L83E ControlLogix processor governs the output module’s scan cycle and fault response logic — a correctly configured controller task with appropriate RPI (Requested Packet Interval) settings ensures that analog output updates are timely and that channel faults trigger appropriate safe-state actions rather than holding last-state outputs indefinitely.

On the input side, the 1756-IF16 16-channel analog input module closes the control loop by feeding process variable signals back to the controller, enabling PID and cascade control strategies that depend on both accurate measurement and accurate output. Digital interlock signals from the 1756-IB16I isolated digital input module can be used to force analog outputs to safe states during emergency shutdown sequences, providing a hardware-level safety layer independent of software logic. The 1756-OB16E electronically fused digital output module complements the analog output strategy by controlling discrete actuators — solenoid valves, motor contactors — that form part of the same safety interlock circuit.

Network integrity is equally critical. The 1756-EN2T EtherNet/IP communication module connects the ControlLogix rack to the plant DCS or SCADA network, enabling remote diagnostics and output module health monitoring. In high-EMI environments, shielded cabling and proper grounding of the 1756-TBNH terminal block wiring assembly are essential to prevent common-mode noise from corrupting analog output signals. Together, these components form a coherent, safety-oriented control architecture in which the 1756-OF8K delivers its full performance potential.

Critical Industrial Safety Applications

The 1756-OF8K is deployed across a broad spectrum of safety-critical and continuous-process industries where analog output reliability directly affects operational safety and production continuity.

In petrochemical and refining facilities, the module drives control valve positioners in distillation column pressure and temperature control loops. A signal interruption or output drift in these loops can trigger pressure relief events or product quality deviations with significant safety and financial consequences. The conformal coating ensures the module withstands the corrosive atmospheric conditions present near process vessels and heat exchangers.

In electric power generation and substation automation, the 1756-OF8K provides setpoint signals to automatic voltage regulators (AVRs) and turbine governor systems. The module’s high-resolution output and channel isolation prevent ground loop interference from corrupting control signals in environments with large ground potential differences between equipment.

In mining and mineral processing, the module controls variable-speed conveyor drives, flotation cell reagent dosing pumps, and crusher load management systems. Dust ingress and vibration are persistent threats to unprotected electronics; the conformal-coated 1756-OF8K maintains signal integrity where standard modules would degrade.

In water and wastewater treatment, the module manages chemical dosing pump speeds and aeration blower output, where precise flow control directly impacts effluent quality compliance. In port and marine applications, it controls crane hoist drives and ballast pump systems in salt-air environments that rapidly corrode unprotected PCBs.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the 1756-OF8K?
All 1756-OF8K units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning issues. Warranty claims are processed with documented test records for traceability.

Q2: What pre-shipment testing is performed on each unit?
Every 1756-OF8K undergoes a full functional test prior to dispatch, including channel-by-channel analog output verification across the full current and voltage output ranges, backplane communication check, and visual inspection for physical integrity. Test results are retained for quality traceability.

Q3: Is the 1756-OF8K compatible with all ControlLogix 1756 chassis and processors?
Yes. The 1756-OF8K is compatible with all standard ControlLogix 1756-series chassis (including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17) and all ControlLogix processors. Configuration is performed via Rockwell Automation Studio 5000 Logix Designer. Firmware revision compatibility should be verified against the installed processor firmware version prior to installation.

Q4: Can NINERMAS support long-term or repeat supply of the 1756-OF8K for maintenance programs?
Yes. NINERMAS maintains reserved inventory agreements and long-term sourcing relationships specifically for end-of-life and hard-to-source ControlLogix components. Customers operating large fleets of ControlLogix systems can contact NINERMAS to establish a standing supply arrangement with agreed lead times and pricing, ensuring spare parts availability for planned maintenance and emergency replacement scenarios.
