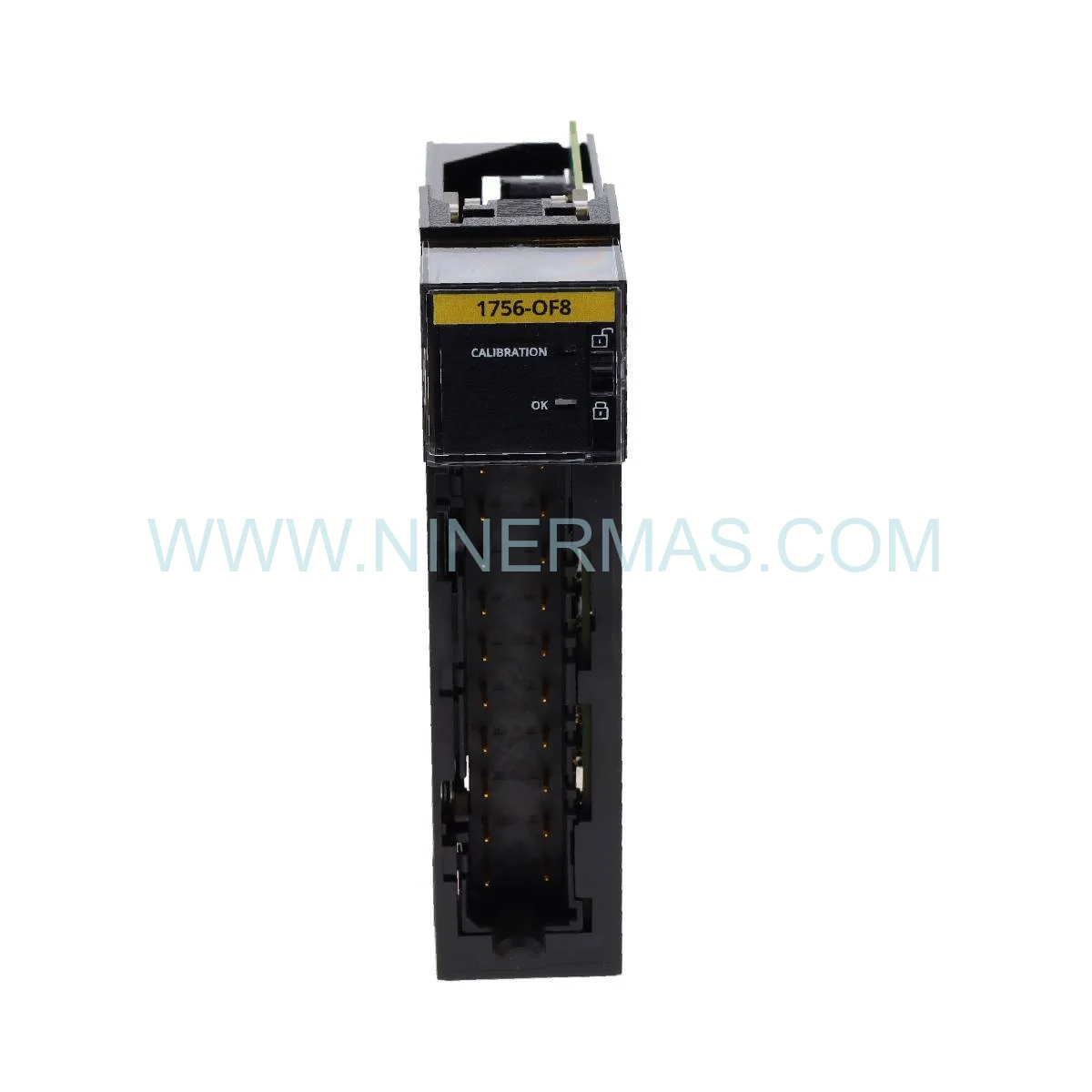

Allen-Bradley 1756-OF8 ControlLogix Analog Output Module

Allen-Bradley 1756-OF8 ControlLogix Analog Output Module – Precision Control for Industrial Applications

The Allen-Bradley 1756-OF8 is an advanced 8-channel analog output module engineered for the ControlLogix platform, delivering exceptional precision and reliability in demanding industrial automation environments. This module transforms digital control signals into accurate analog outputs, enabling seamless integration with field devices such as control valves, variable frequency drives, and actuators across manufacturing, process control, and power generation facilities.

Technical Specifications

• Output Channels: 8 differential analog outputs
• Output Types: Voltage ( ±10V DC) or Current (0-20mA, 4-20mA) configurable per channel
• Resolution: 16-bit for superior signal accuracy
• Update Rate: Configurable from 1ms to 750ms per channel
• Isolation: Channel-to-backplane isolation for enhanced noise immunity
• Power Consumption: 800mA @ 5V DC, 5mA @ 24V DC from backplane
• Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
• Certifications: UL, cUL, CE, C-Tick compliant

Key Applications & Solutions

Process Control: Regulate flow rates, pressure levels, and temperature setpoints in chemical processing, oil & gas refineries, and pharmaceutical manufacturing through precise analog signal transmission to control valves and positioners.

Motion Control Systems: Command variable frequency drives (VFDs) and servo amplifiers with accurate speed and torque references in packaging lines, material handling conveyors, and CNC machining centers.

Power Generation: Interface with turbine control systems, excitation regulators, and governor actuators in thermal, hydro, and renewable energy plants for optimal performance and grid stability.

HVAC & Building Automation: Modulate damper positions, valve openings, and fan speeds in commercial facilities to maintain environmental conditions while maximizing energy efficiency.

Engineering Advantages

The 1756-OF8 module integrates seamlessly into existing ControlLogix chassis configurations, supporting hot-swappable installation for minimal downtime during maintenance. Its robust design features conformal coating protection against moisture and contaminants, ensuring long-term reliability in harsh industrial settings. The module’s diagnostic LEDs and comprehensive fault reporting through RSLogix 5000 software accelerate troubleshooting and reduce mean time to repair (MTTR).

Channel-level configuration flexibility allows engineers to mix voltage and current outputs within a single module, optimizing system design and reducing hardware costs. Built-in calibration data stored in non-volatile memory ensures consistent performance across temperature variations and power cycles.

Frequently Asked Questions

Q: Can I mix voltage and current outputs on the same module?
A: Yes, each of the 8 channels can be independently configured for either voltage ( ±10V DC) or current (0-20mA, 4-20mA) output through RSLogix 5000 programming software.

Q: What is the maximum loop resistance for current outputs?
A: The 1756-OF8 supports up to 600 © loop resistance for 4-20mA outputs and 750 © for 0-20mA outputs, accommodating long cable runs and multiple devices in series.

Q: Is this module compatible with redundant ControlLogix systems?
A: Yes, the 1756-OF8 fully supports ControlLogix redundancy configurations when used with appropriate redundancy modules (1756-RM, 1756-RM2) for mission-critical applications.

Q: How do I perform field calibration?
A: Field calibration can be executed through RSLogix 5000 software using the module’s built-in calibration routines, or you can rely on factory calibration data stored in the module’s EEPROM.

Warranty & Support

Every Allen-Bradley 1756-OF8 module from Industrial Control Hub includes a comprehensive 12-month warranty covering manufacturing defects and workmanship. Our technical support team provides expert assistance with configuration, troubleshooting, and integration guidance to ensure optimal system performance.

Related Products

Enhance your ControlLogix system with these complementary modules:

• Allen-Bradley 1756-L83EP ControlLogix CPU – High-performance processor with EtherNet/IP connectivity
• Allen-Bradley 1756-IT6I/A Thermocouple Input Module – 6-channel temperature measurement for closed-loop control
• GE IC200ALG325 Analog Output Module – Alternative solution for VersaMax PAC systems
