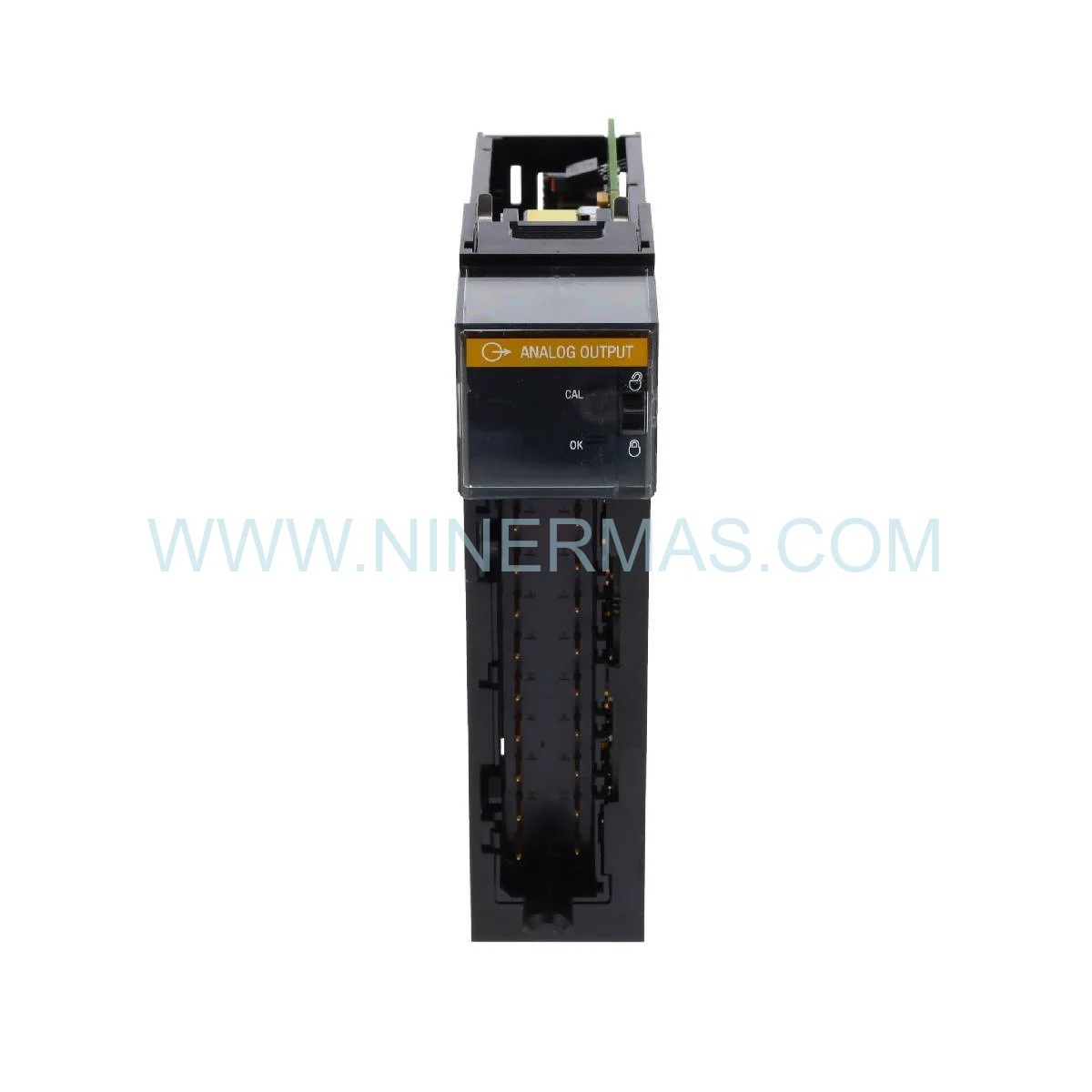

Allen-Bradley 1756-OF4 | ControlLogix Analog Output Retrofit Module

Allen-Bradley 1756-OF4 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Allen-Bradley 1756-OF4 stands out as a mission-critical enabler in any system modernization initiative. This 4-channel analog output module plays a pivotal role in extending the operational lifespan of aging ControlLogix platforms while simultaneously elevating output precision and system responsiveness. The Allen-Bradley 1756-OF4 bridges the gap between legacy analog control architectures and the demands of modern industrial networks — making it an indispensable component in phased migration strategies across chemical plants, power generation facilities, and global manufacturing bases.

One of the most compelling advantages of deploying the 1756-OF4 in a retrofit context is its inherent backward compatibility with all 1756-series ControlLogix chassis. Whether your facility is running a first-generation ControlLogix backplane or a mid-lifecycle system awaiting full DCS migration, this module slots in without requiring chassis replacement or firmware overhaul. Its support for both voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) output modes ensures seamless integration with existing field instrumentation — eliminating costly signal conditioning intermediaries.

From a migration risk and cost perspective, the 1756-OF4 dramatically reduces the financial exposure associated with full system cutover. By enabling a modular, incremental upgrade path, facilities can maintain continuous production while systematically replacing obsolete I/O infrastructure. This approach minimizes unplanned downtime, preserves existing wiring topologies, and allows engineering teams to validate each upgrade stage before proceeding — a proven strategy for reducing total cost of ownership in long-horizon modernization programs.

Upgrade Highlights & Compatibility

• ✅ Drop-in Legacy Compatibility: Fits all 1756-series ControlLogix chassis — no backplane modification required
• Dual Output Mode Flexibility: Independently configure each channel for voltage or current — adapts to existing field device wiring without signal converters
• ✅ 16-Bit High-Resolution Output: 1-in-65,536 resolution delivers precision control for critical process loops during and after migration
• Hot-Swap Capability: Replace or upgrade modules without system shutdown — essential for zero-downtime retrofit deployments
• ✅ Electronic Keying Protection: Prevents incorrect module insertion during field replacement — reduces human error risk in retrofit projects
• Studio 5000 / RSLogix 5000 Native Support: Fully compatible with current and legacy Rockwell programming environments — no software migration barrier
• ✅ Future-Proof Architecture: Supports integration into EtherNet/IP-based modern DCS and SCADA frameworks as part of a phased upgrade roadmap

Modernization Use Cases & Success Stories

DCS Modernization in Petrochemical Plants: A regional petrochemical facility operating a 15-year-old distributed control system faced escalating maintenance costs due to obsolete analog output cards. By integrating the 1756-OF4 as a hardware upgrade within their existing ControlLogix chassis, the engineering team achieved a 40% reduction in signal drift incidents and eliminated the need for external signal conditioners across 12 control loops. The retrofit solution was completed in stages over three planned maintenance windows — with zero unplanned production interruptions.

Turbine Supervisory Instrumentation (TSI) Retrofit: A combined-cycle power plant undergoing TSI system modernization required analog output modules capable of interfacing with both legacy electro-hydraulic actuators and new digital valve positioners. The 1756-OF4’s dual voltage/current output capability enabled a seamless integration strategy — allowing the plant to migrate actuator control loops incrementally while maintaining full turbine supervisory coverage throughout the transition period. Performance enhancement was measurable within the first operational cycle post-installation.

Automotive Manufacturing Line Upgrade: A Tier-1 automotive supplier replacing end-of-life PLC analog output cards across 8 production cells selected the 1756-OF4 as the standardized retrofit component. The module’s removable terminal blocks preserved existing field wiring, while electronic keying ensured correct installation across all cells. The system migration was completed 22% ahead of schedule, with full production throughput restored within 48 hours of final commissioning.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every Allen-Bradley 1756-OF4 supplied through our network is sourced as original, factory-sealed hardware — ensuring full firmware integrity, calibration traceability, and compliance with OEM specifications. No refurbished or gray-market units are offered, protecting the reliability of your retrofit investment.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement scenarios. Expedited shipping to North America, Europe, Southeast Asia, and the Middle East is available with DDP (Delivered Duty Paid) terms — minimizing customs clearance delays for time-critical system migration projects.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy ControlLogix environments. Whether you need assistance with firmware compatibility verification, backplane power budget analysis, or channel configuration for mixed-mode output scenarios, our retrofit specialists provide hands-on technical guidance — from pre-project assessment through post-installation commissioning validation.

Retrofit FAQ — Upgrade Guide

Q1: Is the Allen-Bradley 1756-OF4 physically compatible with older ControlLogix chassis from the early 2000s?
A: Yes. The 1756-OF4 is designed for universal compatibility across all 1756-series ControlLogix chassis, including first-generation models. No mechanical modification or adapter bracket is required. The module occupies a standard single-slot position, making it a direct drop-in replacement for aging analog output cards in legacy installations.

Q2: How does the 1756-OF4 communicate with older ControlLogix controllers during a phased system migration?
A: The module communicates natively over the ControlLogix backplane using the standard I/O messaging protocol supported by all 1756-series controllers. During phased migrations, it can coexist with legacy I/O modules in the same chassis — allowing engineers to migrate output loops incrementally without disrupting active control loops. No gateway or protocol converter is needed.

Q3: Can the 1756-OF4 serve as a direct replacement for discontinued or end-of-life analog output modules in the same chassis?
A: In most cases, yes. The 1756-OF4 can replace older 4-channel analog output modules within the 1756 platform. However, engineers should verify the I/O tree configuration in RSLogix 5000 / Studio 5000 and update the module definition to match the 1756-OF4 profile. Our technical support team can provide a compatibility matrix for specific legacy module substitution scenarios.

Q4: What wiring changes are required when retrofitting the 1756-OF4 into an existing installation?
A: The 1756-OF4 uses a removable terminal block (RTB) wiring interface. If the existing installation uses a compatible RTB, field wiring can be transferred directly — significantly reducing retrofit labor time. For installations with hardwired terminal strips, our team can advise on the appropriate RTB adapter to minimize field wiring modifications.

Q5: How does the 1756-OF4 support integration into modern EtherNet/IP-based DCS or SCADA architectures?
A: When paired with a ControlLogix EtherNet/IP communication module (e.g., 1756-EN2T), the 1756-OF4’s output data is accessible via standard EtherNet/IP I/O messaging — enabling seamless integration with modern SCADA platforms, historian systems, and cloud-connected industrial IoT frameworks. This makes it an ideal bridge component in hybrid legacy-to-modern migration architectures.

Q6: What is the recommended spare parts strategy for facilities using the 1756-OF4 in critical retrofit applications?
A: For facilities where the 1756-OF4 supports critical process loops, we recommend maintaining a minimum of 2 spare units per chassis as part of a proactive hardware upgrade and business continuity strategy. Given the module’s Active lifecycle status, current-generation units are available for immediate procurement — avoiding the supply chain risks associated with obsolete or discontinued hardware.
