Allen-Bradley 1756-OB16D Service-Ready Spare Part

Allen-Bradley 1756-OB16D Service-Ready Spare Part: Minimizing Downtime Risk in Industrial Control Systems

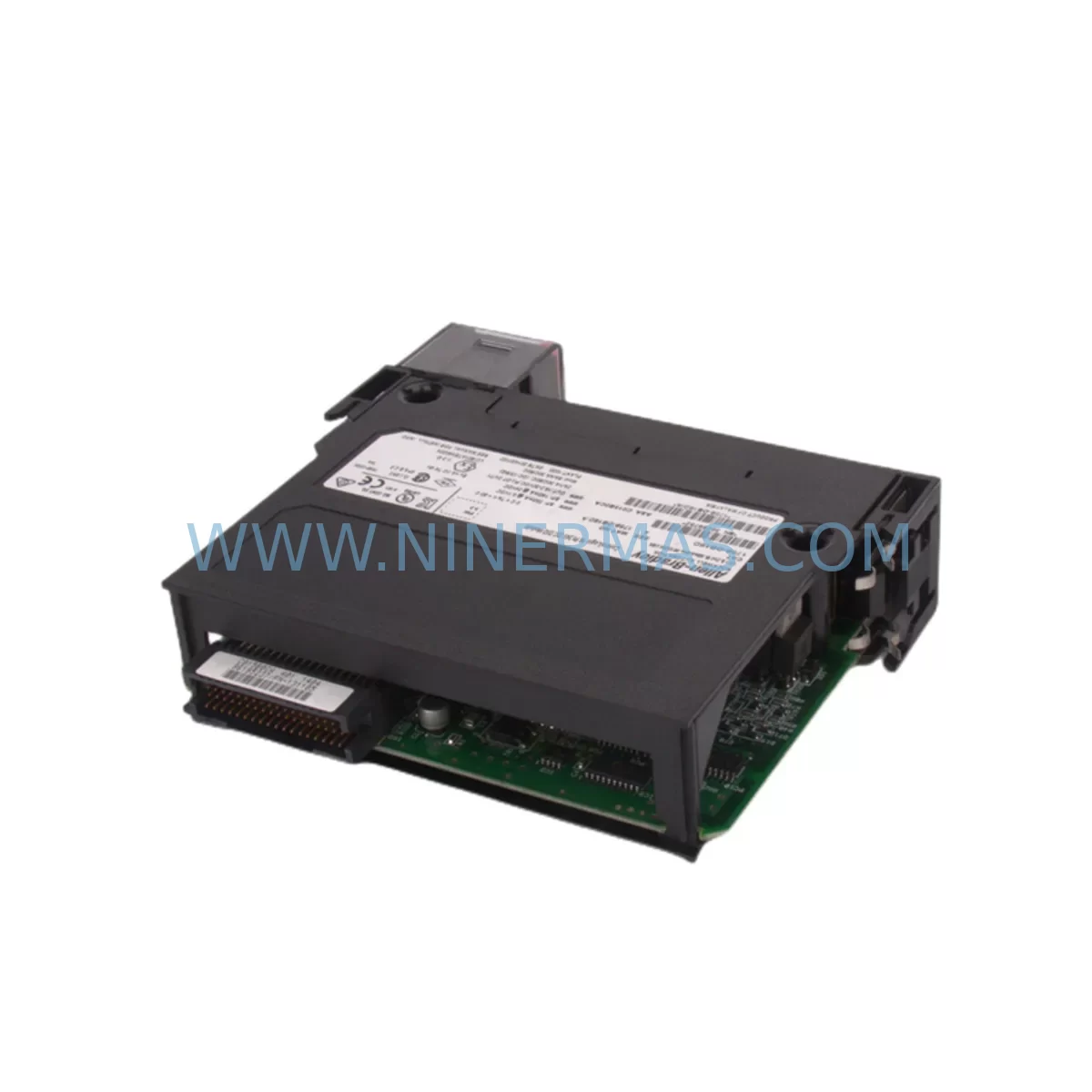

The Allen-Bradley 1756-OB16D is a ControlLogix platform 16-point, 24VDC sourcing digital output module engineered for ruggedized and harsh industrial environments. As a critical field-replaceable unit within Rockwell Automation’s 1756 ControlLogix chassis, this module directly controls actuators, solenoid valves, motor starters, and indicator circuits across process, discrete, and hybrid manufacturing applications. Maintaining a verified spare of the 1756-OB16D in your on-site inventory is a fundamental risk-control measure for any facility operating ControlLogix-based control systems — particularly where unplanned downtime carries significant production or safety consequences.

At NINERMAS, every 1756-OB16D unit is sourced as an original spare part, subjected to pre-shipment functional verification, and backed by a 12-month warranty. Our supply chain is structured to support both emergency replacement orders and long-term MRO procurement programs, ensuring your maintenance team has access to verified stock when it matters most.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1756-OB16D fails or is flagged during a scheduled inspection, the replacement workflow should extend beyond the module itself. A disciplined maintenance engineer will treat the event as a trigger for a broader control cabinet audit. Begin by verifying the 24VDC field power supply feeding the output commons — a degraded or undersized power supply is a frequent root cause of premature output module failure. Check the 1756-PA75 or 1756-PB75 chassis power supply for output ripple and load capacity before reinstalling a new module.

Inspect the field wiring terminals and I/O wiring harnesses connected to the module’s output groups. Loose terminations, corroded conductors, or undersized wire gauges can cause intermittent faults that are misdiagnosed as module failures. If the cabinet includes a 1756-TBCH or 1756-TBS6H removable terminal block, verify that the block is fully seated and that no terminal screws have backed out due to vibration.

For systems where the 1756-OB16D drives relay coils or solenoid loads, inspect the associated relay modules or interposing relay panels for contact wear. Inductive load switching without proper suppression (MOV or diode) accelerates output transistor degradation — confirm that surge suppressors are installed on all inductive field devices.

Review the ControlLogix backplane for adjacent module health. A 1756-IB16 or 1756-IB32 digital input module in the same chassis should be checked for input filter drift or blown input fuses, particularly if the system experienced a field wiring fault. Similarly, inspect any 1756-OA16 or 1756-OW16I output modules sharing the same chassis for signs of thermal stress or diagnostic faults logged in the controller.

If the affected control loop includes a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module, verify that the module’s connection status is healthy and that no I/O connection timeouts have been logged — a failing output module can sometimes generate spurious connection errors that mask the true fault source. For systems using a 1756-RM or 1756-RM2 redundancy module, confirm that the redundancy pair is synchronized before performing the hot-swap replacement.

Procurement engineers should note that the 1756-OB16D is a long-lifecycle ControlLogix component, but Rockwell Automation’s product lifecycle policies mean that specific series revisions may transition to end-of-life status without extended notice. Maintaining a minimum stock of one to two verified spare units per critical production line is a standard MRO best practice for ControlLogix-intensive facilities. NINERMAS supports both spot-buy and blanket order arrangements to help procurement teams manage spare parts budgets without sacrificing availability.

Site Replacement Workflow

The 1756-OB16D supports hot-swap replacement within a powered ControlLogix chassis when the controller is in Run mode, provided the replacement module is of the same catalog number and series. Follow this sequence to minimize downtime:

1. Pre-replacement verification: Confirm the replacement unit’s catalog number, series letter, and firmware revision match the installed module. Use Studio 5000 Logix Designer to export the current I/O configuration and note any module-specific properties (RPI, inhibit state, fault actions) before removal.

2. Field isolation: Place the controller in a safe state per your site’s lockout/tagout procedure. De-energize the field power supply feeding the output commons. Do not rely solely on the controller’s output inhibit function as a safety measure during physical module replacement.

3. Module removal and installation: Remove the existing 1756-OB16D by pressing the top and bottom locking tabs and sliding the module from the chassis slot. Insert the replacement module firmly until the locking tabs engage. Reconnect the removable terminal block.

4. Post-replacement validation: Re-energize field power and restore the controller to Run mode. Monitor the module’s status indicators (OK LED) and verify I/O connection status in Studio 5000. Perform a functional output test for each of the 16 output points before returning the system to production.

5. Documentation: Record the replacement in your CMMS with the module serial number, date, and technician ID. Update your spare parts inventory to trigger a reorder if stock falls below your minimum threshold.

This workflow applies equally to legacy installations where the 1756-OB16D is replacing an older 1756-OB16 (non-ruggedized) variant. The ruggedized D-series is a direct functional replacement and is the recommended upgrade for installations in high-vibration or wide-temperature-range environments.

Spare Parts Support FAQ

Q1: Is the 1756-OB16D compatible with all ControlLogix chassis sizes?
Yes. The 1756-OB16D is compatible with all 1756 ControlLogix chassis configurations, including the 4-slot (1756-A4), 7-slot (1756-A7), 10-slot (1756-A10), 13-slot (1756-A13), and 17-slot (1756-A17) chassis. It occupies a single slot and communicates over the ControlLogix backplane. Compatibility with Studio 5000 / RSLogix 5000 controller firmware should be verified against Rockwell’s product compatibility matrix for your specific controller revision.

Q2: How does NINERMAS verify spare parts before shipment?
Every 1756-OB16D unit undergoes a pre-shipment inspection that includes visual examination for physical damage, verification of catalog number and series markings, and functional testing where applicable. Units are packaged in anti-static protective packaging with documentation. A 12-month warranty is provided from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: Can NINERMAS support long-term or blanket order supply agreements for the 1756-OB16D?
Yes. NINERMAS supports both spot-buy emergency orders and structured long-term supply agreements for MRO and capital spare programs. For facilities managing multiple ControlLogix systems or operating under planned maintenance schedules, blanket orders allow you to lock in pricing and ensure priority allocation. Contact our sales team at sale@ninermas.com to discuss your annual volume requirements and lead time expectations.

Q4: What should I do if the replacement 1756-OB16D generates a fault immediately after installation?
An immediate fault after installation typically indicates one of three conditions: a field wiring short or overload on one of the output groups, a mismatch between the module’s configured properties in the controller project and the physical module (series or revision mismatch), or a backplane communication issue caused by a faulty chassis slot. Begin by checking the module’s diagnostic indicators and reviewing the controller’s fault log in Studio 5000. Isolate field wiring group by group to identify any shorted load. If the fault persists with all field wiring disconnected, contact NINERMAS technical support — units exhibiting faults under warranty conditions will be replaced or credited promptly.
