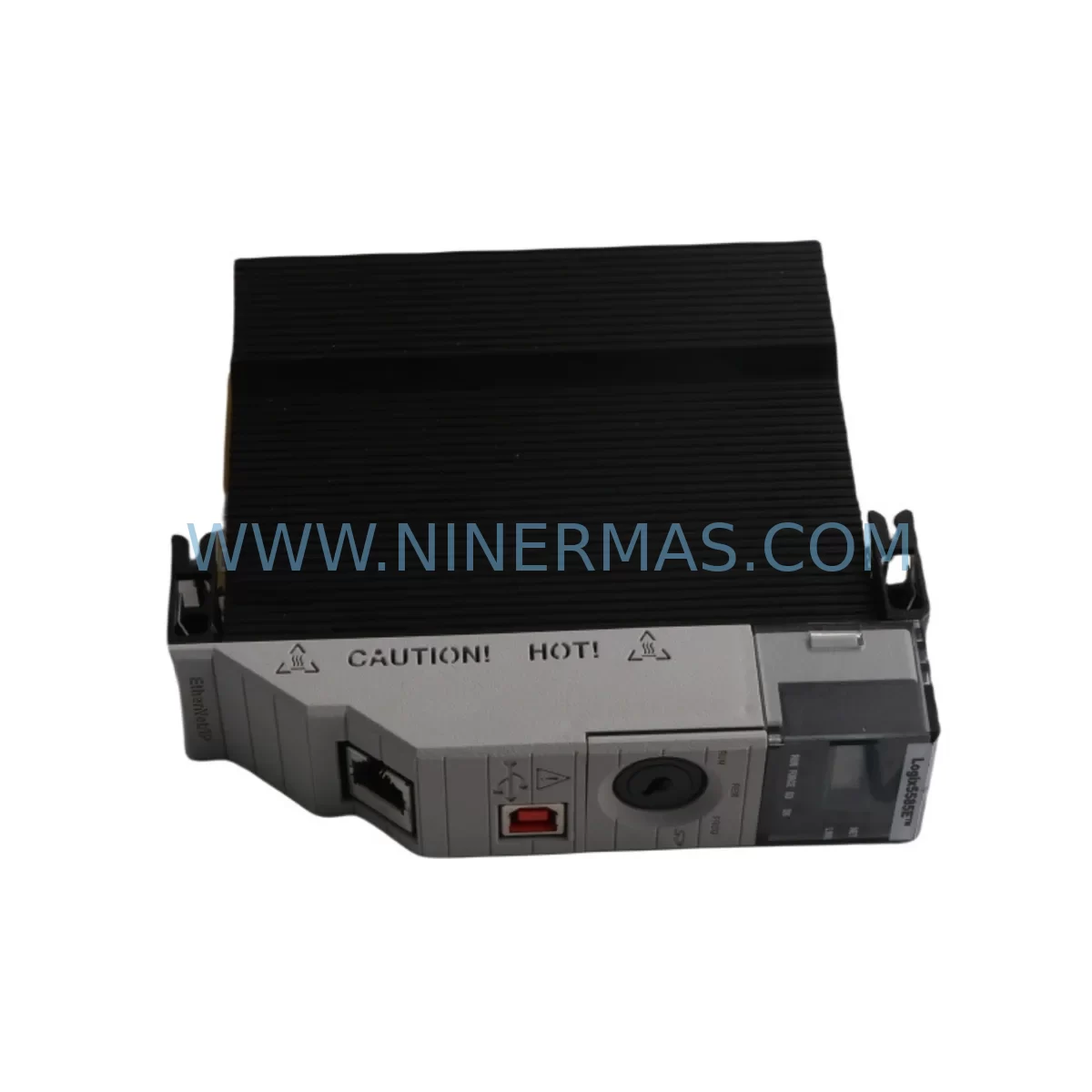

Allen-Bradley 1756-L85E Service-Ready Spare Part

Allen-Bradley 1756-L85E Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

The Allen-Bradley 1756-L85E is a ruggedized ControlLogix controller engineered for demanding industrial environments where temperature extremes, vibration, and airborne contaminants are constant operational realities. As a direct-replacement spare part, the 1756-L85E is a critical asset for maintenance engineers managing continuous production lines, automated assembly systems, and process control infrastructure. Sourced as an original spare through NINERMAS, this unit undergoes pre-shipment functional verification to ensure it arrives ready for immediate installation, minimizing unplanned downtime and accelerating system recovery.

For maintenance and procurement engineers responsible for ControlLogix-based control systems, holding a verified 1756-L85E in your spare parts inventory is a fundamental risk mitigation strategy. Controller failures in ruggedized environments are often sudden and unpredictable — caused by thermal cycling fatigue, connector oxidation, or firmware corruption following power surges. When a 1756-L85E fails, the entire control cabinet goes dark, halting production. Having a pre-tested replacement on the shelf reduces mean time to repair (MTTR) from days to hours.

The 1756-L85E belongs to the ControlLogix 5580 family and is specifically designed for extended-temperature and high-vibration applications such as outdoor substations, foundry floors, offshore platforms, and mining automation. It supports Logix Designer programming, EtherNet/IP communication, and is compatible with the standard 1756 backplane chassis. When replacing a failed unit, engineers should verify that the replacement controller carries the same firmware revision as the system’s existing configuration to avoid compatibility conflicts during program restore.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for any ControlLogix system built around the 1756-L85E must extend beyond the controller itself. During a scheduled annual inspection or emergency fault isolation, maintenance engineers should simultaneously evaluate the health of all interdependent components within the same control cabinet and electrical loop.

The 1756-PA75R ruggedized power supply module is the direct power source for the 1756 chassis and should be inspected for output voltage stability and capacitor aging whenever the controller is replaced. A degraded power supply is a common root cause of intermittent controller faults that are misdiagnosed as controller failures. Similarly, the 1756-ENBT or 1756-EN2TR EtherNet/IP communication modules installed in the same chassis should be checked for port integrity and firmware currency, as network communication faults can trigger controller faults in tightly coupled systems.

I/O modules sharing the same backplane — such as the 1756-IB16 digital input module and 1756-OB16E digital output module — should be inspected for blown fuses, damaged field wiring terminals, and LED fault indicators. In harsh environments, terminal block corrosion on 1756-TBCH or equivalent wiring accessories is a frequent source of intermittent signal faults. Signal isolators installed between field sensors and I/O modules should also be tested for drift, particularly in high-temperature zones.

For systems using DeviceNet or ControlNet alongside EtherNet/IP, the 1756-DNB DeviceNet bridge module and associated network cabling should be inspected for termination resistance and connector seating. In ruggedized deployments, vibration-induced connector loosening is a known failure mode. The 1756-RM2 redundancy module, if present in a redundant controller configuration, must be verified for synchronization status after any controller replacement to ensure seamless failover capability remains intact.

Procurement engineers should also consider stocking the 1756-L85E alongside compatible 1756-M03SE servo drive interface modules and 1756-IF16 analog input modules as a coordinated spare kit for the control cabinet, reducing the risk of secondary failures extending downtime after the initial controller replacement.

Site Replacement Workflow

Replacing a failed 1756-L85E in the field follows a structured sequence to minimize downtime and ensure system integrity. Begin by placing the control system in a safe state — coordinate with operations to confirm all field devices are in a known safe position before de-energizing the cabinet. Document the existing controller’s firmware revision using the ControlFLASH utility or Logix Designer prior to removal, as this information is essential for matching the replacement unit.

Remove the failed 1756-L85E from the chassis slot, noting the slot number for correct reinstallation of the replacement. Before inserting the new unit, inspect the backplane connector on both the chassis and the replacement controller for bent pins or debris. Insert the 1756-L85E into the correct slot and restore power to the chassis. Use Studio 5000 Logix Designer to download the backed-up program to the replacement controller, ensuring the firmware revision matches. Verify all I/O module status LEDs return to normal run state and confirm EtherNet/IP communication is re-established with all networked devices before returning the system to automatic operation.

This workflow is compatible with both hot-standby redundant configurations and simplex controller deployments. For redundant systems using the 1756-RM2, follow Rockwell Automation’s redundancy switchover procedure to avoid production interruption during the replacement process. NINERMAS supplies the 1756-L85E with a pre-shipment functional test report, reducing commissioning risk and supporting faster return to production.

Spare Parts Support FAQ

Q1: Is the 1756-L85E compatible with existing 1756 ControlLogix chassis and I/O modules?
Yes. The 1756-L85E is fully compatible with the standard 1756 backplane chassis and all 1756-series I/O, communication, and power supply modules. Ensure the chassis has sufficient slot capacity and that the power supply (e.g., 1756-PA75R) can support the additional current draw of the 5580-series controller. Firmware compatibility with your existing program should be verified using Studio 5000 Logix Designer before commissioning.

Q2: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every 1756-L85E supplied by NINERMAS is functionally tested prior to shipment to verify power-on operation, backplane communication, and EtherNet/IP port integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are packaged in anti-static, shock-protected packaging to prevent transit damage. A test report is available upon request.

Q3: How should I manage long-term spare parts inventory for ControlLogix systems in harsh environments?
For ruggedized ControlLogix deployments, we recommend maintaining at least one 1756-L85E controller, one compatible power supply module, and one set of critical I/O modules as on-site spares. Controllers stored in inventory should be kept in a climate-controlled environment and inspected annually for firmware currency. NINERMAS offers long-term supply agreements to ensure continued availability of the 1756-L85E even as the product approaches end-of-life, supporting legacy system extension strategies.

Q4: Can NINERMAS source the 1756-L85E for urgent or emergency replacement requirements?
Yes. NINERMAS maintains stock of the 1756-L85E and can support urgent procurement requirements with expedited shipping. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and lead time. We support both single-unit emergency orders and bulk procurement for planned maintenance programs.
