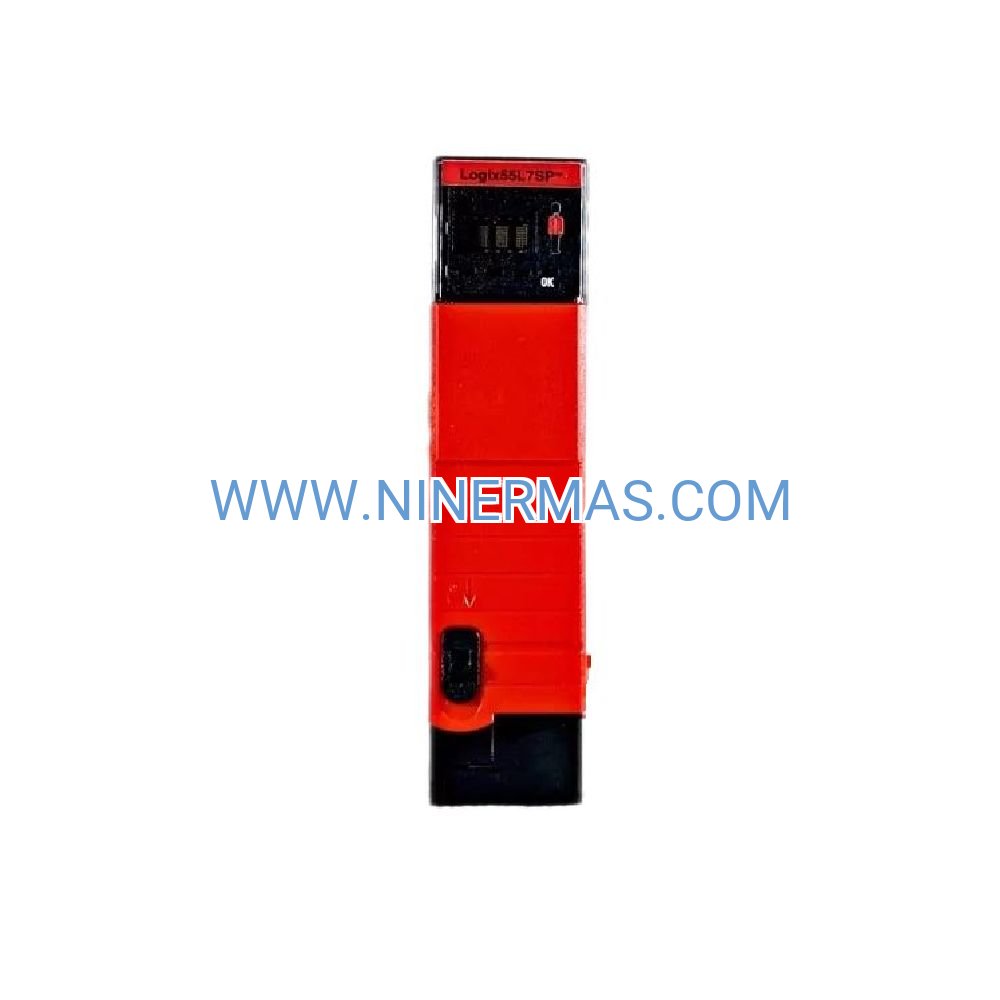

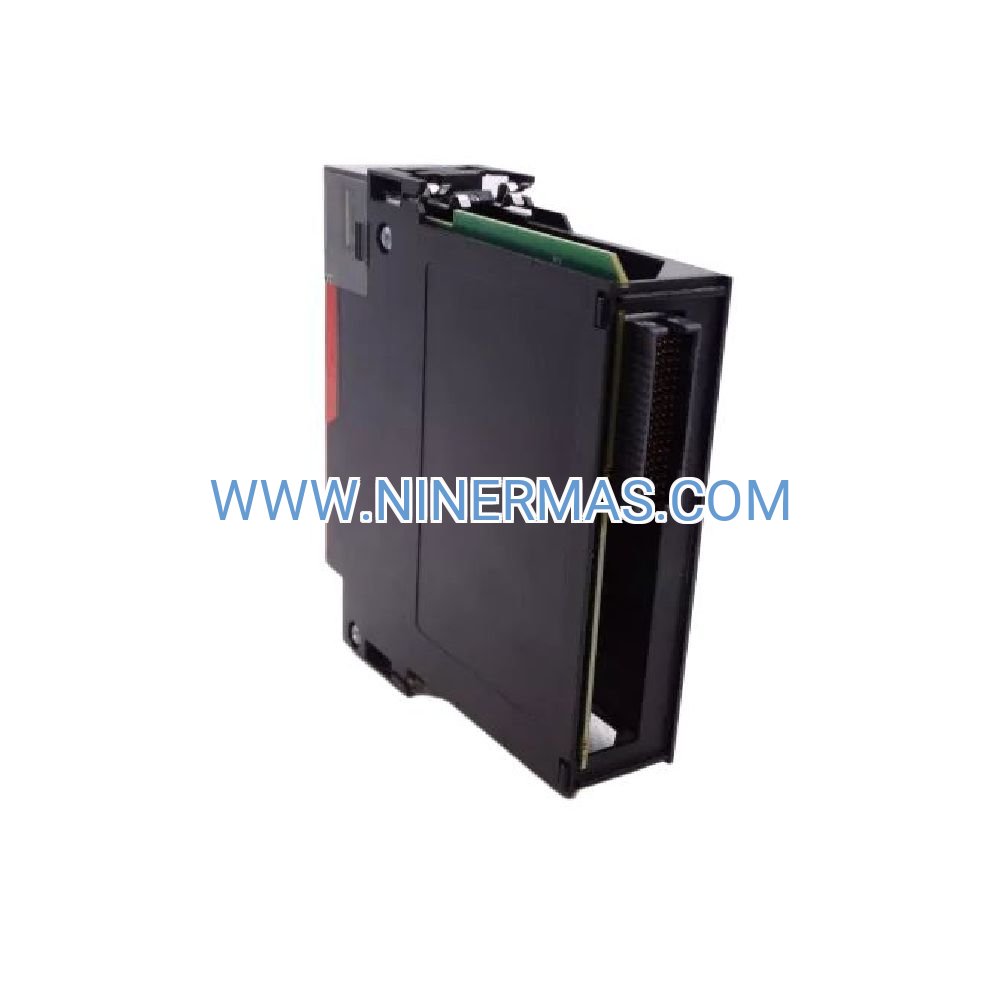

1756-L7SP GuardLogix 5570 Safety Processor (Industrial-Grade Safety Controller)

The 1756-L7SP represents the pinnacle of integrated safety control technology, combining standard automation logic with certified safety functions in a unified ControlLogix platform. Engineered for environments where machine safety and production efficiency cannot be compromised, this GuardLogix 5570 processor delivers SIL 3/PLe-rated protection while maintaining the programming familiarity and scalability that industrial teams demand.

Designed for manufacturers facing stringent safety compliance requirements, the 1756-L7SP eliminates the traditional separation between safety and standard control systems. Process engineers, automation integrators, and plant managers rely on this processor to protect personnel, reduce downtime from safety-related faults, and streamline commissioning through Studio 5000's unified development environment.

With 3MB of user memory, deterministic CIP Safety communication, and compatibility across the entire ControlLogix ecosystem, the 1756-L7SP enables scalable safety architectures from standalone machines to plant-wide distributed systems—all while meeting global safety standards including IEC 61508, ISO 13849, and ANEX B11 requirements.

Core Features & Benefits

→ Unified Safety & Standard Control Platform
Execute both safety-rated and non-safety logic within a single controller, eliminating dual-processor architectures. Reduces hardware costs by 30-40% compared to separate safety relay systems while simplifying troubleshooting and maintenance workflows.

→ Certified Safety Integrity (SIL 3 / PLe / Category 4)
Meets the highest industrial safety standards for emergency stop systems, safety door monitoring, light curtain integration, and two-hand control applications. Pre-certified safety instruction library accelerates validation and regulatory approval processes.

→ Deterministic CIP Safety Communication
Built-in EtherNet/IP with CIP Safety protocol ensures <10ms safety response times across distributed I/O networks. Black channel architecture allows standard Ethernet infrastructure for safety data transmission, reducing installation complexity.

✓ 3MB High-Capacity Memory
Accommodates complex safety logic, motion control sequences, and process algorithms without performance degradation. Sufficient headroom for future expansion and recipe management in packaging, material handling, and assembly applications.

✓ Studio 5000 Programming Integration
Single development environment for safety and standard logic using familiar ladder, function block, and structured text languages. Safety Network Number (SNN) configuration and validation tools streamline commissioning and reduce programming errors by up to 60%.

✓ Advanced Diagnostic Capabilities
Real-time safety system health monitoring with predictive fault detection. Integrated safety signature monitoring detects configuration changes, preventing unauthorized modifications and ensuring audit trail compliance for FDA 21 CFR Part 11 and OSHA requirements.

Application Scenarios

Automotive Assembly & Welding Cells
Coordinates robotic safety zones, light curtain muting sequences, and emergency stop circuits across multi-station assembly lines. Reduces safety circuit wiring by 70% while enabling flexible zone reconfiguration for model changeovers.

Packaging & Palletizing Systems
Manages high-speed conveyor interlocks, servo-driven pick-and-place safety, and operator access control for case packers and palletizers. Achieves <5ms safety response for speeds exceeding 200 packages/minute while maintaining production throughput.

Chemical & Pharmaceutical Processing
Integrates safety instrumented functions (SIF) for reactor pressure relief, emergency isolation valves, and burner management systems. Provides electronic batch records and safety event logging required for 21 CFR Part 11 compliance in regulated industries.

Material Handling & AGV Systems
Controls safety-rated speed monitoring, safe limited speed (SLS), and safe torque-off (STO) functions for automated guided vehicles and overhead cranes. Enables collaborative operation between mobile robots and personnel in shared workspaces.

Metal Forming & Press Brake Operations
Implements two-hand control, light curtain blanking, and safe motion monitoring for hydraulic and servo presses. Reduces cycle times by 15-25% through optimized muting sequences while maintaining ANSI B11.19 compliance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-L7SP when your application requires integrated safety control with moderate memory demands (up to 3MB). For larger programs exceeding 3MB, consider the 1756-L8SP (5MB) variant. Applications requiring only standard control without safety functions should evaluate the 1756-L73 or 1756-L75 processors. Ensure Studio 5000 Logix Designer safety edition licensing for safety program development.

Extended Functions

IoT & Remote Monitoring Integration: Compatible with FactoryTalk View SE/ME for HMI visualization of safety system status. Supports OPC-UA server functionality for integration with MES/SCADA platforms and cloud-based analytics. Safety event data can be logged to SQL databases for predictive maintenance and compliance reporting.

Redundancy & High Availability: Supports ControlLogix redundancy modules (1756-RM, 1756-RMXT) for mission-critical applications requiring <50ms failover times. Safety programs automatically synchronize between primary and backup processors, maintaining SIL 3 integrity during switchover events.

Motion Safety Integration: Direct integration with Kinetix 5500/5700 servo drives for safe torque-off (STO), safely-limited speed (SLS), safe direction (SDI), and safe brake control (SBC) functions. Eliminates external safety relays for coordinated motion applications, reducing panel space by 40%.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days via DHL/FedEx Express. Custom-configured systems with pre-loaded programs available in 7-10 business days. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, firmware issues, and component failures. Extended 36-month protection plans available for mission-critical installations. All units undergo 72-hour burn-in testing and safety signature verification before shipment.

Technical Support: Lifetime application engineering support via email and phone. Remote commissioning assistance available for safety network configuration, SNN validation, and safety program troubleshooting. On-site startup services offered for complex multi-zone safety systems.

Documentation Package: Includes installation quick-start guide, safety manual (IEC 61508 compliance), wiring diagrams, Studio 5000 sample programs, and certificate of conformity. Safety validation reports and TÜV certification documents provided upon request for regulatory submissions.

Frequently Asked Questions

What programming software version is required for the 1756-L7SP safety processor?
Studio 5000 Logix Designer version 21 or later with the GuardLogix safety instruction set is required. A separate safety edition license is needed to develop, edit, and download safety programs. Standard edition licenses can monitor but not modify safety logic.

Can the 1756-L7SP control both safety-rated and standard I/O simultaneously?
Yes, the processor executes safety and standard control tasks concurrently within separate memory partitions. Safety I/O modules (1756-IB16S, 1756-OB16S) connect via CIP Safety protocol, while standard I/O uses conventional EtherNet/IP or backplane communication—all managed from a single controller.

What is the maximum safety response time for emergency stop circuits?
Typical safety task scan times range from 2-10ms depending on program complexity and network configuration. For a simple E-stop circuit with local safety I/O, total response time (input detection to output de-energization) is typically <15ms, well within Category 4 performance requirements.

How does the 1756-L7SP integrate with existing ControlLogix systems?
The processor installs in any slot of a 1756 chassis alongside standard ControlLogix modules. It shares the same backplane communication, power distribution, and Studio 5000 programming environment. Existing standard control programs can be migrated and combined with new safety logic without hardware changes.

Is remote safety monitoring and diagnostics supported over Ethernet networks?
Yes, safety system status, fault diagnostics, and event logs are accessible via EtherNet/IP from HMI panels, SCADA systems, or remote engineering workstations. However, safety program modifications require local connection with proper authentication per IEC 61508 requirements. Read-only monitoring does not affect safety integrity level.

What certifications does the 1756-L7SP hold for global safety compliance?
The processor is certified to SIL 3 (IEC 61508), PLe/Category 4 (ISO 13849-1), and meets ANSI/RIA R15.06 for robotic safety applications. Additional certifications include UL 508, CSA C22.2 No. 142, CE marking, and ATEX Zone 2 for hazardous location installations. TÜV Rheinland validation reports available for regulatory submissions.

Take the Next Step

Ready to upgrade your safety control architecture? Contact our application engineers for a free system assessment and ROI analysis. We'll help you design a GuardLogix solution that meets your safety requirements while optimizing performance and cost. Request a quote today or schedule a technical consultation to discuss your specific application needs.
