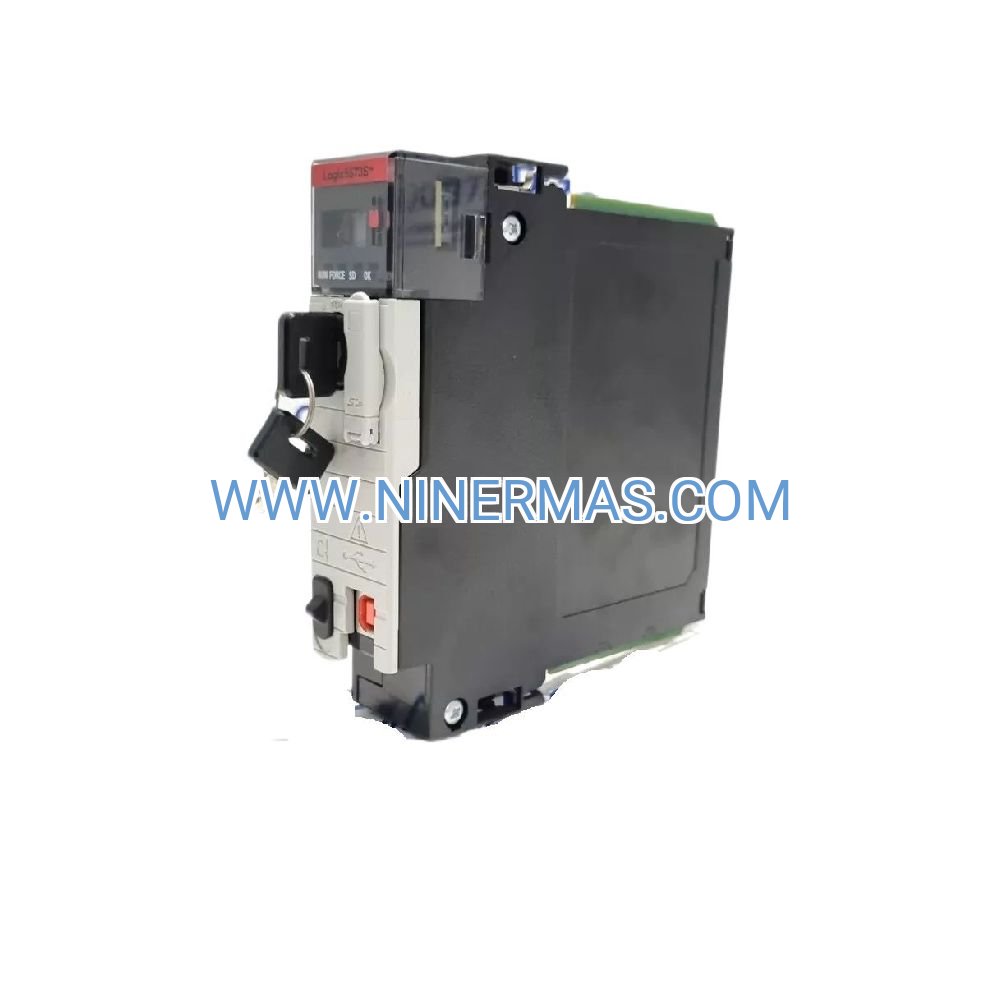

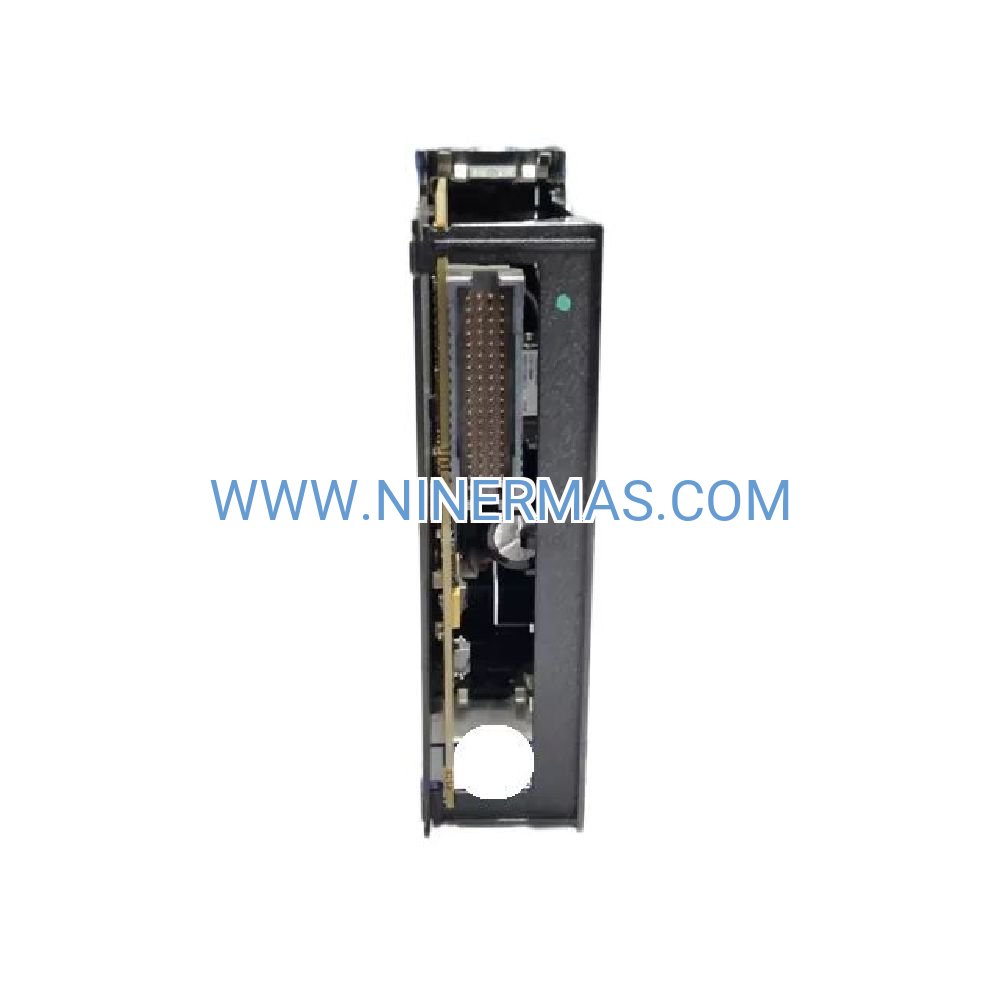

1756-L73S GuardLogix 5570 Safety PAC (Industrial-Grade Integrated Safety Controller)

The 1756-L73S is an industrial-grade safety programmable automation controller that unifies standard process control and certified safety logic within a single, high-performance platform. Engineered for mission-critical environments, this GuardLogix 5570 series controller delivers 8 megabytes of user memory for control tasks alongside 4 megabytes of dedicated safety memory, enabling simultaneous execution of complex automation sequences and safety-rated protective functions.

Designed to eliminate the complexity of managing separate control and safety systems, the 1756-L73S addresses the operational challenges faced by process engineers, machine builders, and plant automation teams. Whether you're protecting rotating machinery, implementing safety instrumented systems, or integrating collaborative robotics, this controller provides a certified, scalable foundation that reduces panel footprint, simplifies validation workflows, and accelerates time-to-production.

With full SIL 3, PLe, and SIL CL 3 certification, the 1756-L73S meets the most stringent international safety standards while maintaining the programming familiarity and ecosystem compatibility that ControlLogix users depend on. From turbomachinery protection to pharmaceutical batch processing, this controller transforms safety compliance from a constraint into a competitive advantage.

Core Features & Benefits

→ Dual-Memory Architecture for Parallel Processing
8MB standard memory handles high-speed control logic, motion coordination, and data acquisition, while 4MB isolated safety memory executes certified protective functions—eliminating performance bottlenecks and ensuring deterministic safety response times under all operating conditions.

→ Triple-Certified Safety Compliance
Achieves IEC 61508 SIL 3, ISO 13849-1 PLe, and IEC 62061 SIL CL 3 certification, providing documented proof of safety integrity for regulatory audits, insurance requirements, and international market access without additional validation overhead.

→ Native CIP Safety Protocol Integration
Embedded EtherNet/IP with CIP Safety enables real-time, deterministic safety communication across distributed I/O, drives, and third-party devices—reducing hardwired safety circuits by up to 70% and cutting installation labor costs significantly.

→ Unified Programming Environment
Studio 5000 Logix Designer consolidates standard and safety logic development in a single interface, leveraging pre-certified safety function blocks that reduce validation time from weeks to days while maintaining full audit traceability.

→ Scalable System Expansion
Hot-swappable I/O modules, redundancy support, and backward compatibility with existing 1756 infrastructure protect capital investments while enabling phased system upgrades without production interruption.

→ Advanced Diagnostic Intelligence
Built-in safety system health monitoring, predictive fault detection, and detailed event logging minimize unplanned downtime by identifying potential issues before they trigger safety shutdowns.

Application Scenarios

✓ Turbomachinery Protection Systems
Deploy in steam turbine, gas compressor, and centrifugal pump applications requiring API 670 vibration monitoring, overspeed detection, and emergency shutdown logic. The controller's high-speed processing ensures sub-10ms response times for critical trip functions while maintaining continuous condition monitoring.

✓ Chemical Process Safety Instrumented Systems (SIS)
Implement SIL-rated safety interlocks for reactor pressure relief, toxic gas detection, and emergency isolation valves in pharmaceutical, petrochemical, and specialty chemical facilities. Integrated safety memory eliminates the need for separate safety PLCs, reducing system complexity and validation burden.

✓ Packaging & Material Handling Safety Integration
Coordinate high-speed packaging lines with integrated safety light curtains, safety mats, e-stop circuits, and guard door interlocks. The controller's unified architecture enables seamless transition between production and safety modes, maximizing OEE while protecting operators.

✓ Power Generation & Distribution Control
Manage generator synchronization, load shedding, and turbine protection in combined-cycle plants, cogeneration facilities, and renewable energy installations. Certified safety functions handle critical trip logic while standard control manages optimization algorithms.

✓ Automotive & Aerospace Manufacturing
Orchestrate robotic welding cells, collaborative robot work zones, and automated guided vehicle (AGV) systems with integrated safety zones. The controller's CIP Safety protocol enables flexible safety architecture changes without rewiring, supporting agile manufacturing strategies.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-L73S when your application requires integrated safety control with moderate memory capacity. For applications exceeding 8MB standard memory or requiring more than 4MB safety memory, consider the 1756-L83ES (16MB/8MB). For non-safety applications, the 1756-L73K offers equivalent standard memory without safety functionality at reduced cost.

Extended Functions

Industrial IoT & Remote Monitoring Integration
Leverage built-in EtherNet/IP connectivity to integrate with FactoryTalk View HMI, FactoryTalk Analytics, and third-party SCADA systems. The controller supports OPC UA server functionality (with appropriate firmware), enabling secure data exchange with cloud-based analytics platforms and enterprise MES/ERP systems.

Advanced Motion Control Coordination
Coordinate up to 32 servo axes through integrated motion instructions, enabling synchronized multi-axis applications such as flying shear, registration control, and electronic camming—all while maintaining safety-rated motion monitoring and safe torque-off (STO) functionality.

Custom Safety Function Development
Beyond pre-certified safety function blocks, the controller supports custom safety logic development using structured text and ladder logic within the Studio 5000 safety task environment. All custom safety code undergoes automatic validation checks to maintain SIL 3 integrity.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS). Expedited same-day shipping available for urgent requirements.

Custom Configuration: Pre-programmed controllers with customer-specific logic and safety configuration available within 7-10 business days. Includes factory acceptance testing (FAT) documentation.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, firmware issues, and hardware failures. Advance replacement service available to minimize downtime.

Technical Support: Unlimited application engineering support via email and phone throughout warranty period. Remote troubleshooting and configuration assistance included.

Documentation Package: Each controller ships with safety certification records, conformity declarations, quick-start guide, and Studio 5000 configuration templates. Full technical manuals available for download.

Frequently Asked Questions

How does the 1756-L73S reduce total system cost compared to separate control and safety PLCs?
By consolidating standard and safety functions in one controller, you eliminate duplicate hardware, reduce panel space by 30-40%, simplify wiring infrastructure, and cut programming/validation time in half. Typical ROI is achieved within the first project through reduced engineering hours and faster commissioning.

What programming expertise is required for safety application development?
Engineers familiar with Studio 5000 Logix Designer can develop safety applications using the same ladder logic and structured text languages. Safety-specific training (TÜV-certified courses recommended) is required for safety validation and certification documentation. Pre-certified safety function blocks minimize custom code requirements.

Can this controller interface with non-Rockwell safety devices?
Yes, the CIP Safety protocol is an open standard supported by multiple vendors. The controller can integrate safety light curtains, safety relays, and safety I/O from manufacturers like Pilz, Sick, and Schmersal, provided they support CIP Safety over EtherNet/IP.

What is the maximum safety I/O capacity for this controller?
The 1756-L73S supports up to 128 safety I/O points and 32 safety network nodes over CIP Safety. For larger systems, multiple GuardLogix controllers can be networked with safety data exchange between controllers.

Is hot-swapping supported for maintenance without production shutdown?
The controller supports online firmware updates and configuration changes for non-safety modifications. For safety logic changes, a controlled shutdown is required per IEC 61508 validation procedures. When configured in a redundant pair (with 1756-RM2), seamless failover enables maintenance without process interruption.

How do I migrate from a legacy PLC-5 or SLC 500 safety system?
Rockwell Automation provides migration tools within Studio 5000 to convert legacy ladder logic. Safety logic requires re-validation regardless of migration method. Our engineering team offers migration services including logic conversion, safety validation, and FAT/SAT support.

Ready to Integrate Safety & Control?

The 1756-L73S GuardLogix 5570 controller is in stock and ready for immediate shipment. Our application engineers are available to discuss your specific safety requirements, recommend complementary I/O modules, and provide configuration guidance.
