Allen-Bradley 1756-L63/A Service-Ready Spare Part

Allen-Bradley 1756-L63/A Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

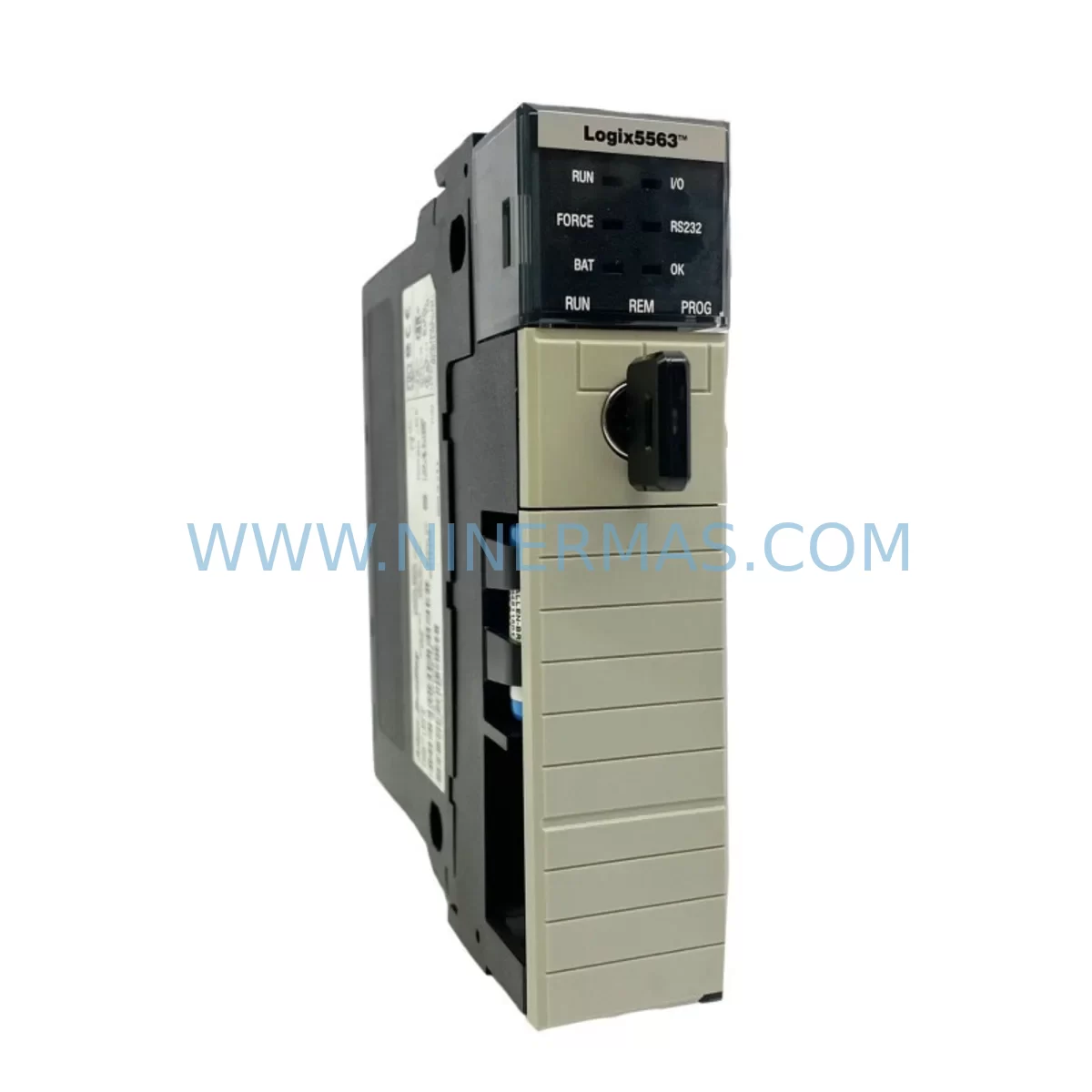

The Allen-Bradley 1756-L63/A is a ControlLogix Series A ruggedized processor module designed for demanding industrial automation environments. As a critical controller in Allen-Bradley’s 1756 ControlLogix platform, the 1756-L63/A delivers high-capacity program memory and robust I/O management for continuous process control, discrete manufacturing, and safety-integrated systems. When this processor fails or reaches end-of-service life, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, service-ready 1756-L63/A spare part from a reliable supplier is the fastest path to restoring full system operation.

At NINERMAS, we supply the 1756-L63/A as a tested, original-grade spare part backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm firmware compatibility, memory integrity, and communication readiness before leaving our facility. Whether you are managing a planned annual overhaul, responding to an emergency processor fault, or building a strategic spare parts inventory for your control cabinet, the 1756-L63/A we supply is ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1756-L63/A processor is rarely an isolated task. Experienced maintenance engineers know that a processor fault often signals broader stress across the control cabinet. When performing a 1756-L63/A replacement, a thorough site inspection should cover the following associated components to prevent repeat failures and ensure full system restoration.

Begin with the 1756-PA72 or 1756-PB72 power supply module. A degraded power supply is one of the most common root causes of processor instability and memory corruption. Verify output voltage stability and check for capacitor aging before reinstalling the new processor. Next, inspect all 1756-ENBT or 1756-EN2T EtherNet/IP communication modules in the chassis — a faulty network module can cause the replacement processor to report communication faults immediately after startup, delaying recovery.

Check the 1756-IB16 and 1756-OB16E digital I/O modules for blown fuses, damaged field wiring terminals, and LED fault indicators. I/O module failures are frequently masked by processor faults and will resurface after the processor is replaced if not addressed. Similarly, inspect any 1756-IF8 analog input modules for signal drift or calibration errors that may have contributed to the original fault condition.

For systems using motion control, verify the status of 1756-M02AE or 1756-M03SE servo drive interface modules and confirm that axis configuration data is intact in the replacement processor’s program. If the cabinet includes safety functions, the 1756-L61S or 1756-L62S GuardLogix safety processor partner controller should be inspected and its safety task verified after the standard processor is replaced.

Do not overlook the 1784-CF64 CompactFlash memory card — this is the primary backup medium for the 1756-L63/A program. Confirm the card is readable and that the latest program version is stored before powering down for replacement. For cabinets with remote I/O racks, check the 1756-DHRIO ControlNet/DH+ bridge module and all associated trunk cables for continuity. Finally, inspect the 1756-TBS6H terminal base units and field wiring connections for corrosion, loose terminations, or insulation damage that could cause intermittent faults after the new processor is commissioned.

Building a recommended spare parts kit around the 1756-L63/A — including at minimum one spare power supply, one EtherNet/IP communication module, and a set of high-density I/O modules — is a best practice for any facility running ControlLogix-based production lines. NINERMAS can support multi-line spare parts procurement for the full 1756 platform.

Site Replacement Workflow

Replacing the 1756-L63/A on a live production system requires a structured approach to minimize downtime and avoid configuration loss. Begin by exporting the current program from RSLogix 5000 or Studio 5000 Logix Designer and saving it to both the 1784-CF64 CompactFlash card and an offline backup location. Document the current processor firmware revision — the replacement unit must be loaded with the same or a compatible firmware version to ensure seamless program restore.

Power down the chassis using the 1756-PA72 power supply switch. Remove the 1756-L63/A by pressing the top and bottom locking tabs and sliding the module out of the backplane slot. Insert the replacement 1756-L63/A, ensuring the module seats fully into the 1756 chassis backplane connector. Restore power and allow the processor to complete its self-test sequence. Load the saved program via the CompactFlash card or USB programming cable, verify all I/O module status LEDs return to RUN state, and confirm EtherNet/IP communication is re-established with all remote devices.

For systems migrating from older 1756-L55 or 1756-L60 series processors, the 1756-L63/A offers expanded memory and improved scan time performance, making it a viable upgrade path that maintains full compatibility with existing 1756 chassis, power supplies, and I/O modules. This upgrade path extends the operational life of legacy ControlLogix systems without requiring a full control cabinet redesign, significantly reducing capital expenditure while improving system reliability.

Spare Parts Support FAQ

Q1: Is the 1756-L63/A you supply an original Allen-Bradley unit?
Yes. NINERMAS supplies original Allen-Bradley 1756-L63/A processor modules sourced through verified industrial supply channels. Each unit is inspected and functionally tested prior to shipment. We do not supply counterfeit, refurbished-without-disclosure, or grey-market units.

Q2: What firmware version will the 1756-L63/A ship with, and can it be updated on-site?
Firmware versions vary by available stock. We will confirm the firmware revision with you before shipment. The 1756-L63/A firmware can be updated on-site using ControlFLASH or Studio 5000 Logix Designer, provided you have the appropriate Rockwell Automation firmware subscription. We recommend confirming your target firmware version before ordering to ensure compatibility with your existing program.

Q3: What is your lead time and do you support long-term supply agreements for the 1756-L63/A?
Standard in-stock units ship within 1–3 business days. For facilities requiring ongoing spare parts support, NINERMAS offers long-term supply agreements with reserved inventory allocation, priority fulfillment, and fixed pricing. Contact our team to discuss a customized spare parts support plan for your ControlLogix installation.

Q4: What warranty coverage is included with the 1756-L63/A?
All 1756-L63/A units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Warranty coverage includes DOA (dead-on-arrival) replacement, functional failure under normal operating conditions, and technical support for installation and commissioning. Warranty claims are processed within 5 business days of fault confirmation.
