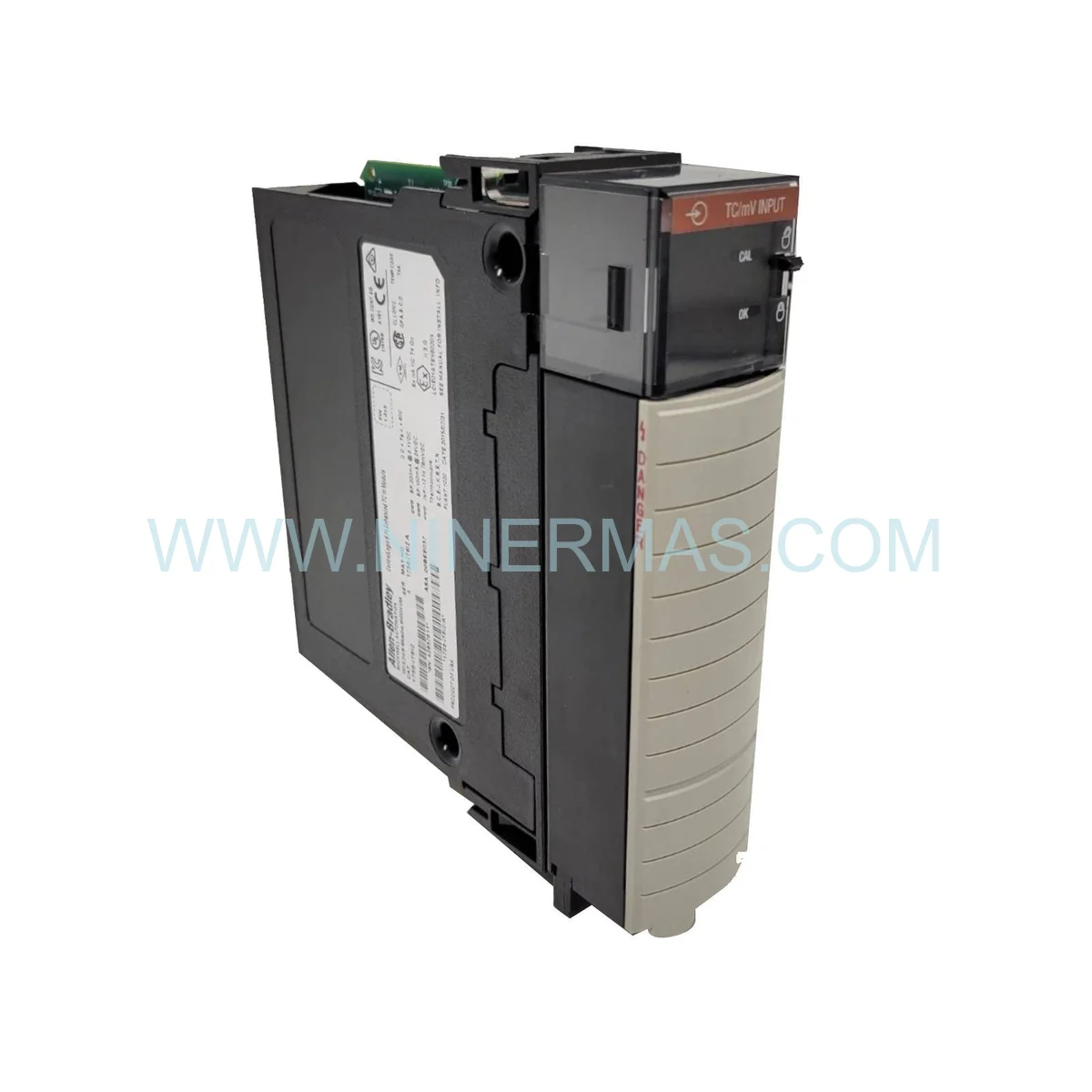

Allen Bradley 1756-IT6I2/A ControlLogix Thermocouple Input Module – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager operating across petrochemical, power generation, and discrete manufacturing sectors, I can confirm that the Allen Bradley 1756-IT6I2/A occupies a mission-critical position within Rockwell Automation’s ControlLogix Distributed Control System architecture. This enhanced isolated thermocouple and millivolt input module delivers six fully independent measurement channels — each galvanically isolated to 250V continuous — making it indispensable for Process Control environments where ground loop interference and cross-channel contamination are unacceptable risks. The Allen Bradley 1756-IT6I2/A integrates seamlessly into the ControlLogix backplane via the standard 1756 chassis, communicating over the high-speed ControlBus at deterministic scan rates configurable from 10ms to 10 seconds per channel.

From a technical compatibility standpoint, this module supports nine thermocouple types — J, K, T, E, R, S, B, N, and C (W5Re/W26Re) — alongside a ±100mV DC millivolt input range, giving engineers the flexibility to standardize on a single DCS Hardware platform across heterogeneous sensor networks. Its 16-bit analog-to-digital conversion delivers ±0.15% full-scale accuracy with automatic internal cold junction compensation per channel, eliminating the need for external reference junctions. For facilities managing Legacy Components within aging ControlLogix racks, this module represents a direct, firmware-compatible replacement that requires no chassis modification or software re-architecture.

Original factory-sealed inventory of the 1756-IT6I2/A has become increasingly scarce as Rockwell Automation transitions its product roadmap. Our stock is sourced directly from authorized distribution channels, arriving in original manufacturer packaging with intact factory seals — a critical assurance for facilities operating under IEC 61511 functional safety requirements or FDA 21 CFR Part 11 validation protocols.

Key Technical Highlights

Six Isolated Channels: Full galvanic isolation at 250V continuous between each channel and the backplane — eliminates ground loops in Fieldbus and multi-zone thermal systems.
Multi-Type Thermocouple Support: Configurable per channel for J, K, T, E, R, S, B, N, C types plus ±100mV DC millivolt range — maximum sensor flexibility.
16-Bit Resolution: High-speed ADC with ±0.15% full-scale accuracy ensures precise temperature data for closed-loop Process Control and safety interlock systems.
Automatic CJC: Built-in cold junction compensation per channel removes external reference junction hardware, reducing installation complexity and failure points.
Redundancy-Ready Architecture: Compatible with ControlLogix redundancy chassis configurations, supporting hot-standby DCS Hardware topologies for zero-downtime operations.
Advanced Diagnostics: Open thermocouple detection, over/under-range alarms, and channel-level fault reporting — critical for SIS (Safety Instrumented System) compliance.
Configurable Filtering: Selectable input filtering reduces noise in high-EMI environments such as arc furnaces, VFD-dense panels, and offshore platforms.
