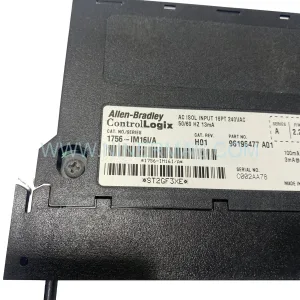

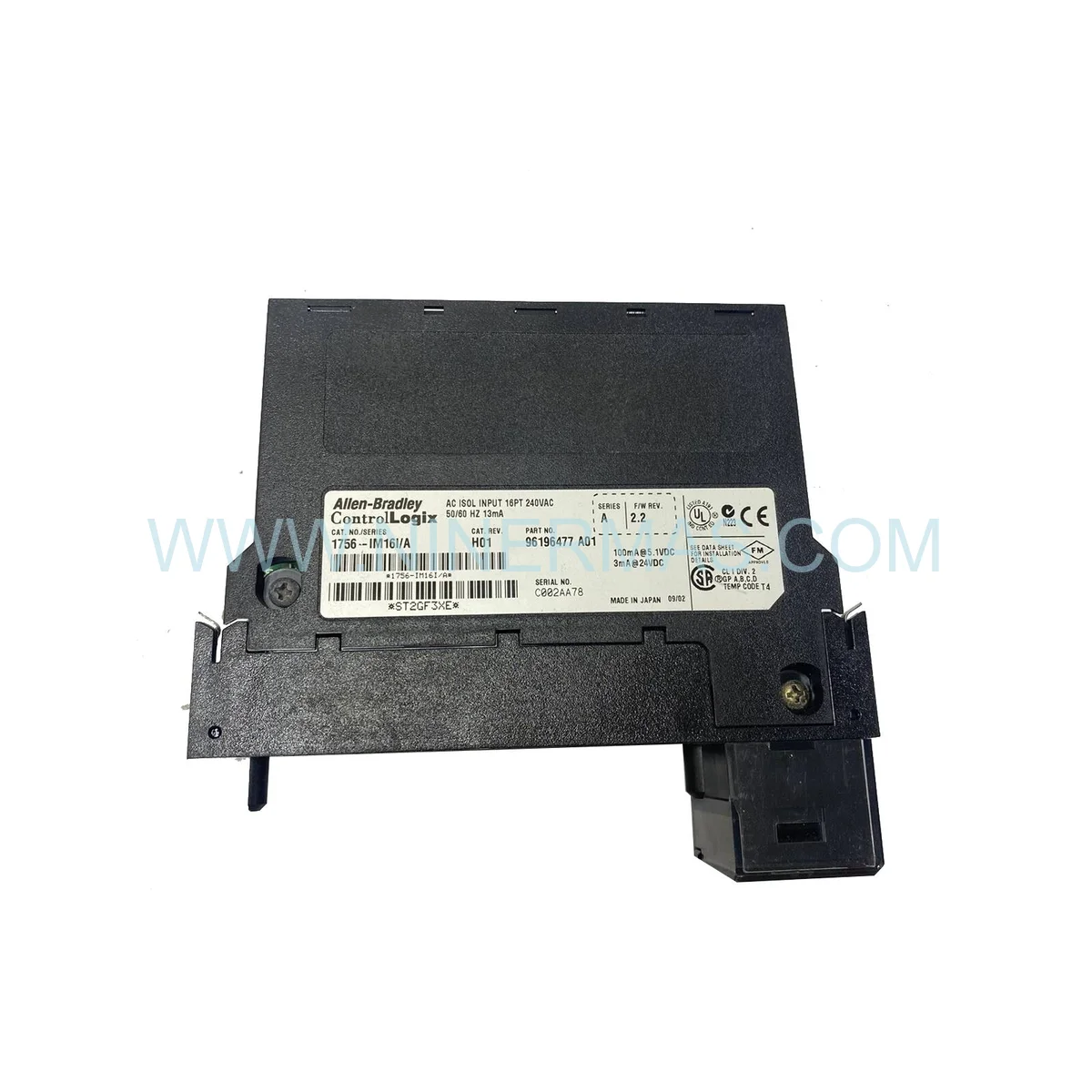

Allen-Bradley 1756-IM16I/A Isolated AC Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a well-specified digital input module in a Distributed Control System. The Allen-Bradley 1756-IM16I/A is precisely that kind of component — a 16-channel isolated AC digital input module built for the ControlLogix platform, where reliability is not optional. Deployed across Petrochemical refineries, power generation facilities, and advanced manufacturing lines, this module serves as the critical sensing interface between high-voltage AC field devices and the DCS Hardware backbone, ensuring that every signal is captured with precision and electrical integrity. The 1756-IM16I/A achieves this through per-channel 2500V AC optical isolation, a design philosophy that eliminates ground loops and shields the entire control network from voltage transients endemic to heavy industrial environments.

What distinguishes this module from generic alternatives is its deep compatibility within the ControlLogix ecosystem. It slots into any 1756-series chassis — from the compact 1756-A4 to the expansive 1756-A17 — and communicates seamlessly over the high-speed ControlLogix backplane with L7x and L8x series processors. For facilities managing Legacy Components within aging DCS architectures, the 1756-IM16I/A represents a technically sound, drop-in solution that avoids costly system-wide upgrades. Its configurable input filters, accepting 79-265V AC across all 16 channels simultaneously, make it equally suited for mixed-voltage monitoring scenarios that would challenge lesser modules.

Original factory-sealed stock of the 1756-IM16I/A is increasingly scarce. As Allen-Bradley continues to evolve its ControlLogix portfolio, procurement windows for genuine, unused units narrow. Our inventory is sourced directly from authorized distribution channels, stored under controlled conditions, and verified against Rockwell Automation’s original packaging standards — making each unit a reliable asset for both immediate deployment and long-term Maintenance Stock strategies.

Key Technical Highlights

16 Individually Isolated Input Channels — 2500V AC optical isolation per channel eliminates cross-channel interference and ground loop risks in high-noise Process Control environments.
Wide Voltage Acceptance: 79-265V AC, 47-63 Hz — Supports both 120V and 240V AC field devices on the same module without hardware reconfiguration.
Configurable Input Filters (10-25 ms) — Software-adjustable response time balances noise rejection against signal latency for Fieldbus-integrated and standalone applications.
Removable Spring-Clamp Terminal Blocks (RTB) — Enables hot-swap module replacement without rewiring, dramatically reducing Mean Time to Repair (MTTR) during Emergency Repair scenarios.
Electronic Keying & LED Diagnostics — Module and channel-level indicators provide instant fault visibility; electronic keying prevents incorrect module insertion, a critical Redundancy safeguard.
Conformal Coating Standard — Factory-applied protective coating ensures reliable operation in humid, corrosive, or thermally variable industrial atmospheres (0-60°C operating range).
Low Backplane Draw: 150 mA @ 5V DC — Efficient power consumption supports high-density chassis configurations without exceeding backplane power budgets.

Vertical Industry Applications

Petrochemical & Refining: The 1756-IM16I/A monitors AC-powered pressure switches, valve position indicators, and emergency shutdown (ESD) interlocks across hazardous process units. Its per-channel isolation prevents a single field fault from cascading into a DCS Hardware failure, directly reducing unplanned system downtime in continuous-process environments where every minute of outage carries significant financial consequence.

Mining & Mineral Processing: In conveyor systems, crusher controls, and ventilation monitoring, this module interfaces with 240V AC motor starter auxiliary contacts and safety gate switches. The conformal coating and wide temperature tolerance make it resilient against the dust, vibration, and humidity characteristic of underground and open-pit mining operations.

Marine & Offshore Platforms: Offshore oil and gas installations demand components that withstand salt-laden atmospheres and stringent electrical isolation requirements. The 1756-IM16I/A’s 2500V isolation rating and conformal coating meet the environmental demands of marine automation panels, supporting Legacy Upgrade projects on aging platform control systems.

Power Generation & Utilities: Substation automation and turbine control systems rely on this module to monitor circuit breaker auxiliary contacts, transformer tap positions, and switchgear status signals. Its Fieldbus compatibility and high-speed backplane communication ensure that critical status changes are reflected in the control system within milliseconds.

Automotive & Heavy Manufacturing: Body-in-white welding lines, paint shop conveyors, and press safety systems use the 1756-IM16I/A to aggregate AC limit switch and safety relay signals. The module’s diagnostic transparency accelerates fault isolation during production stoppages, supporting lean maintenance philosophies where downtime reduction is a primary KPI.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 1756-IM16I/A supplied through our channel is 100% Original Allen-Bradley, sourced from authorized distributors and verified against Rockwell Automation’s factory packaging and labeling standards. We do not supply refurbished, remanufactured, or counterfeit components — a commitment backed by our inspection protocol and traceable supply chain documentation.

Each module is covered by a 12-Month Comprehensive Warranty against manufacturing defects and workmanship failures. Should a unit exhibit any fault within the warranty period, we provide direct replacement or full refund — no bureaucratic delays.

For facilities facing unplanned outages or critical system failures, our Emergency Delivery service dispatches verified stock within 24 hours via DHL Express, FedEx International Priority, or UPS Worldwide Express. We serve maintenance teams across North America, Europe, the Middle East, Southeast Asia, and beyond — because industrial downtime does not respect time zones.

This is a Critical Part for Industry Safety. The 1756-IM16I/A is embedded in safety interlock chains, emergency shutdown systems, and process monitoring loops across regulated industries. Substituting it with unverified alternatives introduces unacceptable risk. Genuine parts, properly sourced, are the only defensible choice for engineers responsible for plant safety and regulatory compliance.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a 1756-IM16I/A unit is genuinely original and not counterfeit?
Authentic Allen-Bradley modules carry a holographic Rockwell Automation label on the housing, a traceable date code, and consistent font/color standards on all printed markings. The catalog number 1756-IM16I/A must appear in full on both the module faceplate and the original packaging insert. We provide a Certificate of Authenticity and supply chain documentation upon request for every unit shipped.

Q2: Where can I obtain the official Datasheet and User Manual for the 1756-IM16I/A?
The official publication is Rockwell Automation document 1756-UM058 (ControlLogix Digital I/O Modules User Manual). It is available through Rockwell’s Literature Library. Our technical team can also provide application-specific configuration guidance and wiring diagrams as part of pre-sales support.

Q3: Is the 1756-IM16I/A compatible with newer ControlLogix V30+ firmware environments?
Yes. The 1756-IM16I/A is backward and forward compatible across the ControlLogix platform. It operates with Studio 5000 Logix Designer v21 through v35+ and is recognized by all current L7x and L8x processors. Electronic keying can be set to “Compatible Module” or “Exact Match” depending on your system’s version control policy.

Q4: Can this module be used in a Legacy Upgrade project replacing older 1771 PLC-5 I/O?
The 1756-IM16I/A is a ControlLogix-native module and does not directly replace 1771-series I/O without a migration adapter or system redesign. However, it is the correct target module for any DCS Hardware modernization project migrating from PLC-5 or SLC 500 platforms to ControlLogix. Our engineering team can advise on migration architecture and compatible adapter solutions.

Q5: What is the lead time for emergency orders, and which regions do you serve?
For in-stock units, emergency orders are dispatched within 24 hours of payment confirmation. Standard delivery via DHL/FedEx/UPS reaches most global destinations within 3-7 business days. We serve clients in the Americas, Europe, Middle East, Africa, and Asia-Pacific. Contact our team directly for time-critical requirements — we maintain dedicated logistics channels for Emergency Repair situations.

Q6: Does the 1756-IM16I/A support Fieldbus or EtherNet/IP communication directly?
The module itself communicates over the ControlLogix backplane — it does not have an independent Fieldbus or EtherNet/IP port. Network communication is handled by the ControlLogix processor and communication modules (e.g., 1756-EN2T for EtherNet/IP). The module’s data is accessible to SCADA, MES, and historian systems through the processor’s network interface, making it fully compatible with modern Fieldbus-integrated architectures.
