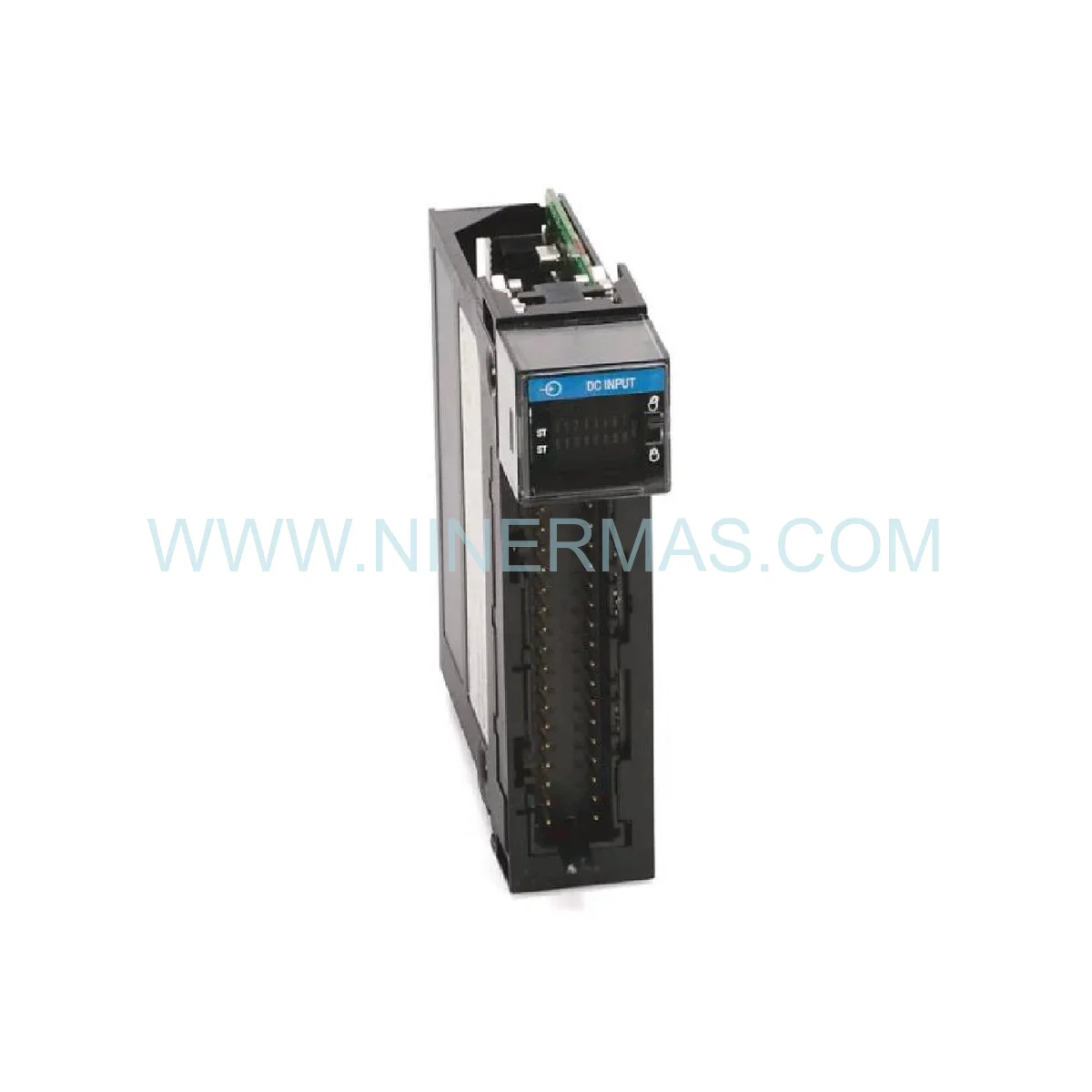

Allen-Bradley 1756-IH16I 125V DC Isolated Digital Input Module | ControlLogix

Allen-Bradley 1756-IH16I Digital Input Module – Industrial Process Solution

Technical Overview & First Impression

As a seasoned Industrial Solution Architect, I can confirm that the Allen-Bradley 1756-IH16I occupies a mission-critical position within Distributed Control System (DCS) and Process Control architectures. This 16-point isolated digital input module is purpose-built for the ControlLogix 1756 platform, delivering 125V DC sink/source capability with channel-to-channel isolation — a specification that directly addresses the noise immunity demands of high-voltage discrete sensing in petrochemical, power generation, and heavy manufacturing environments. The Allen-Bradley 1756-IH16I is not merely a peripheral card; it is the sensory interface between field instrumentation and the control backbone of your plant.

From a technical compatibility standpoint, this module integrates natively with the ControlLogix 1756 chassis backplane and is fully supported under RSLogix 5000 and Studio 5000 Logix Designer environments. Its dual sink/source input architecture eliminates the need for external signal conditioning when interfacing with both PNP and NPN field devices — a decisive advantage over competing Fieldbus-based I/O solutions that require additional gateway hardware. For facilities managing legacy DCS Hardware migrations or hybrid automation topologies, this module provides a stable, standards-compliant bridge between older field wiring schemes and modern control platforms.

Original factory-sealed stock of the 1756-IH16I is increasingly scarce in the global supply chain. As Allen-Bradley continues to evolve its ControlLogix portfolio, procurement windows for genuine, un-opened units are narrowing. Securing verified Factory Sealed inventory now is a strategic imperative for any maintenance or capital project team responsible for system uptime.

Key Technical Highlights

16 Fully Isolated Digital Inputs — Channel-to-channel and channel-to-backplane isolation eliminates ground loop interference in electrically noisy industrial environments.
125V DC Sink/Source Operation — Configurable per-channel for maximum field device compatibility without external relays or signal converters.
High-Speed Input Response — Optimized scan cycle performance supports time-critical Process Control interlocking and safety sequencing.
Redundancy-Ready Architecture — Fully compatible with ControlLogix redundancy configurations, supporting Stability and continuous operation in high-availability plant environments.
Backplane-Powered Design — Draws power directly from the 1756 chassis; no external 24V supply required, reducing panel complexity.
Hot-Swap Capability — Supports online module replacement without system shutdown, a critical feature for continuous-process industries.
Global Certifications — UL, CE, and CSA listed for deployment across North American, European, and Asia-Pacific regulated facilities.

Vertical Industry Applications

Petrochemical & Refining: The 1756-IH16I monitors high-voltage limit switches, valve position feedback, and emergency shutdown (ESD) interlock signals within Safety Instrumented Systems (SIS). Its isolated architecture prevents common-mode voltage faults from propagating across the control network, directly reducing unplanned system downtime in continuous-process units.

Mining & Mineral Processing: Deployed on conveyor drive status monitoring, crusher interlock circuits, and hopper level detection. The module’s robust isolation tolerates the high electromagnetic interference (EMI) generated by variable frequency drives and large motor starters common in mining environments.

Marine & Offshore Platforms: Used in vessel automation and offshore platform control systems where 125V DC field power is standard. The CSA and CE certifications satisfy classification society requirements for marine-grade control equipment.

Power Generation & Utilities: Integrated into turbine control panels and substation automation systems for breaker status monitoring, generator interlock feedback, and protection relay input acquisition — applications where signal integrity is non-negotiable.

Pharmaceutical & Food Processing: Supports GMP-compliant discrete I/O monitoring in cleanroom and hygienic process environments, where the module’s noise immunity and reliable scan performance underpin batch control consistency and regulatory audit readiness.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Allen-Bradley 1756-IH16I supplied through our network is 100% Original Allen-Bradley manufacture, sourced exclusively from authorized distribution channels and verified factory-sealed inventory. We do not supply refurbished, reconditioned, or third-party cloned components under any circumstances.

Our quality assurance process includes visual inspection of factory seals, label authentication against Allen-Bradley’s official part marking standards, and functional verification documentation upon request. Each shipment is accompanied by a Certificate of Conformance and, where available, original Allen-Bradley packaging with intact holographic security labels.

12-Month Comprehensive Warranty: Covers all manufacturing defects, premature component failure, and performance deviations from published specifications. Warranty claims are processed within 5 business days with advance replacement options available for critical plant applications.

Emergency Global Delivery: We maintain strategic inventory positions to support urgent maintenance scenarios. Express shipment via DHL Express, FedEx International Priority, and UPS Worldwide Express is available with same-day dispatch for in-stock orders placed before 14:00 UTC. Customs documentation, commercial invoices, and HS code classification support are provided as standard for all international shipments.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How can I verify that the 1756-IH16I I receive is 100% original Allen-Bradley and not a counterfeit?
A: Authentic Allen-Bradley 1756-IH16I modules carry a holographic security label on the module housing, a date code stamped on the PCB visible through the ventilation slots, and a catalog label with a scannable barcode matching Allen-Bradley’s official part numbering format. We provide photographic documentation of these identifiers prior to shipment upon request, and all units are supplied in original, factory-sealed Allen-Bradley packaging.

Q2: Can I obtain the official datasheet and wiring diagram for the 1756-IH16I?
A: Yes. The official Allen-Bradley 1756-IH16I installation instructions and technical specifications are published by Rockwell Automation under publication number 1756-IN572. We can provide a copy of the relevant technical documentation package with your order to support your engineering team’s installation and commissioning activities.

Q3: Which ControlLogix firmware versions are compatible with the 1756-IH16I?
A: The 1756-IH16I is compatible with all major ControlLogix controller firmware revisions from v13.x onward. It is recognized automatically by RSLogix 5000 v13 and all subsequent Studio 5000 Logix Designer releases. No firmware update to the module itself is required; configuration is managed entirely through the controller’s I/O tree.

Q4: Is the 1756-IH16I suitable for use in SIS (Safety Instrumented System) applications?
A: The 1756-IH16I is a standard ControlLogix I/O module and is not independently SIL-rated. For SIS applications requiring IEC 61511 compliance, it should be used in conjunction with Allen-Bradley’s GuardLogix safety controller platform and appropriate safety-rated I/O modules. However, it is widely deployed in non-safety-rated interlock monitoring roles within SIS-adjacent control layers.

Q5: What is the lead time for emergency orders, and do you support partial shipments?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 UTC. Partial shipments are fully supported — we can ship available stock immediately while sourcing remaining quantities from our global supply network. Typical emergency delivery to major industrial hubs in Europe, the Americas, and Asia-Pacific is 2-5 business days via DHL or FedEx express services.

Q6: Can the 1756-IH16I replace an older 1756-IA16I or 1756-IB16I module in an existing system?
A: The 1756-IH16I is a distinct catalog number optimized for 125V DC field power, whereas the 1756-IA16I is rated for 120/240V AC and the 1756-IB16I for 24V DC. Direct substitution is not recommended without an engineering review of field wiring voltage levels and I/O configuration. Our technical team can assist with compatibility assessment and migration planning for Legacy Components upgrade projects.

Emergency Repair Scenario: Why the 1756-IH16I Is a Critical Part for Industry Safety

Consider a scenario that plays out in refineries and power plants worldwide: a single failed digital input module triggers a cascade of false interlock activations, forcing an unplanned shutdown of a critical process unit. Every hour of downtime in a petrochemical plant can represent losses exceeding $50,000 USD. The Allen-Bradley 1756-IH16I is precisely the type of DCS Hardware component that sits at the intersection of process continuity and plant safety — its failure is not a minor inconvenience, it is a production emergency.

Our emergency repair supply service is designed for exactly this scenario. With verified factory-sealed stock, pre-cleared customs documentation, and express carrier partnerships, we can place a genuine 1756-IH16I on a technician’s workbench within 48 hours of order confirmation in most global locations. For maintenance teams operating under a Mean Time To Repair (MTTR) target, this capability is not a luxury — it is a supply chain necessity. The 1756-IH16I is a Critical Part for Industry Safety, and its availability in your maintenance stock directly determines your plant’s resilience against unplanned outages.
