Allen-Bradley 1756-IG16 | 16-Point 5VDC TTL Digital Input Module

Allen-Bradley 1756-IG16 16-Point 5VDC TTL Digital Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the Allen-Bradley 1756-IG16 represents a precision-engineered gateway between TTL-level field devices and the ControlLogix Distributed Control System backbone. Within any DCS Hardware architecture, this module occupies a mission-critical role: it translates 5V DC TTL source signals — the native language of encoders, semiconductor test rigs, and legacy relay logic — into deterministic data streams that the ControlLogix processor can act upon in real time. Process Control integrity begins at the I/O layer, and the Allen-Bradley 1756-IG16 is where that integrity is established.

What distinguishes this module from generic digital input alternatives is its tight voltage tolerance window of 4.5-5.5V DC, a specification that ensures compatibility with Fieldbus-adjacent TTL devices without signal degradation. Unlike 24V DC modules that require step-down conditioning circuits, the 1756-IG16 interfaces directly — eliminating conversion latency and reducing BOM complexity. For engineers managing Legacy Components within a modernizing plant, this direct compatibility is not a convenience; it is a system-level requirement.

Original stock of the 1756-IG16 is increasingly scarce. As Allen-Bradley transitions its ControlLogix portfolio, Factory Sealed units sourced through verified supply chains carry a premium that reflects both their technical value and their diminishing availability. Securing this component now — rather than during an unplanned shutdown — is the decision that separates proactive maintenance from reactive crisis management.

Key Technical Highlights

16 Independent TTL Input Channels — Full 16-point single-ended signal acquisition with channel-to-backplane isolation for superior noise immunity in high-EMI environments.
5V DC TTL Voltage Range (4.5-5.5V) — Precision logic-level detection engineered for Fieldbus-adjacent and semiconductor-grade field devices.
High-Speed Input Response — Sub-millisecond scan cycle compatibility supports time-critical Process Control loops without data loss.
Hot-Swap Capability — Module replacement under live backplane power minimizes system downtime; critical for Redundancy-driven SIS and DCS architectures.
Removable Terminal Block (1756-TBNH) — Pre-wired field connections survive module swaps intact, accelerating emergency maintenance cycles.
Conformal Coating — Factory-applied protection against humidity, dust, and chemical vapors extends service life in harsh industrial environments.
Studio 5000 / RSLogix 5000 Native Integration — Zero-configuration add-on instruction support; plug-and-play within existing ControlLogix project files.

Vertical Industry Applications

Petrochemical & Refining: In continuous process plants, the 1756-IG16 monitors TTL-output proximity sensors and flow pulse transmitters across distillation columns and reactor vessels. Its channel isolation prevents ground loop interference — a common failure mode in chemically aggressive environments — thereby reducing unplanned shutdowns that cost operators tens of thousands of dollars per hour.

Semiconductor Fabrication: Wafer handling robots and photolithography equipment generate dense TTL signal traffic. The 1756-IG16’s 5V logic compatibility eliminates the need for signal conditioning boards, simplifying cabinet layouts and reducing potential failure points in cleanroom automation cells.

Mining & Mineral Processing: Conveyor belt encoders and crusher position sensors operating at TTL levels feed directly into the 1756-IG16, enabling real-time load monitoring and predictive maintenance algorithms within the plant’s Distributed Control System. Downtime in mining operations translates directly to lost tonnage; this module’s reliability profile is non-negotiable.

Marine & Offshore Platforms: Vessel automation systems integrating Legacy Components from multiple OEM generations rely on TTL-compatible I/O to bridge older instrumentation with modern DCS Hardware. The 1756-IG16’s conformal coating and wide operating temperature range (0-60°C) make it suitable for the thermal cycling and salt-air exposure characteristic of offshore environments.

Automated Test Equipment (ATE): Electronics manufacturers use ControlLogix-based ATE platforms to validate PCB assemblies at production speed. The 1756-IG16 captures pass/fail TTL signals from test fixtures at rates that keep pace with high-throughput lines, ensuring Factory Sealed quality standards are maintained across every unit tested.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every Allen-Bradley 1756-IG16 unit supplied through our network undergoes a rigorous multi-stage verification process before dispatch. Units offered as Factory Sealed are sourced exclusively from authorized distribution channels and arrive in original Allen-Bradley packaging with intact tamper-evident seals. Tested Surplus units pass a full functional verification protocol — including channel-by-channel input response testing and backplane communication validation — before receiving our quality certification stamp.

Our supply chain is built for the realities of industrial emergency response. When a DCS Hardware failure threatens production continuity, standard lead times are unacceptable. We maintain bonded inventory of Critical Part for Industry Safety components — including the 1756-IG16 — specifically to support same-day dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express. Customs documentation, export compliance screening, and commercial invoicing are handled in-house to eliminate third-party delays.

All shipments are covered by a 12-Month Comprehensive Warranty against manufacturing defects and functional failures. Our post-sale technical support team — staffed by engineers with hands-on ControlLogix experience — provides configuration guidance, fault diagnosis, and replacement coordination throughout the warranty period.

Buyer’s FAQ — Selection Guide

Q: How do I verify that a 1756-IG16 unit is 100% original and not counterfeit?

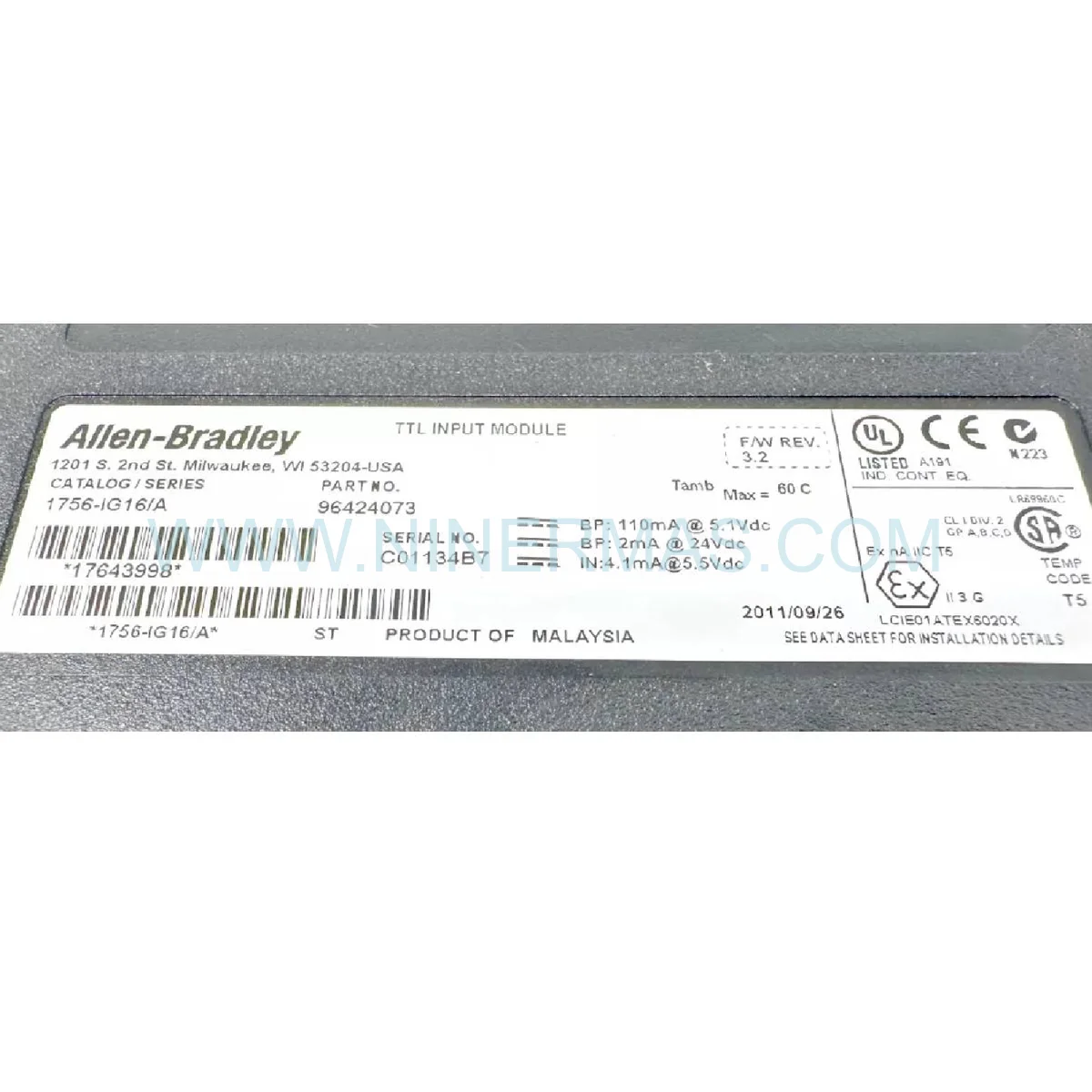

A: Authentic Allen-Bradley 1756-IG16 modules carry a holographic Rockwell Automation label on the module body, a date code stamped on the rear housing, and a catalog number that matches the label exactly. Factory Sealed units will have unbroken shrink wrap and original ESD packaging. Request a photo of the label and packaging before purchase, and cross-reference the serial number with Rockwell’s product verification resources if available in your region.

Q: Where can I obtain the official datasheet and wiring diagram for the 1756-IG16?
A: The official publication is Rockwell Automation document 1756-UM058, available through the Rockwell Automation Literature Library (literature.rockwellautomation.com). This document covers installation, wiring, configuration, and diagnostic procedures. We can also provide application-specific wiring guidance upon request.

Q: Is the 1756-IG16 compatible with all ControlLogix chassis and processor revisions?
A: The 1756-IG16 is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot variants) and all ControlLogix processor families, including the 5550, 5560, 5570, and 5580 series. Firmware revision requirements are minimal; however, we recommend running Studio 5000 v21 or later for full diagnostic visibility. Confirm your chassis backplane revision if integrating into a system older than Series B.

Q: What is the lead time for emergency orders, and which shipping carriers do you use?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express. Typical transit times are 1-3 business days to major industrial hubs in Asia, Europe, and the Americas. Emergency freight documentation is prepared in-house to avoid customs delays.

Q: Can the 1756-IG16 replace a failed module in a running system without a full shutdown?
A: Yes. The 1756-IG16 supports hot-swap replacement within a live ControlLogix chassis. The processor will automatically re-establish communication with the new module upon insertion, provided the replacement module matches the original catalog number and the I/O configuration has not been altered. Always follow Rockwell’s hot-swap procedures and ensure field wiring is de-energized at the terminal block before physical removal.

Q: Is this module suitable for Safety Instrumented System (SIS) applications?
A: The standard 1756-IG16 is a general-purpose Process Control module and is not SIL-rated for use in Safety Instrumented Systems. For SIS applications requiring IEC 61511 compliance, Rockwell Automation’s GuardLogix or 1756-IB16S safety-rated modules should be specified. Contact our engineering team for guidance on safety architecture design.
