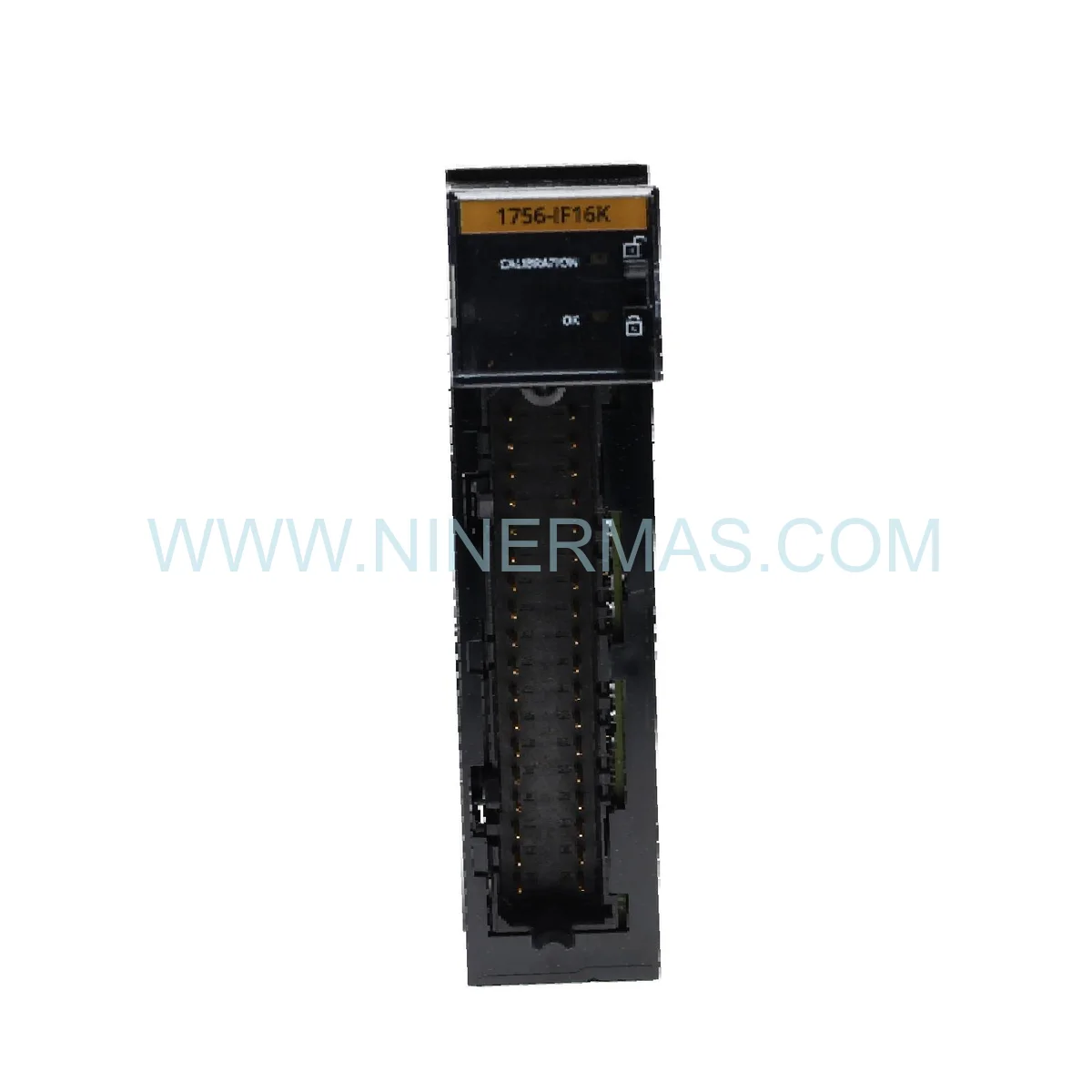

Allen-Bradley 1756-IF16K | Analog Input Module Conformal Coated

Allen-Bradley 1756-IF16K — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1756-IF16K represents a cornerstone component in maintaining the operational integrity of mission-critical automation architectures. Engineered to deliver 16-channel analog signal acquisition with conformal coating protection, the 1756-IF16K fulfills a decisive role in environments where signal fidelity, environmental resilience, and system continuity are non-negotiable compliance requirements. Its integration into ControlLogix chassis ensures seamless data throughput with minimal latency, directly supporting Safety Integrity objectives across regulated industrial facilities.

Within the framework of Industry 4.0 and smart manufacturing ecosystems, the 1756-IF16K demonstrates long-term architectural compatibility with Rockwell Automation’s Logix platform. Its support for both integer and floating-point data formats, combined with a 16-bit resolution ADC, positions this module as a durable asset capable of sustaining System Performance benchmarks across extended operational lifecycles — a critical consideration for Asset Optimization strategies in capital-intensive industries.

As a factory-certified original component, the 1756-IF16K carries TUV-validated SIL 2 functional safety certification and full compliance with CE, UL, CSA, FM, and RCM standards. Deploying certified original documentation and genuine hardware eliminates the systemic risks associated with counterfeit substitutes, preserving both regulatory standing and long-term operational continuity.

Compliance & Safety Benchmarks

✅ TUV SIL 2 Functional Safety Certification — Validated for deployment in safety-instrumented systems requiring rigorous hazard mitigation protocols.
? CE / UL / CSA / FM / RCM Multi-Standard Adherence — Ensures global regulatory compliance across North American, European, and Asia-Pacific jurisdictions.
Class I, Division 2 Hazardous Location Rating — Groups A, B, C, D; suitable for environments with potential exposure to flammable gases or vapors.
? 250 V Continuous Isolation — Basic insulation type between field inputs and backplane, protecting controller infrastructure from field-side transients.
Conformal Coating (K-Series) — Factory-applied protective coating enhances Durability against moisture, dust, and corrosive atmospheric agents, extending module service life in harsh industrial settings.
? Factory Calibration with User Recalibration Support — Maintains measurement accuracy within ±0.2% of full scale (voltage) and ±0.4% (current) at 25°C, meeting Compliance Standards for precision instrumentation.

Vertical Industry Integration & Optimization

The 1756-IF16K is purpose-engineered to serve the demanding signal acquisition requirements of high-precision vertical industries where process deviations carry significant safety and financial consequences:

Semiconductor Manufacturing: Ultra-low noise analog acquisition (>80 dB CMRR at 60 Hz) supports the precise environmental monitoring required in cleanroom fabrication processes, where temperature, pressure, and chemical flow must be maintained within sub-percent tolerances.

Pharmaceutical & Life Sciences: Compliance with international safety standards and support for Original Documentation facilitates 21 CFR Part 11 and GMP validation workflows, enabling seamless integration into validated automation environments without compromising audit trails.

Chemical & Petrochemical Processing: The Class I, Div 2 hazardous area rating and conformal coating make the 1756-IF16K a compliant choice for continuous monitoring of process variables in volatile or corrosive atmospheres, directly contributing to Lifecycle Management of safety-critical control loops.

Power Generation & Utilities: High-speed differential input mode (0.25 ms update time) enables real-time monitoring of generator output parameters and grid interface signals, supporting Operational Excellence in energy management infrastructure.

Water & Wastewater Treatment: Robust environmental ratings (0°C to 60°C operating range, 5-95% RH non-condensing) and shock tolerance (30 G operating) ensure reliable performance in outdoor and semi-exposed treatment facility installations.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 1756-IF16K unit is supplied in its original manufacturer packaging with intact factory seals, accompanied by Original Documentation including datasheets, compliance certificates, and calibration records. This ensures full traceability from production to installation — a prerequisite for regulated industry procurement audits.

Rapid Global Logistics: Leveraging established international freight partnerships, orders are processed with priority dispatch to minimize system downtime. Expedited air freight options are available for critical maintenance scenarios, with real-time shipment tracking provided from point of origin to final delivery destination.

12-Month Quality Guarantee for Legacy Systems: All units are covered by a 12-Month Quality Guarantee, providing assurance against manufacturing defects and performance deviations from published specifications. This extended warranty framework is specifically designed to support legacy system operators who require long-term component availability beyond standard OEM support windows, directly addressing Asset Optimization objectives in aging infrastructure environments.

Technical Support: Pre-sales engineering consultation and post-installation technical support are available to assist with module configuration, firmware compatibility verification, and integration into existing ControlLogix architectures.

Expert Technical FAQ

Q1: Is the 1756-IF16K compliant with IEC 61511 functional safety requirements for SIS applications?
A: Yes. The 1756-IF16K holds TUV certification for SIL 2 functional safety, making it suitable for deployment within Safety Instrumented Systems (SIS) governed by IEC 61511. Integrators should consult the module’s Safety Reference Manual and perform a formal Safety Integrity assessment as part of the SIS design lifecycle to confirm suitability for the specific process hazard scenario.

Q2: What firmware versions are compatible with the 1756-IF16K, and how does firmware revision affect certification status?
A: The 1756-IF16K is compatible with RSLogix 5000 / Studio 5000 Logix Designer software. Firmware compatibility is governed by the ControlLogix controller revision in use. It is critical to verify that the controller firmware revision supports the module’s Add-On Profile (AOP) to maintain full diagnostic functionality. Upgrading controller firmware without validating AOP compatibility may affect certified system configurations — always reference Rockwell Automation’s Product Compatibility and Download Center (PCDC) prior to any firmware change in a certified environment.

Q3: Can the 1756-IF16K be installed in a Class I, Division 1 hazardous location?
A: No. The 1756-IF16K is rated for Class I, Division 2, Groups A, B, C, D environments only. Installation in Division 1 locations — where ignitable concentrations of flammable gases or vapors are present under normal operating conditions — requires components with a higher hazardous area classification. Consult applicable NEC/CEC standards and a certified hazardous area specialist before specifying this module for Division 1 applications.

Q4: How does the conformal coating on the 1756-IF16K affect field wiring and terminal block replacement procedures?
A: The conformal coating is applied to the module’s PCB assembly and does not affect the removable terminal block (RTB) interface. The 36-pin RTB (1756-TBCH or 1756-TBS6H) can be disconnected and replaced in the field without disturbing the coated module body. However, technicians should follow Rockwell Automation’s published procedures for RTB removal to avoid mechanical stress on coated solder joints, and should inspect the coating integrity annually as part of a structured Lifecycle Management maintenance protocol.

Q5: What environmental conditioning is required before commissioning the 1756-IF16K after cold storage or long-term warehousing?
A: Units stored at temperatures below 0°C should be allowed to acclimatize to operating temperature range (0°C to 60°C) for a minimum of 2 hours before power-up to prevent condensation on internal circuitry. Humidity exposure during storage should remain within the 5-95% non-condensing specification. For units stored beyond 24 months, a pre-commissioning functional verification test against published accuracy specifications is recommended to confirm that calibration drift remains within Compliance Standards tolerances.

Q6: How does the 1756-IF16K support predictive maintenance and condition monitoring within an Industry 4.0 framework?
A: The module provides channel-level diagnostic data including over-range, under-range, and wire-off detection, which can be mapped to controller tags and integrated into SCADA or MES platforms for real-time condition monitoring. When combined with Rockwell Automation’s FactoryTalk suite, these diagnostics enable predictive maintenance workflows that align with Asset Optimization strategies — reducing unplanned downtime and extending the effective service life of the broader control system architecture.
