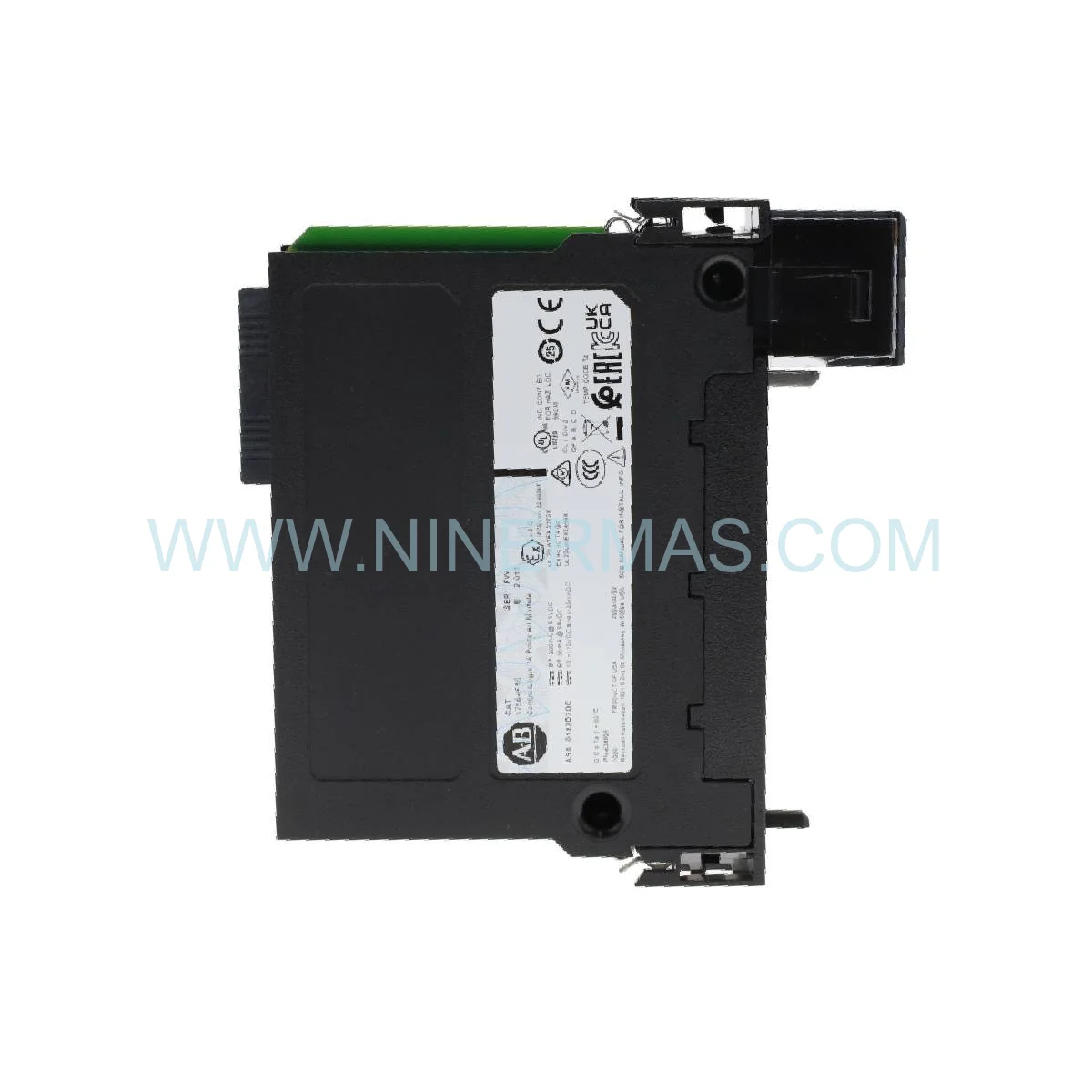

Allen-Bradley 1756-IF16 ControlLogix 16-Ch Analog Input Module | New & Original

Allen-Bradley 1756-IF16 ControlLogix Analog Input Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical process environments, the Allen-Bradley 1756-IF16 stands as a cornerstone I/O module for sustaining system availability in high-demand industrial networks. The 1756-IF16 delivers 16 independently configurable analog input channels with 16-bit A/D resolution, enabling precise signal acquisition across voltage and current ranges — a capability that directly reduces unplanned downtime and supports operational excellence in continuous-process facilities.

Engineered for durability in harsh industrial conditions, this module operates reliably across a 0°C to 60°C ambient range and incorporates channel-to-backplane isolation to suppress electromagnetic interference common in heavy manufacturing environments. During installation, engineers should verify electronic keying settings within RSLogix 5000 / Studio 5000 to prevent module mismatch faults, and ensure backplane power budgets accommodate the 800mA @ 5V DC draw before commissioning.

As production lines age and OEM support windows close, maintaining a verified stock of the 1756-IF16 as a critical spare part is a proven strategy for minimizing mean time to repair (MTTR). Its seamless integration into existing ControlLogix chassis architectures means replacement can be executed without system redesign — a decisive advantage when every minute of downtime carries measurable financial impact.

Key Operational Features

16 Independent Analog Input Channels — Each channel individually configurable for ±10V DC, 0-10V DC, 0-20mA, or 4-20mA input ranges, supporting heterogeneous field device integration.
16-Bit A/D Conversion Resolution — Delivers high-fidelity measurement accuracy essential for process optimization in refining, power generation, and precision manufacturing.
Channel-to-Backplane Isolation — Provides robust noise immunity, protecting signal integrity in electrically noisy industrial environments and enhancing system integration reliability.
Configurable Update Rates (10ms 1000ms) — Allows engineers to balance scan performance with system load, supporting both fast-loop control and slower supervisory monitoring.
Hot-Swap / Electronic Keying Support — Enables live module replacement under controlled conditions, minimizing process interruption during corrective maintenance.
RSLogix 5000 / Studio 5000 Native Compatibility — Full software integration with Rockwell Automation’s programming environment for alarm management, scaling, and diagnostic configuration.

Maintenance & Performance Benchmarks

The 1756-IF16 is architected to perform across a wide spectrum of industrial network scales — from compact standalone ControlLogix chassis in skid-mounted equipment to large distributed control architectures spanning multiple racks across plant floors.

In redundant controller configurations, the module participates in seamless failover sequences without signal dropout, a critical attribute for high-availability process loops. Its deterministic update cycle supports tight PID loop execution, while the configurable input filtering (notch filter at 10Hz, 50Hz, or 60Hz) allows adaptation to regional power grid frequencies — a practical consideration for global deployments.

Benchmark data from field deployments indicates that proper channel shielding and grounding practices extend calibration intervals significantly. Engineers are advised to perform periodic offset and gain verification using the module’s built-in diagnostic registers accessible via the controller tag database, ensuring long-term measurement drift remains within specification for process optimization targets.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1756-IF16 unit dispatched from our facility is supplied in original factory packaging, complete with manufacturer documentation and protective anti-static enclosures. For in-stock units, same-day dispatch is available for orders confirmed before the daily cut-off, supporting urgent maintenance scenarios where production continuity is at stake.

We maintain a dedicated global supply channel for end-of-life (EOL) and legacy ControlLogix modules, ensuring that facilities operating older automation architectures can source verified components without compromising system integration integrity. Our procurement network spans authorized distribution channels across North America, Europe, and Asia-Pacific, providing worldwide express logistics with full shipment tracking from origin to destination.

All units are subject to pre-shipment functional verification and are accompanied by a certificate of conformance upon request — a standard practice for mission-critical procurement in regulated industries such as oil & gas, pharmaceuticals, and power utilities.

Engineering Support & FAQ

Q1: What are the recommended installation steps for the 1756-IF16 in an existing ControlLogix chassis?
A: Power down the chassis or confirm hot-swap compatibility in your system configuration. Insert the module into an available slot, verify electronic keying in Studio 5000 (Exact Match or Compatible Module), and configure each channel’s input range and update rate via the module properties dialog. Validate signal integrity using the controller tag database before going online.

Q2: Which firmware versions are compatible with the 1756-IF16?
A: The 1756-IF16 is compatible with RSLogix 5000 v16 and later, as well as Studio 5000 Logix Designer v21 and above. For chassis running older controller firmware, verify the module’s major/minor revision against the controller’s compatibility matrix in Rockwell Automation’s Product Compatibility and Download Center (PCDC).

Q3: Can voltage and current input types be mixed on the same 1756-IF16 module?
A: Yes. Each of the 16 channels is independently configurable, allowing simultaneous use of voltage (±10V, 0-10V) and current (0-20mA, 4-20mA) inputs on a single module — a key advantage for system integration in mixed-sensor environments.

Q4: How does the warranty claim process work?
A: In the event of a confirmed manufacturing defect within the 1-year warranty period, contact our technical support team with the unit’s serial number and a description of the fault. We will arrange expedited replacement or repair, with return shipping coordinated through our logistics network to minimize your operational disruption.

Q5: Does the 1756-IF16 support HART protocol for smart field devices?
A: No. The standard 1756-IF16 does not support HART communication. For HART-enabled analog input requirements, the 1756-IF16H or 1756-IF16IH variants are the appropriate selections within the ControlLogix I/O Modules family.

Q6: What is the maximum wiring distance for analog field signals to the 1756-IF16?
A: For voltage inputs, shielded cable runs up to 100 meters are recommended to maintain signal fidelity. Current loop inputs (4-20mA) support cable runs up to 300 meters due to their inherent noise immunity — a practical consideration for large-footprint process facilities.
